BL 600

Scissor lift for motorbikes and scooters

BL600

Greater load capacity, greater ease of use and easier access to the wheel

Get a Quote
Brochure
Images

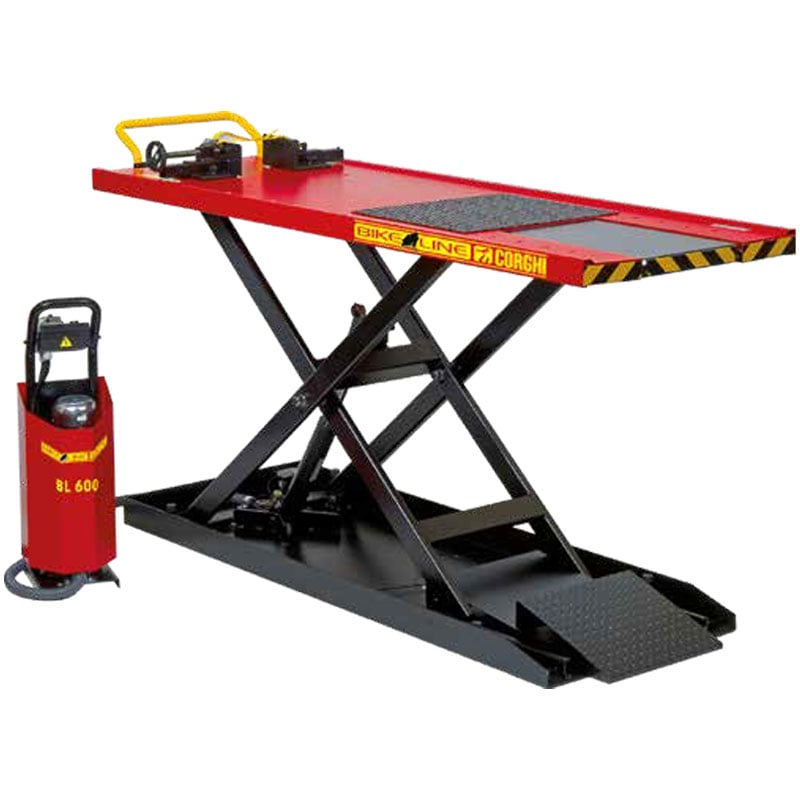

The BL 600 is Corghi’s electro-hydraulic scissor lift, designed for lifting motorcycles, scooters, and three-wheeled vehicles. With a load capacity of 600 kg and a maximum lifting height of 1,200 mm, it is the ideal solution for workshops specializing in motorcycle maintenance and service.

The platform features a retractable access panel to facilitate wheel replacement and an adjustable manual clamp that allows the front wheel to be secured in various positions. A unique mechanical system reduces the speed during the final phase of descent, enhancing comfort and operational safety.

The range also includes the BL 300 model, a Pneumo-hydraulic version with a load capacity of 300 kg, ideal for scooters and lightweight motorcycles.

Benefits

Load capacity up to 600 kg

Built-in hatch for the wheel

Secure locking of the motorbike

Greater versatility of use

Features and functions

ELECTRO-HYDRAULIC SCISSOR LIFT

Stable and controlled vertical movement with a maximum height of 1,200 mm.

RETRACTABLE HATCH

It allows direct access to the wheel to make maintenance work easier.

ADJUSTABLE MANUAL VICE

Integrated front wheel locking system that can be easily positioned along the platform.

RELIEF VALVE

It prevents uncontrolled movements in the event of an accidental hydraulic hose rupture.

Technical data

Type

Ponte sollevatore elettroidraulico a forbice per moto
Maximum flow rate

600 kg
Maximum height

1.200 mm
Ascent/descent time

30 s
Pot

0,75 kW
To the

400 V 3Ph / 230 V 1Ph
Bridge weight

275 kg
Type

Ponte sollevatore elettroidraulico a forbice per moto

Maximum flow rate

600 kg

Maximum height

1.200 mm

Ascent/descent time

30 s

Pot

0,75 kW

To the

400 V 3Ph / 230 V 1Ph

Bridge weight

275 kg
