EM 9050 Slide

Compact wheel balancer for cars, SUVs and commercial vehicles

EM9050_Slide

The perfect professional wheel balancing service for mobile use

Get a Quote
Brochure
Images

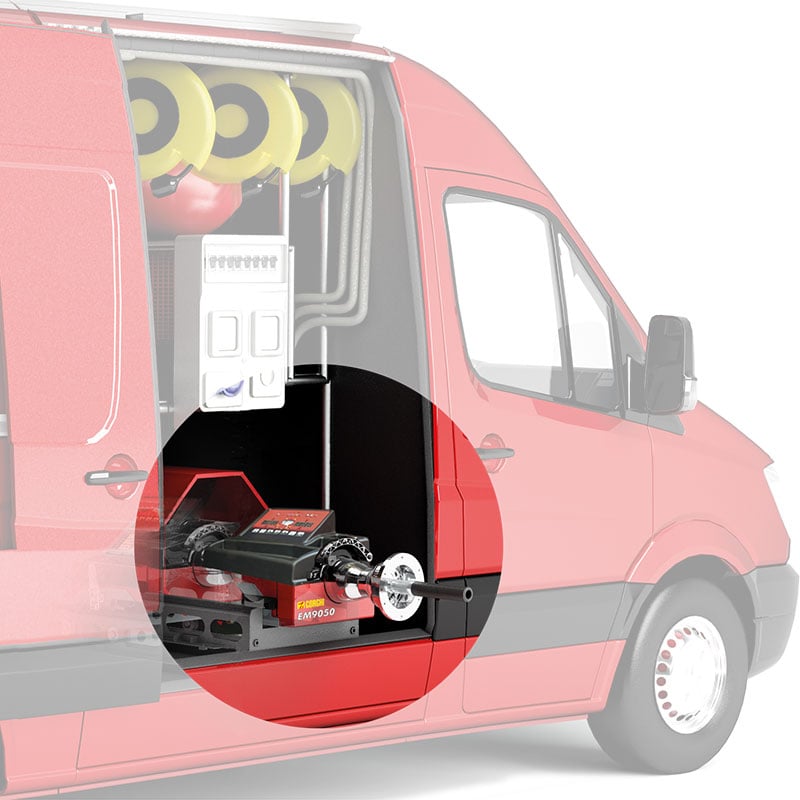

The EM 9050 Slide is the Corghi wheel balancer designed specifically for mobile service, ideal for those who work directly at the customer’s location or inside vehicles equipped for roadside service. Thanks to its innovative pull-out system, it can be installed in the side compartment of a van and used conveniently outdoors, transforming any vehicle into a true mobile workshop.

Despite its extremely compact size, it incorporates advanced technologies such as the Smart Arm system with FSP function, which automatically detects wheel parameters and selects the correct balancing program, reducing work time and improving the precision of the results.

The measuring unit is derived from higher-end wheel balancers and allows for work on wheels weighing up to 85 kg, offering professional performance in a machine designed for maximum mobility.

Also available in Space Saver, Tilt Up, and Workbench versions, designed for different installation and usage needs.

Benefits

Designed to work anywhere

Compact yet professional

Higher speed

Ideal for breakdown assistance and fleet operations

Features and functions

SLIDE CONFIGURATION FOR MOBILE SERVICE

The standout feature of the EM9050 Slide is its pull-out system, which allows the machine to be installed inside a van and used easily outdoors. A solution designed to maximise convenience and productivity during field operations

SMART ARM WITH FSP – AUTOMATIC MEASUREMENT

The Smart Arm system automatically measures the distance, diameter and width of the wheel. Thanks to the Fast Selection Programme function, the balancing programme is selected automatically, eliminating the need for manual settings and speeding up the process

MULTIFUNCTION DIGITAL DISPLAY

The digital display provides immediate access to the balancing programmes and the main operating functions. The interface is intuitive and allows for quick operation, even for the most routine tasks.

NEW-GENERATION MEASUREMENT UNIT

Based on top-of-the-range models, this wheel balancing unit guarantees precision, reliability and professional performance. It is designed to balance wheels weighing up to 85 kg, whilst ensuring short processing times and accurate results.

Technical data

Power supply

115/230 V – 1Ph
Total power consumption

100 W (MO) / 10 W (HS)
Balancing speed

98 rpm
Average measurement time

5 s
Resolution

1 g
Maximum detectable imbalance

999 g
Shaft diameter

40 mm (1,57”)
Adjustable rim width

1,5” – 20”
Adjustable rim diameter

1” – 35”
Measurable rim diameter

10” – 28” (automatico)
Maximum distance between wheel and machine

250 mm (9,85”)
Maximum wheel diameter

1118 mm (44”)
Maximum wheel weight

85 kg
Machine weight

63 kg
Dimensions (W x D x H)

863 x 509 x 454 mm
Power supply

115/230 V – 1Ph

Total power consumption

100 W (MO) / 10 W (HS)

Balancing speed

98 rpm

Average measurement time

5 s

Resolution

1 g

Maximum detectable imbalance

999 g

Shaft diameter

40 mm (1,57”)

Adjustable rim width

1,5” – 20”

Adjustable rim diameter

1” – 35”

Measurable rim diameter

10” – 28” (automatico)

Maximum distance between wheel and machine

250 mm (9,85”)

Maximum wheel diameter

1118 mm (44”)

Maximum wheel weight

85 kg

Machine weight

63 kg

Dimensions (W x D x H)

863 x 509 x 454 mm
