EM 9580 C Plus LaserLine Touchscreen VOLKSWAGEN

Electronic wheel balancer with a 22-inch touchscreen monitor

VAS_741_089_EM9580C

Automatic data acquisition, electromechanical locking and maximum centring accuracy

Get a Quote
Brochure
Images
The VAS 741 089 is a professional electronic wheel balancer equipped with a 22-inch widescreen Touchscreen monitor, designed to make wheel balancing operations faster, more precise, and more intuitive. The machine handles wheels weighing up to 85 kg, with a maximum diameter of 1,118 mm, and rims up to 28”.
The SMART ARM PLUS digital measuring system automatically detects the wheel’s diameter and distance and integrates FSP and LaserBlade technologies, simplifying program selection and the identification of balancing planes. The AWD automatic sensor, meanwhile, detects the wheel’s width without physical contact.
The electromechanical automatic wheel clamping system reduces operating times and increases centring accuracy. The WM PLUS function also reduces processing times by up to 20% and counterweight usage by up to 30%, delivering immediate economic and environmental benefits.

Benefits

Reduces balancing time

Improves centring accuracy

Reduces the use of counterweights

Optimise workshop space

Features and functions

SMART ARM PLUS with FSP and LaserBlade

The digital gauge automatically measures the wheel’s diameter and distance. The integrated FSP and LaserBlade technologies speed up programme selection and clearly identify the planes on which to apply the counterweights.

Automatic wheel lock

The electromechanical system automatically locks the wheel onto the balancer’s spindle, helping to reduce processing times and improve the accuracy of the balancing process.

Automatic AWD width detection

The AWD (Auto Width Device) sensor automatically and non-contact measures the width of the wheel, thereby completing the collection of the data required for the balancing cycle.

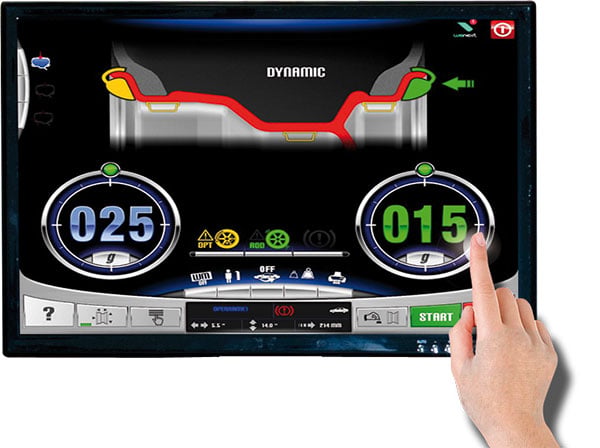

22-inch touchscreen interface

22-inch touchscreen interface

The large widescreen monitor with touchscreen interface makes it easy to view data and select functions during day-to-day operations.

WM PLUS

WM PLUS
The WM PLUS function optimises the use of counterweights and processing time, enabling a reduction of up to 20 per cent in operating times and up to 30 per cent in the use of weights.

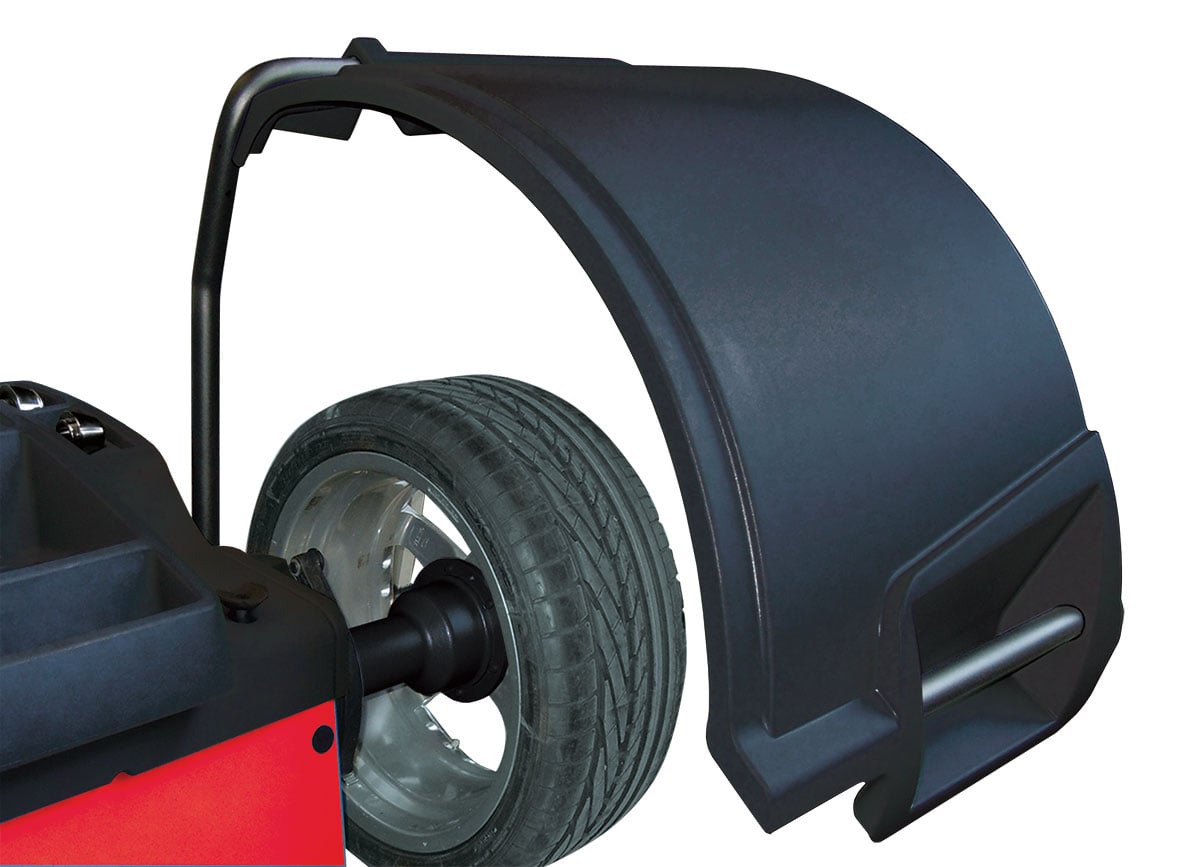

Space-saving wheel guard

Space-saving wheel guard
The housing is designed to allow the wheel balancer to be positioned close to the wall and enables work to be carried out on wheels with a maximum diameter of 44”, equivalent to 1,118 mm.

Ergonomic weight tray

The tray features spacious compartments designed for different types of counterweights and tools, keeping everything you need tidy and easily accessible.

Technical data

Maximum rim diameter

28″
Maximum rim width

20″
Maximum wheel diameter

1.118 mm / 44”
Maximum tyre width

600 mm / 23,6”
Maximum wheel weight

85 kg
Shaft diameter

42 mm
Centring field

42 ÷ 118,5 mm
Monitor

22” widescreen touchscreen
Power supply

110–230 V / 1Ph / 50–60 Hz
Net weight

140 kg
Maximum dimensions

1.453 × 894 × 1.858 mm
Maximum rim diameter

28″

Maximum rim width

20″

Maximum wheel diameter

1.118 mm / 44”

Maximum tyre width

600 mm / 23,6”

Maximum wheel weight

85 kg

Shaft diameter

42 mm

Centring field

42 ÷ 118,5 mm

Monitor

22” widescreen touchscreen

Power supply

110–230 V / 1Ph / 50–60 Hz

Net weight

140 kg

Maximum dimensions

1.453 × 894 × 1.858 mm
