The ERCO 25 TP is a pneumatic platform designed to facilitate all wheel-service operations. Thanks to its compact structure, symmetrical “H” configuration, and ease of use, it offers a practical solution for tire shops and auto repair shops that require quick and safe lifting during their daily operations.
The 2,500 kg lifting capacity is achieved via an air spring that allows the maximum capacity to be reached with a supply pressure limited to just 7 bar.
The design allows access from both sides and facilitates easy work on passenger cars, SUVs, off-road vehicles, and light commercial vehicles.
The movable ramps facilitate balancing operations, and the two-stage configuration also allows sports cars with low-mounted spoilers to access the platform without interference. An optional configuration with adjustable arms is also available to increase versatility.
ERCO 25TP
Pneumatic
lifting
platform for wheel
and tyre servicing
Compact,
versatile and designed
to speed
up
the work of tyre fitters
and garages
Benefits
Ideal for wheel servicing
Extremely easy to use
Also compatible with lowered cars
Integrated pneumatic safety system
Features and functions
SYMMETRICAL ‘H’-SHAPED STRUCTURE
It allows access to the deck from both sides, improving convenience and flexibility when positioning the vehicle.
LIFTING USING AN AIR SPRING
A pneumatic system that delivers a load capacity of 2,500 kg at a low supply pressure.
TWO-STAGE MOBILE RAMPS
They make it easier for vehicles to access the area and can also be used with sports cars and low-slung vehicles.
CONTROL PEDAL ASSEMBLY
Fitted with an emergency stop button and an additional air inlet for practical and safe handling of lifting operations.

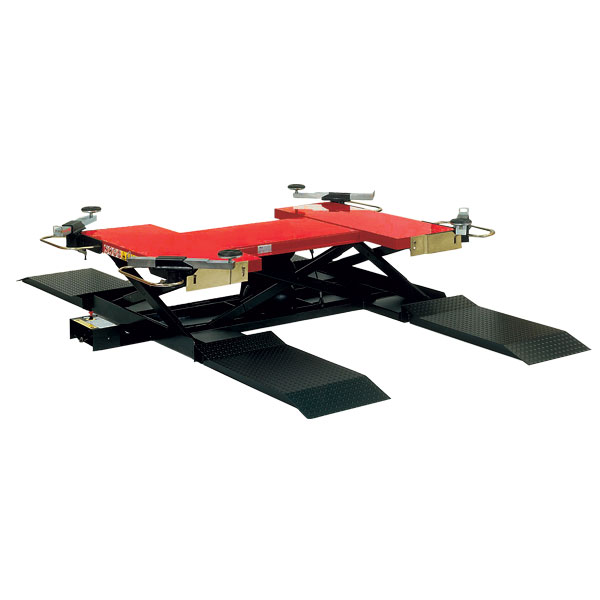

OPTIONAL ARM KIT
Adjustable swivel arms with automatic locking and pads of various heights are available to enhance the platform’s versatility.
Technical data
| Type | Pneumatic lifting platform |
| Maximum flow rate | 2,500 kg |
| Minimum height | 115 mm |
| Maximum height | 500 mm |
| Supply pressure | 7 bar |
| Weight | 390 kg |
| Maximum width | 2,240 mm |
| Maximum length including ramps | 3,520 mm |
Pneumatic lifting platform
2,500 kg
115 mm
500 mm
7 bar
390 kg
2,240 mm
3,520 mm
