PROADAS RS DIGITAL

Digital ADAS calibration and suspension alignment in a single system

Fast. Accurate. Ergonomic. Intuitive.

Get a Quote
Brochure
Images

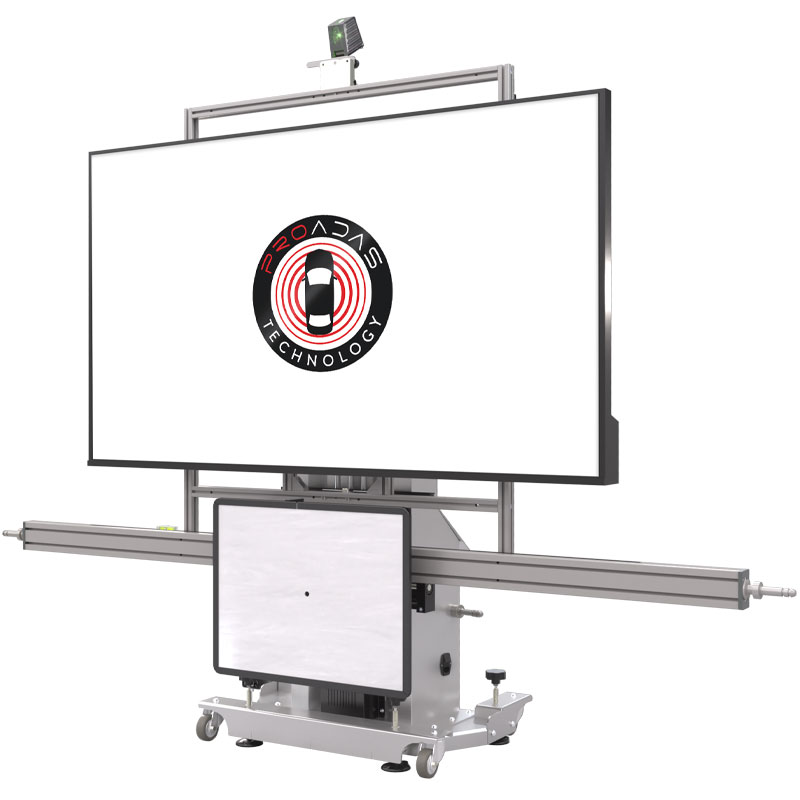

PROADAS RS DIGITAL is Corghi’s universal and modular system for testing and calibrating driver assistance systems on passenger cars and commercial vehicles of various makes. The 75-inch screen digitally displays calibration panels at the 1:1 scale, in accordance with manufacturers’ specifications, reducing workshop space requirements and accelerating the availability of new panels.

The RS configuration uses four CCD sensors to align the workstation with the vehicle and verify its alignment status; with optional equipment, the system can be transformed into a complete wheel alignment service station.

Benefits

Just one operator for positioning and adjustments

Less space taken up and new panels available more quickly

Real-time, error-proof guided positioning

Maximum precision in the calibration of ADAS systems

Integrated attitude control with four CCD sensors

Full set-up service with optional configuration

Features and functions

75-INCH DIGITAL SCREEN

It reproduces calibration panels on a 1:1 scale, in accordance with the manufacturers’ specifications

ALL-IN-ONE SYSTEM

ADAS calibration, wheel alignment check and optional full wheel alignment service, all carried out at a single workstation.

RS CONFIGURATION WITH 4 CCD SENSORS

Two sensors on the bar and two on the rear axle align the system precisely with the vehicle

GUIDED POSITIONING

The wireless devices provide real-time location updates and guide the operator step by step.

ERROR-PROOF SOFTWARE

Pre-set values and simplified procedures reduce errors and make it easy to use straight away.

ELECTRIC HANDLING

The motorised raising and lowering mechanisms allow a single technician to carry out all the adjustments.

ERGONOMICS AND MOBILITY

Adjustments are made from the same position; four swivel castors make it easy to move around.

CAN ALSO BE USED ON A BRIDGE

The software compensates for the offset of the levelled surface when the vehicle is on a weighbridge or other structure.

DIAGNOSTIC COMPATIBILITY

Suitable for use with official OEM and multi-make diagnostic tools.

Technical data

Digital display

75”
Maximum width

2610 mm
Maximum height

1816 mm
Maximum depth

897 mm
Weight

206 kg
Digital display

75”

Maximum width

2610 mm

Maximum height

1816 mm

Maximum depth

897 mm

Weight

206 kg
