ERCO 505

Low-profile scissor-type underbody lift with independent platforms

Compact, stable and ideal for day-to-day maintenance

The ERCO 505 is a Corghi underbody scissor lift designed for maintenance, tire service, and general servicing of passenger cars and light commercial vehicles. With a lifting capacity of 3,500 kg, independent platforms, and a low-profile design, it offers operational convenience, accessibility, and maximum stability during lifting.

The platform features a Master/Slave hydraulic levelling system that automatically keeps the platforms synchronized during each cycle, without the use of mechanical racks.

Also available in the ERCO 500 version with a maximum capacity of 3,000 kg.

Benefits

Load capacity up to 3,500 kg

Low profile

Maximum stability

Versatile configurations

Features and functions

HYDRAULIC LEVELLING PLATFORMS

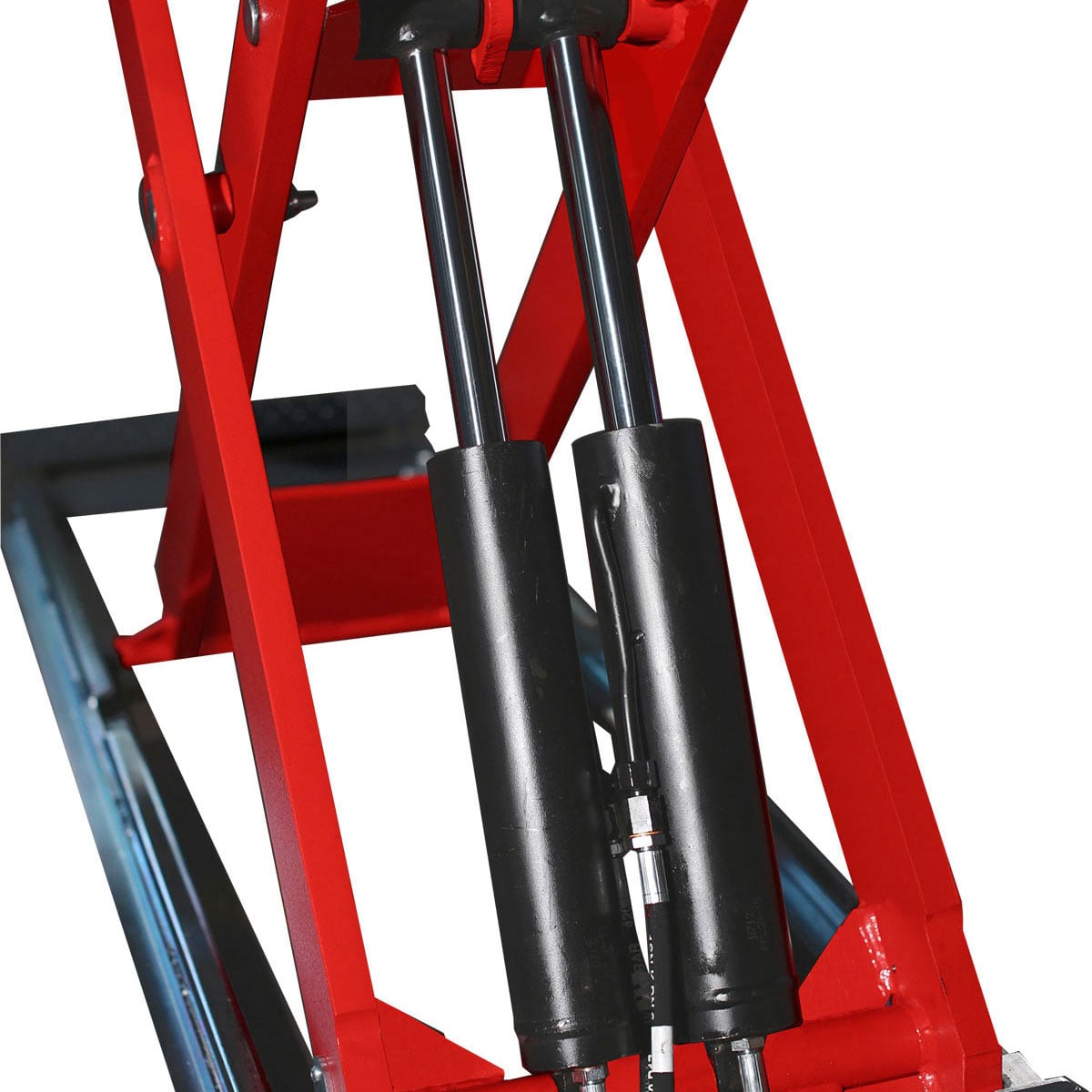

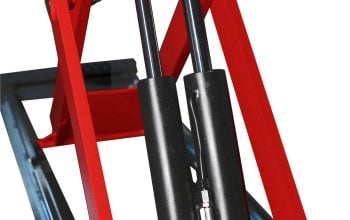

The master/slave system with twin platform cylinders ensures perfect synchronisation throughout all stages of operation and automatic realignment at the end of each cycle.

STEP PLATFORMS WITH EXTENSION

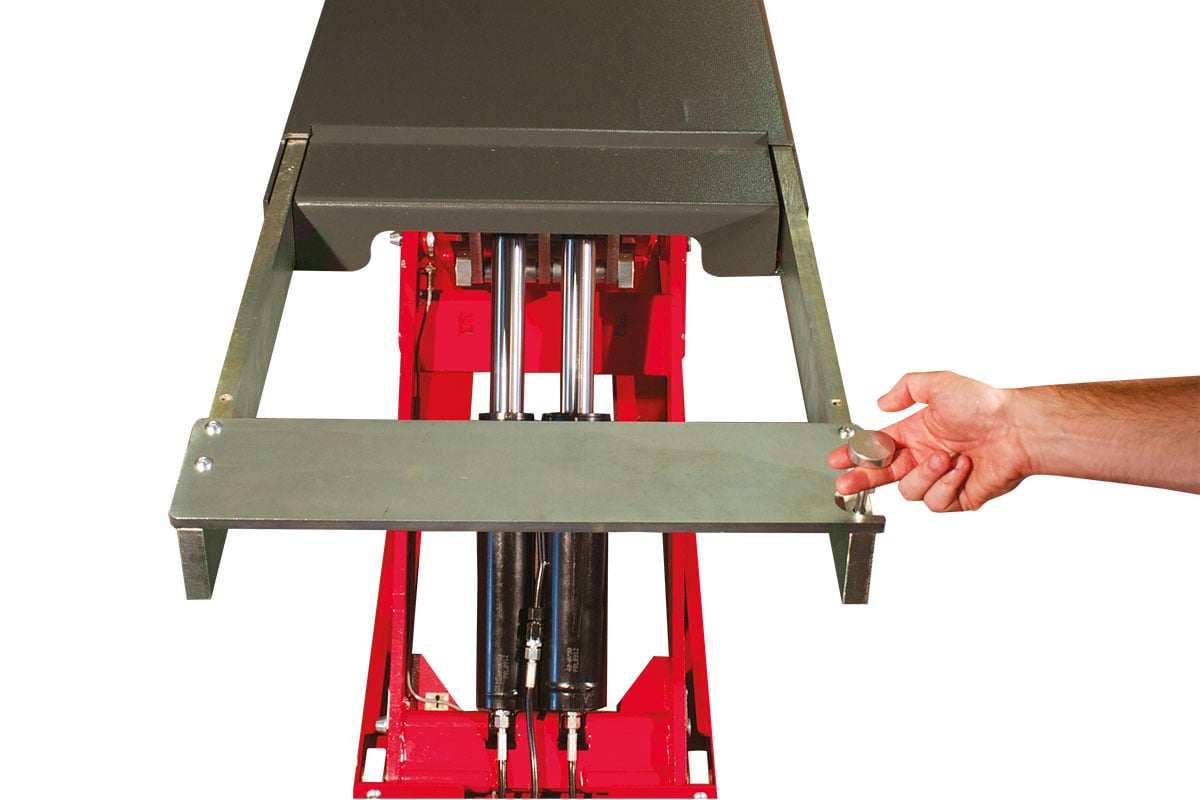

The ERCO 505 version features drawer-style extensions that make it easy to adjust the length to suit different types of vehicle.

STURDY AND STABLE STRUCTURE

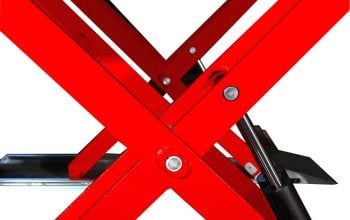

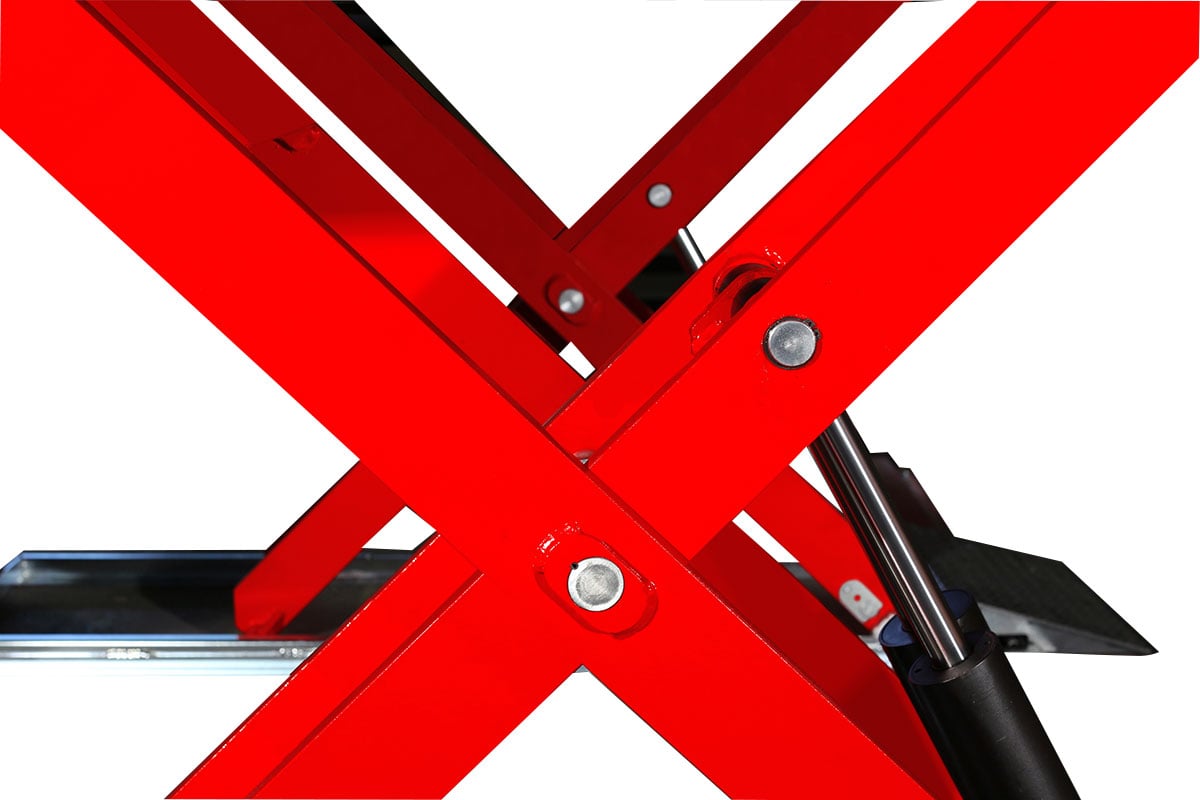

The size of the structure, the self-lubricating slides and the high-strength components ensure reliability and a long service life.

COMPLIES WITH STANDARD EN 1493:2022

The lift fully complies with the requirements of European standard EN 1493:2022 for vehicle lifts.

Technical data

Type	Ponte sollevatore sottoscocca a forbice
Maximum flow rate	3.500 kg
Maximum lifting height	2.000 mm

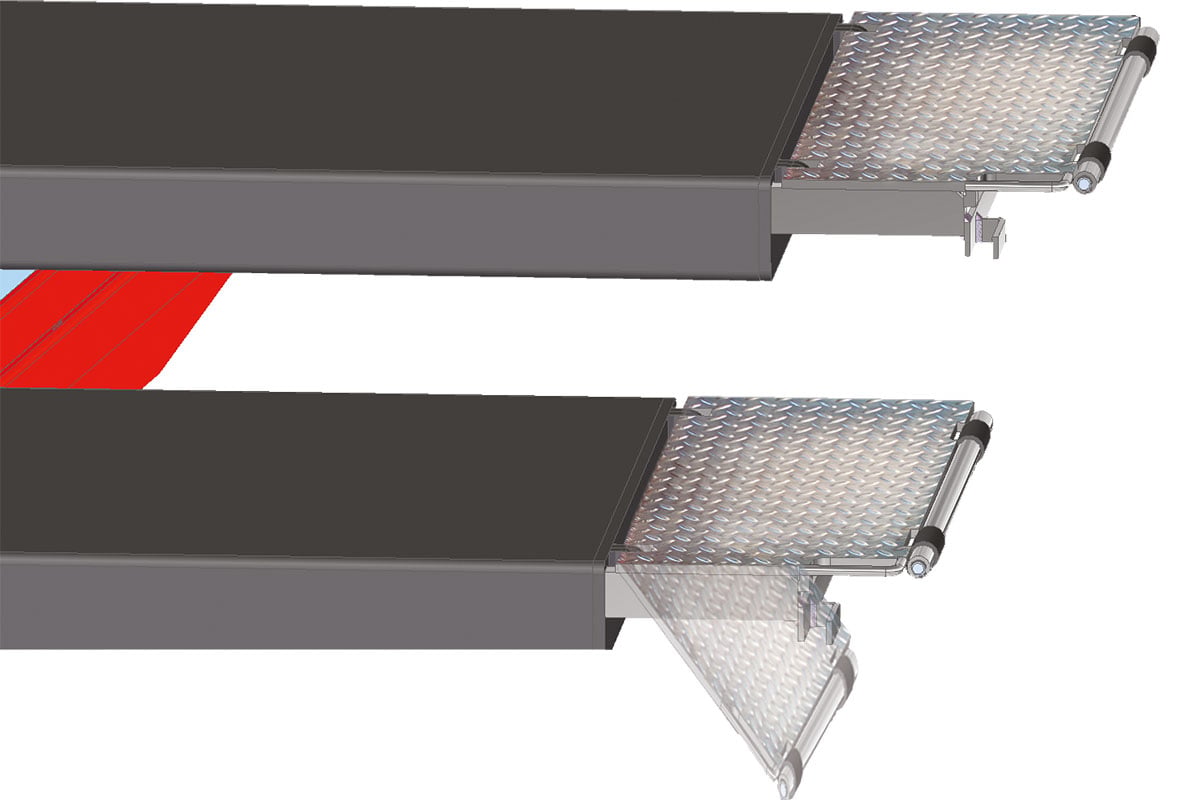

Footrests	Con estensione o flap
Levelling system	Idraulico master/slave
Engine power	3 kW
Power supply	230-400 V 3Ph / 230 V 1Ph
With	EN 1493:2022

Type

Ponte sollevatore sottoscocca a forbice

Maximum flow rate

3.500 kg

Maximum lifting height

2.000 mm

Footrests

Con estensione o flap

Levelling system

Idraulico master/slave

Engine power

3 kW

Power supply

230-400 V 3Ph / 230 V 1Ph

With

EN 1493:2022
