ERCO 635E

ECO-Line low-profile double-scissor lift

ERCO635E

Simplicity, reliability and value for money for day-to-day maintenance

Get a Quote
Brochure
Images

The ERCO 635E is the low-profile double scissor lift from Corghi’s ECO-Line range, designed to offer a reliable, simple, and cost-effective solution for routine maintenance on cars, SUVs, and light commercial vehicles.

The ECO-Line design prioritizes sturdiness and simplicity of construction, eliminating electronic components on the scissor side and reducing potential sources of error. The dual Hydraulic Master/Slave system ensures proper alignment of the platforms and safe, reliable operation over time.

Also available in the ERCO 630E version with a maximum capacity of 3,000 kg.

Benefits

Load capacity up to 3,500 kg

Maximum simplicity of construction

Standard Master/Slave system

Available with flaps or extensions

Features and functions

ECO-LINE TECHNOLOGY

A design philosophy focused on reliability, featuring essential components, simplified maintenance and low running costs.

DOUBLE MASTER/SLAVE CIRCUIT

Each platform is controlled by two hydraulic cylinders, which ensure synchronisation and safety without the need for mechanical racks.

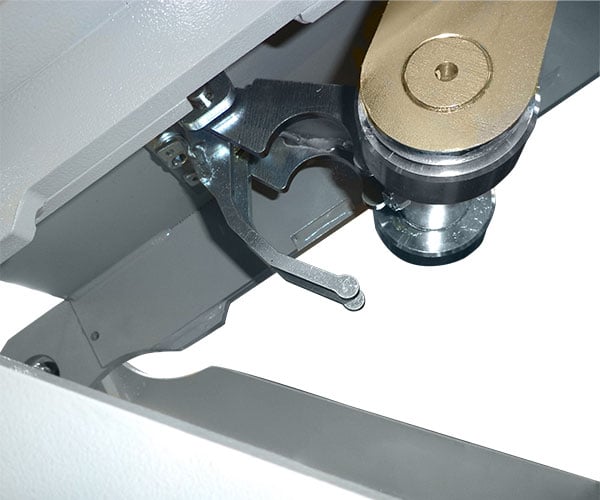

'COCCODRILLO' SAFETY DEVICE

'COCCODRILLO' SAFETY DEVICE

A mechanical system that stops the lift in the event of excessive misalignment between the right and left sides.

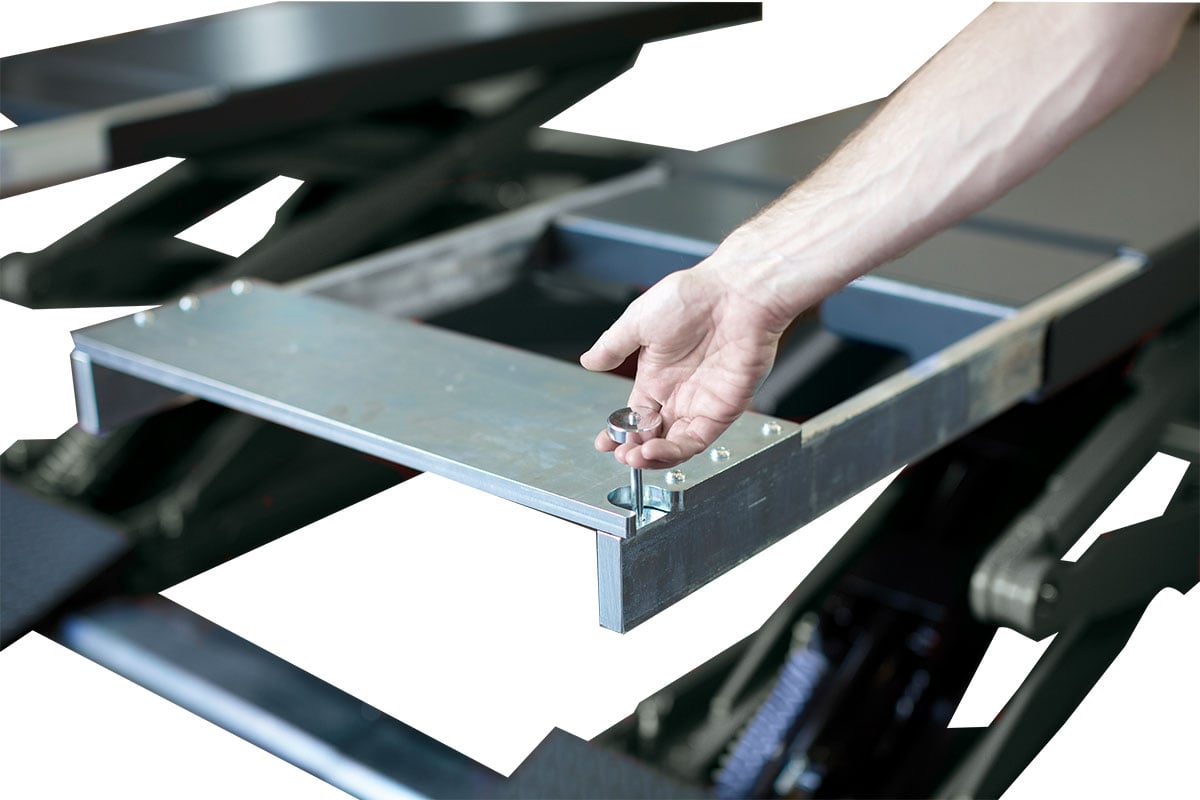

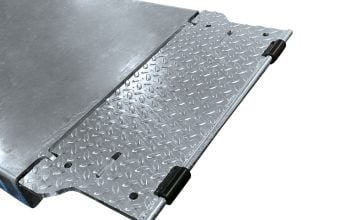

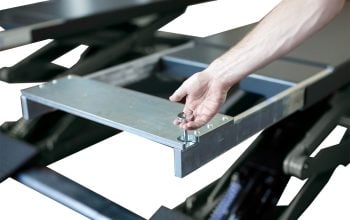

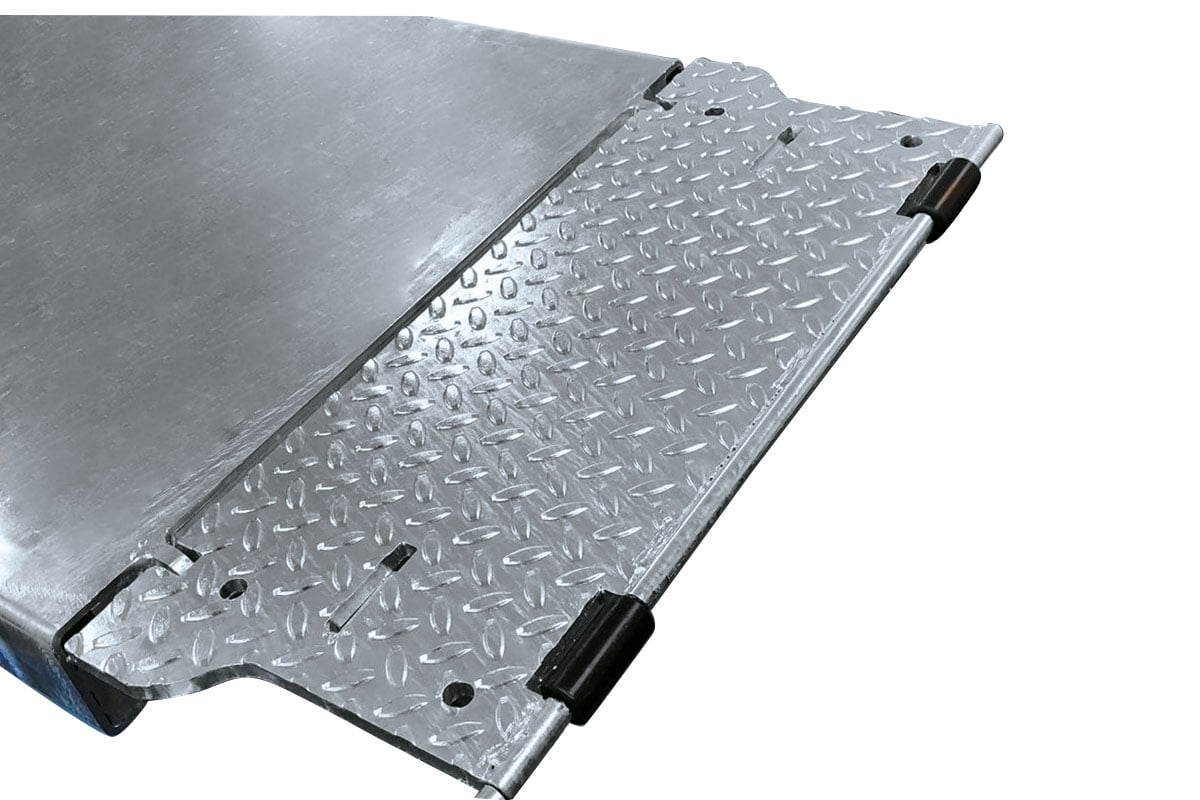

FOOTREST WITH FLAPS OR EXTENSIONS

Available with extendable platforms or with integrated flaps that act as access ramps.

Technical data

Type

Ponte sollevatore a doppia forbice low profile ECO-Line
Maximum flow rate

3.500 kg
Maximum lifting height

2.000 mm
Installation

A pavimento o ad incasso
Levelling system

Doppio circuito idraulico Master/Slave
Engine power

3 kW
Power supply

230/400 V – 3 Ph – 50/60 Hz
Ascent/descent time

40 s
Type

Ponte sollevatore a doppia forbice low profile ECO-Line

Maximum flow rate

3.500 kg

Maximum lifting height

2.000 mm

Installation

A pavimento o ad incasso

Levelling system

Doppio circuito idraulico Master/Slave

Engine power

3 kW

Power supply

230/400 V – 3 Ph – 50/60 Hz

Ascent/descent time

40 s
