ERCO C636 EF

Electro-hydraulic underbody
double-scissor lift

ERCO_C636EF

Compact, robust
and designed
for day-to-day maintenance

Get a Quote
Brochure
Images

The ERCO C636 EF is an electro-hydraulic underbody double scissor lift designed for tire shops, auto repair shops, and body shops. With a lifting capacity of 3,600 kg, a compact structure, and platforms with integrated flaps, it offers a reliable and versatile solution for daily maintenance tasks.

The alignment of the platforms is controlled by a MASTER/SLAVE hydraulic Master/Slave system with double cylinder pairs, ensuring precise and safe movements without the use of mechanical racks.

Also available in the ERCO C632 EF version with a maximum capacity of 3,200 kg.

Benefits

Load capacity up to 3,600 kg

Maximum ease of use

Low-profile

Floor-standing or built-in version

Features and functions

HYDRAULIC MASTER/SLAVE SYSTEM

The synchronisation of the platforms is ensured by a pair of hydraulic cylinders, which maintain constant alignment throughout the entire working cycle.

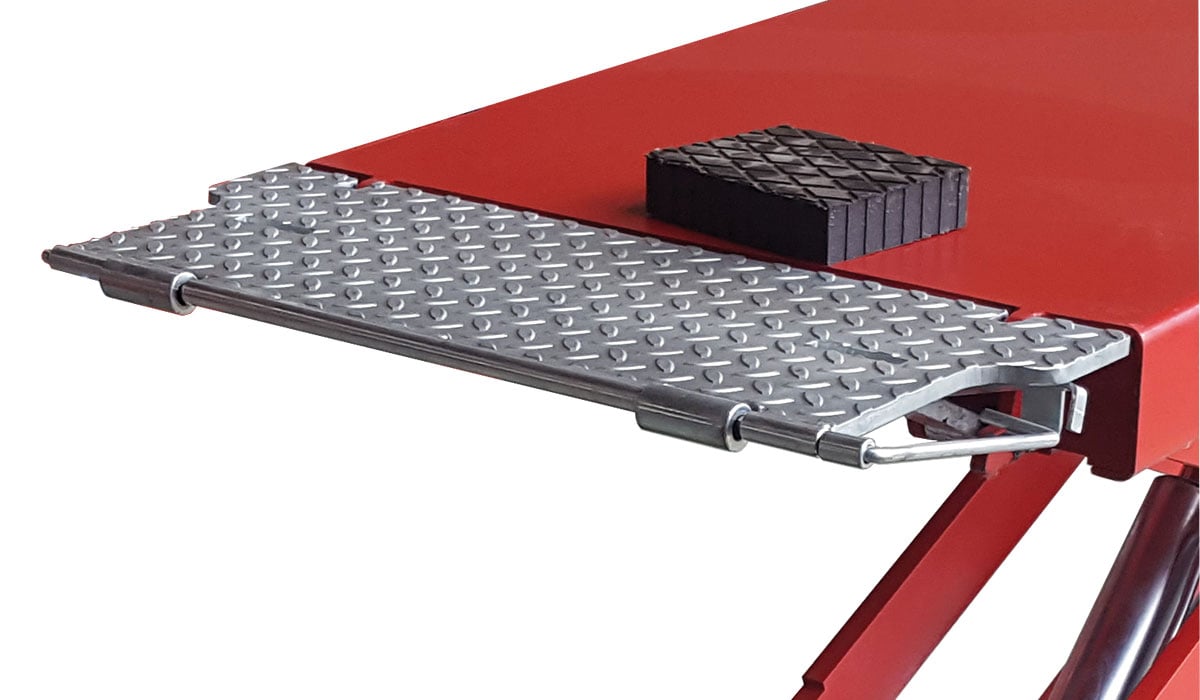

FOOTREDS WITH HANGING FLAPS

The integrated flaps act as ramps for the vehicle to drive up and improve access to the deck.

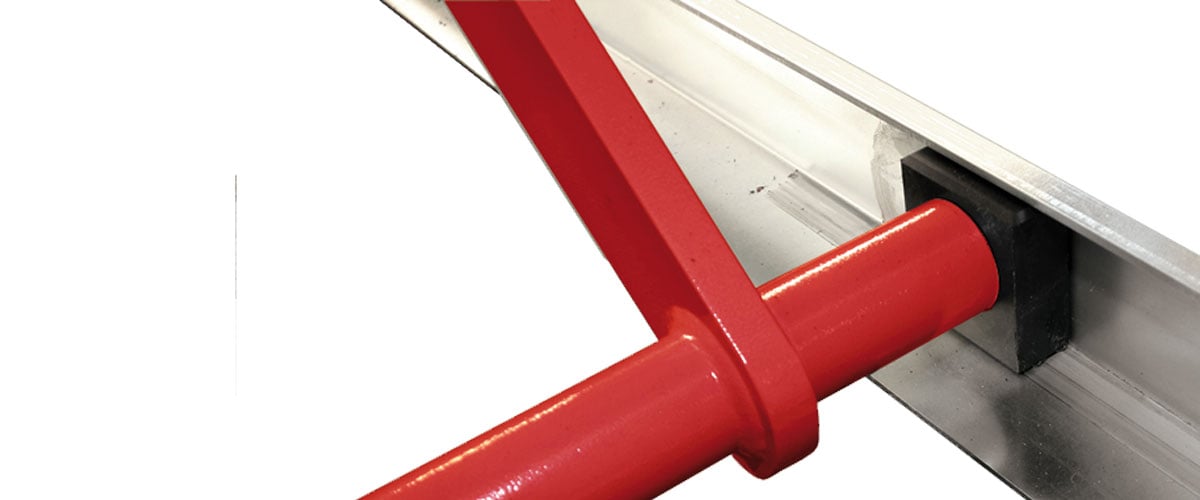

SELF-LUBRICATING SLIDERS

Large bearings and self-lubricating bushings help to improve reliability and durability.

DOUBLE-SCISSOR STRUCTURE

The unique geometry of the arms ensures high structural rigidity and a minimal operational footprint.

Technical data

Type

Ponte sollevatore elettroidraulico sottoscocca a doppia forbice
Maximum flow rate

3.600 kg
Maximum lifting height

1.890 mm
Minimum height

110 mm
Levelling system

MASTER/SLAVE idraulico
Footrests

Con flaps integrati
Engine power

3 kW
Power supply

230/400 V 3Ph oppure 230 V 1Ph
Type

Ponte sollevatore elettroidraulico sottoscocca a doppia forbice

Maximum flow rate

3.600 kg

Maximum lifting height

1.890 mm

Minimum height

110 mm

Levelling system

MASTER/SLAVE idraulico

Footrests

Con flaps integrati

Engine power

3 kW

Power supply

230/400 V 3Ph oppure 230 V 1Ph
