ERCO H5002 XV

2-post
hydraulic
lift
for cars, SUVs
and commercial vehicles

The maximum height
of the H5002
range for working
on the most challenging vehicles

The ERCO H5002 XV is a 2-post hydraulic 2-post lift from the Corghi line, designed for repair shops that service cars, SUVs, commercial vehicles, and long-wheelbase vehicles. With a lifting capacity of 5,000 kg, an extra-tall configuration, and low-profile, 3-stage symmetrical telescopic arms, it offers great operational flexibility and ample workspace. The system uses a Hydraulic Master/Slave system with automatic re-alignment of the carriages at every lifting cycle, eliminating the need for steel cables between the columns and reducing the need for periodic adjustments.

The range also includes the ERCO H5002 (standard version) and the ERCO H5002 V (tall version), which share the same structure and 5,000 kg load capacity but feature different bridge heights:

ERCO H5002 height 3,870 mm
ERCO H5002 V, height 4,470

Benefits

Manage a wider range of vehicles

More job opportunities every day

Maximum comfort for the operator

Work safely on a range of vehicle types

Features and functions

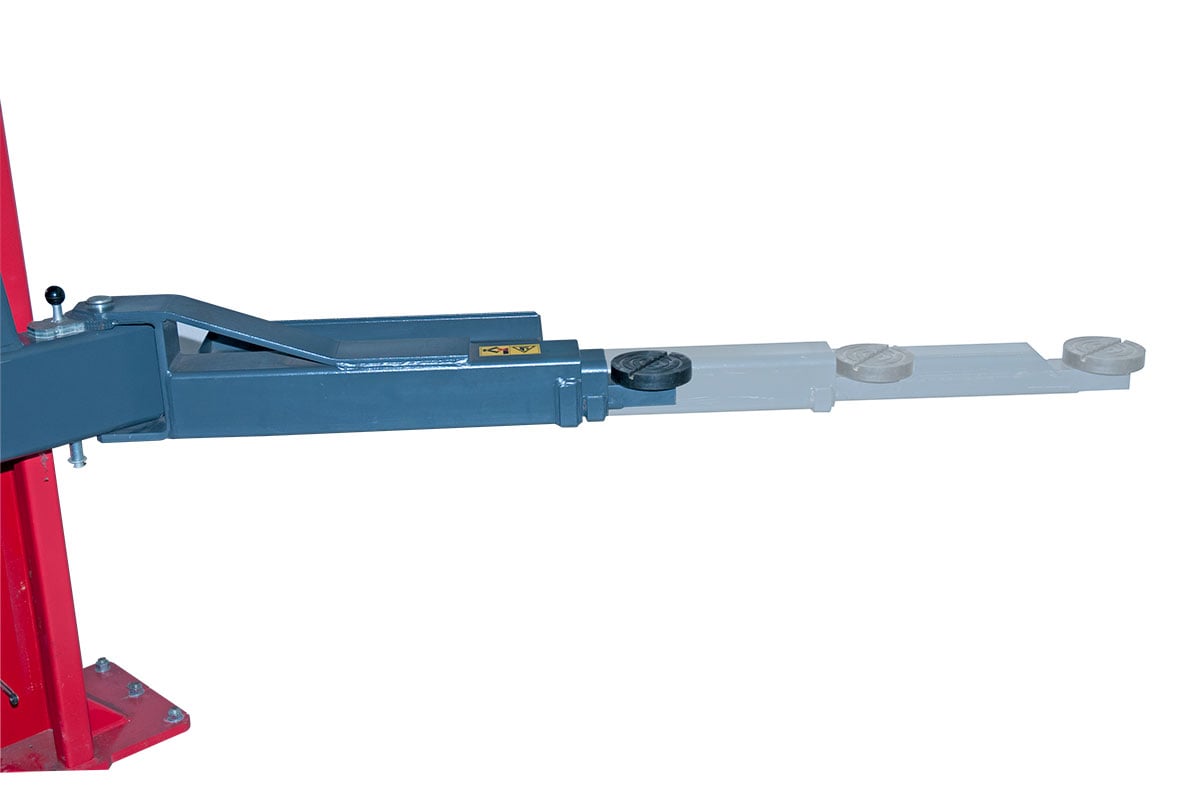

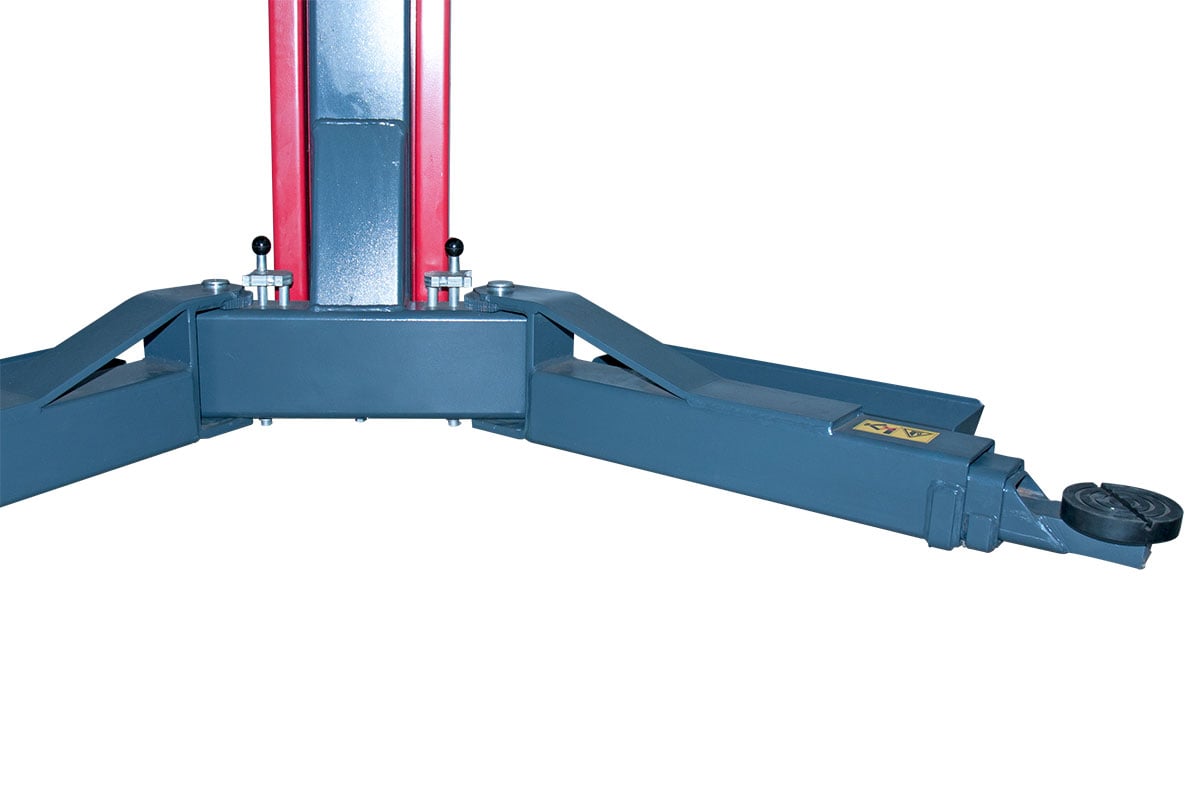

3-STAGE ARMS

Symmetrical telescopic arms designed to adapt easily to different types of vehicle.

MASTER/SLAVE CIRCUIT

The system automatically manages the realignment of the carriages, improving reliability and making installation easier.

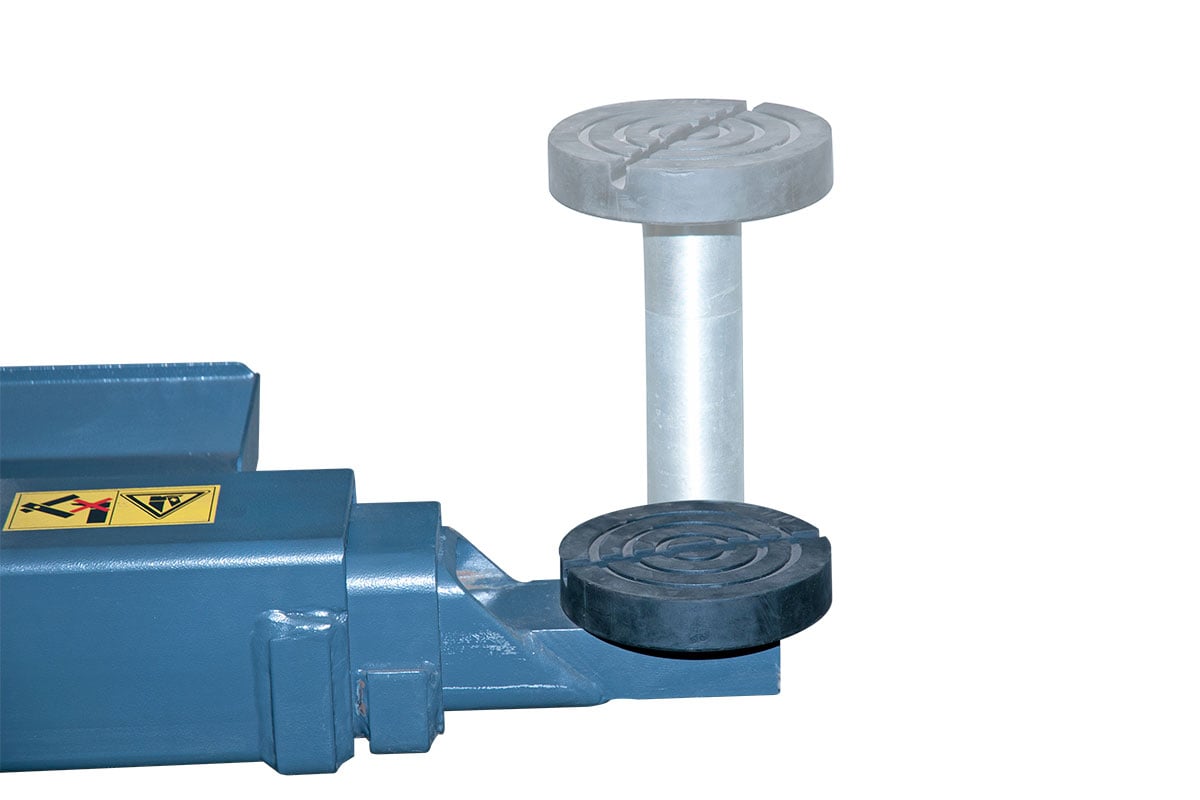

MULTI-HEIGHT PADS

Swabs with spacers allow for different grip configurations to suit various operational requirements.

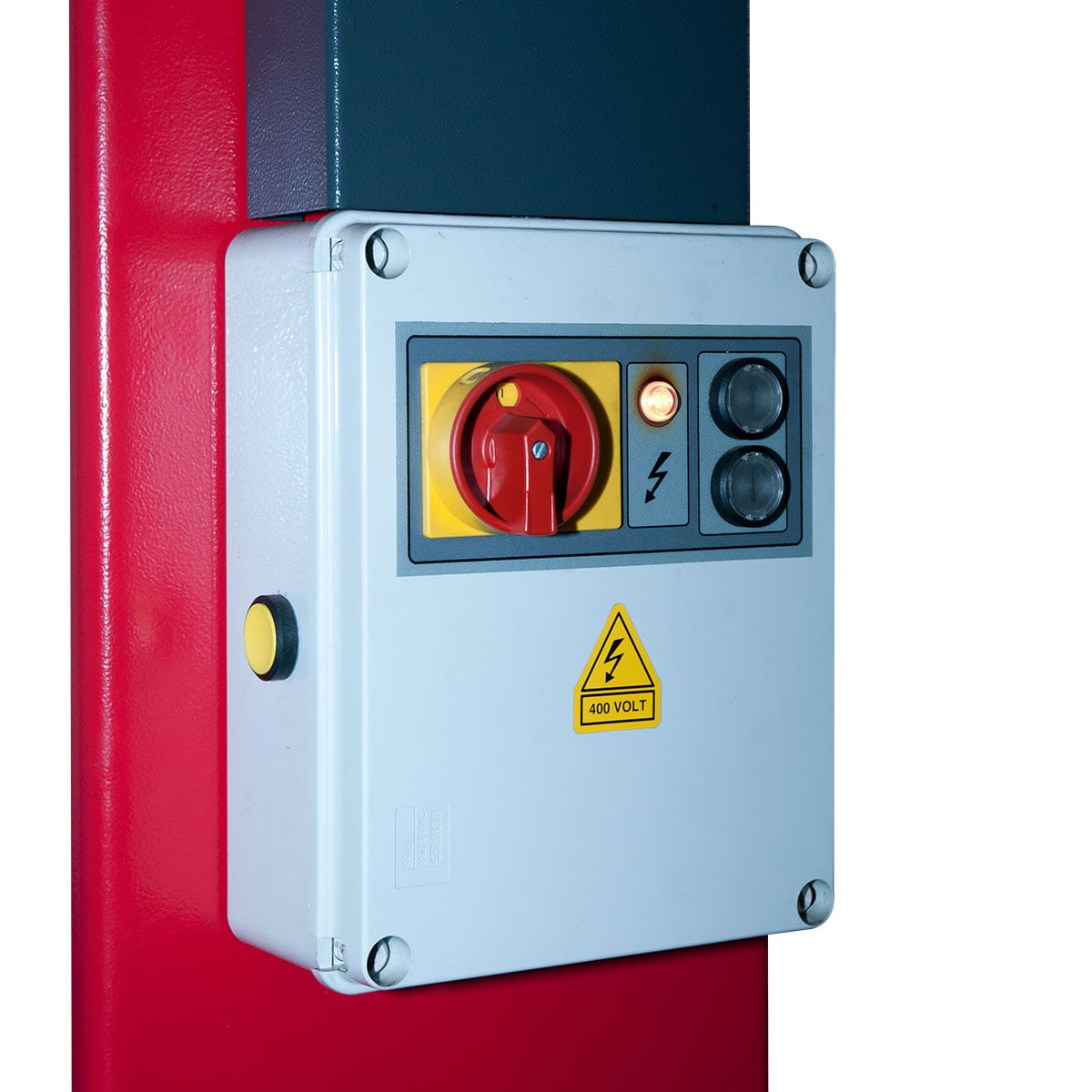

AUTOMATIC PARKING EXCLUSION BUTTON

It enables the management of specific operating conditions whilst maintaining high safety standards.

Technical data

Maximum flow rate	5.000 kg
Height	5.070 mm
Deck width	3.765 mm
Engine power	2,6 kW
Power supply	230/400 V – 3 Ph – 50/60 Hz / 230 V – 1 Ph

Maximum flow rate

5.000 kg

Height

5.070 mm

Deck width

3.765 mm

Engine power

2,6 kW

Power supply

230/400 V – 3 Ph – 50/60 Hz / 230 V – 1 Ph
