The ERCO H5502 XV is a 2-post hydraulic vehicle lift designed for shops specializing in the maintenance of industrial and commercial vehicles. With a lifting capacity of 5,500 kg, an extra-high configuration, and low-profile, 4-stage symmetrical arms, it allows for easy work even on long-wheelbase vehicles. The system uses a Hydraulic Master/Slave system with automatic re-alignment of the carriages at every lifting cycle. This solution eliminates the need for cables between the columns, reduces maintenance, and ensures long-term reliability.
Designed for intensive professional use, the ERCO H5502 XV combines high load capacity, ample working height, and maximum ease of installation and operation.
ERCO H5502 XV
2-post
hydraulic
lift
for industrial
and commercial vehicles
Designed for long-wheelbase vehicles. Sturdy, reliable and uncompromising
Benefits
Up to 5,500 kg
Ideal for long-wheelbase vehicles
Master/Slave hydraulic system
Extra-high configuration
Features and functions

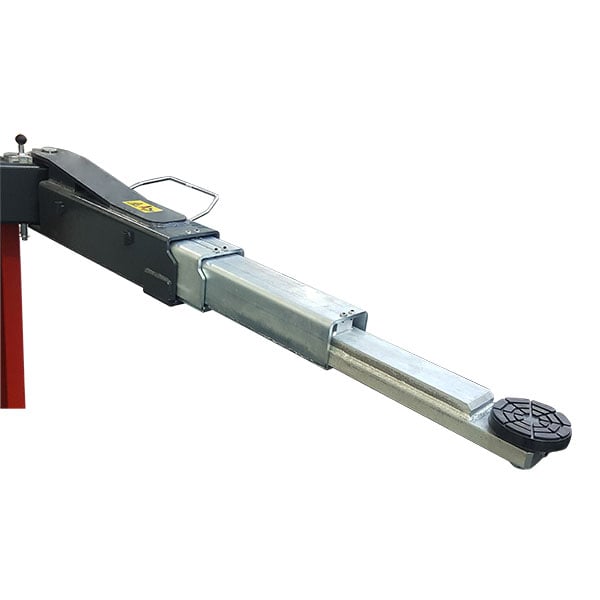

4-STAGE TELESCOPIC ARMS
The four symmetrical, four-stage arms ensure a secure grip even on commercial vehicles with a particularly long wheelbase.
MASTER/SLAVE HYDRAULIC SYSTEM
The system automatically realigns the two carriages at the start of each cycle, eliminating the need for steel cables and reducing the need for adjustments.

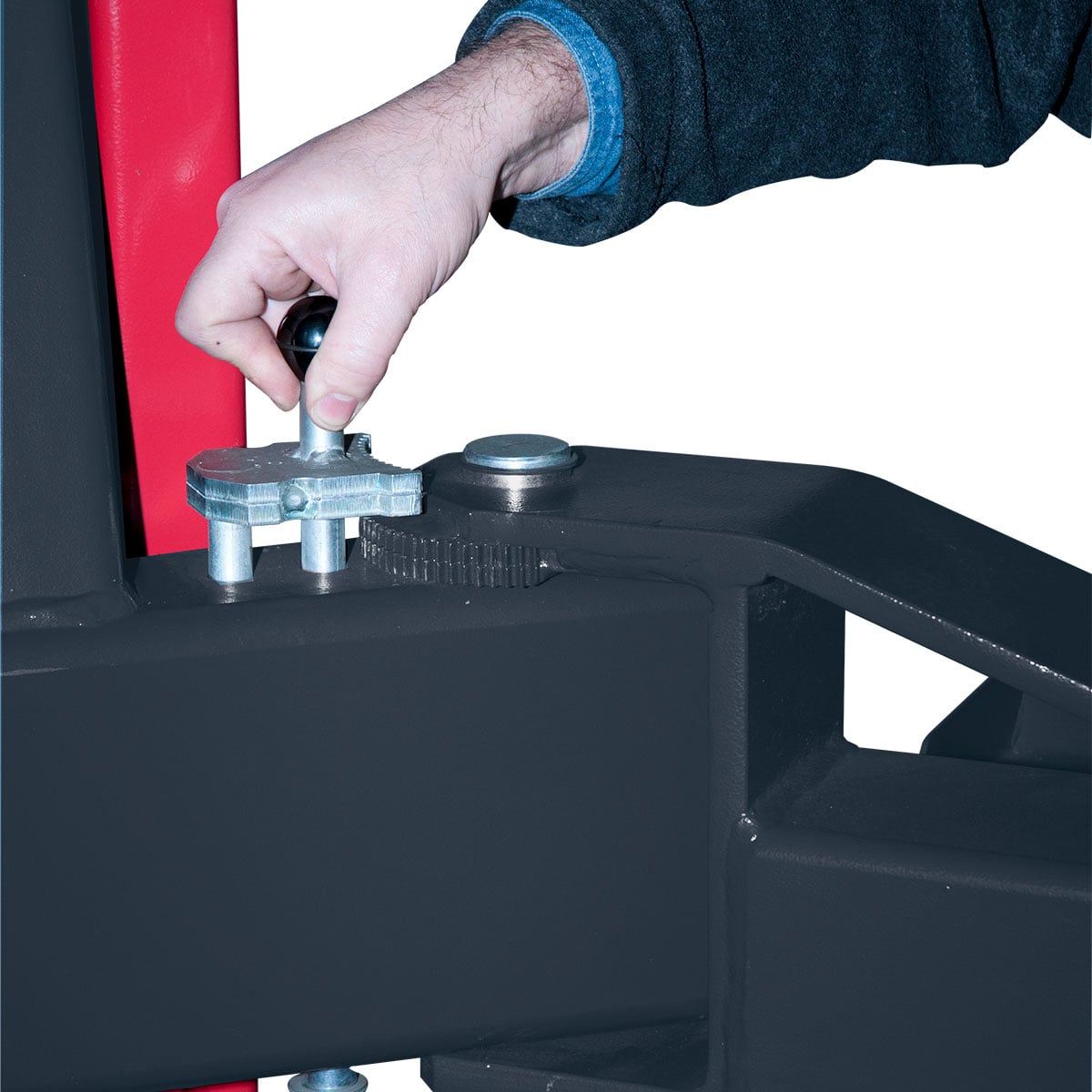

ROTATION STOPPER FOR ARMS WITH TOOTHED SECTIONS
A locking system designed to ensure safety and stability whilst the vehicle is being positioned.

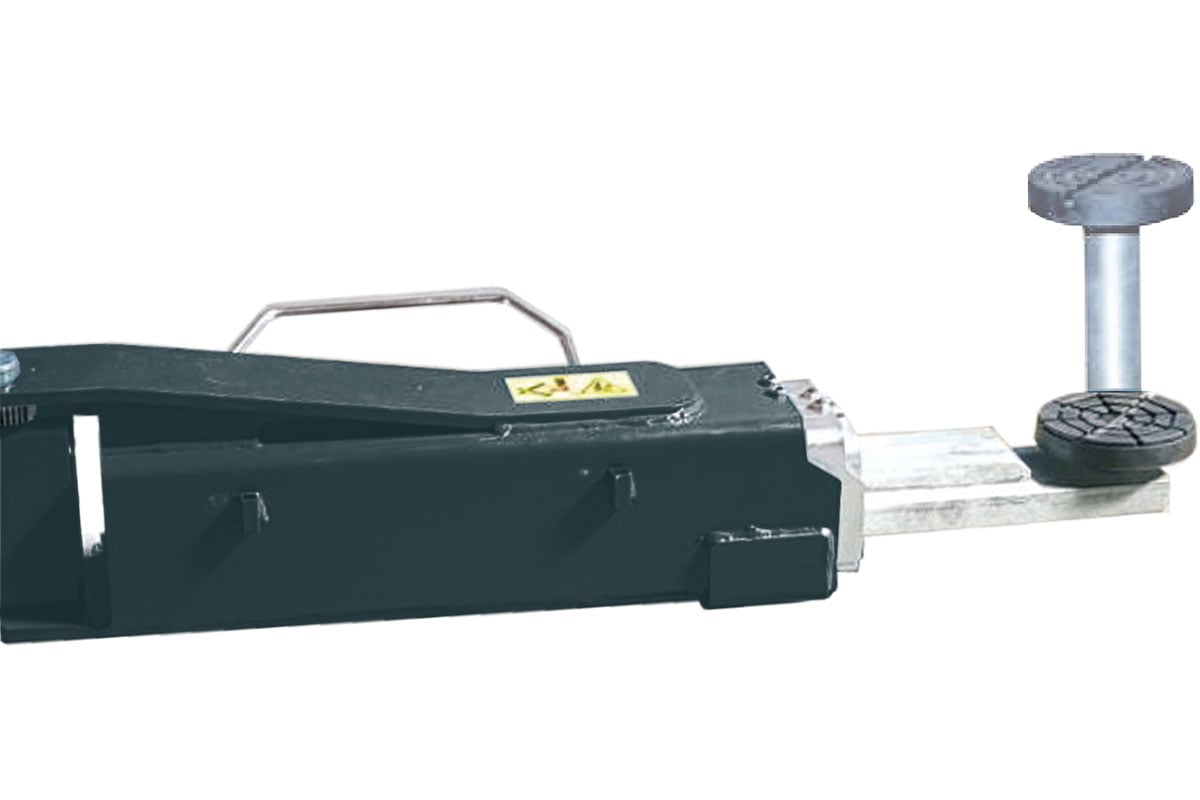

MULTI-HEIGHT ADJUSTABLE SPACERS
The spacers allow for different height settings, making it easy to adapt them to various types of vehicle.
Technical data
| Maximum flow rate | 5,500 kg |
| Configuration | Extra-tall version |
| Arms | 4-stage symmetrical low-pressure units |
| Maximum deck height | 5,070 mm |
| Deck width | 3,775 mm |
| Engine power | 2.6 kW |
| Power supply | 230/400 V – 3-phase – 50/60 Hz / 230 V – 1-phase |
Maximum flow rate
5,500 kg
Configuration
Extra-tall version
Arms
4-stage symmetrical low-pressure units
Maximum deck height
5,070 mm
Deck width
3,775 mm
Engine power
2.6 kW
Power supply
230/400 V – 3-phase – 50/60 Hz / 230 V – 1-phase
