ERCO IL 5502

Underground
electro-hydraulic
double-cylinder
lift with arms

Maximum load capacity
, total accessibility
and freedom

of movement

around the vehicle

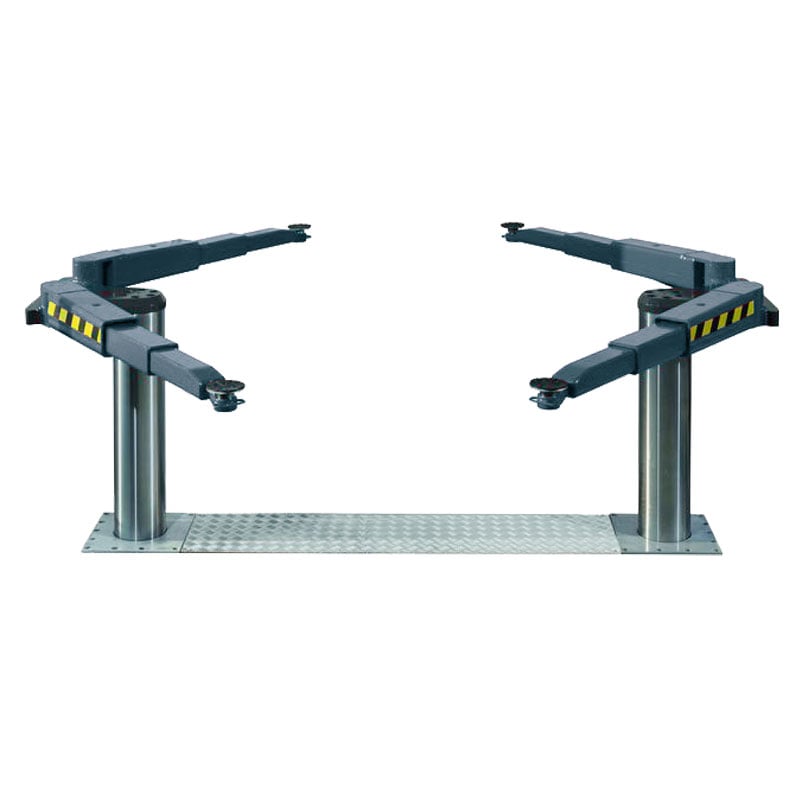

The ERCO IL 5502 is Corghi’s in-ground electro-hydraulic lift, designed for repair shops that work daily on SUVs, commercial vehicles, and heavier vehicles. Thanks to its 5,500 kg lifting capacity, dual in-ground cylinders, and superstructure with telescopic arms, it provides a workstation completely free of columns and external obstructions.

The system features 213 mm diameter inverted cylinders, an oil-immersed motor, and a linked-lever synchronization system that ensures precise movements, long-term reliability, and low maintenance requirements.

The three-stage telescopic arms with an internal locking system allow operation on a wide range of vehicles, while electronic height control and integrated safety systems ensure maximum control during all phases of operation.

Benefits

Load capacity up to 5,500 kg

Completely unobstructed workspace

Precise height control

Maximum reliability over time

Features and functions

DOUBLE REVERSE CYLINDER

The 213 mm cylinders ensure high load-bearing capacity, protection against corrosion and a long service life.

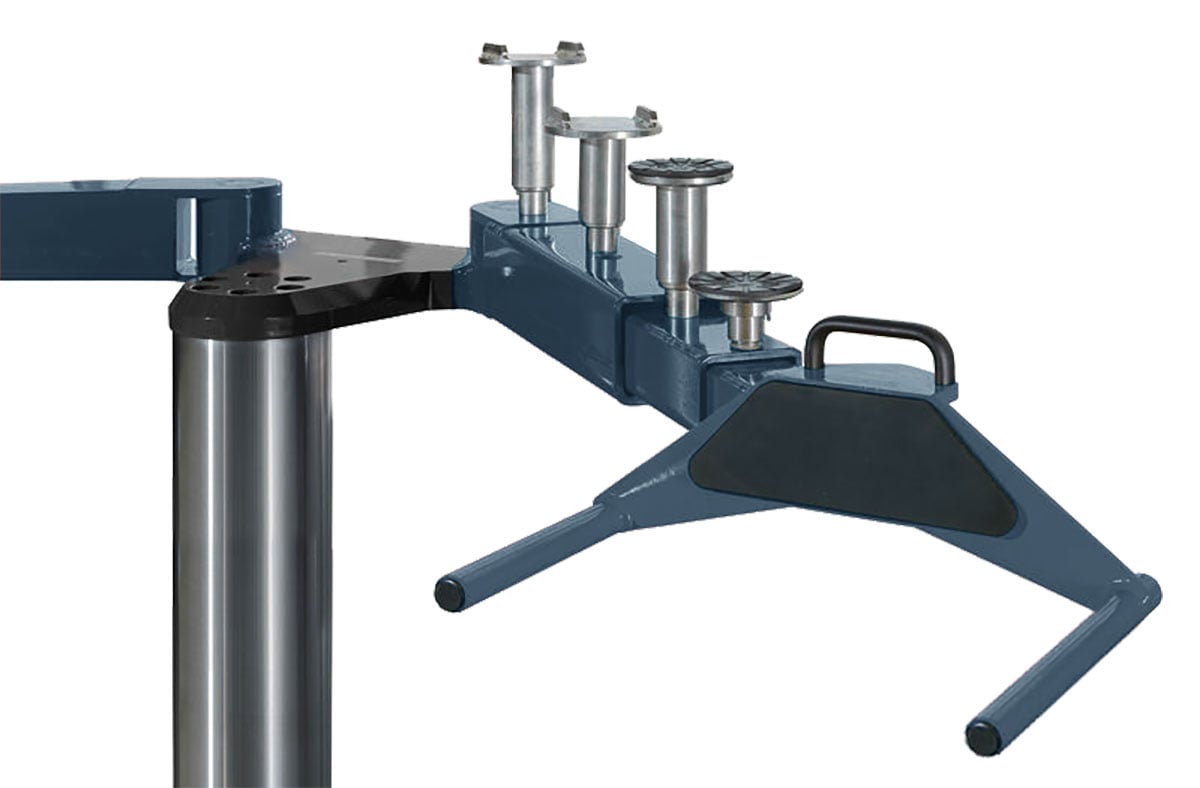

THREE-STAGE TELESCOPIC ARMS

The dual-sliding configuration increases the gripping range and improves adaptability to different types of vehicle.

LINKED-LEVER SYNCHRONISATION SYSTEM

It maintains the structure’s perfect alignment throughout the entire operating cycle and helps to reduce wear and tear on components.

PROGRAMMABLE CONTROL UNIT

It enables you to manage the maximum lifting height, alarm signals and system diagnostics.

Technical data

Type	Sollevatore elettroidraulico interrato a doppio cilindro con bracci
Maximum flow rate	5.500 kg
Running	1.860 mm
Working height	1.995 – 2.055 mm
Cylinder diameter	2 × 213 mm
Ascent/descent time	Circa 45 secondi
Pump unit	3 kW
Hydraulic oil	17 l
Power supply	230-400 V / 3Ph + N + PE / 50 Hz

Type

Sollevatore elettroidraulico interrato a doppio cilindro con bracci

Maximum flow rate

5.500 kg

Running

1.860 mm

Working height

1.995 – 2.055 mm

Cylinder diameter

2 × 213 mm

Ascent/descent time

Circa 45 secondi

Pump unit

3 kW

Hydraulic oil

17 l

Power supply

230-400 V / 3Ph + N + PE / 50 Hz
