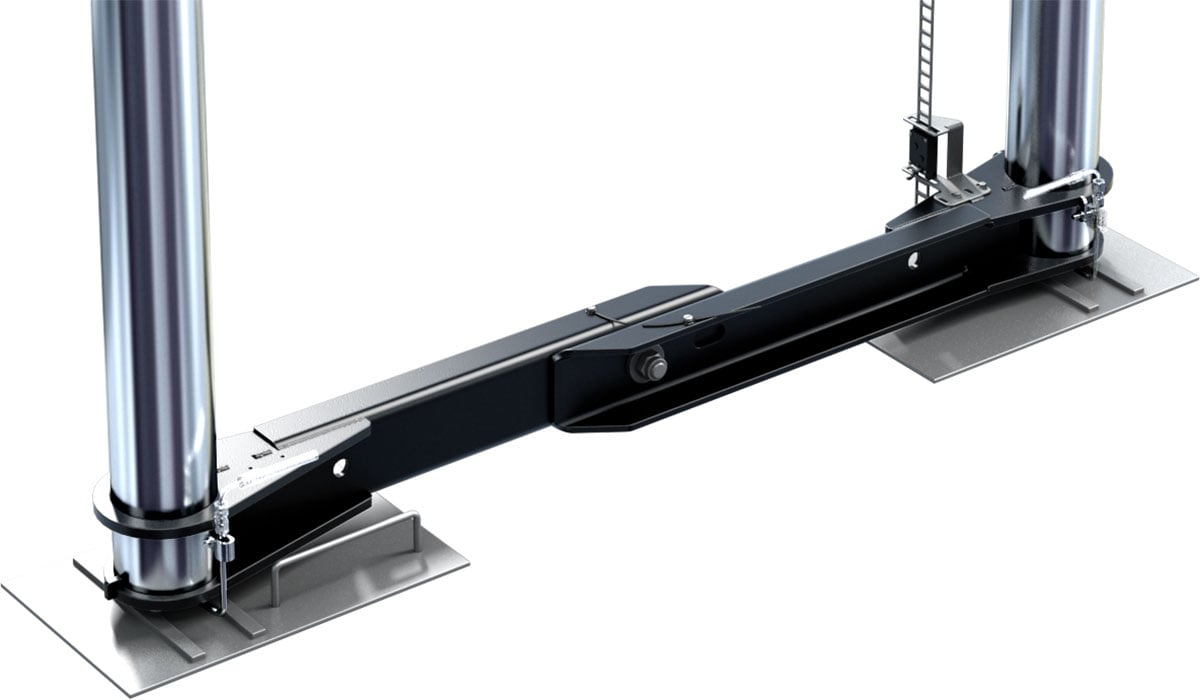

ERCO The 635.2 Evo is Corghi’s in-ground electro-hydraulic lift, designed for workshops seeking maximum accessibility to the work area and a completely unobstructed workspace. With a lifting capacity of 3,500 kg, dual in-ground cylinders, and a superstructure featuring adjustable platforms, it offers a professional solution for maintenance, tyre service, and general mechanical work. The system uses 140 mm inverted cylinders with components protected from external elements, hydraulic pumps with oil-immersed motors, and a linkage-based synchronization system that ensures precise movements, reduced wear, and a long service life. The recessed installation eliminates any floor obstructions, improving access to the vehicle and providing a tidy, professional workspace that integrates easily into the workshop.
ERCO IL 635.2 EVO
Underground electro-hydraulic
double-cylinder
lift
Maximum freedom
of movement,
long-term
reliability and a design that blends seamlessly
into the workshop
Benefits
Completely unobstructed workspace
Greater protection and durability
Precise and reliable synchronisation
Maximum operational safety
Features and functions

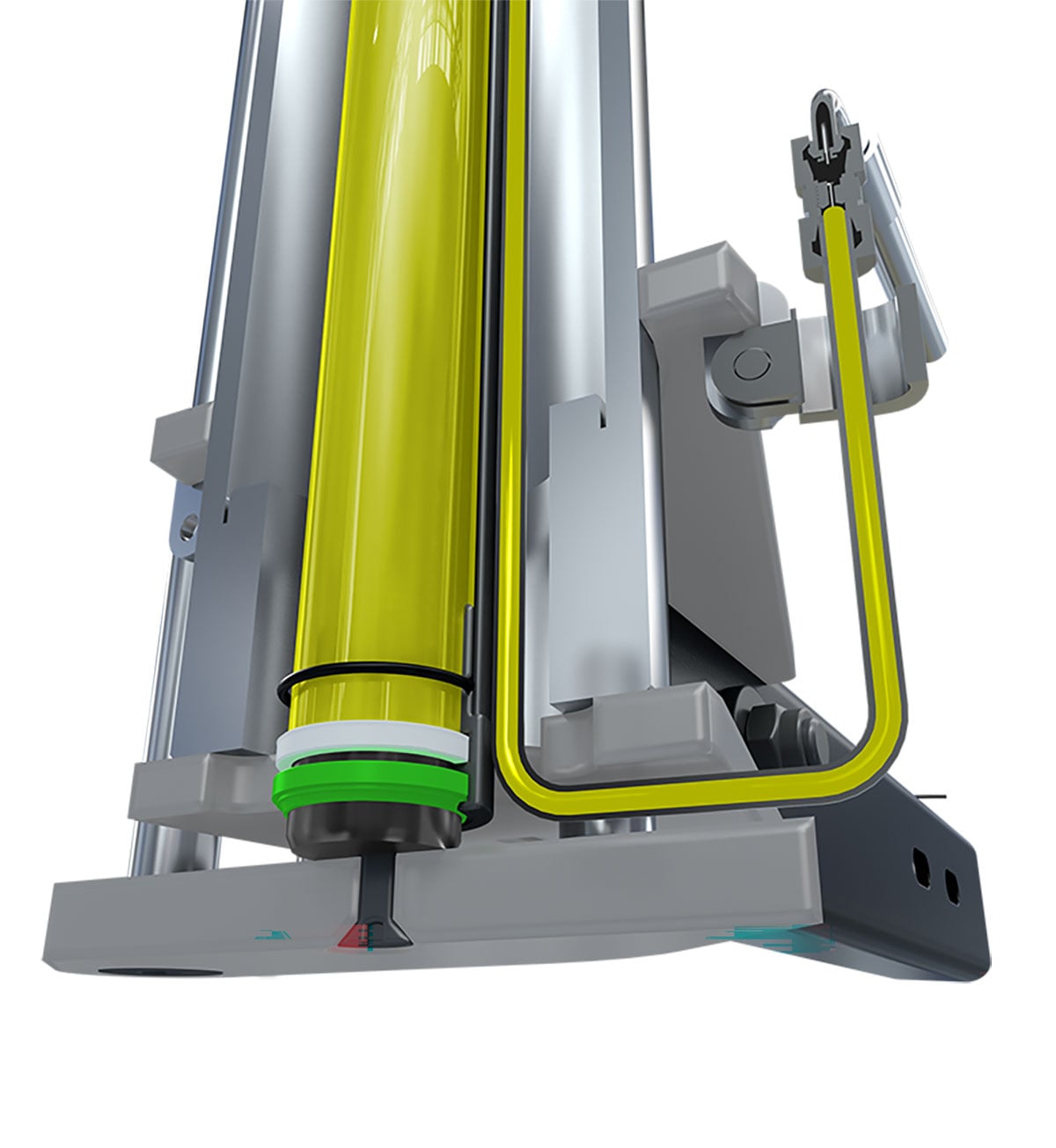

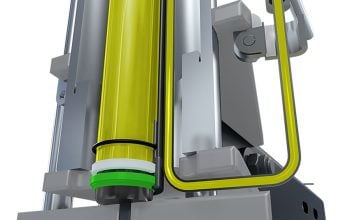

DOUBLE REVERSE CYLINDER
The robust 140 mm cylinders are designed to offer high reliability, a long service life and low maintenance, whilst protecting the most sensitive components from external factors.
HYDRAULIC PUMP WITH AN OIL-IMMERSED MOTOR
The oil-immersed motor is protected from moisture and condensation, improving its reliability and service life.
PROGRAMMABLE CONTROL UNIT
It enables the management of the maximum lifting height, the setting of alarms and the diagnosis of any operational faults.

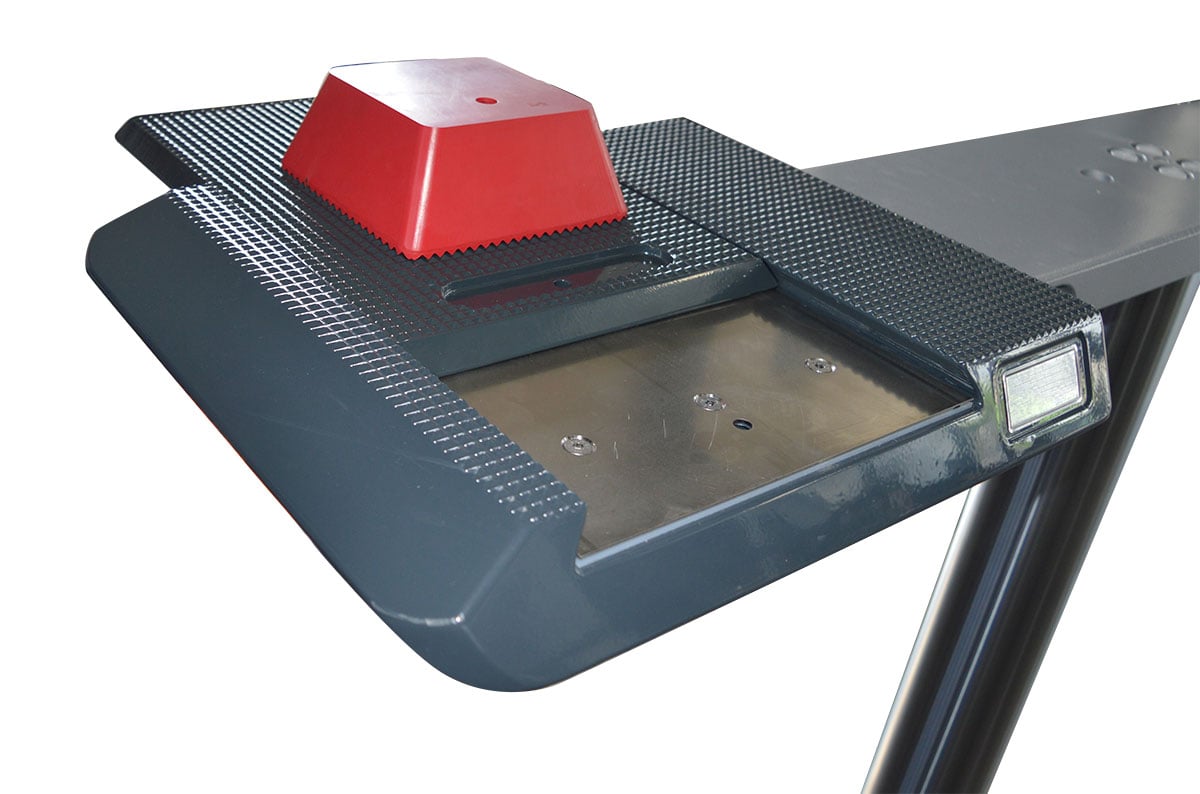

ADJUSTABLE PLATFORMS
The two lifting supports are adjustable in length and fitted with non-slip rubber pads to adapt easily to different types of vehicle.
Technical data
| Type | Sollevatore elettroidraulico interrato a doppio cilindro |
| Maximum flow rate | 3.500 kg |
| Running | 1.920 mm |
| Working height | 1.985 mm + tamponi |
| Cylinder diameter | 2 × 140 mm |
| Ascent/descent time | Circa 30 secondi |
| Pump unit | 3 kW |
| Hydraulic oil | 10 l |
| Power supply | 230/400 V – 50 Hz – 16 A |
Sollevatore elettroidraulico interrato a doppio cilindro
3.500 kg
1.920 mm
1.985 mm + tamponi
2 × 140 mm
Circa 30 secondi
3 kW
10 l
230/400 V – 50 Hz – 16 A
