The EXACT 7000 Plus II is Corghi’s 8-CCD sensor wireless wheel alignment system, designed for specialists seeking precision, reliability, and maximum operational versatility. Thanks to CCD4 technology, the EXACT PLUS software, and an advanced platform compatible with passenger cars, commercial vehicles, trucks, and trailers, it represents a complete professional solution for workshops looking to expand their wheel alignment services.
The wireless sensors, featuring 2.4 GHz industrial-grade radio technology, ensure reliable radio communication and high performance even in the most demanding work environments. The system also incorporates numerous intelligent features for off-center compensation, continuous calibration monitoring, and optimized management of measurement procedures.

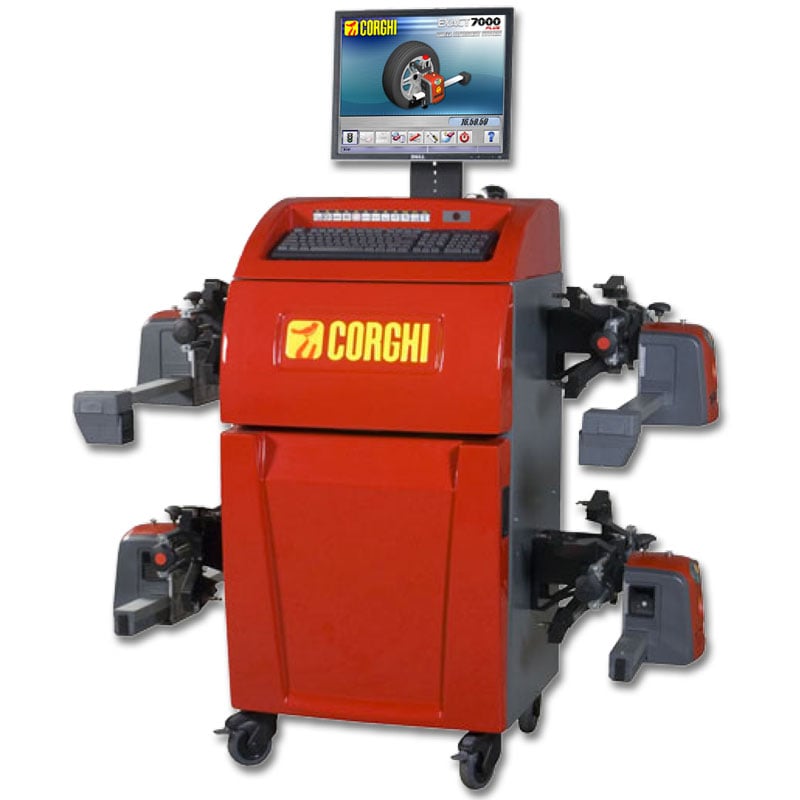

EXACT 7000 Plus II MERCEDES
Computerised wheel alignment system with 8 CCD sensors for cars, commercial vehicles and lorries
The ideal choice for wheel alignment professionals
Benefits
Tried-and-tested professional CCD technology
Total versatility
Greater productivity and less downtime
Compatible with ProAdas and iONE CRUISER STEERING WHEEL RESET
Features and functions
WIRELESS CCD SENSORS
At the heart of the system are four wireless CCD detectors, each fitted with eight high-resolution sensors. The RX2.4 industrial radio communication system ensures maximum reliability and freedom of movement during alignment operations
ORP TECHNOLOGY AND ADVANCED COMPENSATION
The ORP (Optimal Runout Procedure) algorithm allows you to select the most suitable compensation mode, using push, 2-point, rapid 3-point or previous compensation recall procedures
HOT-SWAP AND LONG-LIFE BATTERIES
Removable batteries can be replaced during measurements without interrupting work. The Long-Life management system extends the life of the batteries and ensures operational continuity even during peak workloads
EXACT PLUS SOFTWARE
EXACT PLUS offers an intuitive interface, guided procedures, graphic animations, advanced ROC management and a database containing over 84,000 cars and commercial vehicles. Dedicated procedures are also available for lorries, buses and trailers.
PROADAS COMPATIBILITY
The wheel alignment system is compatible with the PROADAS universal system for calibrating ADAS systems. Using the alignment sensors, it is possible to correctly align the radar and camera systems fitted to the vehicle.
iONE CRUISER STEERING WHEEL RESET
The iONE CRUISER STEERING WHEEL RESET module allows you to reset the steering angle directly from the wheel alignment system’s interface and enables the clearing of fault codes from the electronic control units. A comprehensive report is included in the final wheel alignment printout.
Technical data
| Measurement technology | 8 sensori CCD wireless CCD4 |
| Target | Rilevatori CCD wireless RX2.4 |
| Vehicle database | Oltre 84.000 veicoli |
| ADAS compatibility | Sì (PROADAS Ready) |
| Reset steering angle | iONE CRUISER STEERING WHEEL RESET integrabile |
| ROC compensation | ORP avanzata multi-procedura |
| Power supply | 90–260 Vac – 50/60 Hz – 1 Ph |
| Power consumption | 0,4 kW |
8 sensori CCD wireless CCD4
Rilevatori CCD wireless RX2.4
Oltre 84.000 veicoli
Sì (PROADAS Ready)
iONE CRUISER STEERING WHEEL RESET integrabile
ORP avanzata multi-procedura
90–260 Vac – 50/60 Hz – 1 Ph
0,4 kW
