Artiglio Master Jolly

Corghi automatic tyre changer with the Smart Corghi System

The real ‘Leva la Leva’ technology

Artiglio Master JOLLY is Corghi’s automatic tyre changer that makes the authentic “Leva la Leva®” technology accessible to an even wider audience, without compromising on the core values of safety, reliability, and total rim protection.

At the heart of the equipment lies the exclusive Smart Corghi System, a patented system that ensures the rim is never touched and eliminates all tension on the tyre during the removal and mounting phases. This technology, introduced by Corghi in 2001, remains unmatched to this day, despite numerous attempts to replicate it. The

Artiglio Master JOLLY represents the perfect blend of proven build quality, unique technological solutions, and a competitive price, offering workshops a balanced and reliable long-term investment.
Available in a manual-clamping version or an AUTOMATIC version with pneumatic clamping, it is designed to work safely on conventional, low-profile, and Run Flat tyres.

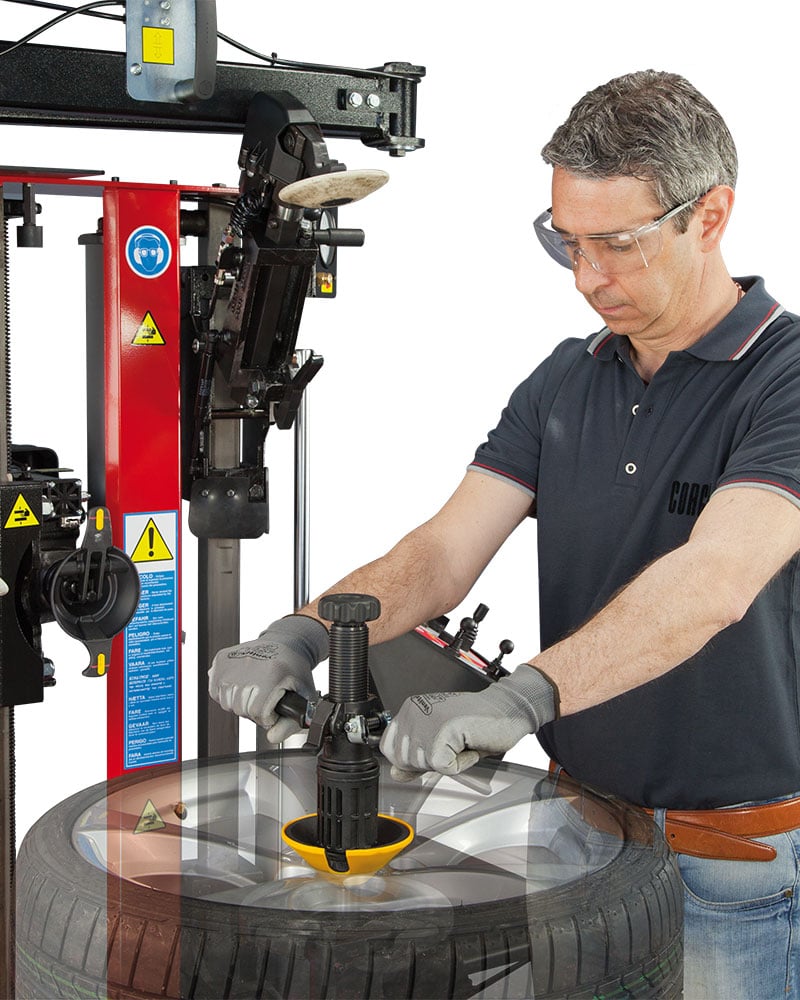

Benefits

Always protect the rim

Easy to use, even for the least experienced operators

Work more effectively, with less effort

Technology that pays for itself in day-to-day work

Long-lasting

Features and functions

SMART CORGHI SYSTEM – CONTACTLESS TECHNOLOGY

The patented Corghi system guarantees that:

the rim is never touched

complete elimination of tension in the tyre

synchronised movements between the tool and the wheel for maximum safety

This is what sets Corghi apart from the rest.

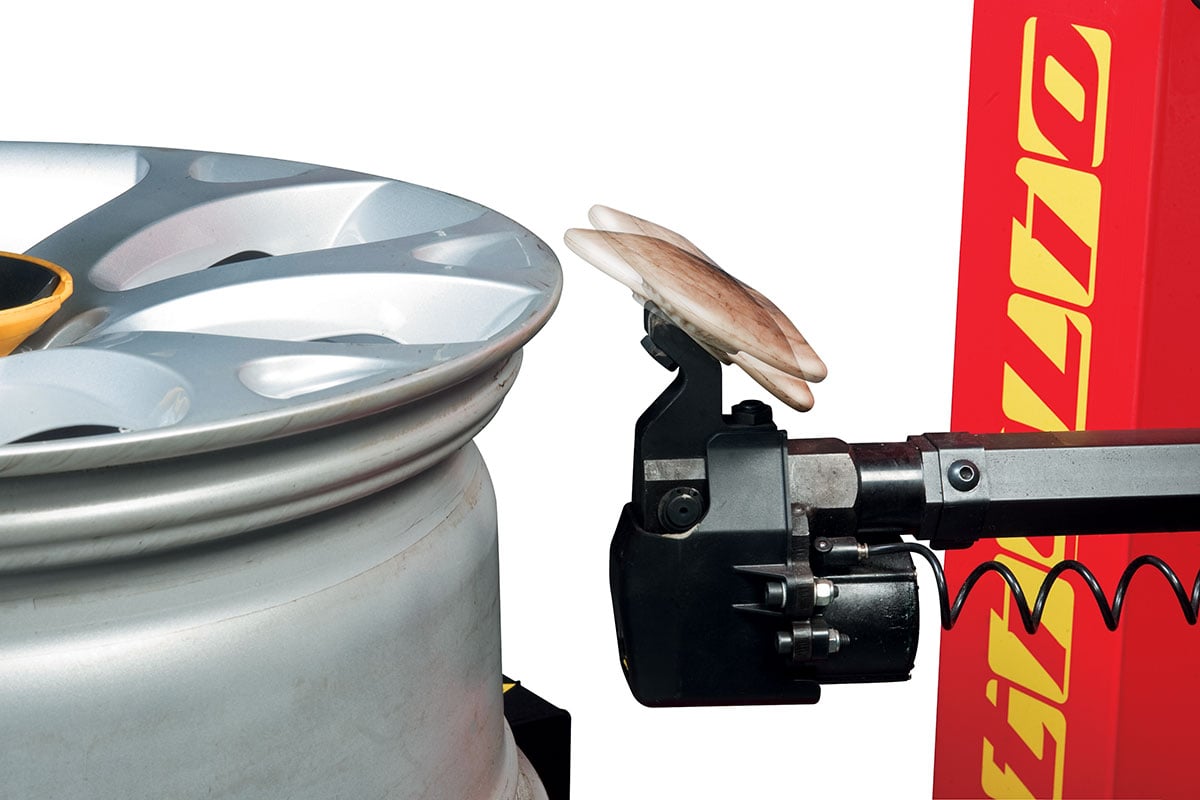

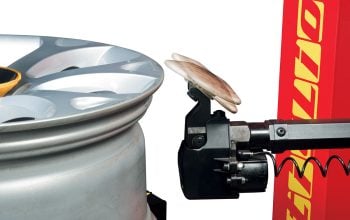

DOUBLE STALLIONATOR WITH CONTROLLED PENETRATION

The dynamic tyre-beading system, featuring twin mirrored beading discs, ensures precision and repeatability.
The controlled penetration system (patented) ensures effective performance even on tyres with rigid sidewalls, reducing the need for manual intervention by the operator and improving safety.

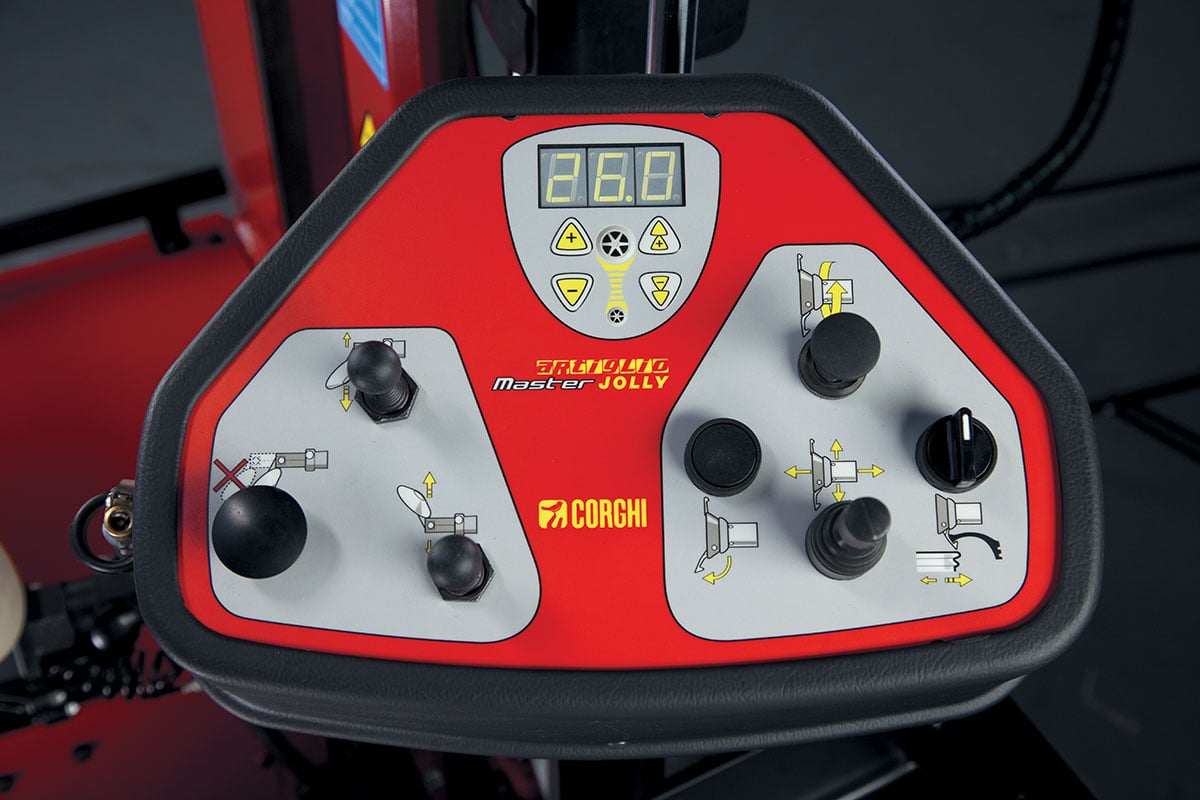

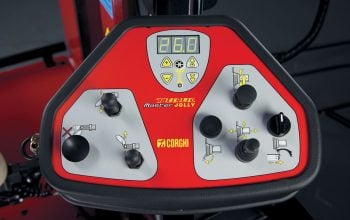

MULTIFUNCTIONAL ERGONOMIC CONSOLE

The control panel with display allows the rim diameter to be set electronically, ensuring quick and safe tool positioning.
The controls, divided into three working areas, make the machine easy and intuitive to use.

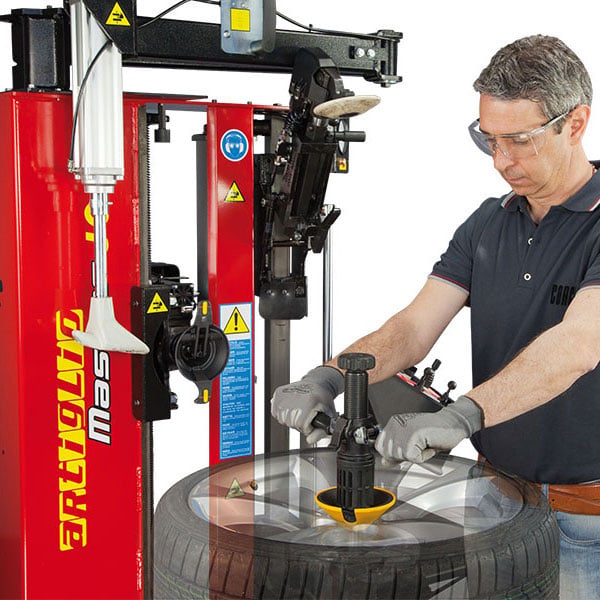

SAFE AND UNIVERSAL WHEEL LOCK

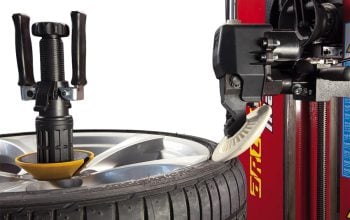

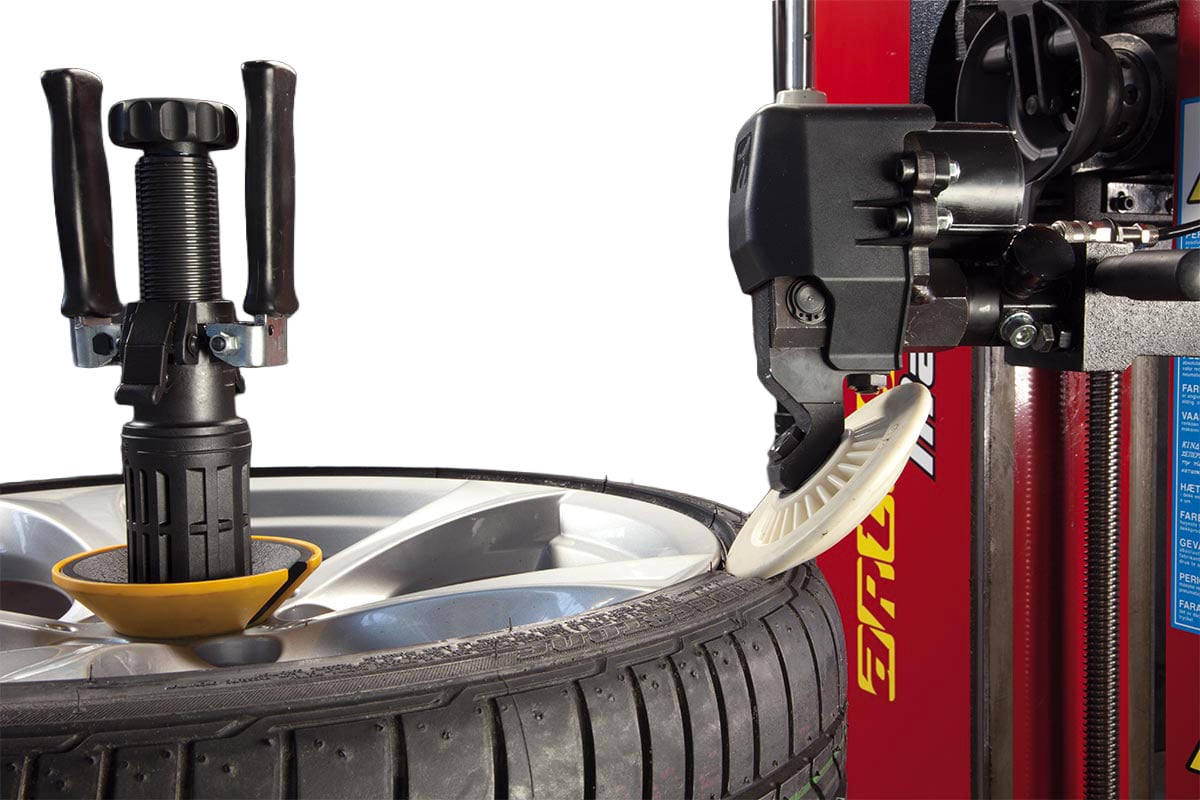

The self-centring flange ensures quick and secure clamping, allowing both sides of the tyre to be removed without having to turn the wheel over, whilst maintaining optimum ergonomics.
Available in a manual clamping version or an AUTOMATIC version with pneumatic clamping.

INTEGRATED PRESS FITTING

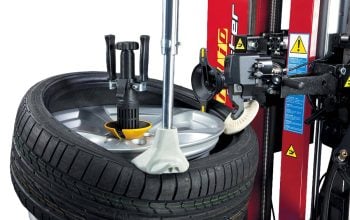

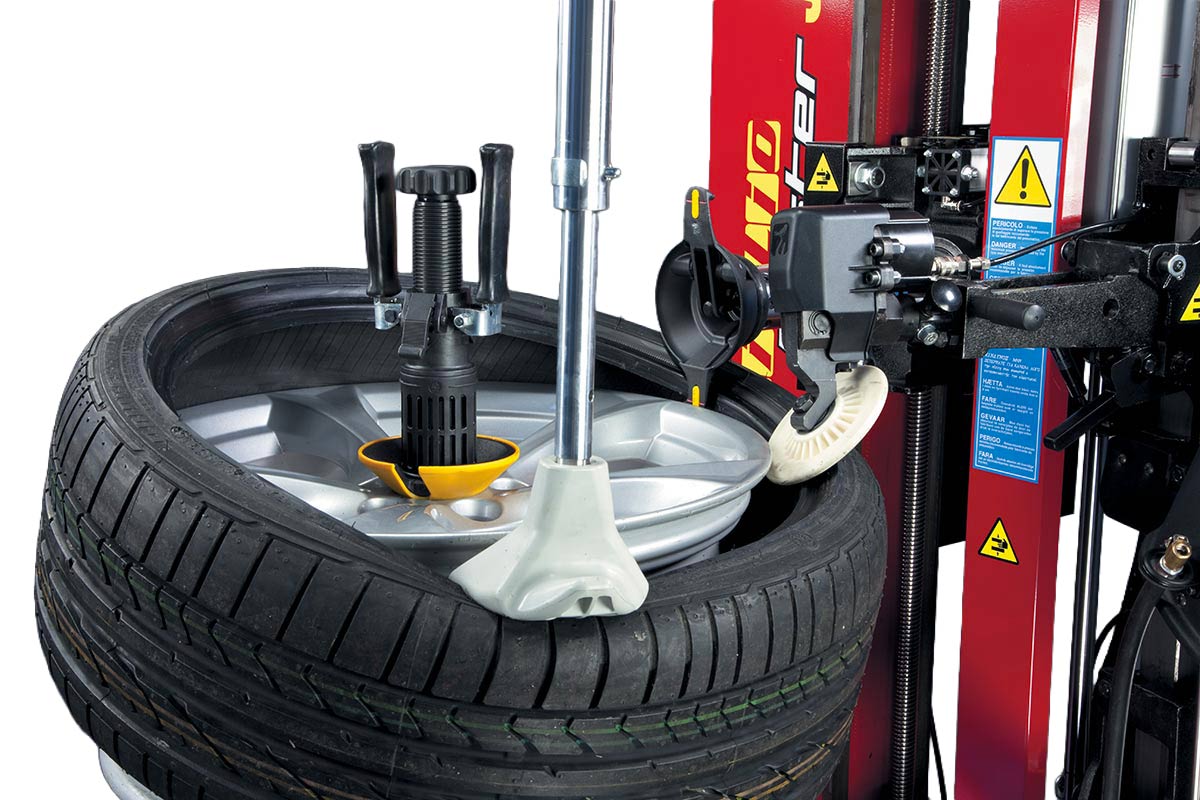

The tyre press, fitted as standard on all models, is height-adjustable and is ideal for run-flat tyres, ensuring control and stability even during the most demanding operations.

WORKPLACE ERGONOMICS

The pedals, control panel and wheel loading mechanism are all positioned on the same side, with a consistent working height to reduce physical strain and improve daily productivity.

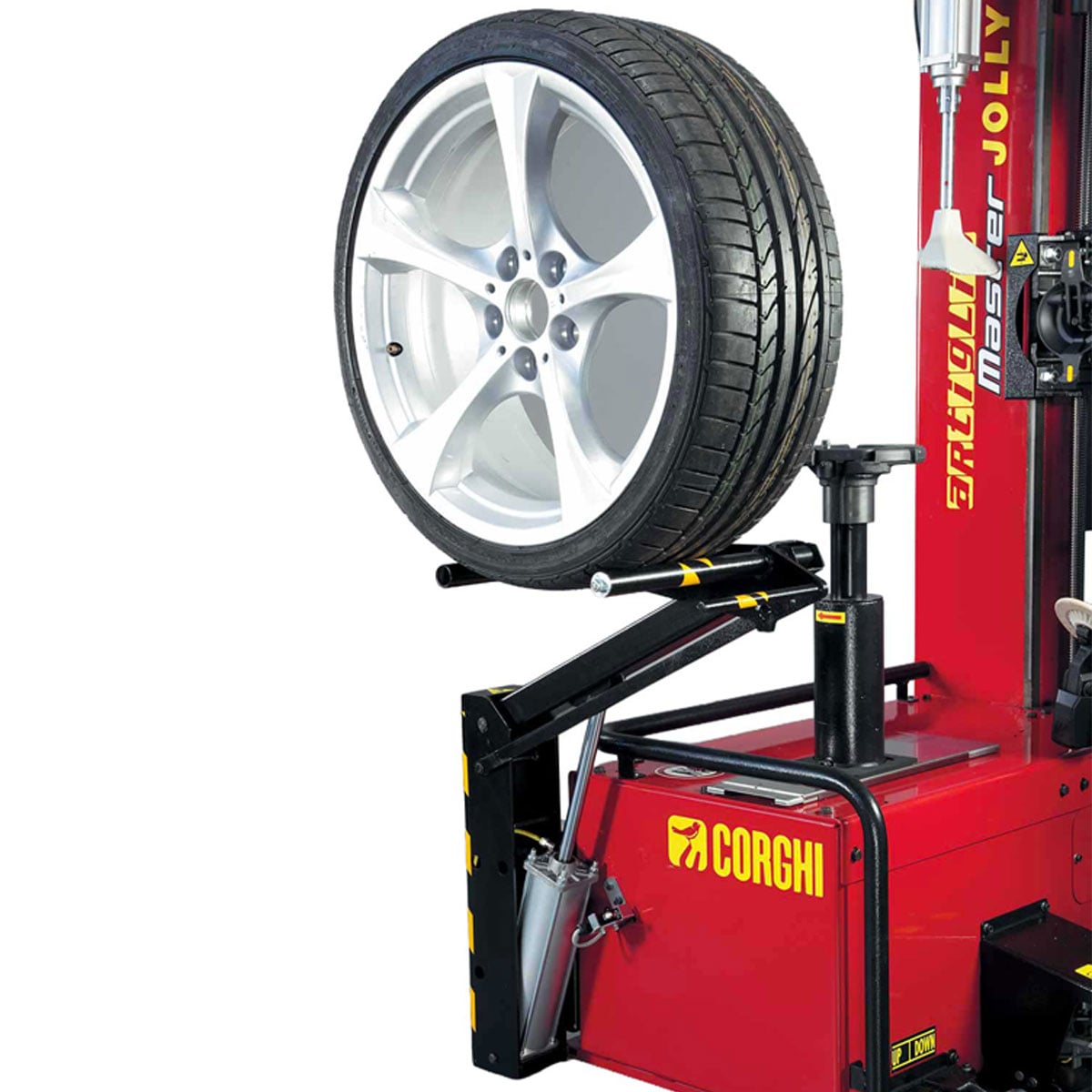

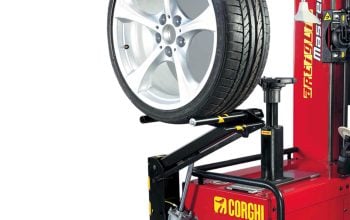

The wheel lift is available as an option for easier handling of heavier wheels.

Technical data

Wheel size range	Cerchio da 12” a 26”
Maximum tyre diameter	1100 mm
Wheel lock	Manuale / Pneumatico (versione AUTOMATIC)
Rotational speed	7 – 18 rpm
Come on, stud!	7600N
Maximum wheel load	85 kg
Power supply	Elettrica 1Ph 230V / 110V – Pneumatica 8 ÷ 9,5 bar

Wheel size range

Cerchio da 12” a 26”

Maximum tyre diameter

1100 mm

Wheel lock

Manuale / Pneumatico (versione AUTOMATIC)

Rotational speed

7 – 18 rpm

Come on, stud!

7600N

Maximum wheel load

85 kg

Power supply

Elettrica 1Ph 230V / 110V – Pneumatica 8 ÷ 9,5 bar
