EM 9050 SpaceSaver


Compact wheel balancer for cars,
SUVs
and commercial vehicles

EM-9050-SPACESAVER


Small in size.
Big on performance.

Get a Quote
Brochure
Images

The EM 9050 SpaceSaver is the Corghi wheel balancer designed to deliver professional performance in tight spaces, making it the ideal solution for compact workshops, dedicated workstations, mobile services, and operations requiring maximum flexibility.

Although it is the most compact model in the lineup, it incorporates numerous technologies derived from higher-end models, ensuring precision, speed, and ease of use.
The Smart Arm system with FSP function automatically captures wheel data and selects the correct balancing program, reducing operating times and minimizing errors.

The next-generation measuring unit allows for work on wheels weighing up to 85 kg, offering the reliability and performance typical of higher-end wheel balancers.
The EM 9050 SpaceSaver is the ideal choice for those seeking a professional, compact, and versatile solution capable of adapting to various operational needs without compromising on Corghi quality.

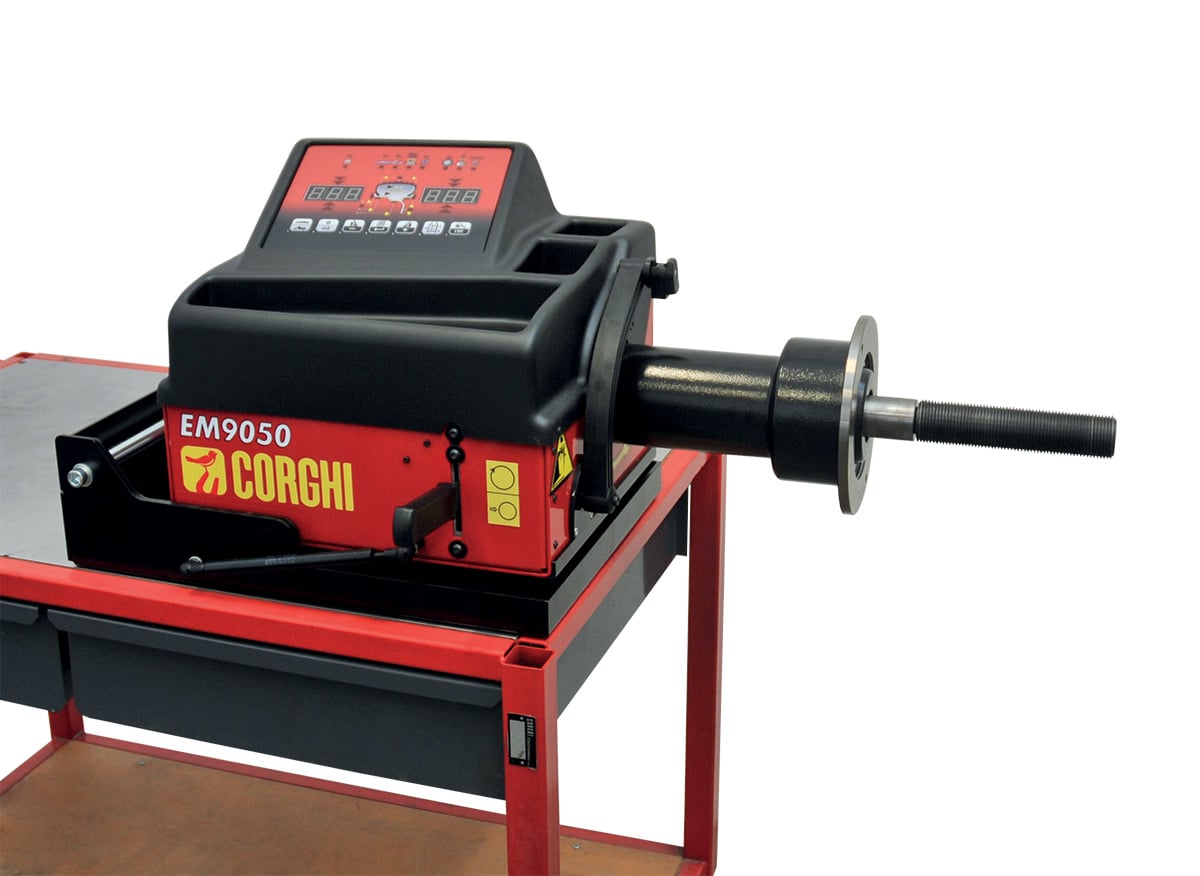

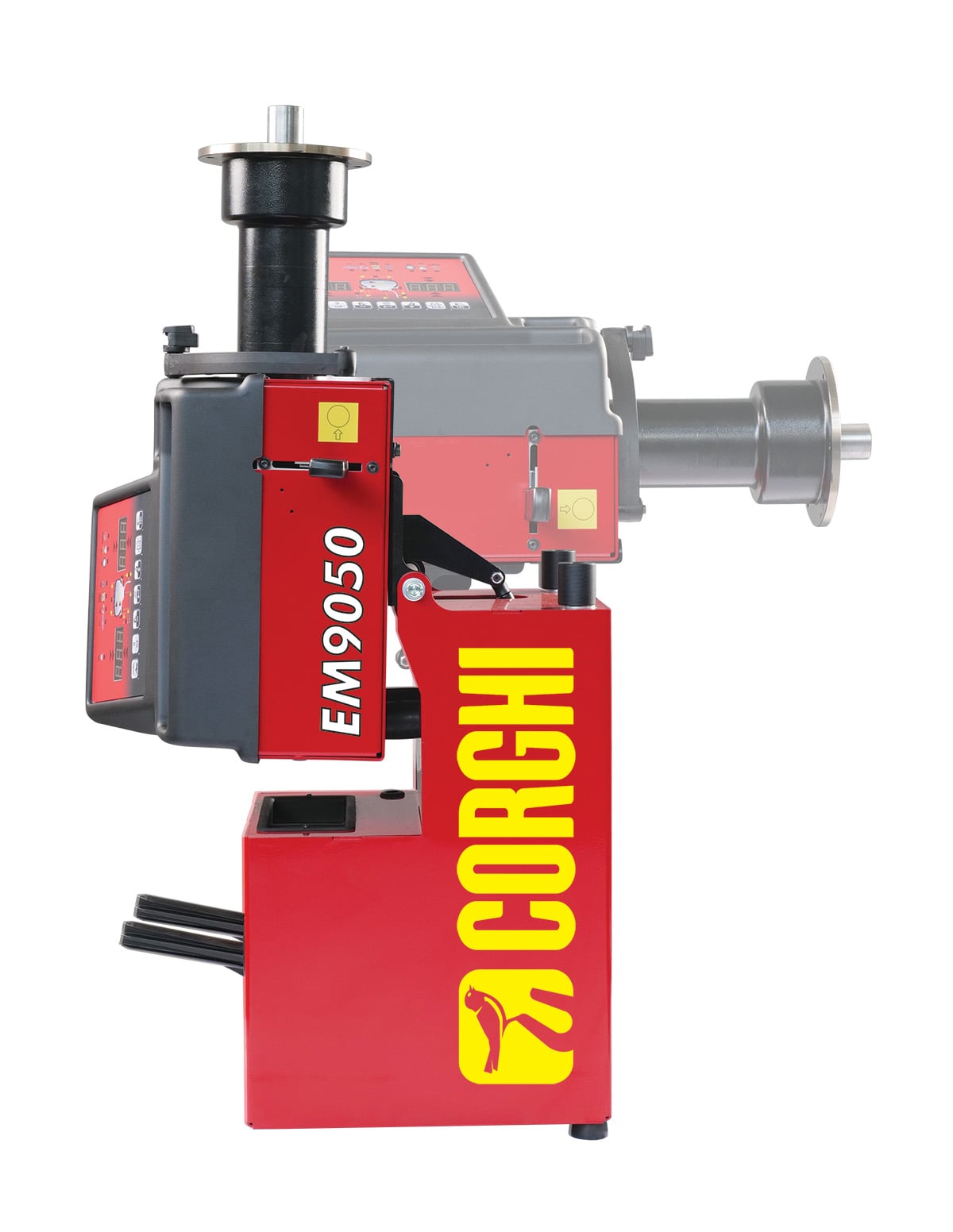

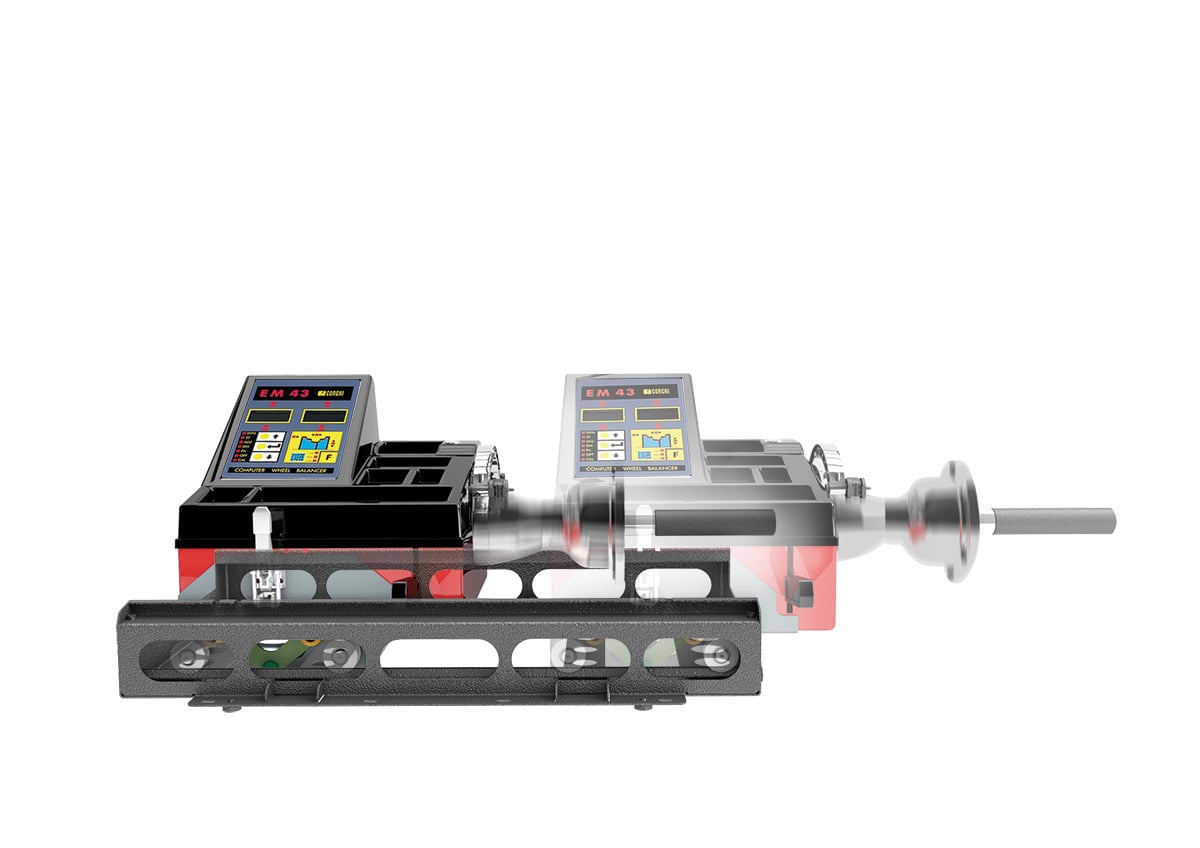

Also available in Motorized, Hand Spin, Tilt Up, Slide, and Workbench versions, designed for specific applications such as compact workshops, mobile services, and bench-top installations.

Benefits

Professional performance in a compact space

Automation that speeds up work

Total versatility

Compact yet comprehensive

Features and functions

SMART ARM WITH FSP – INTELLIGENT AUTOMATIC MEASUREMENT

The Smart Arm system automatically measures the distance, diameter (up to 28”) and width of the wheel. Thanks to the FSP (Fast Selection Programme) function, the correct balancing programme is selected automatically, simplifying the operator’s work and speeding up each cycle.

MULTIFUNCTION DIGITAL DISPLAY

The digital display provides immediate access to all the main functions and balancing programmes. The interface is simple and intuitive, designed to ensure quick operation even during the most intensive day-to-day tasks.

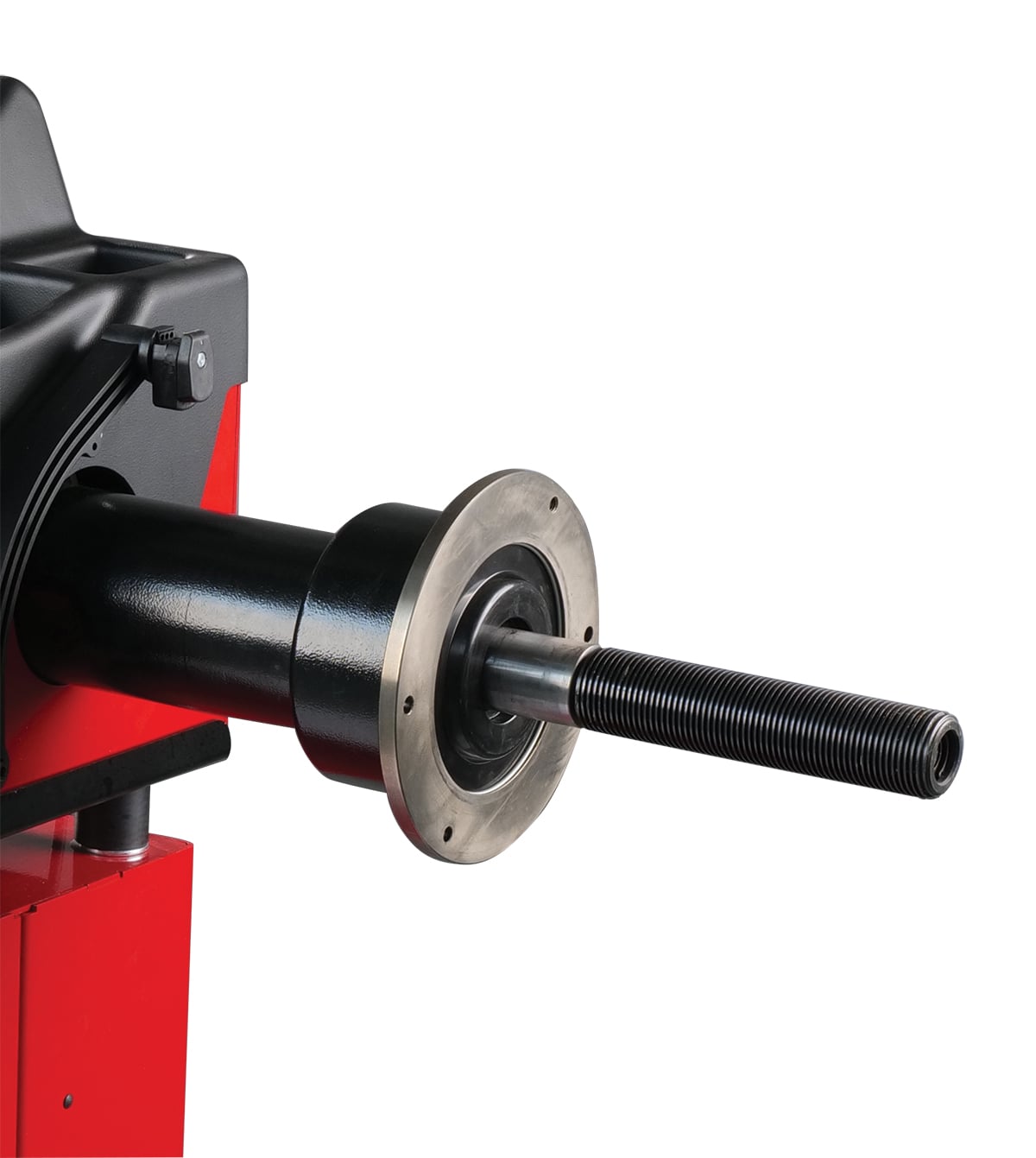

NEW-GENERATION MEASUREMENT UNIT


Based on our top-of-the-range models, this wheel balancing unit guarantees high precision, reliability and speed.
It is designed to balance wheels weighing up to 85 kg and delivers professional performance despite the machine’s extremely compact dimensions.

PNEULOCK AUTOMATIC LOCKING SYSTEM

The EM 9050 SpaceSaver is equipped with the PneuLock automatic pneumatic system, which improves wheel centring and significantly reduces clamping and unclamping times. The result is increased productivity and consistent balancing quality.

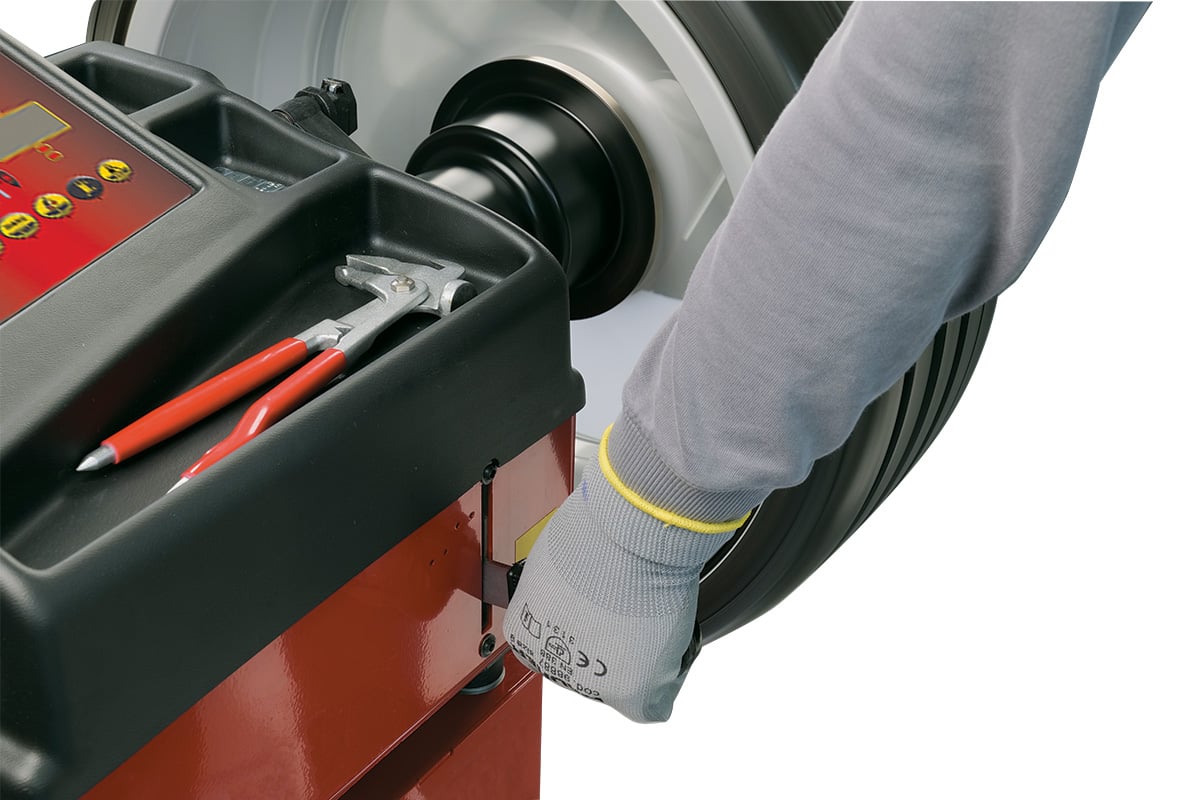

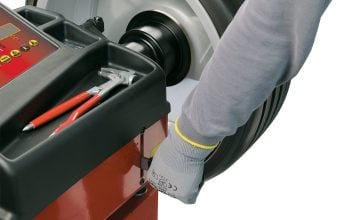

PARKING BRAKE

The parking brake makes it easier to fit the counterweights and secure the wheel. In the motorised versions, the lever also allows the launch motor to be activated directly at 100 rpm.

Technical data

Balancing speed

98 rpm
Average measurement time

5 s
Rim width

1,5” – 20”
Rim diameter

10” – 28” (automatico)
Maximum wheel diameter

1118 mm (44”)
Maximum wheel weight

85 kg
Machine weight

67 kg (Space Saver / Tilt)
Dimensions (W x D x H)

1006 x 474 x 947 mm (Space Saver / Tilt)
Balancing speed

98 rpm

Average measurement time

5 s

Rim width

1,5” – 20”

Rim diameter

10” – 28” (automatico)

Maximum wheel diameter

1118 mm (44”)

Maximum wheel weight

85 kg

Machine weight

67 kg (Space Saver / Tilt)

Dimensions (W x D x H)

1006 x 474 x 947 mm (Space Saver / Tilt)
