ERCO C350 B

Low-profile, reversible electro-hydraulic scissor lift

ErcoC350_B

Compact, robust and ideal for tyre dealers, garage mechanics and bodywork specialists

Get a Quote
Brochure
Images

The ERCO C350 B is a low-profile electro-hydraulic scissor lift designed for use on cars, SUVs, and vans. With a lifting capacity of 3,500 kg, a compact structure, and reversible operation, it offers a versatile solution for maintenance, tire changes, and quick mechanical repairs.

The sturdy scissor structure, anti-torsion bars, and redundant hydraulic system ensure stability and reliability during all lifting phases. The low-profile design also facilitates access to vehicles and allows for practical use even in workshops with limited space.

Benefits

Ideal for tyre dealers and multi-brand garages

Low-profile

High stability

Hydraulic system without compressed air

Features and functions

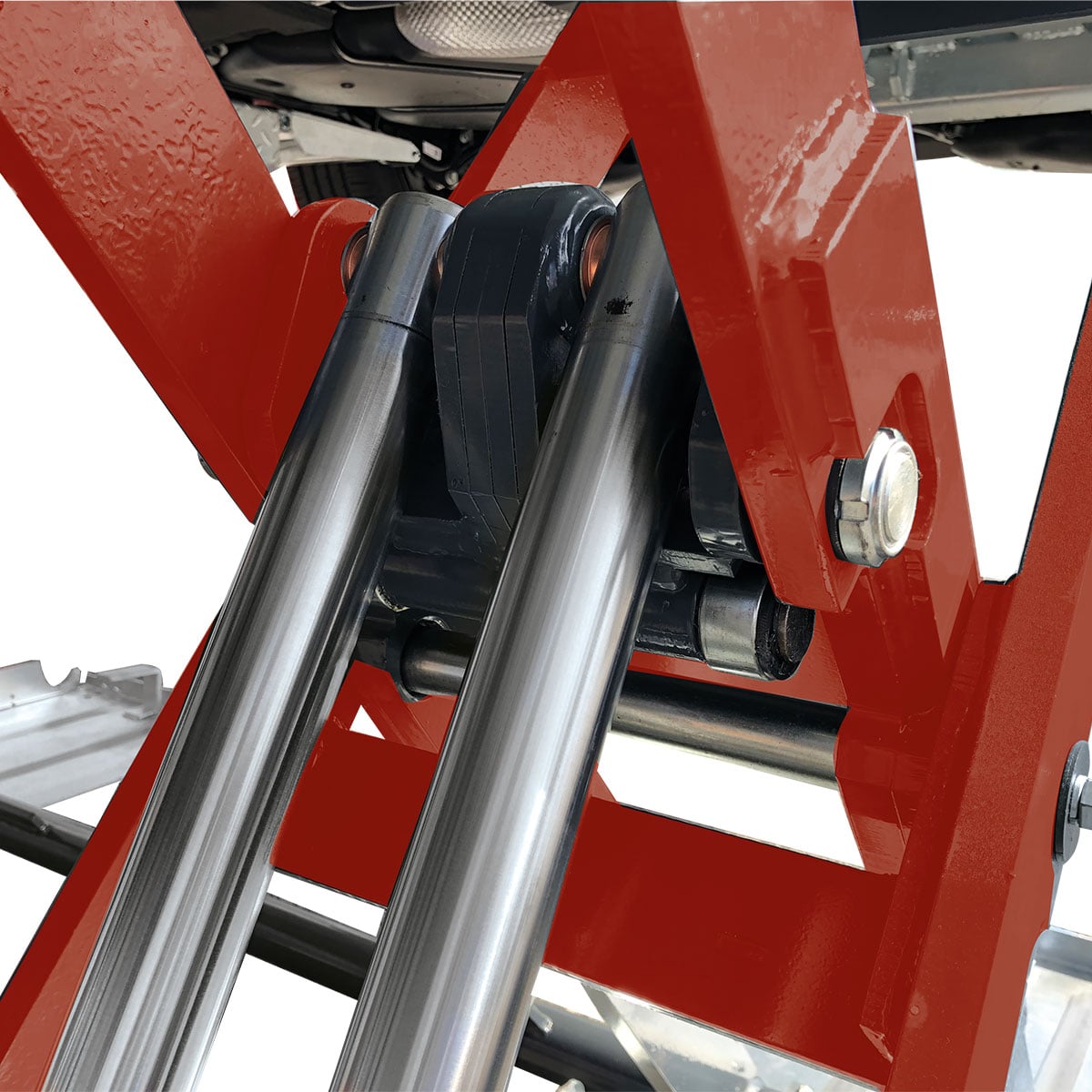

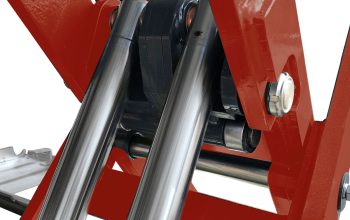

REDUNDANT HYDRAULIC SYSTEM

Each platform is fitted with two hydraulic cylinders, ensuring reliability and continuous operation without the need for compressed air or mechanical safety devices.

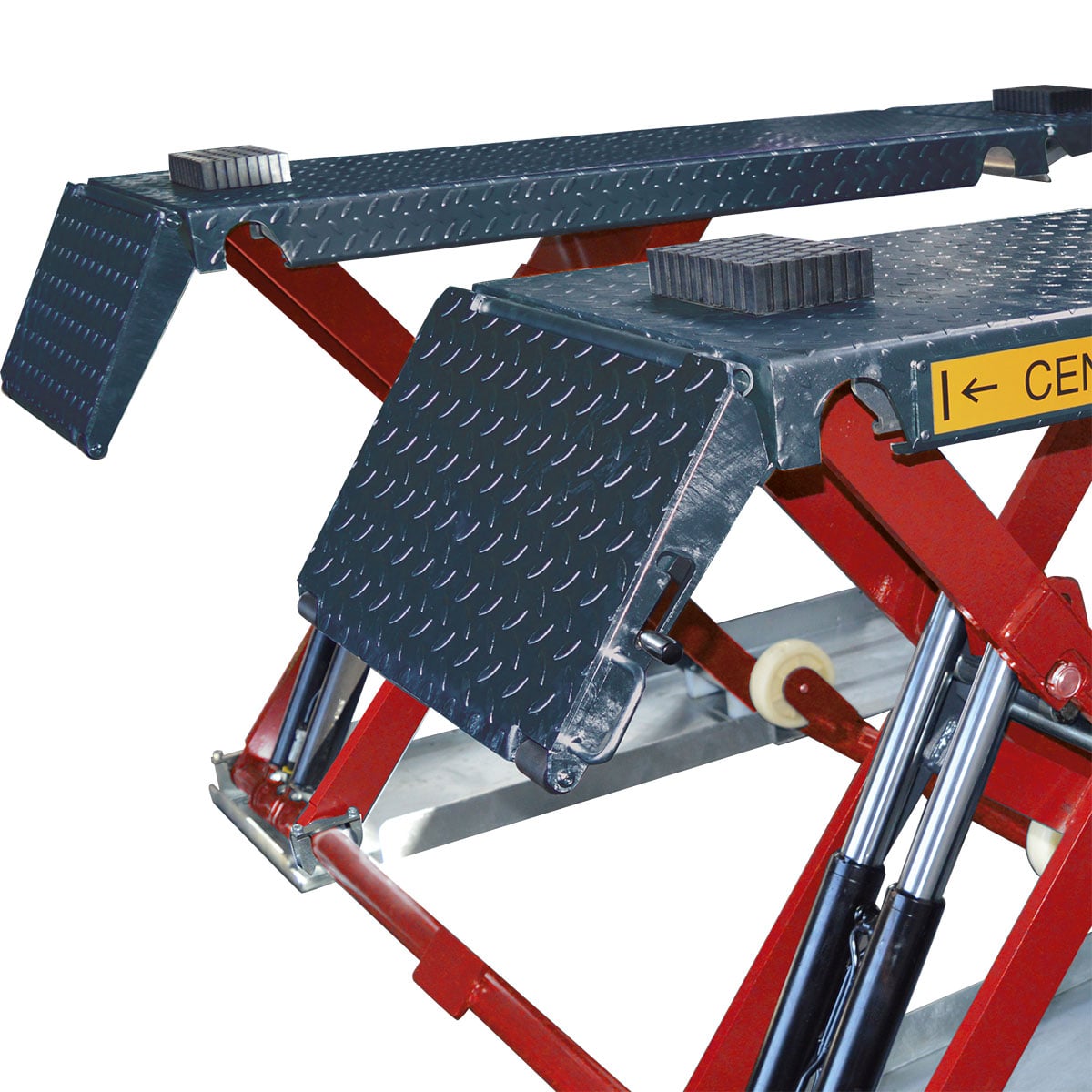

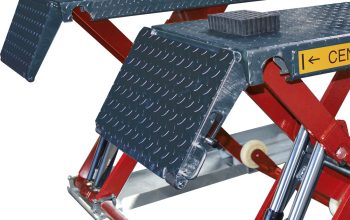

FOOTREST WITH INTEGRATED FLAPS

The flaps act as access ramps and make it easier to get in and out of the vehicle.

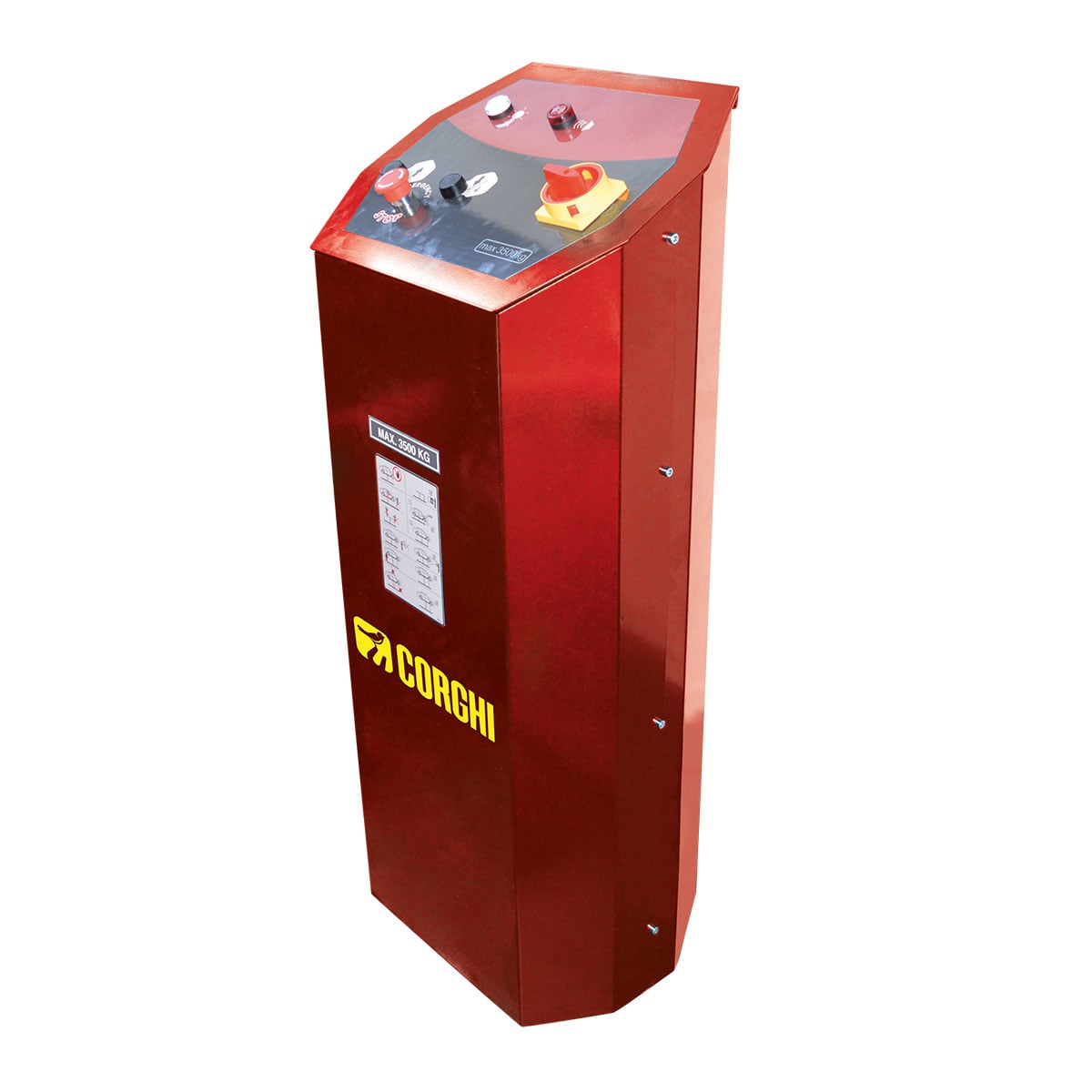

LOW-VOLTAGE CONTROL UNIT

Manual controls are provided to ensure simple and safe operation throughout all stages of work.

STURDY, GALVANISED STRUCTURE

Hot-dip galvanised base and reinforced frame designed to ensure durability and lateral stability.

Technical data

Type

Ponte sollevatore elettroidraulico a forbice ribassato
Maximum flow rate

3.500 kg
Maximum lifting height

895 mm
Minimum height

105 mm
Working height

1.000 mm + tamponi in gomma
Ascent/descent time

16 s
Power of the hydraulic unit

2,2 kW
Power supply

230/400 V – 3 Ph – 50/60 Hz
Type

Ponte sollevatore elettroidraulico a forbice ribassato

Maximum flow rate

3.500 kg

Maximum lifting height

895 mm

Minimum height

105 mm

Working height

1.000 mm + tamponi in gomma

Ascent/descent time

16 s

Power of the hydraulic unit

2,2 kW

Power supply

230/400 V – 3 Ph – 50/60 Hz
