ERCO H3202

2-post electro-hydraulic
vehicle lifts

Master/Slave
reliability and maximum flexibility
for every workshop

The ERCO H3202 series includes electro-hydraulic 2-post lifts designed for daily maintenance on cars, SUVs, and light commercial vehicles. With a lifting capacity of 3,200 kg, the series stands out for its robust construction, low-profile 3-stage symmetrical arms, and Hydraulic Master/Slave system, which ensures reliability and ease of operation over time.
The absence of metal cables between the columns eliminates the need for periodic mechanical adjustments, while the automatic re-alignment of the carriages ensures consistently precise and safe movements.

The series is available in various configurations to suit the specific needs of the workshop:

ERCO H3202 L – floor-mounted version.
ERCO H3202 LI – recessed version.
ERCO H3202 V – tall version for greater working height.
ERCO H3202 CBP – version with a floor connection base.

Benefits

Master/Slave hydraulic circuit

Load capacity of 3,200 kg

Low-profile 3-stage arms

A comprehensive range of models to suit any workshop

Features and functions

MASTER/SLAVE HYDRAULIC SYSTEM

It ensures automatic synchronisation of the trolleys and maximum operational reliability without the use of wire ropes between the columns.

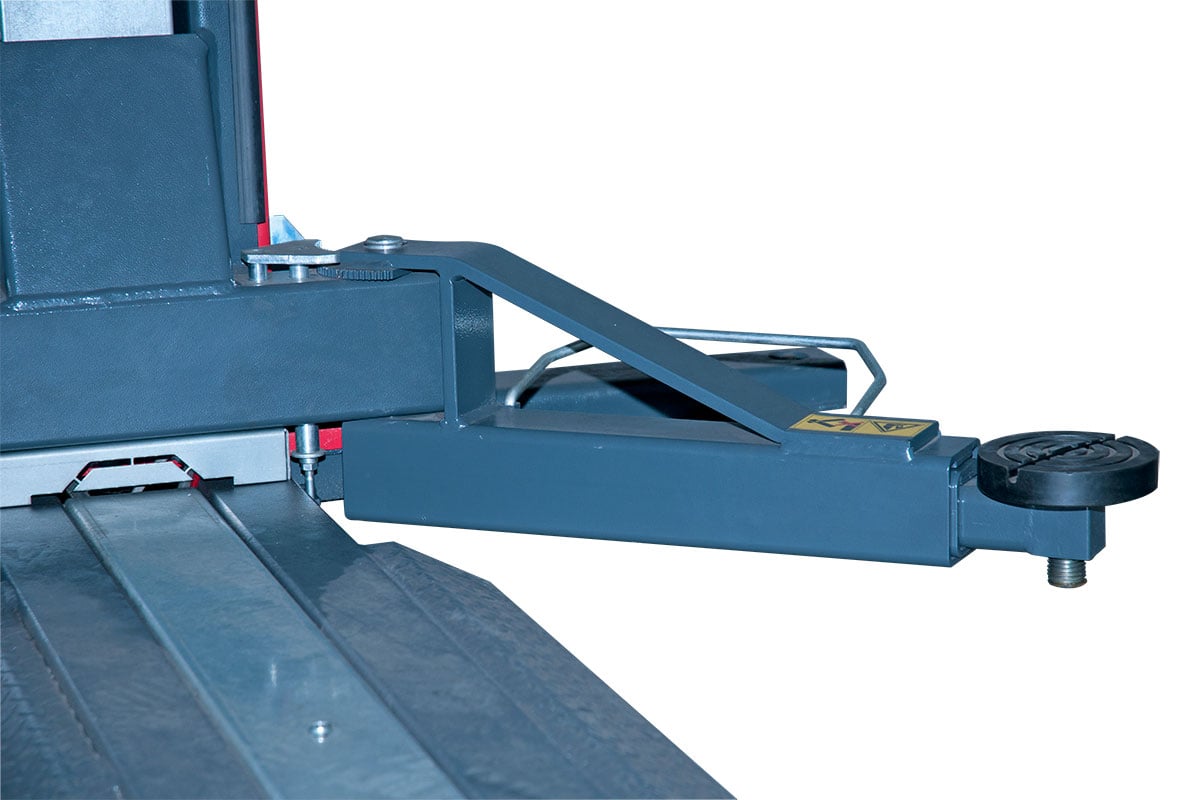

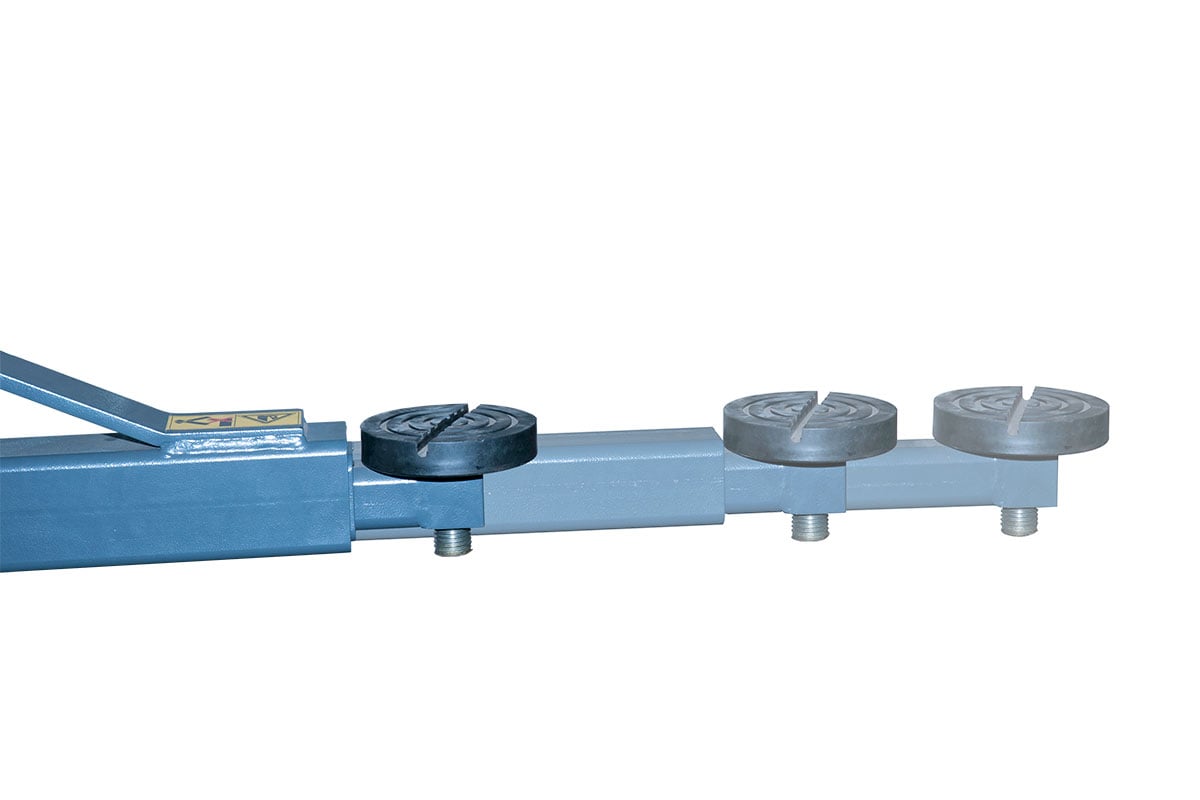

3-STAGE SYMMETRICAL ARMS

They provide a secure and versatile grip on different types of vehicles.

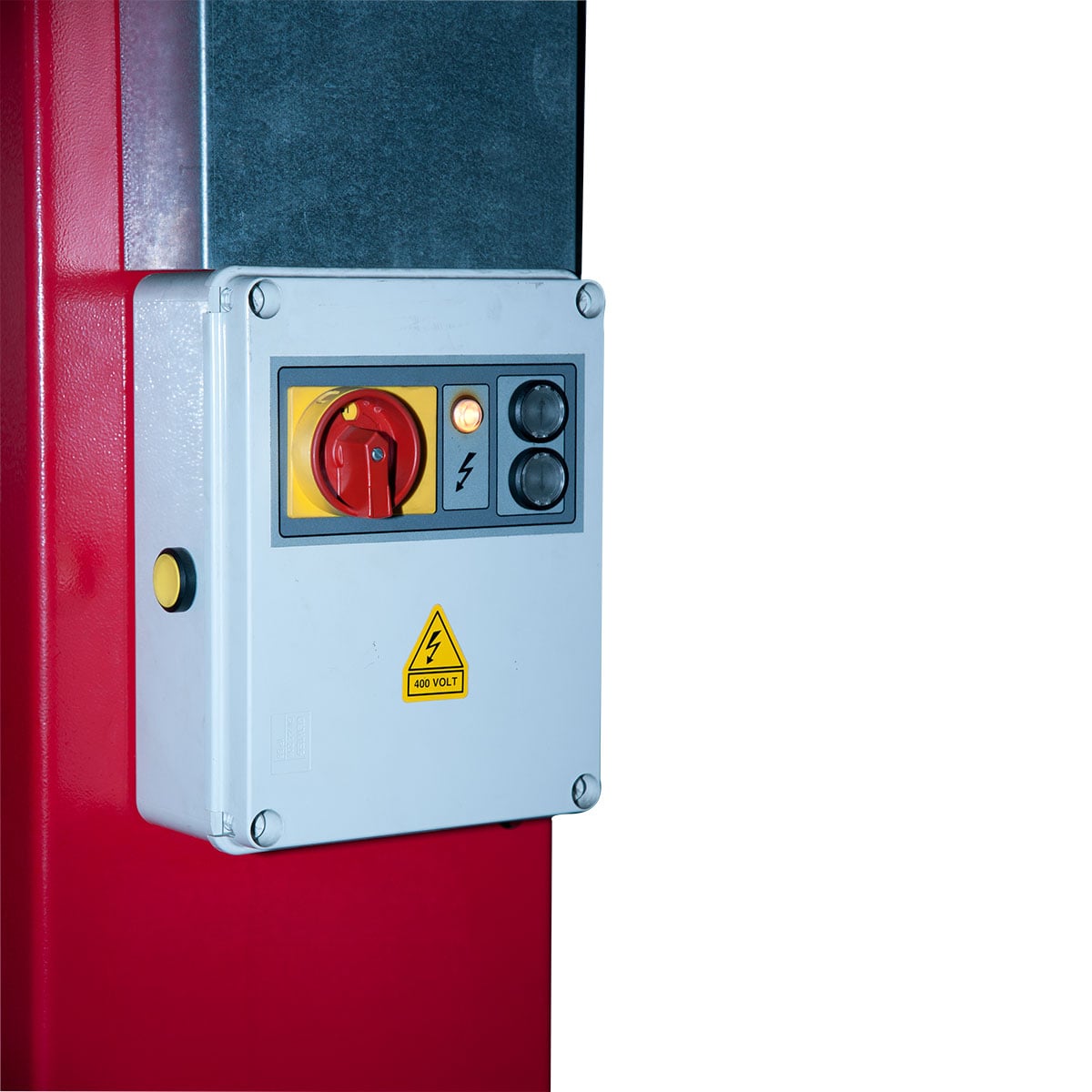

AUTOMATIC PARKING BYPASS BUTTON

It allows you to manage the descent phase by skipping the initial ascent stage.

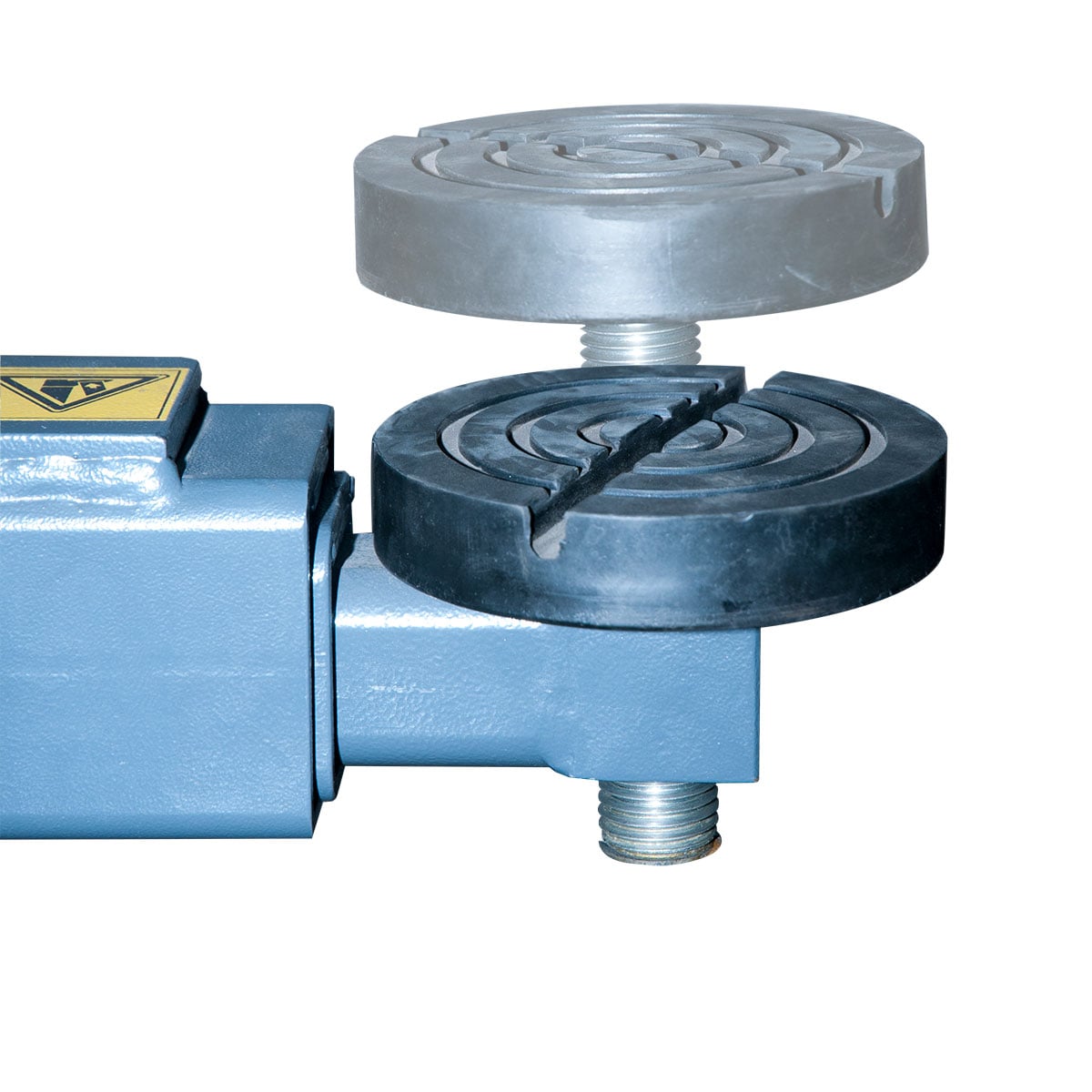

ADJUSTABLE PADS

Available with specialised accessories to extend the support height and adapt to different vehicle configurations.

Technical data

Type	Ponte sollevatore elettroidraulico a 2 colonne
Maximum flow rate	3.200 kg
Arms	Simmetrici a 3 stadi
Lifting system	Idraulico Master/Slave
Engine power	2,6 kW
Power supply	230/400 V – 3 Ph – 50/60 Hz / 230 V – 1 Ph
Control circuit voltage	24 V
Available versions	L, LI, CBP

Type

Ponte sollevatore elettroidraulico a 2 colonne

Maximum flow rate

3.200 kg

Arms

Simmetrici a 3 stadi

Lifting system

Idraulico Master/Slave

Engine power

2,6 kW

Power supply

230/400 V – 3 Ph – 50/60 Hz / 230 V – 1 Ph

Control circuit voltage

24 V

Available versions

L, LI, CBP

Gallery
