ERCO 4022 EVO

2-post electromechanical lift (filter tags: electromechanical)

ERCO4022_EVO

For a powerful, reliable, and precise lifting experience.

Get a Quote Brochure Images

The ERCO 4022 EVO is the Corghi 2-post electromechanical lift designed to provide a precise, reliable, and versatile lifting experience for everyday workshop tasks. With a lifting capacity of 4,000 kg, it is the ideal solution for working on passenger cars, SUVs, and light commercial vehicles.

The three-stage telescopic arm configuration, electronic synchronization, and mechanical lifting system using worm screws allow for efficient operation on vehicles with short and medium wheelbases, as well as vans. The asymmetrical installation also allows for wider door opening and improves access to the passenger compartment during service work.

Developed in accordance with the EN 1493:2022 standard, the ERCO 4022 EVO incorporates numerous features designed for safety, ergonomics, and durability, making it a professional choice for workshops seeking high performance and operational reliability.

Also available in the 3.5-ton version – Erco 3522 EVO

Benefits

Greater accessibility to the vehicle

One bridge for many applications

Precision and Control of Movements

Safety Designed to Last

Features and functions

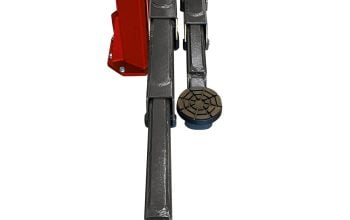

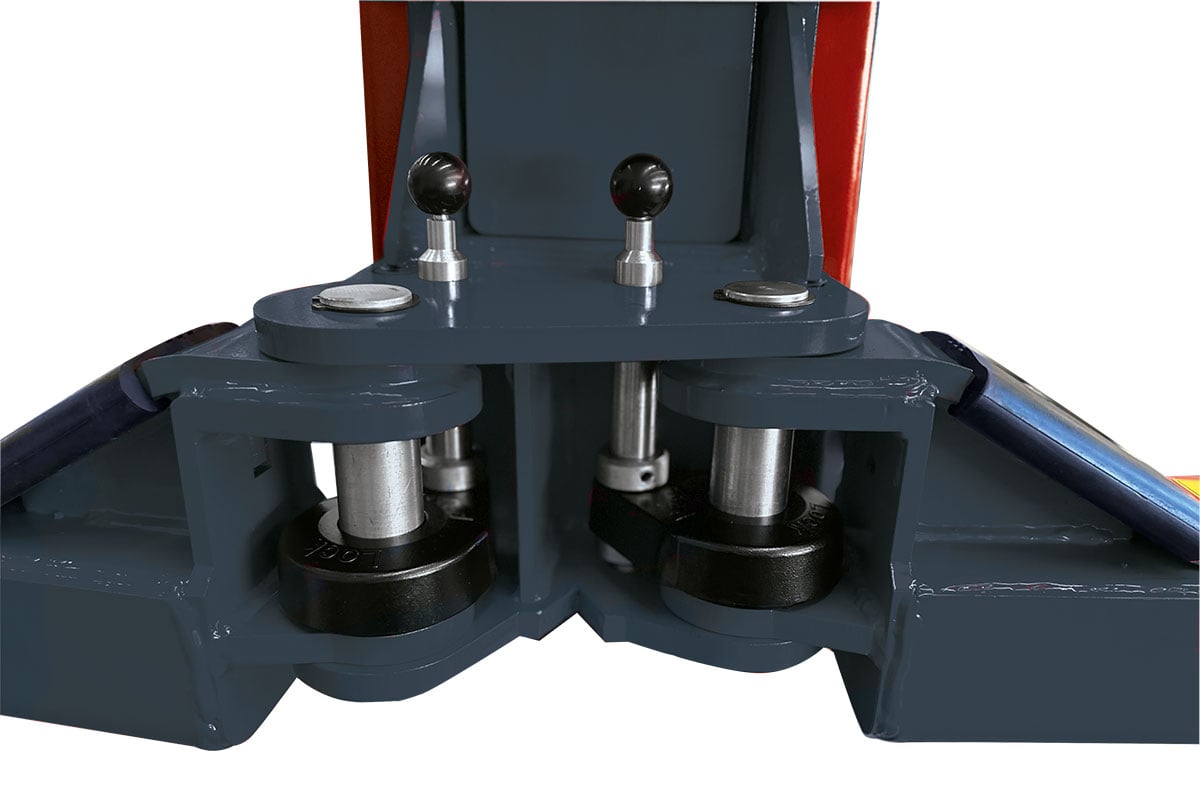

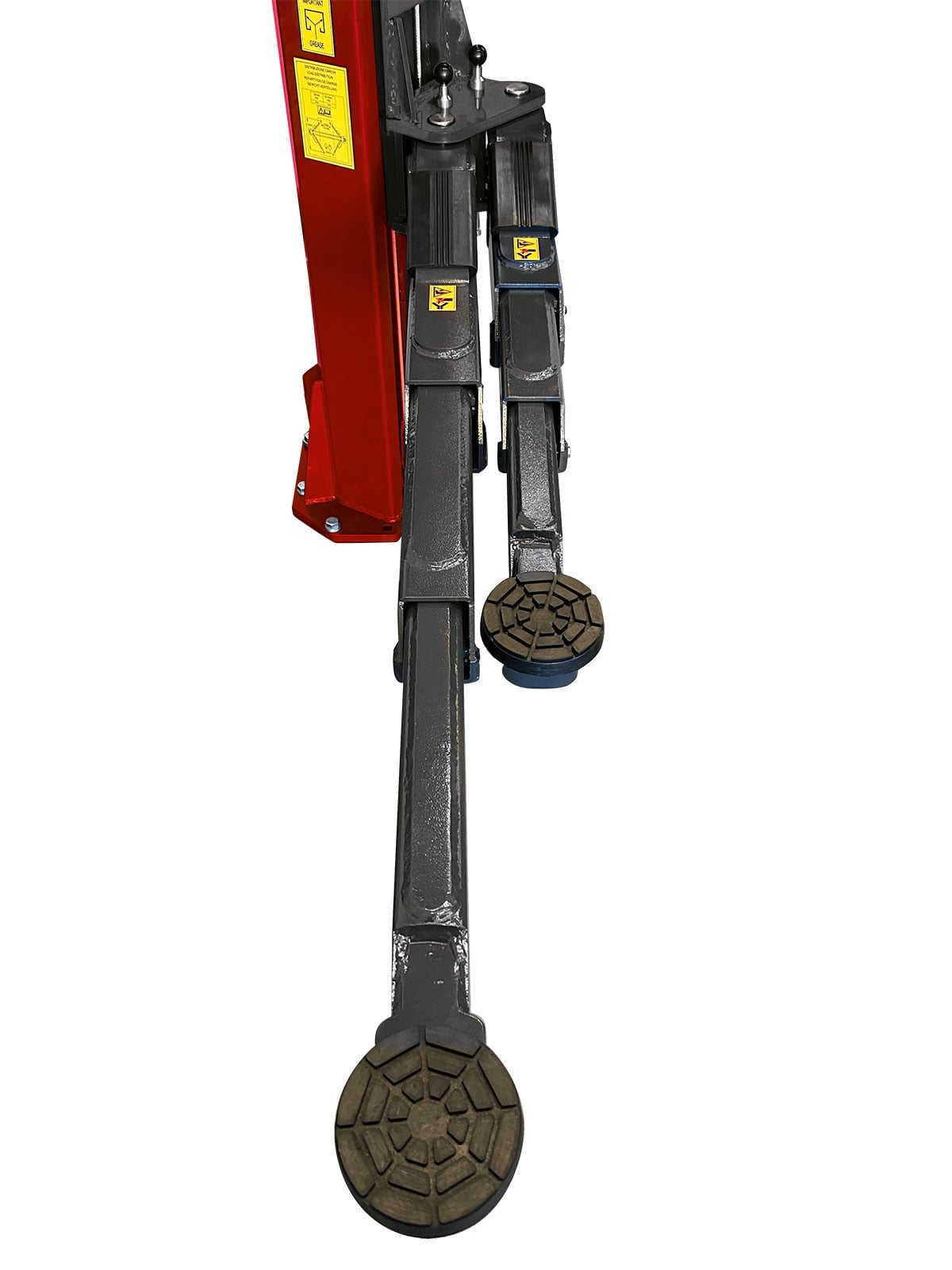

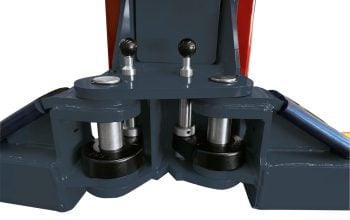

Three-stage telescopic arms

The universal lifting area is designed to work on a wide range of vehicles, from short-wheelbase models to vans. The ability to park the arms parallel at the rear also facilitates correct vehicle positioning.

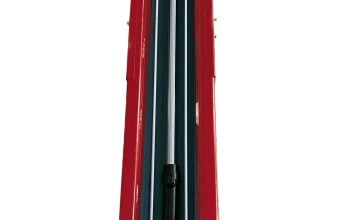

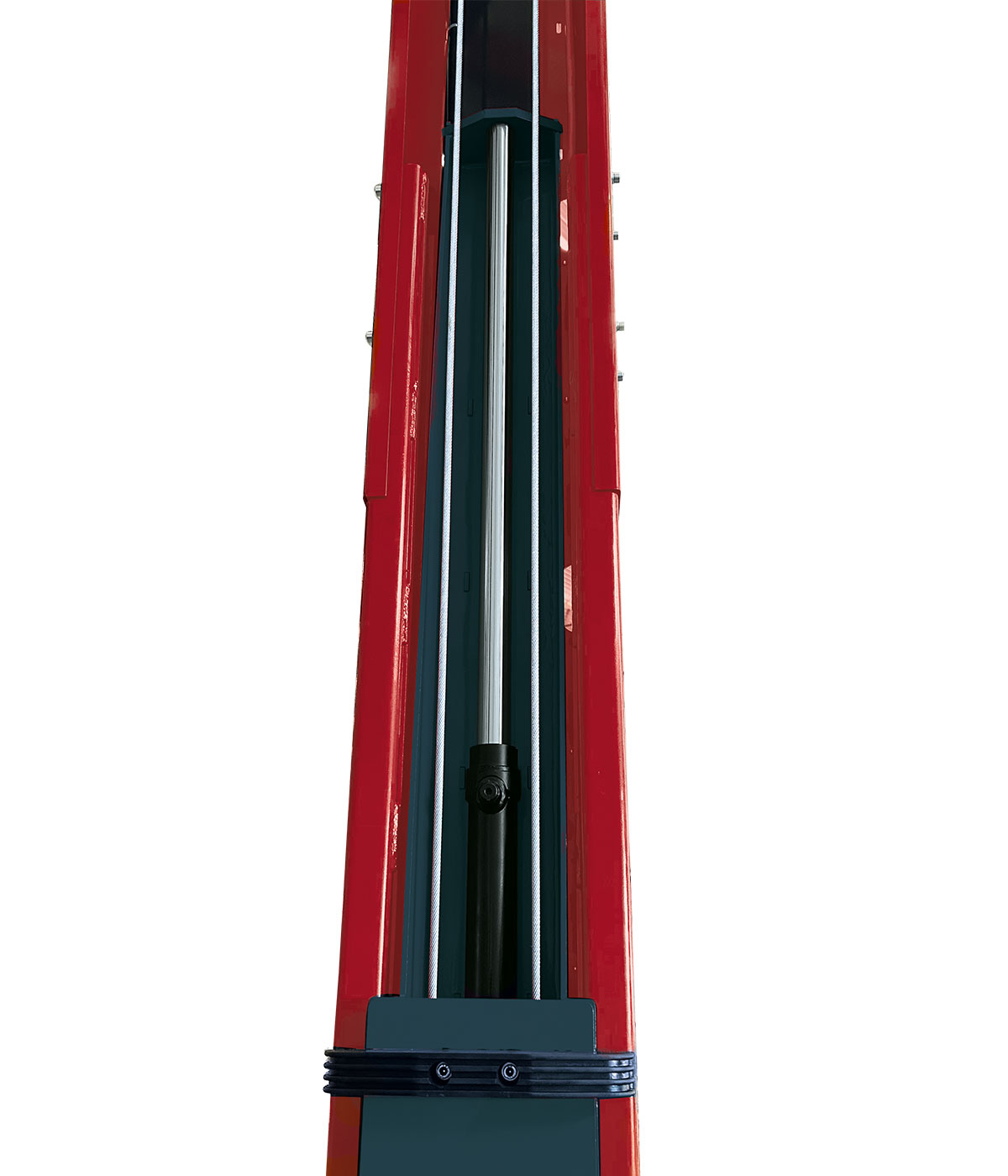

Mechanical lifting and electronic synchronization

The two high-efficiency electric motors—one per column—work in conjunction with Electronic synchronization to ensure smooth, precise, and reliable movements. The system uses worm screws for the carriages’ lifting.

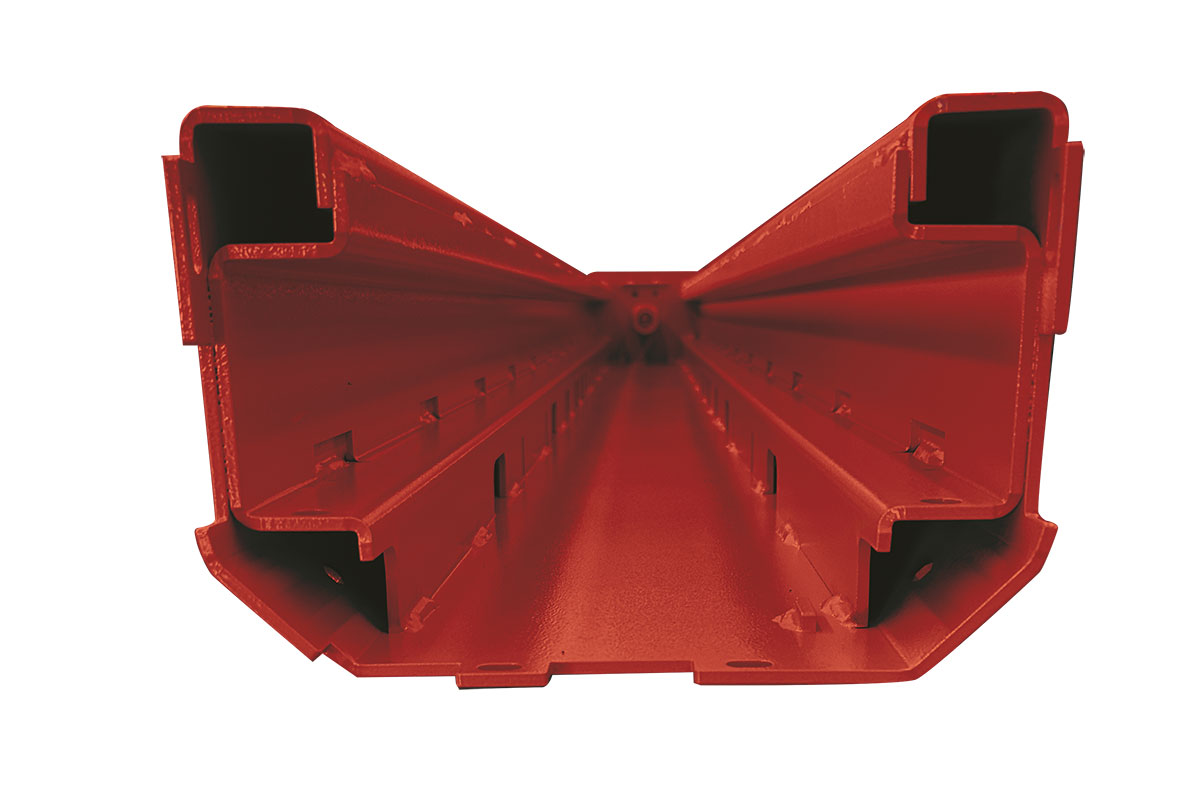

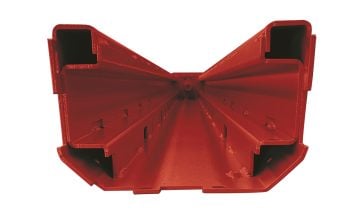

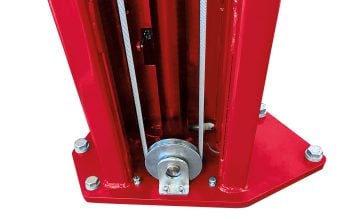

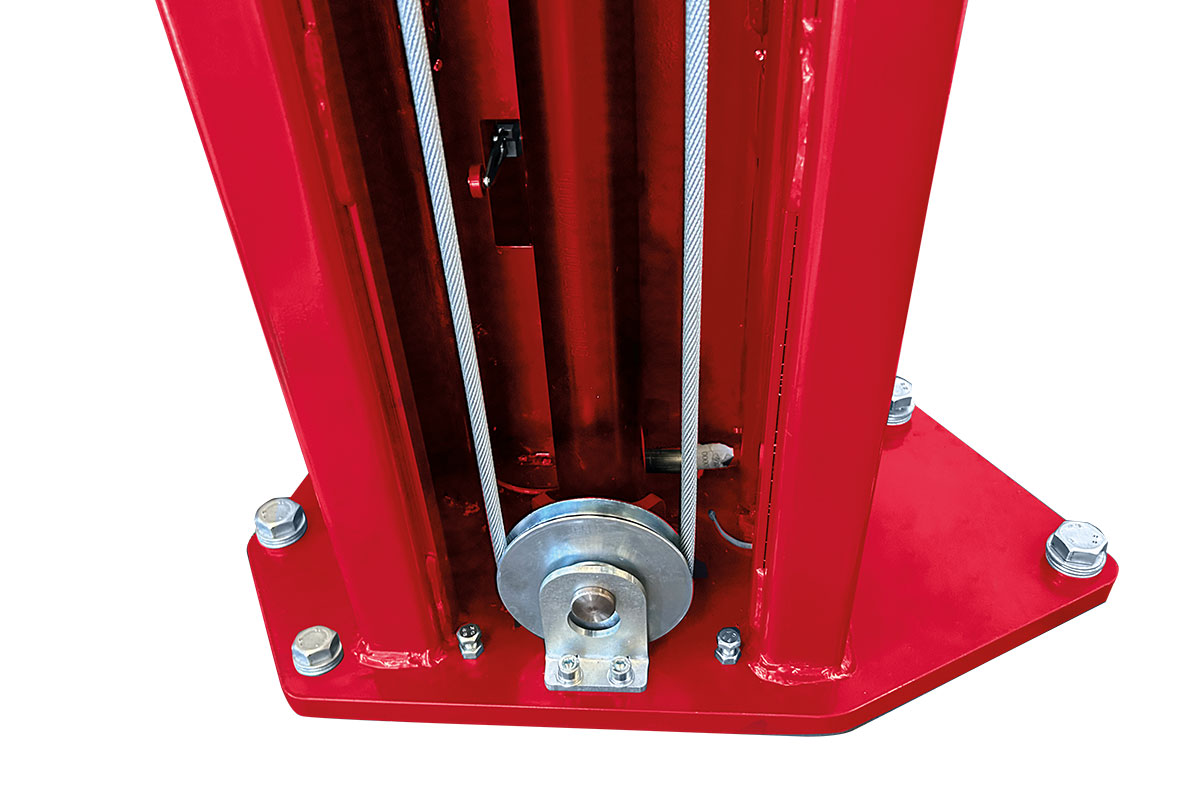

Reinforced columns

The bent columns with internal reinforcement are designed to provide high structural strength and stability during lifting.

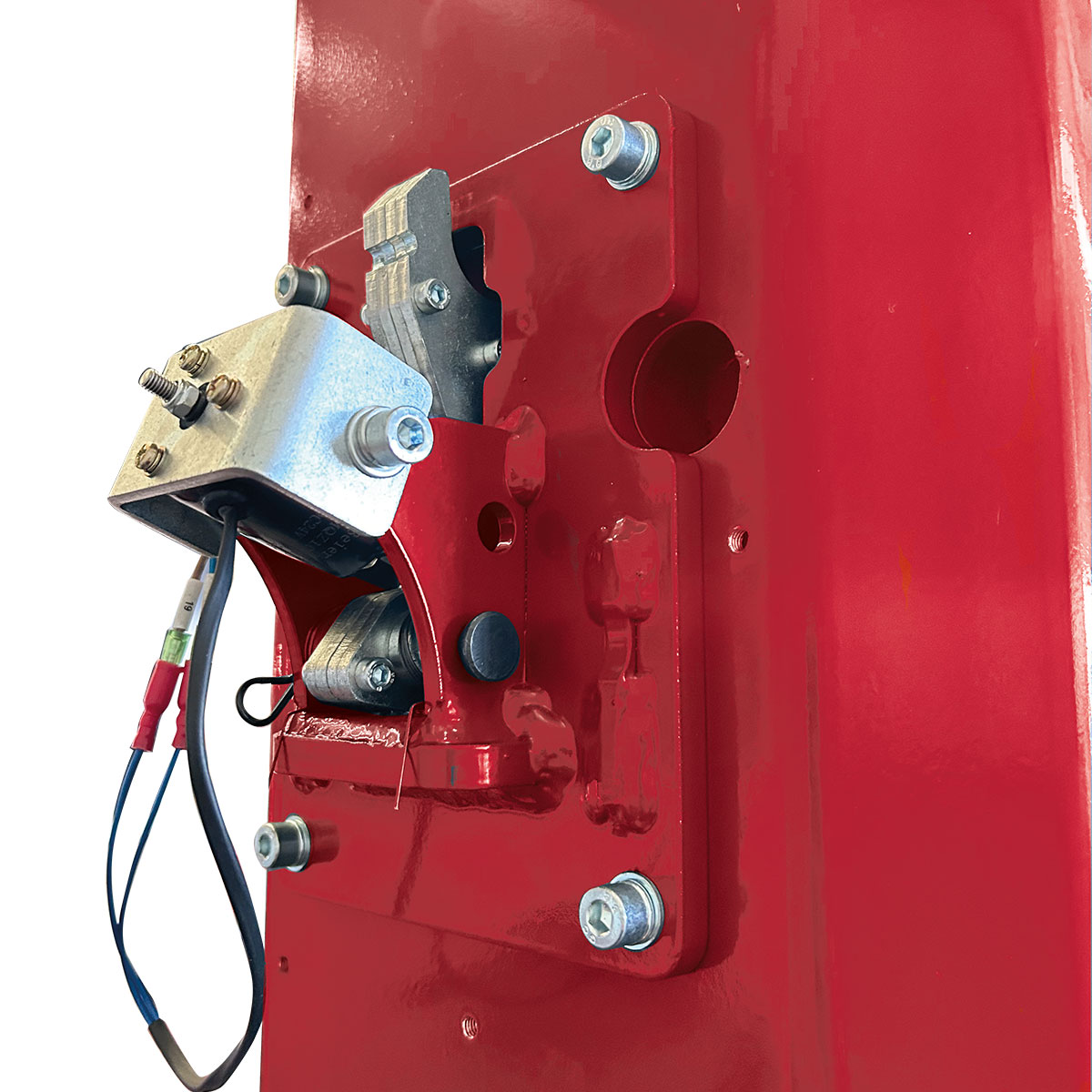

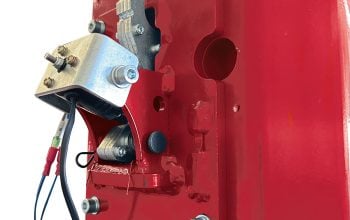

Integrated Security System

The hoist is equipped with an automatic stop in the event of obstacles during descent, a safety nylon load nut, and a CE-certified stop before the final descent. These features enhance operational safety and help reduce maintenance requirements.

Door protection pad

The rubber guards installed on the columns and arms help prevent accidental damage to the doors when parking the vehicle.

Technical data

maximum capacity

4,000 kg
Type

2-post lift
Lift Height

4,237–4,597 mm
Minimum usable height

95 mm
maximum height

2,073 mm
Engine

400/230V – 3 kW – 3-phase – 50/60 Hz

230V – 3 kW – 1-phase – 50/60 Hz
Minimum installation thickness

100–140 mm
maximum capacity

4,000 kg

Type

2-post lift

Lift Height

4,237–4,597 mm

Minimum usable height

95 mm

maximum height

2,073 mm

Engine

400/230V – 3 kW – 3-phase – 50/60 Hz

230V – 3 kW – 1-phase – 50/60 Hz

Minimum installation thickness

100–140 mm
