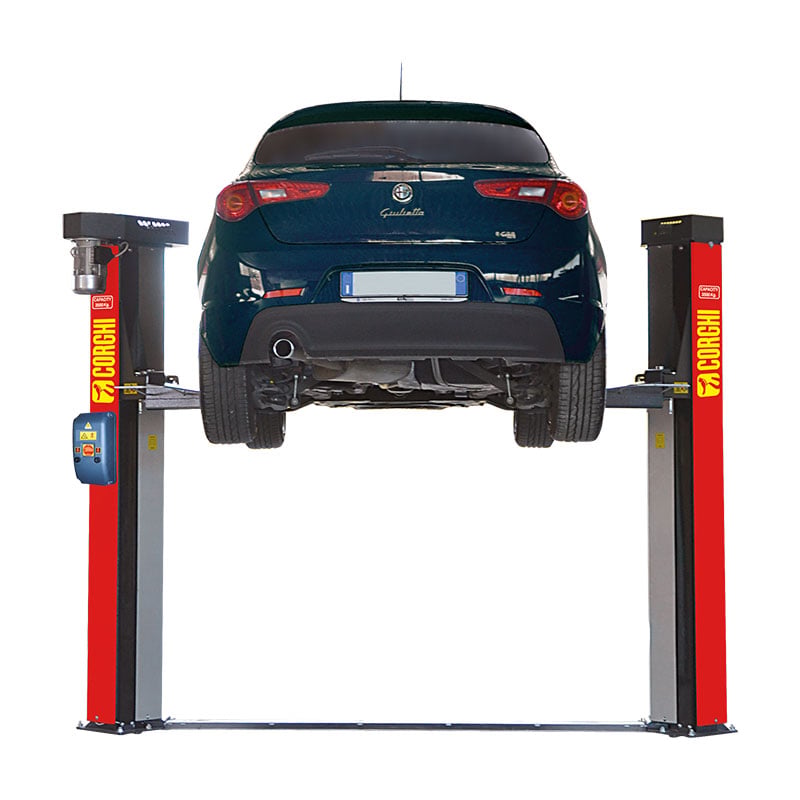

The ERCO 3512 is a Corghi 2-post lift designed to offer high structural rigidity, maximum ease of use, and a distinctive design. With a lifting capacity of 3,500 kg, it is a professional solution for workshops seeking reliability, stability, and high-quality construction. The unique column structure, made from closed tubular profiles, ensures superior torsional strength, while the configuration of the carriages and arms facilitates vehicle access and improves ergonomics during maintenance operations.
Compared to traditional electromechanical solutions, the ERCO 3512 incorporates advanced design features that enhance safety, stability, and operational convenience, making it one of the most distinctive models in the Corghi lineup.
ERCO 3512
2-post electromechanical
lift
Exclusive design,
maximum structural
rigidity
and advanced safety features
Benefits
Load capacity up to 3,500 kg
Columns with high torsional stiffness
Easier access to the vehicle
Advanced
security system
Features and functions
HIGH-STRENGTH TUBULAR STRUCTURE
The columns are constructed from a closed-section profile, which ensures high torsional strength and contributes to the overall stability of the bridge.
OUTDOOR TROLLEYS
Positioning the trolleys outside the columns improves accessibility and makes it easier to drive the vehicle in and park it.
ADJUSTABLE TELESCOPIC ARMS
They provide a versatile and secure grip on different types of vehicles.
ELECTRICAL SAFETY INSPECTION
The system immediately stops movement in the event of excessive wear on the drive screws, misalignment of the carriages or a broken chain.
Technical data
| Type | Ponte sollevatore elettromeccanico a 2 colonne |
| Maximum flow rate | 3.500 kg |
| Maximum lifting height | 1.945 mm |
| Minimum socket height | 90 mm |
| Arms | Telescopici regolabili |
| Engine power | 3,6 kW |
| Power supply | 230/400 V – 3 Ph – 50/60 Hz |
| Column structure | Profilo tubolare ad alta rigidità |
Type
Ponte sollevatore elettromeccanico a 2 colonne
Maximum flow rate
3.500 kg
Maximum lifting height
1.945 mm
Minimum socket height
90 mm
Arms
Telescopici regolabili
Engine power
3,6 kW
Power supply
230/400 V – 3 Ph – 50/60 Hz
Column structure
Profilo tubolare ad alta rigidità
