ERCO-LE 75-55


Electromechanical
retractable
posts for lorries, buses
and industrial vehicles

ERCO_LE75


Electronic control,
maximum flexibility
and reliability
for professional lifting

Get a Quote Brochure Images

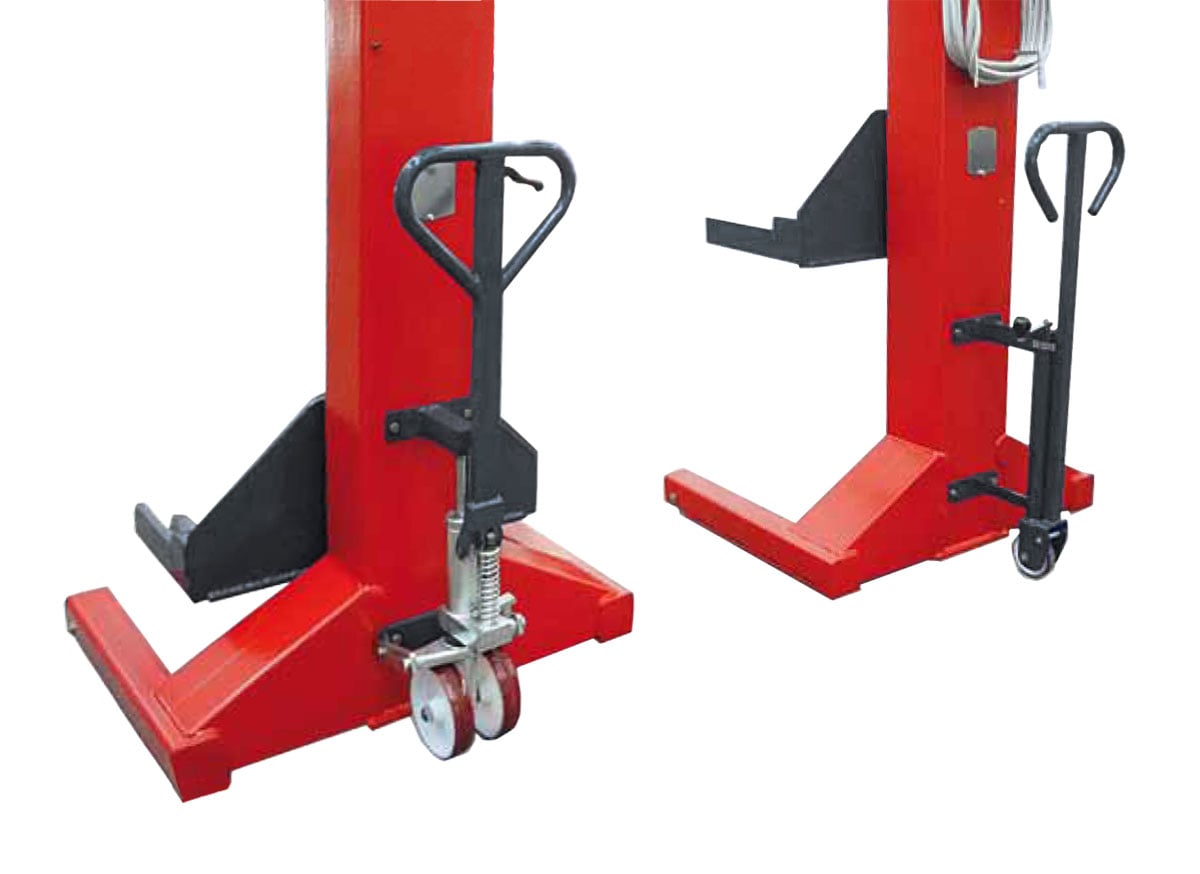

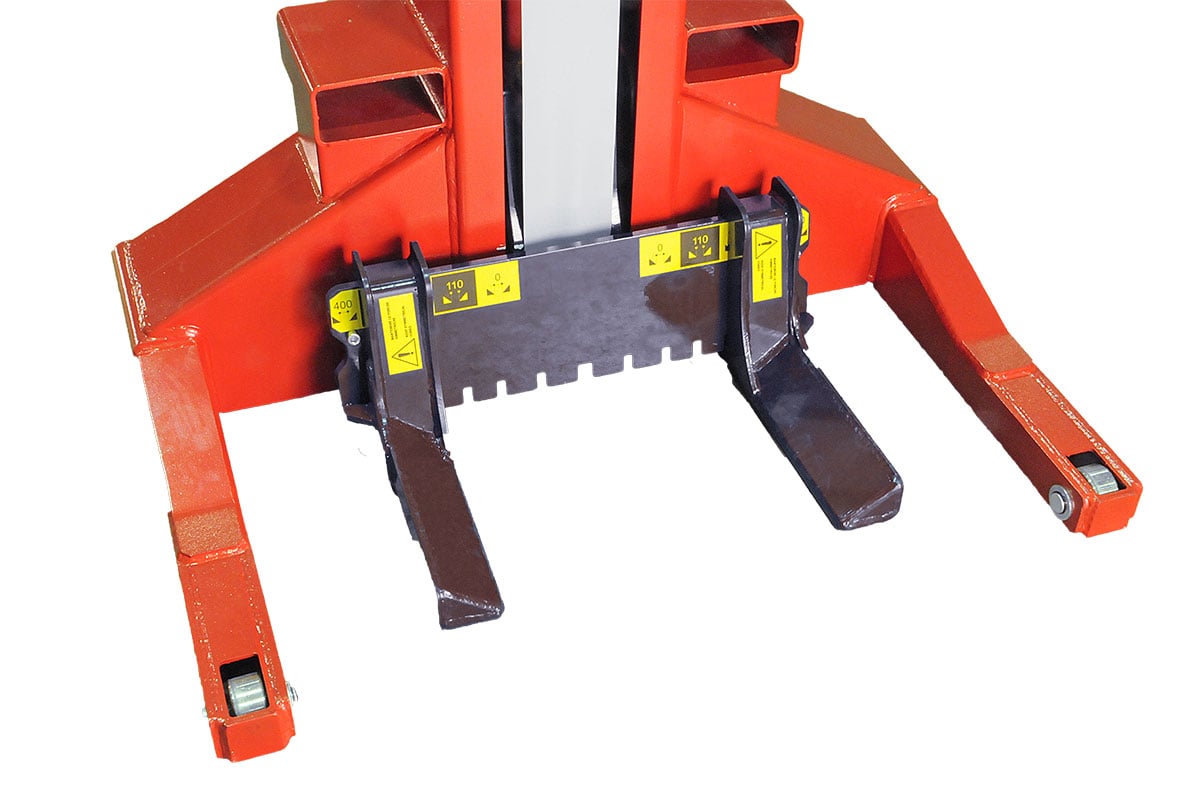

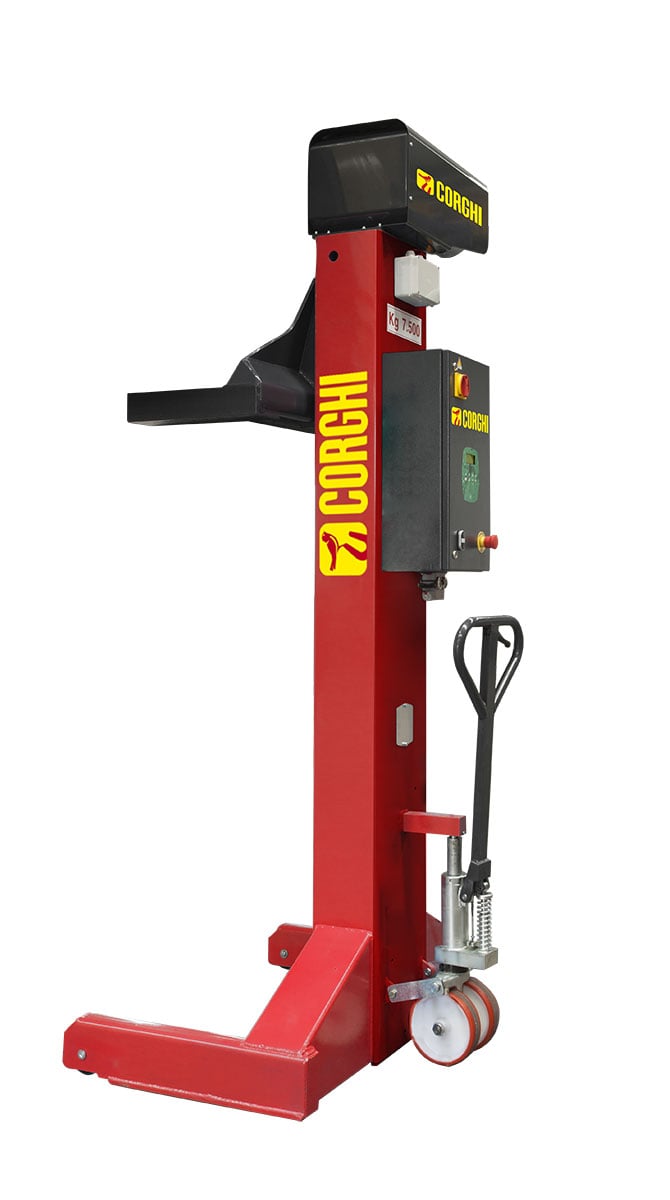

The ERCO-LE 75 – ERCO-LE 55 series consists of electromechanical mobile columns designed for lifting buses, trucks, and industrial vehicles. Thanks to centralized electronic control, automatic re-alignment, and the option to configure systems with 4, 6, or 8 columns, it offers a versatile solution for shops specializing in heavy transport vehicle repair.
The range is available in two configurations: the ERCO-LE 75 with a capacity of 7,500 kg per column and the ERCO-LE 55 with a capacity of 5,500 kg per column. Both models share the same technological platform, the new computerized control unit, and the same operational functions. The columns can operate simultaneously, in pairs, or individually, and ensure automatic re-alignment between units with tolerances of just a few millimeters. The electronic control system also integrates diagnostic functions, event logging, scheduled maintenance, and remote support.

Benefits

Modular configurations with up to 8 columns

Fully electronic management

Automatic column realignment

Reduced energy consumption

Features and functions

COMPUTERISED CONTROL UNIT

Comprehensive management of lifting operations, including height display, diagnostics, service information and column configuration.

REMOTE ASSISTANCE AND DIAGNOSTICS

The ability to monitor and check the machine’s operating conditions via the control unit’s electronic management system.

INTEGRATED ABSOLUTE ENCODER

New absolute encoder with a 12-bit processor connected directly to the lifting screw to ensure high control accuracy.

HYDRAULIC STEERING RACK

It makes it easier to move the columns, improving ergonomics and making positioning simpler.

Technical data

Capacity per column
ERCO-LE 75 ERCO-LE 55
7,500 kg 5,500 kg
Ascent speed
670 mm/min 575 mm/min
Weight per column
410 kg 355 kg
Power
3 kW 2.2 kW
Power supply
400 V – 50/60 Hz 400 V – 50/60 Hz
Capacity per column
ERCO-LE 75 ERCO-LE 55
7,500 kg 5,500 kg
Ascent speed
670 mm/min 575 mm/min
Weight per column
410 kg 355 kg
Power
3 kW 2.2 kW
Power supply
400 V – 50/60 Hz 400 V – 50/60 Hz
