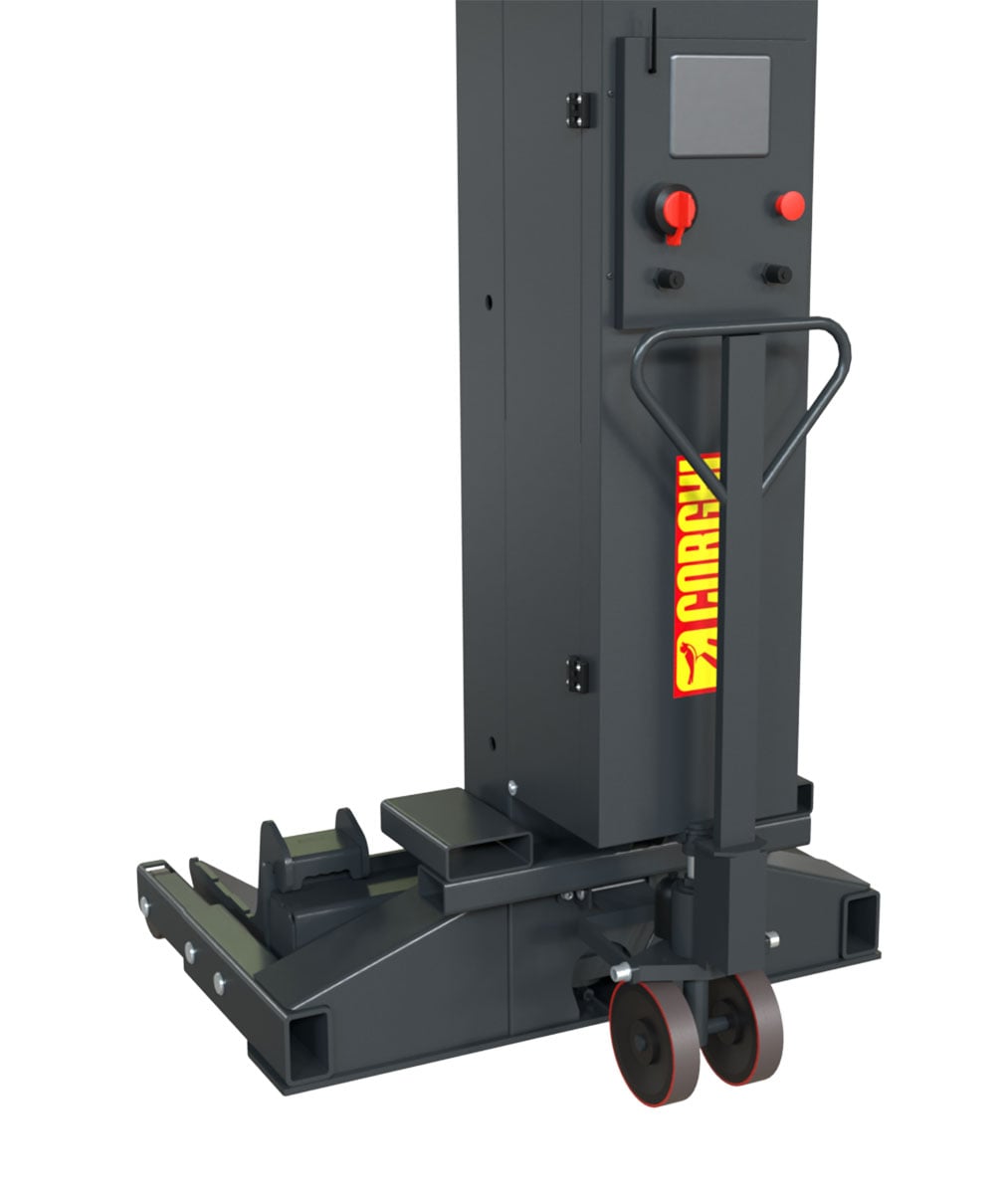

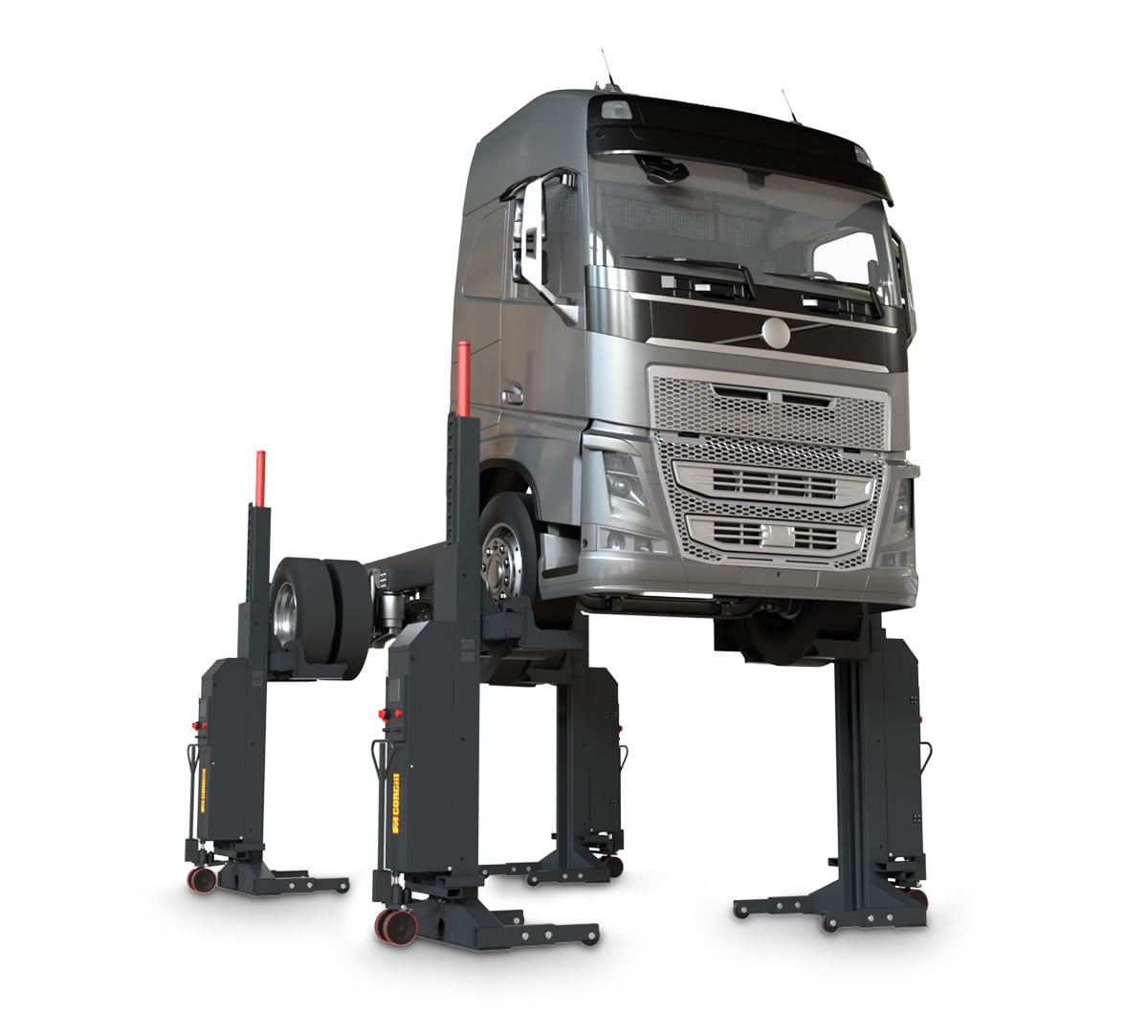

The ERCO-LE H65–H75–H86 series represents the new generation of Corghi hydraulic mobile columns designed for the professional lifting of trucks, buses, industrial vehicles, and fleets. The range combines high load capacity, intelligent control, and maximum operational freedom thanks to wireless synchronization and battery power.
Each column is completely independent and equipped with a color touchscreen display, high-performance gel batteries, an integrated hydraulic trolley, and a wireless control system that allows for the synchronization of up to 8 columns without the need for wiring. The series is available in three capacity configurations: ERCO-LE H65 with a load capacity of 6,500 kg per column, ERCO-LE H75 with a load capacity of 7,500 kg per column, and ERCO-LE H86 with a load capacity of 8,600 kg per column. All models share the same technological platform, the same operational features, and the same safety systems, allowing you to simply choose the capacity that best suits the needs of your fleet and workshop.
Designed to improve productivity, safety, and ergonomics, the ERCO-LE mobile columns allow for quick work on different types of vehicles thanks to adjustable forks, easy maneuvering via a hydraulic trolley, and intelligent system management.
ERCO-LE H65-H75-H86
Mobile
hydraulic
columns for commercial vehicles,
buses and fleets
Power, range
and total
control for professional lifting
.
Benefits
Maximum flexibility of use
Battery life for uninterrupted work
Quick and easy handling
Total control of the system
Features and functions
WIRELESS SYNCHRONISATION
The system controls the simultaneous movement of all the columns, ensuring smooth and perfectly coordinated lifting. Up to 8 columns can be connected.
COLOUR TOUCHSCREEN DISPLAY
Each column features a 4.3-inch touchscreen display for quickly managing all operational functions and viewing system information.

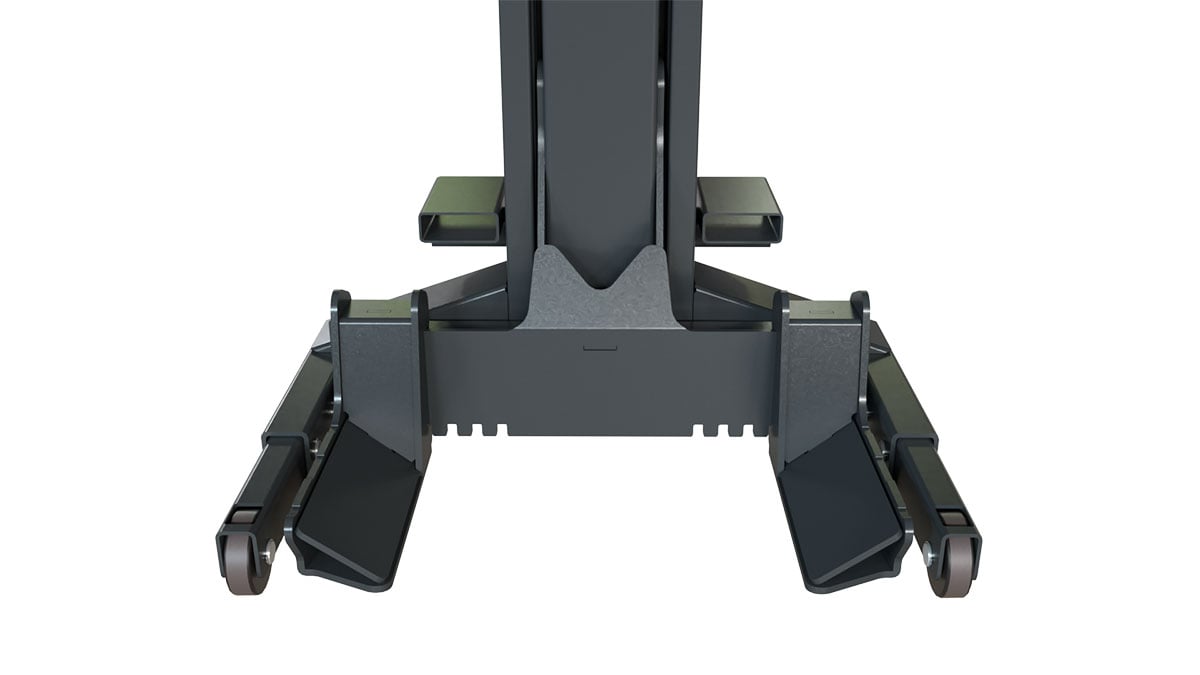

ADJUSTABLE FORKS
A wide clamping range from 60 to 135 cm to easily adapt to different tyre and vehicle configurations.
24 VDC GEL BATTERIES
A fully self-contained system with a built-in battery charger and power supply via a standard mains socket.
BUILT-IN SAFETY FEATURES
A flow valve, safety relief valve, mechanical safety lock, maximum pressure valve and padlockable main shut-off valve ensure maximum protection during all work operations.
Technical data
| Type | Colonne mobili idrauliche |
| Capacity per column | 6.500 / 7.500 / 8.600 kg |
| Running | 1.760 mm (H65-H75) / 1.700 mm (H86) |
| Lifting speed | 2 cm/s |
| Synchronisation | Wireless fino a 8 colonne |
| Power supply | Batterie Gel 24 Vdc |
| Display | Touch screen a colori 4,3″ |
| Range of forks | 60 – 135 cm |
Colonne mobili idrauliche
6.500 / 7.500 / 8.600 kg
1.760 mm (H65-H75) / 1.700 mm (H86)
2 cm/s
Wireless fino a 8 colonne
Batterie Gel 24 Vdc
Touch screen a colori 4,3″
60 – 135 cm
