ERCO HC4002

2-post electro-hydraulic lift

ErcoHC4002

Versatile and universal lifting experience

Get a Quote Brochure Images

ERCO HC4002 is the Corghi 2-post electro-hydraulic lift designed to provide maximum versatility for everyday workshop activities. Thanks to its asymmetric configuration and three-stage lifting arms, it allows operators to work easily on passenger cars, SUVs and light commercial vehicles, ensuring easy access and simplified vehicle positioning.

The structure has been developed in compliance with the EN1493:2022 standard and combines robustness, reliability and installation flexibility. Reinforced columns, a high-efficiency hydraulic system and numerous safety-oriented solutions make it the ideal choice for workshops looking for a modern, versatile lift designed for intensive professional use.

Particular attention has been paid to operating ergonomics: the wide door opening angle, low minimum pick-up height and the possibility to park the arms parallel at the rear facilitate daily operations and improve operator comfort.

New! E-CAR accessories: download the depliant

Benefits

Improved vehicle accessibility

One lift for multiple applications

Easy installation

Long-term safety and reliability

Features and functions

Three-stage arms for maximum versatility

The lifting area with three-stage telescopic arms allows efficient operation on a wide range of vehicles, from passenger cars to vans.

Asymmetric configuration

The lift geometry has been developed to provide better access to the passenger compartment and a wider door opening angle during operation.

Maximum installation flexibility

The adjustable overhead bar allows the overall lift width to be adapted to the characteristics of the workshop environment.

Integrated safety system

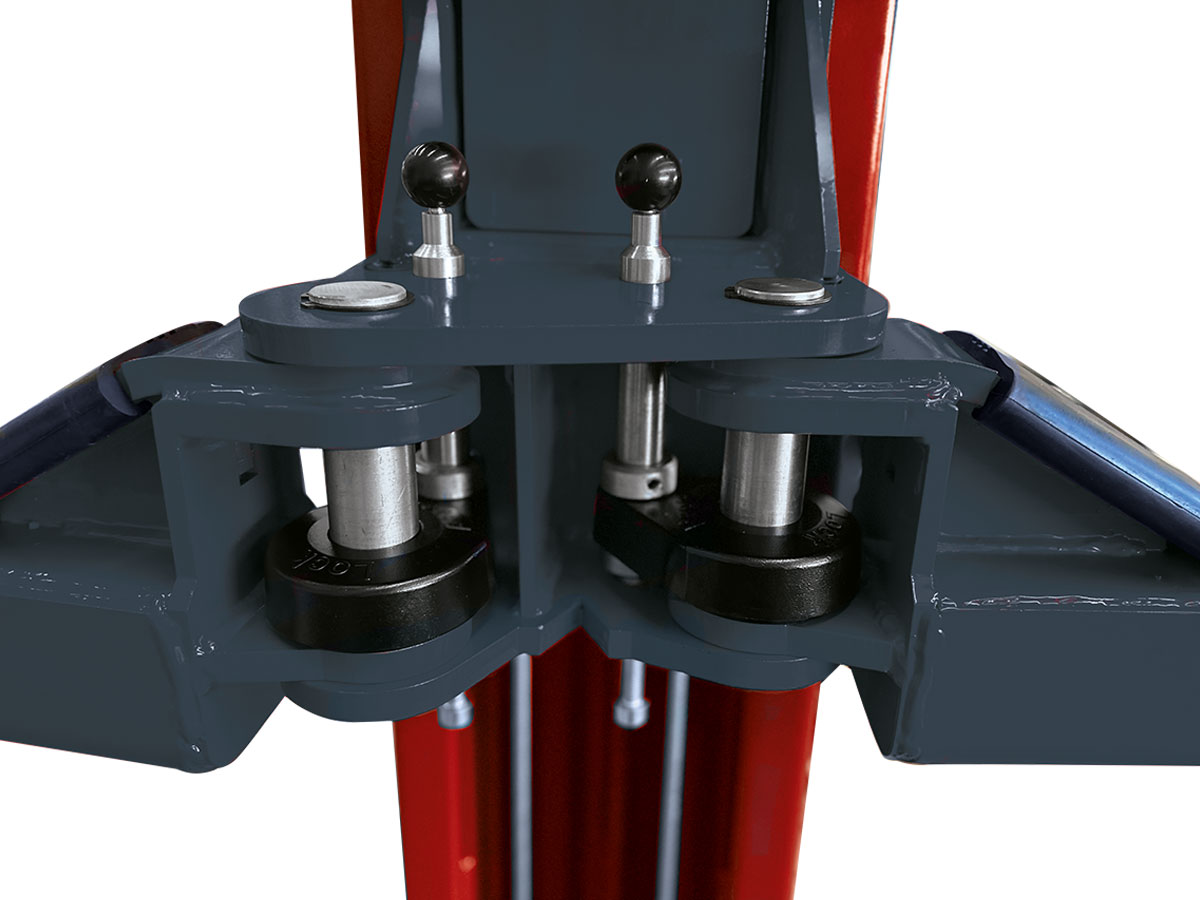

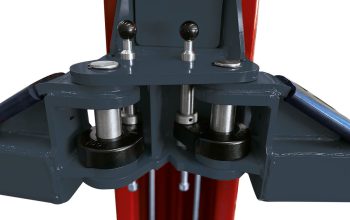

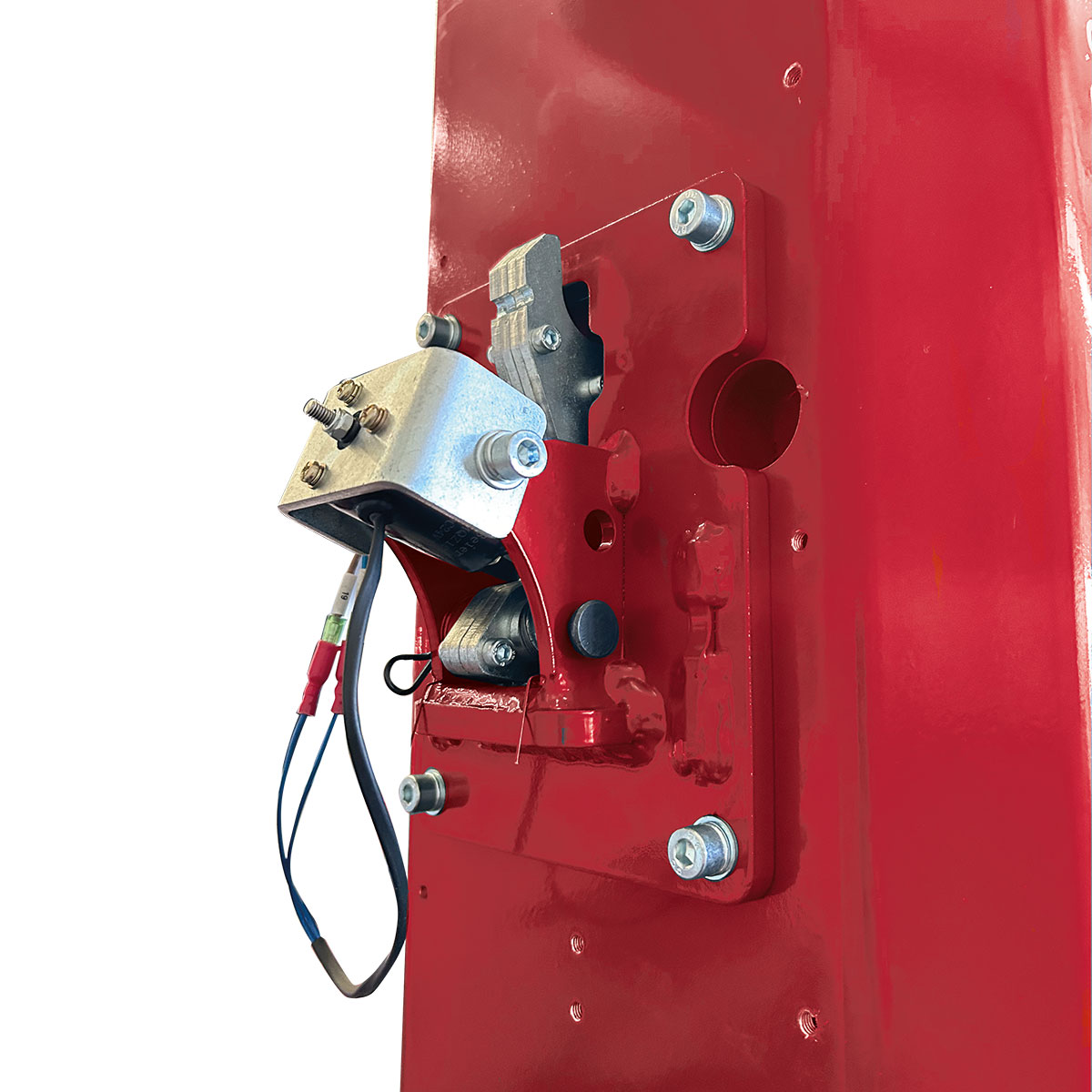

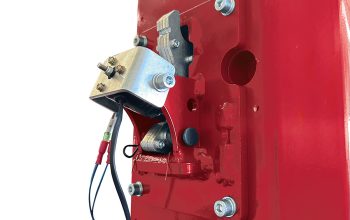

Arm rotation locking with 360° teeth, rubber door protections and the electrically operated mechanical safety system help protect both the operator and the vehicle during all working phases

Technical data

Maximum capacity

4,000 kg
Type

2-post electro-hydraulic lift
Lift height

3995 – 4220 mm
Installation width

3500 – 3250 mm
Minimum lifting height

95 mm
Maximum lifting height

2043 mm
Three-phase motor

400/230V – 3kW – 3Ph – 50/60Hz
Single-phase motor

230V – 3kW – 1Ph – 50/60Hz
Minimum installation thickness

100 – 140 mm
Maximum capacity

4,000 kg

Type

2-post electro-hydraulic lift

Lift height

3995 – 4220 mm

Installation width

3500 – 3250 mm

Minimum lifting height

95 mm

Maximum lifting height

2043 mm

Three-phase motor

400/230V – 3kW – 3Ph – 50/60Hz

Single-phase motor

230V – 3kW – 1Ph – 50/60Hz

Minimum installation thickness

100 – 140 mm
