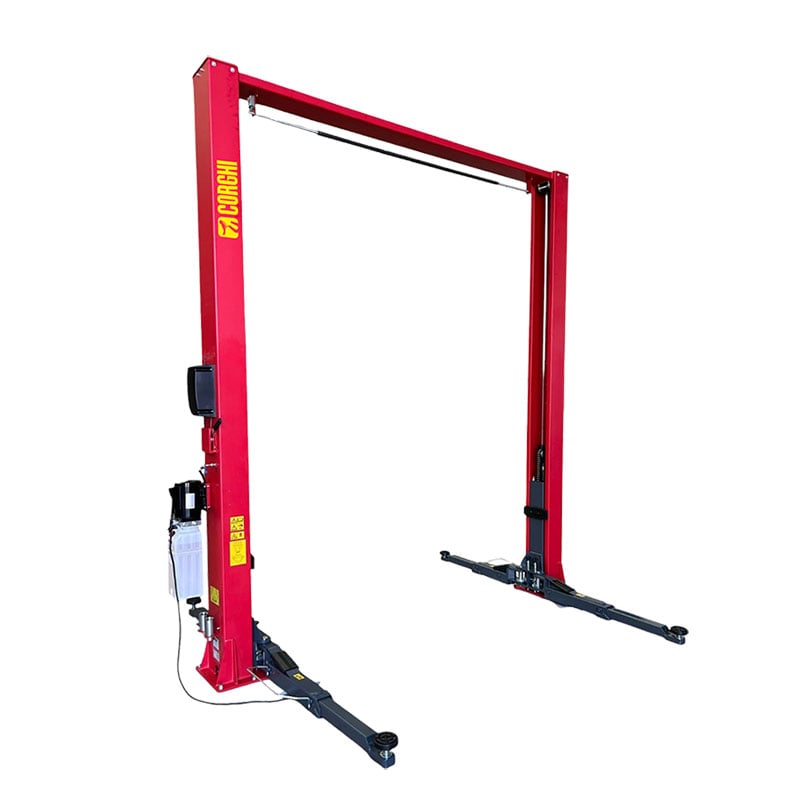

The ERCO HC4002 SE is a 2-post, base-less electro-hydraulic lift designed to increase productivity, safety, and convenience in daily workshop operations. With a lifting capacity of 4,000 kg, it offers a versatile solution for cars, SUVs, and light commercial vehicles.
The structure incorporates chain-driven carriages, high-efficiency thrust cylinders, and synchronization cables that ensure smooth movements, stability, and perfect load balance. The upper crossbar with a Safety limit switch automatically stops the lifting in the event of contact with the vehicle. Thanks to its 2+2-stage telescopic arms, door protection pads, and the option to choose between a red or gray finish, the ERCO HC4002 SE offers an ideal combination of functionality, safety, and ease of operation.
ERCO HC4002 SE
2-post
electro-hydraulic
lift
without a base
Maximum freedom
of access,
built-in
security and ease
of use
Benefits
Up to 4,000 kg
No floor-mounted base. Greater freedom of access
Integrated security
Arms also suitable for lowered vehicles
Features and functions

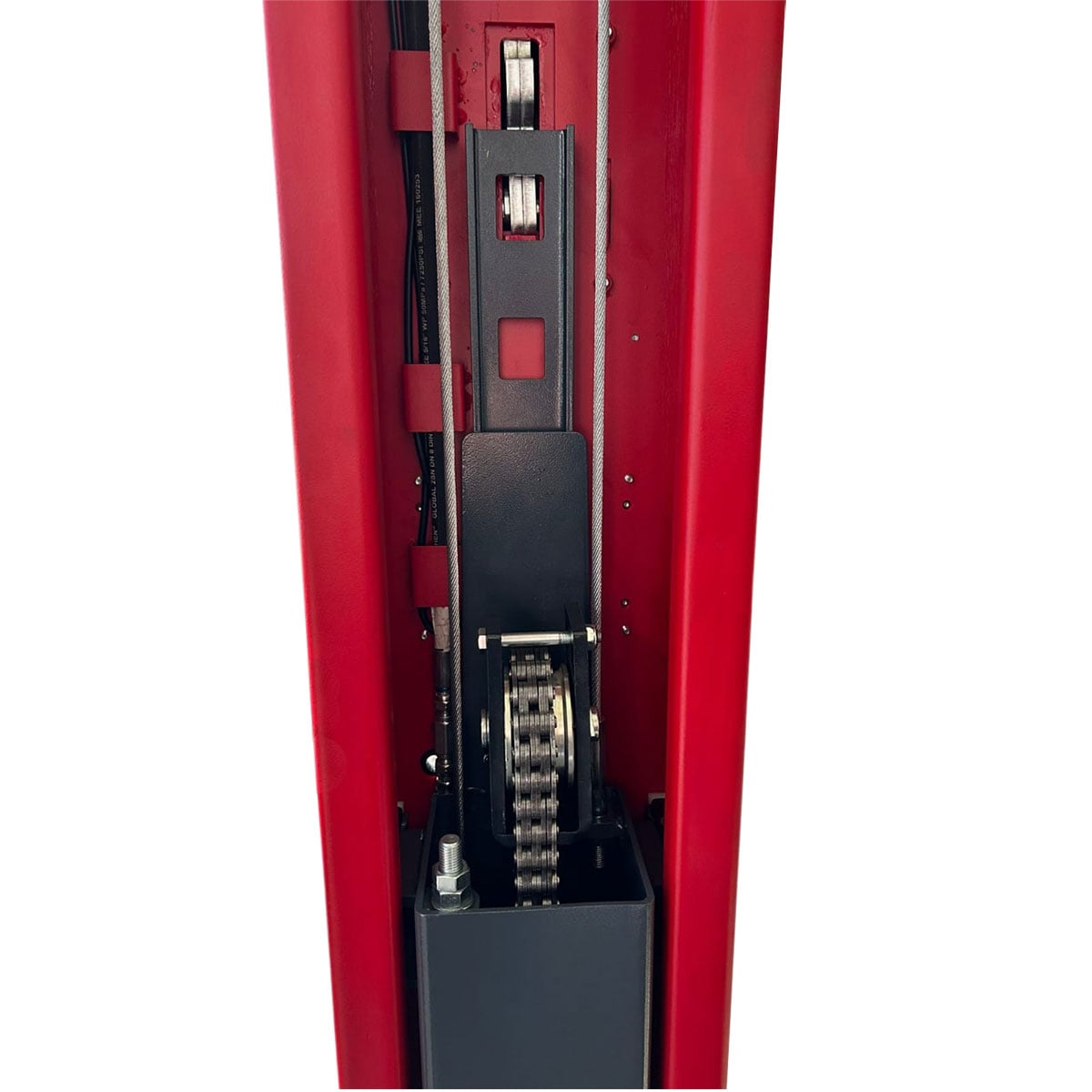

CHAIN-DRIVEN TROLLEYS
The system ensures smooth, reliable movements and an even distribution of loads during lifting.
HIGH-EFFICIENCY PISTON CYLINDERS
Designed to deliver consistent and reliable performance even under conditions of intensive use.
2+2 EXTENDABLE TELESCOPIC ARMS
They allow for a versatile fit on different types of vehicles, including low-slung models, thanks to their minimum height of 105 mm.
PROTECTION AND SAFETY

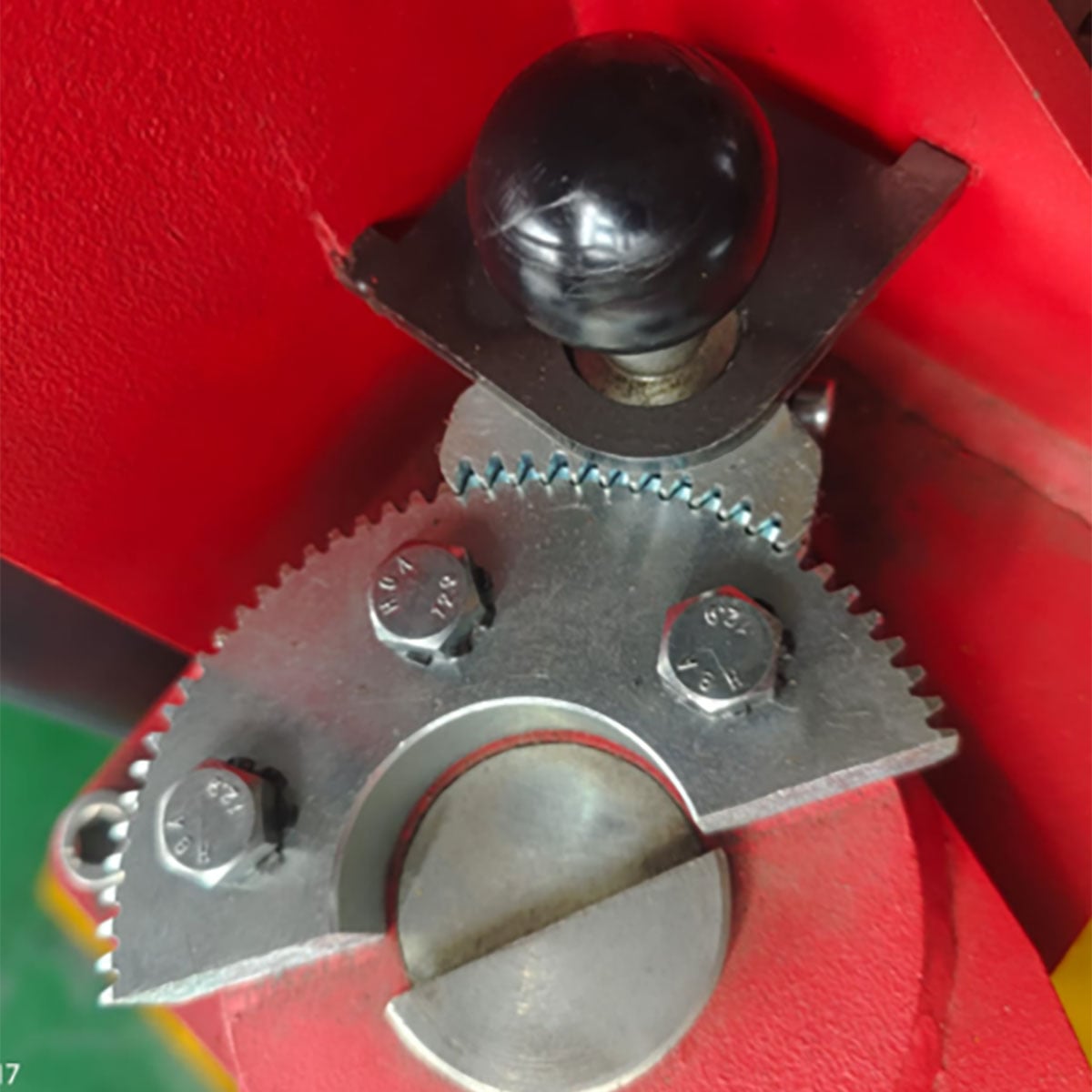

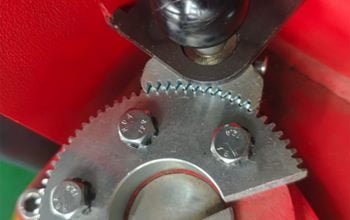

A toothed sector rotation stop system, door guards and operator foot guards all help to ensure maximum safety whilst working.
Technical data
| Maximum flow rate | 4,000 kg |
| Maximum height | 1,900 + 42 mm |
| Minimum height | 105 mm |
| Distance between the columns | 2,800 mm |
| Engine power | 2.2 kW (4 HP) |
| Power supply | 230/400 V – 3-phase or 230 V – single-phase |
4,000 kg
1,900 + 42 mm
105 mm
2,800 mm
2.2 kW (4 HP)
230/400 V – 3-phase or 230 V – single-phase
