HD 1000

Universal tyre changer for lorry, agricultural and earth-moving tyres

Operational efficiency and reliability for day-to-day work on industrial wheels

The HD 1000 is a Corghi tyre changer designed to offer a reliable, versatile, and affordable solution for the truck and industrial sectors, while maintaining the quality standards typical of the heavy-duty line.

Ideal for working on truck wheels, agricultural vehicles, and earthmoving equipment, they are the perfect choice for repair shops looking for a sturdy machine that is easy to use and suited for everyday work.

Available in two configurations:

HD 1000 semi-automatic
HD 1000 A (automatic)

allowing you to choose the level of operational support best suited to your workflow.

Benefits

Genuine versatility for everyday work

Easy to use, ready to use straight away

Long-term reliability

Can be configured to suit your needs

Features and functions

SELF-CENTRING FOR TRUCK APPLICATIONS

The self-centring clamping system is designed to ensure a secure grip and operational stability, enabling work to be carried out on various types of industrial wheels with reliability and consistency.

STURDY CONSTRUCTION FOR HEAVY-DUTY USE

The machine is designed with a robust structure, built to withstand the typical operating conditions of the lorry and industrial sectors.

This ensures stability during operation and long-term reliability.

WORKPLACE ERGONOMICS

The layout of the controls and the machine’s configuration are designed to make the operator’s job easier, improving:

accessibility
control of operations
management of the most demanding stages

Technical data

Maximum tyre width	1000 mm
Maximum wheel diameter	2200 mm
Clamping capacity	14” – 56”
Minimum diameter of the central hole in the wheel	110 mm
Hydraulic power unit motor	3Ph – 1,5 kW
Rotation motor	3Ph – 1,3 ÷ 1,8 kW (due velocità)
Max torque	4200 Nm
Come on, stud!	2900 kg
Maximum weight of wheel that can be lifted	1200 kg
Lifting cylinder capacity	2200 kg
Power supply	400/230 V – 3Ph – 50/60 Hz
Machine weight	900 kg
Generator weight	350 kg

Maximum tyre width

1000 mm

Maximum wheel diameter

2200 mm

Clamping capacity

14” – 56”

Minimum diameter of the central hole in the wheel

110 mm

Hydraulic power unit motor

3Ph – 1,5 kW

Rotation motor

3Ph – 1,3 ÷ 1,8 kW (due velocità)

Max torque

4200 Nm

Come on, stud!

2900 kg

Maximum weight of wheel that can be lifted

1200 kg

Lifting cylinder capacity

2200 kg

Power supply

400/230 V – 3Ph – 50/60 Hz

Machine weight

900 kg

Generator weight

350 kg

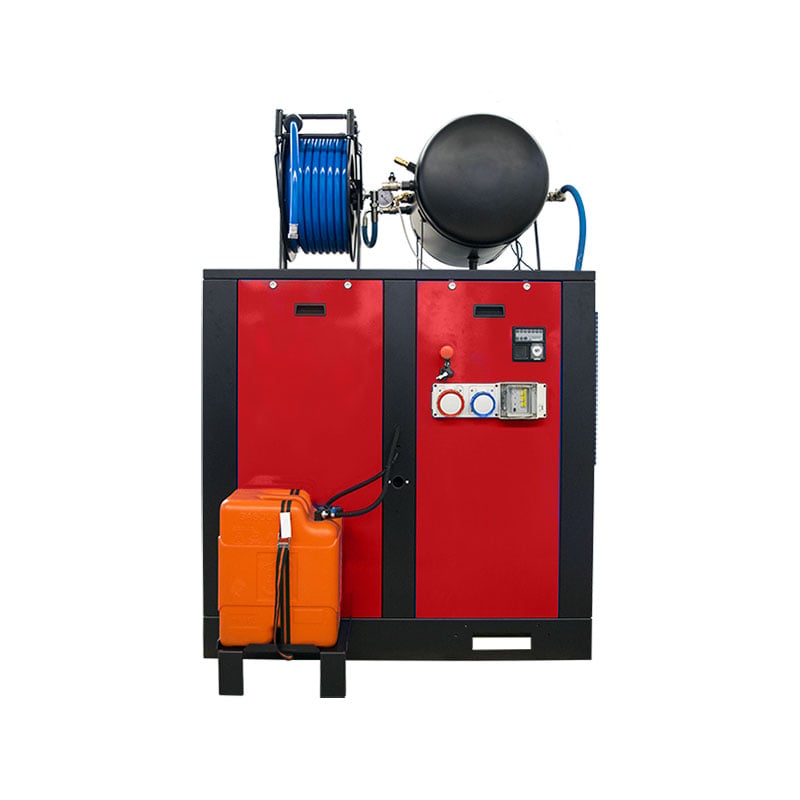

Gallery
