HD 650 TILT

Mobile tyre changer for lorries and buses

HD650_Tilt

The Corghi mobile workshop for a fast and efficient tyre repair service

Get a Quote
Brochure
Images

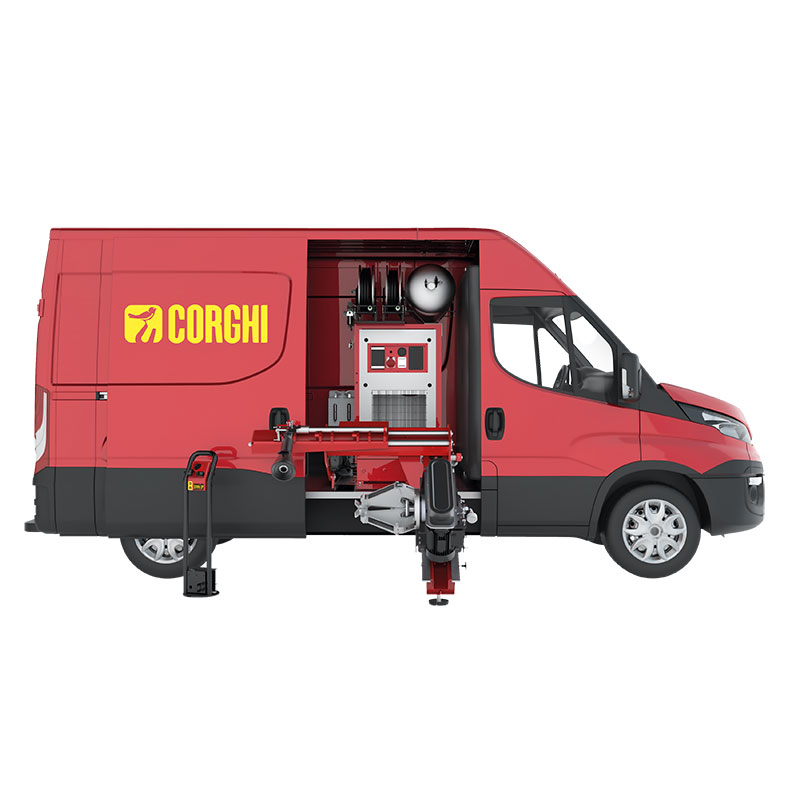

The HD 650 TILT is Corghi’s mobile tyre changer designed for tire service on trucks, buses, and heavy transport directly at the job site. Designed to be installed on a van equipped with a dedicated generator set, the machine transforms the vehicle into a true mobile workshop, ensuring rapid service and operational autonomy.

The configuration was developed to deliver professional-grade performance in a compact, easy-to-install format. Thanks to its clamping capacity of up to 26", its ability to handle wheels weighing up to 1,000 kg, and the availability of on-board electricity and compressed air, the HD 650 TILT is an ideal solution for emergency response and on-site service.

The system can be supplemented with dedicated accessories such as the bead breaker disc and the alloy rim clamp, further expanding the tyre changer’s range of applications.

Benefits

Ideal for carrying out work on lorries, buses and fleet vehicles directly at the customer’s premises.

Fully self-contained mobile workshop with on-board electricity and compressed air

A compact solution for fast and efficient support services.

Option to expand the applications using dedicated accessories.

Features and functions

FULLY EQUIPPED MOBILE WORKSHOP

The HD 650 TILT is designed to be installed inside a van alongside the generator set, providing electricity and compressed air for field operations.

COMPACT AND ROBUST DESIGN

The machine is designed to offer a good balance between compact dimensions, operational capacity and ease of installation on vehicles used for mobile assistance

CLAMPING CAPACITY UP TO 26"

The four-jaw self-centring chuck allows work to be carried out on a wide range of lorry and bus wheels with diameters ranging from 13″ to 26″.

INTEGRATED GENERATOR AND COMPRESSOR

The Lombardini diesel generator set and the piston compressor provide electricity and compressed air directly on board the vehicle

Technical data

Maximum rim diameter

26″
Maximum rim width

38″ / 960 mm
Maximum wheel diameter

1.380 mm / 53″
Maximum wheel capacity

1000 kg
Rotation motor

Elettrico 1,1 kW
Maximum rim diameter

26″

Maximum rim width

38″ / 960 mm

Maximum wheel diameter

1.380 mm / 53″

Maximum wheel capacity

1000 kg

Rotation motor

Elettrico 1,1 kW
