MWS 20

Professional system for managing military tyres with Hutchinson Run Flat

Power, precision and safety for maintenance work on defence vehicles

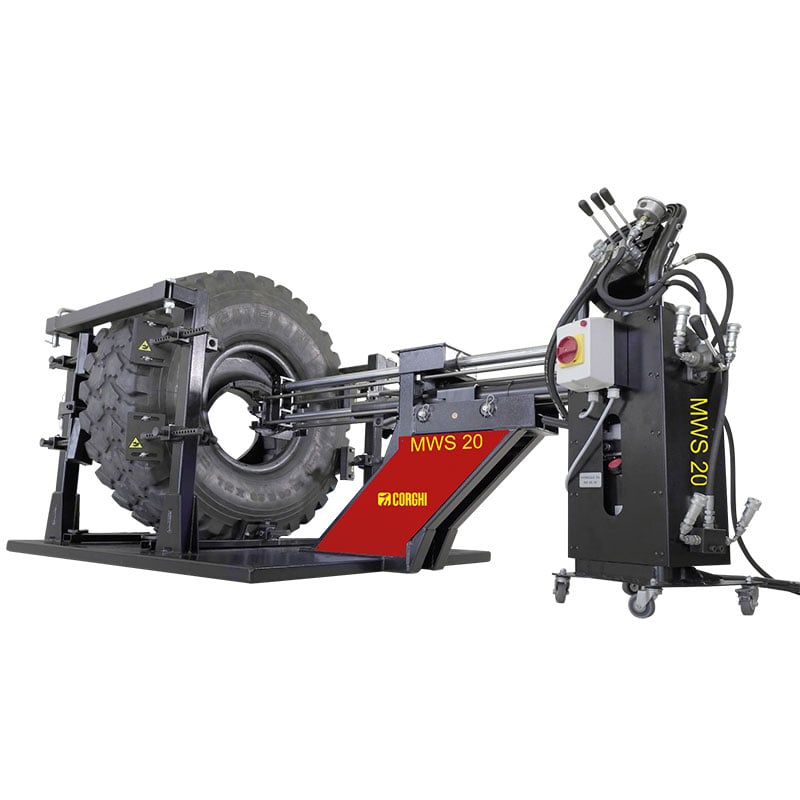

The MWS 20 (Military Wheel Solution 20) is a Corghi machine designed for the maintenance of tyres for military and defense vehicles equipped with Hutchinson Run Flat puncture-resistant systems. Designed to work on tyres with reinforced casings and toroidal inserts, it allows for the practical and safe management of all work phases, from the removal of the Run Flat tyre system to tire mounting and dismounting operations.

The high-strength steel frame ensures rigidity, operational stability, and reliability even in the most demanding applications. The mobile hydraulic power unit generates a thrust force of up to 45,000 N, enabling controlled and precise operations while ensuring maximum operator safety.

Designed for independent repair shops, logistics centers, and military maintenance facilities, the MWS 20 is a dedicated solution for armored, tactical, and transport vehicles, in line with Corghi’s high quality and technological standards.

Benefits

A solution designed for the maintenance of military tyres fitted with Hutchinson Run-Flat systems

Greater safety when removing and inserting toroidal rings

It reduces the effort required of the operator during tyre maintenance procedures

Ideal for independent garages and military maintenance centres

Features and functions

Standalone, portable workstation

The system is designed to ensure maximum operational flexibility and can be easily used in a variety of maintenance contexts

Mobile hydraulic power unit

The control centre ensures a high degree of precision and operational control thanks to smooth, controlled movements that enable each stage to be managed with accuracy and safety

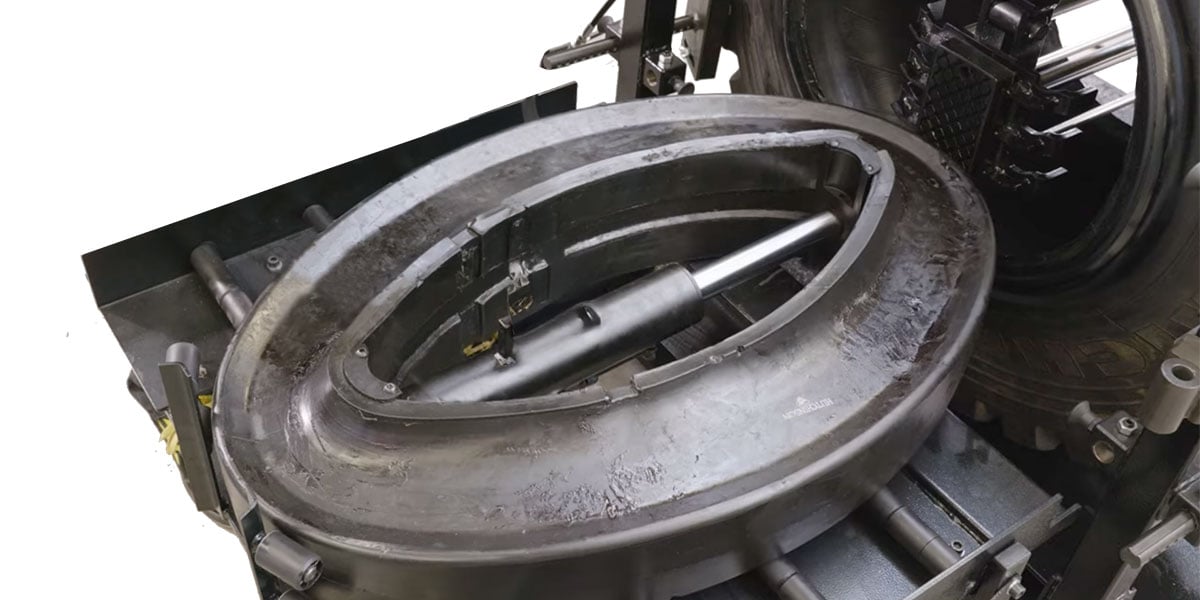

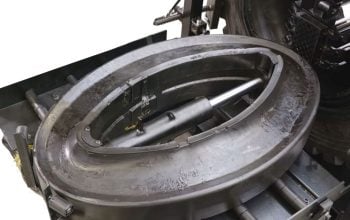

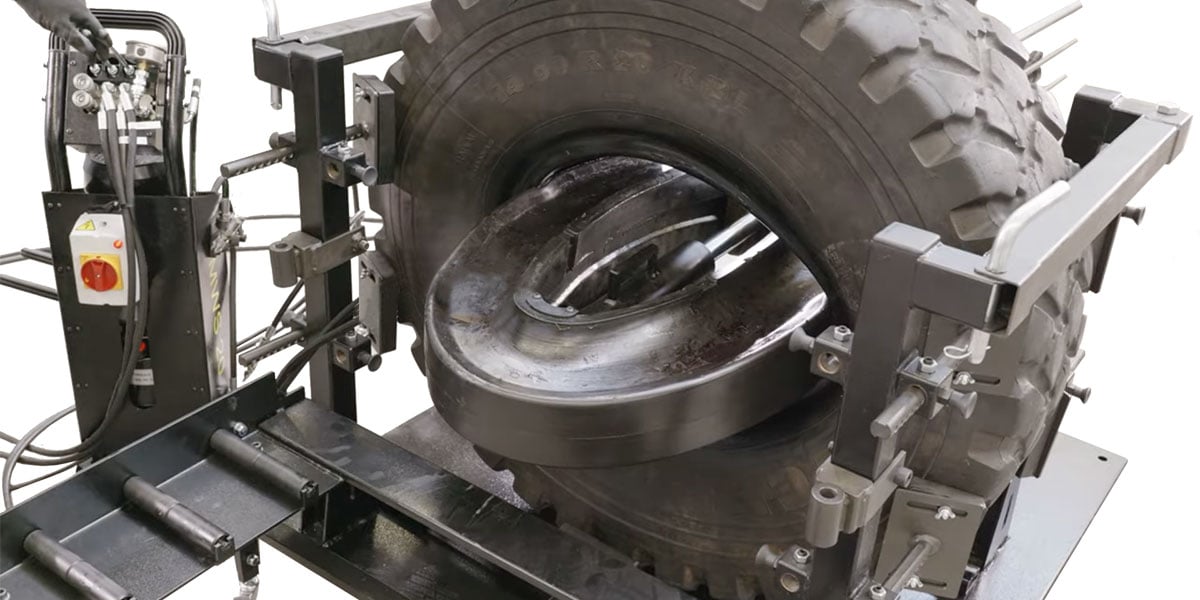

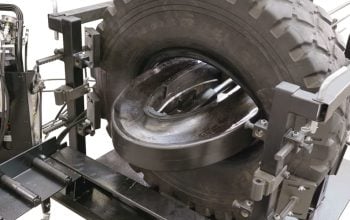

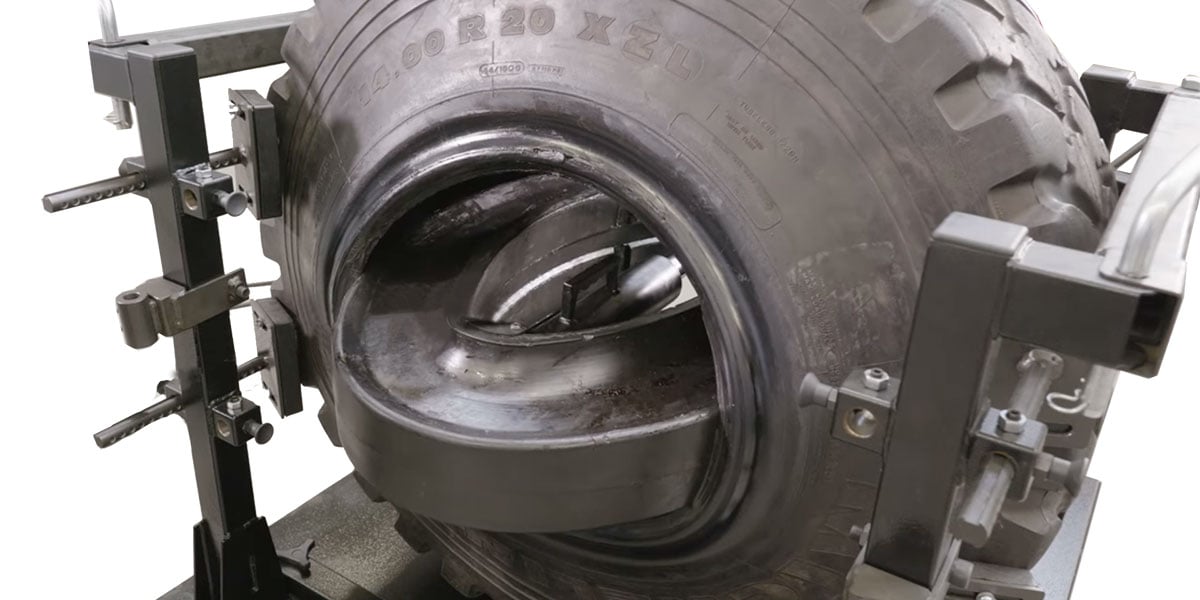

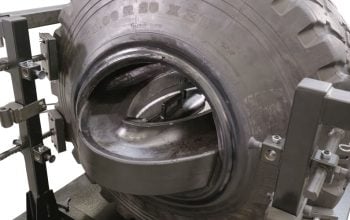

Removal of toroidal run-flat systems

The machine is designed for the removal and fitting of toroidal run-flat systems and is compatible with Hutchinson VFI systems and bead-lock systems with a rigid ring

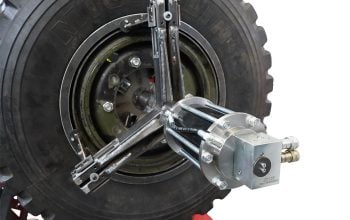

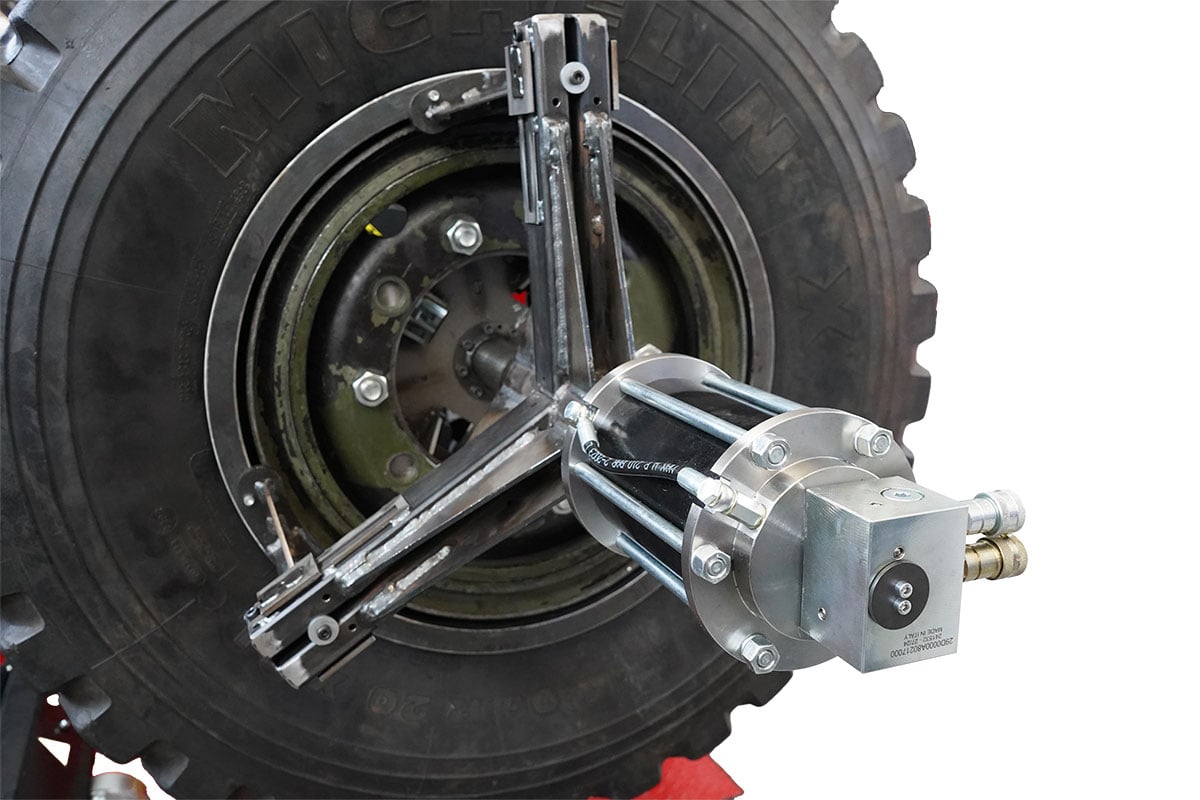

Press for removing headbands

The specialised hydraulic press enables the removal of rims to high standards of precision and safety, reducing processing times and operational effort

High-strength structure

Critical components are manufactured from carefully selected materials and feature protective surface treatments that help to extend their service life and reduce the need for maintenance

Technical data

Maximum wheel diameter	1600 mm
Maximum tyre width	650 mm
Maximum wheel weight	600 kg
Clamping capacity	14″ – 26″
Run-Flat System	Hutchinson VFI
Power supply	400V – 3Ph – 50/60Hz
Optional power supply	230V – 3Ph – 50/60Hz

Maximum wheel diameter

1600 mm

Maximum tyre width

650 mm

Maximum wheel weight

600 kg

Clamping capacity

14″ – 26″

Run-Flat System

Hutchinson VFI

Power supply

400V – 3Ph – 50/60Hz

Optional power supply

230V – 3Ph – 50/60Hz
