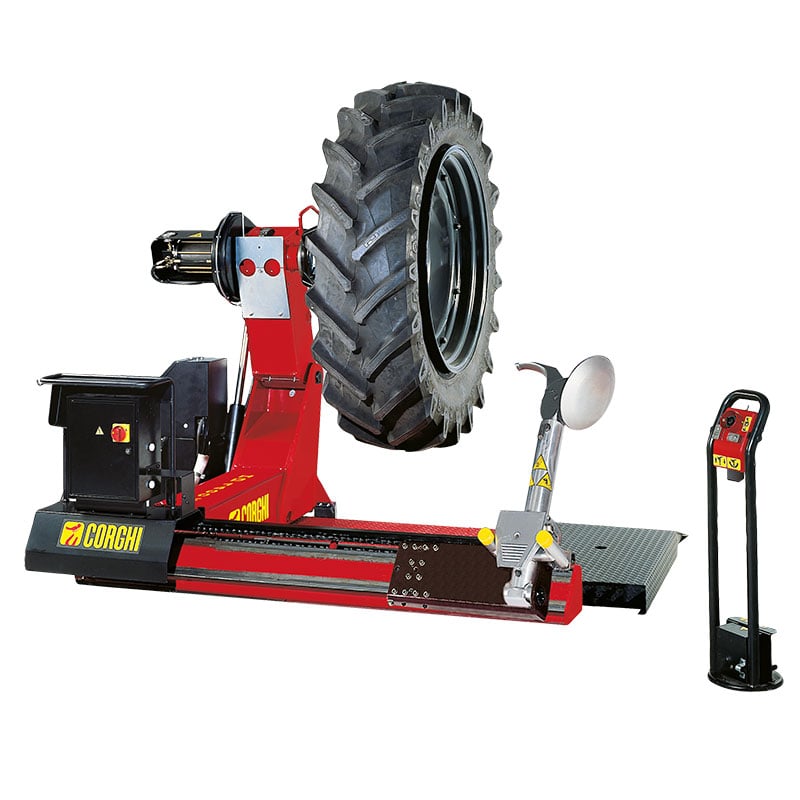

HD 1400E Evolution

Semi-automatic universal tyre changer for lorry, agricultural and earth-moving tyres

Direct control, maximum durability and reliability for day-to-day work on industrial wheels

The HD 1400 E Evolution is Corghi’s semi-automatic tyre changer designed for professionals who work with truck tyres, agricultural tyres, and earthmoving tyres—ideal for those seeking a sturdy, reliable machine with direct control over operations.

Designed for intensive use but with a more traditional operating approach, it allows the operator to manage every stage of the job with precision, maintaining the right balance between performance, simplicity, and safety.

Thanks to its heavy-duty construction and durability-focused design, it represents a solid solution for specialized workshops and work environments where operational continuity is essential.

Benefits

Full control by the operator

Robustness for heavy-duty use

Ease of use, even for less experienced operators

Suitable for various types of vehicles

Features and functions

SEMI-AUTOMATIC CONFIGURATION

The HD 1400 E Evolution stands out for its semi-automatic operation, which allows the operator to manually manage certain stages of the machining process, whilst retaining full control over the process.

This configuration is particularly valued in environments where the operator’s experience and intuition make all the difference.

SELF-CENTRING FOR TRUCK AND OTR APPLICATIONS

The locking system is designed to ensure stability, safety and adaptability across a range of industrial wheel types, enabling continuous operation on large tyres.

HEAVY-DUTY STRUCTURE

The machine is built to Corghi standards, with a structure designed to:

absorb operational stresses
ensure stability
maintain precision over time

A key feature for working safely on truck and OTR wheels.

ERGONOMICS AND OPERATIONAL CONTROL

The layout of the controls and the machine’s configuration allow for simple and intuitive operation, improving control during operations and reducing the risk of errors at critical stages.

SUITABLE FOR INTENSIVE USE

The HD 1400 E Evolution is designed for workshops that work on industrial wheels on a daily basis, offering a reliable solution that is always ready for use and requires minimal maintenance.

Technical data

Maximum tyre width	1470 mm
Maximum wheel diameter	2500 mm
Clamping capacity	14” – 58”
Minimum diameter of the central hole in the wheel	110 mm
Hydraulic power unit motor	3Ph – 4,8 kW
Rotation motor	Motoriduttore idraulico (3 velocità)
Max torque	5000 Nm
Come on, stud!	30.000 N
Maximum weight of wheel that can be lifted	1900 kg
Power supply	230/400 V – 3Ph – 50/60 Hz
Machine weight	1160 kg

Maximum tyre width

1470 mm

Maximum wheel diameter

2500 mm

Clamping capacity

14” – 58”

Minimum diameter of the central hole in the wheel

110 mm

Hydraulic power unit motor

3Ph – 4,8 kW

Rotation motor

Motoriduttore idraulico (3 velocità)

Max torque

5000 Nm

Come on, stud!

30.000 N

Maximum weight of wheel that can be lifted

1900 kg

Power supply

230/400 V – 3Ph – 50/60 Hz

Machine weight

1160 kg

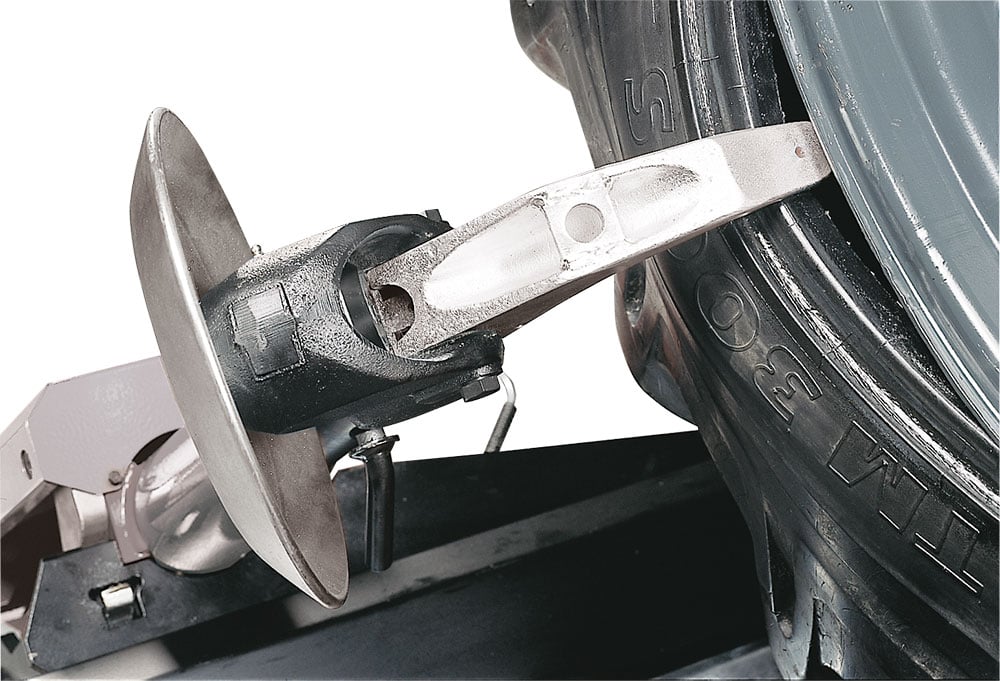

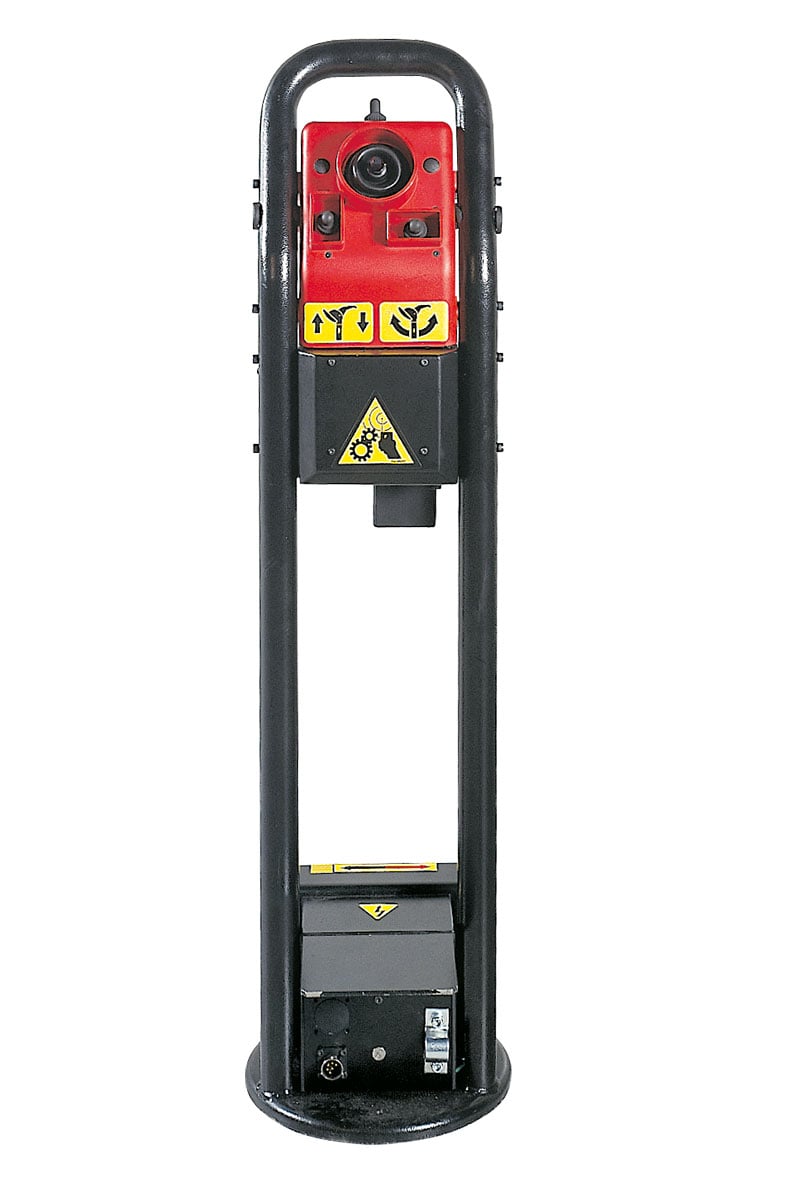

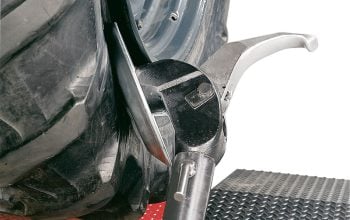

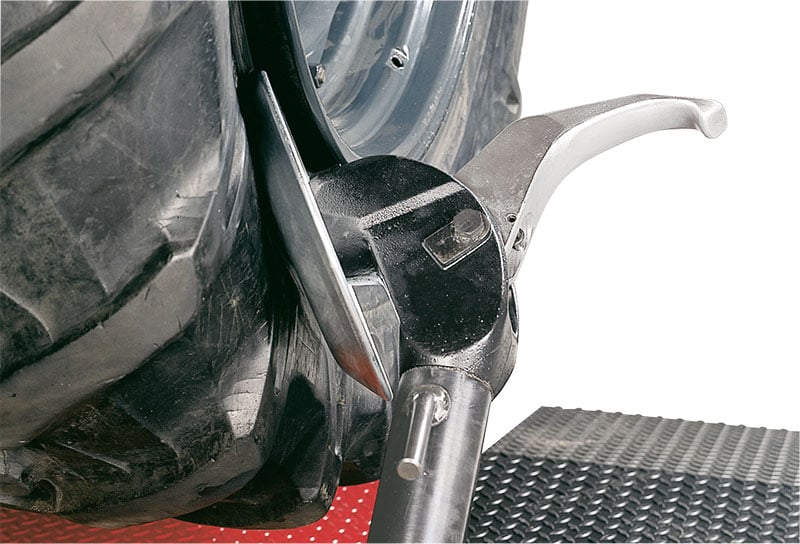

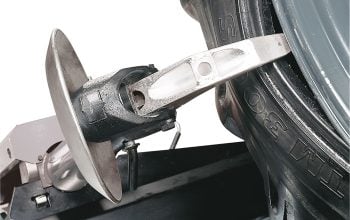

Gallery
