The ProLine 150 Truck is Corghi’s electronic wheel balancer with a digital display, designed for balancing wheels on trucks, buses, and passenger cars. The machine incorporates solutions tailored to the truck sector, such as the built-in scissor lift, the 40-mm spindle, and the automatic wheel size detection system via Smart Arm FSP.
The Smart Arm system electronically captures the wheel’s geometric data and, thanks to the FSP (Fast Selection Program) function, automatically activates the correct balancing program for clip-on weights or adhesive weights, eliminating the need for manual selections via the keyboard.
Inverter technology manages the automatic spin-up and braking cycle, while the RPA (Automatic Positioning) function automatically moves the wheel into the correct position for applying the balancing weight, helping to improve operating speed and measurement precision.
ProLine 150 Truck
Wheel balancer
for lorries,
buses
and cars
A single wheel balancer
for your workshop
Benefits
Sturdy and durable
Ergonomic
Rapida
Features and functions
200 KG INTEGRATED LIFT

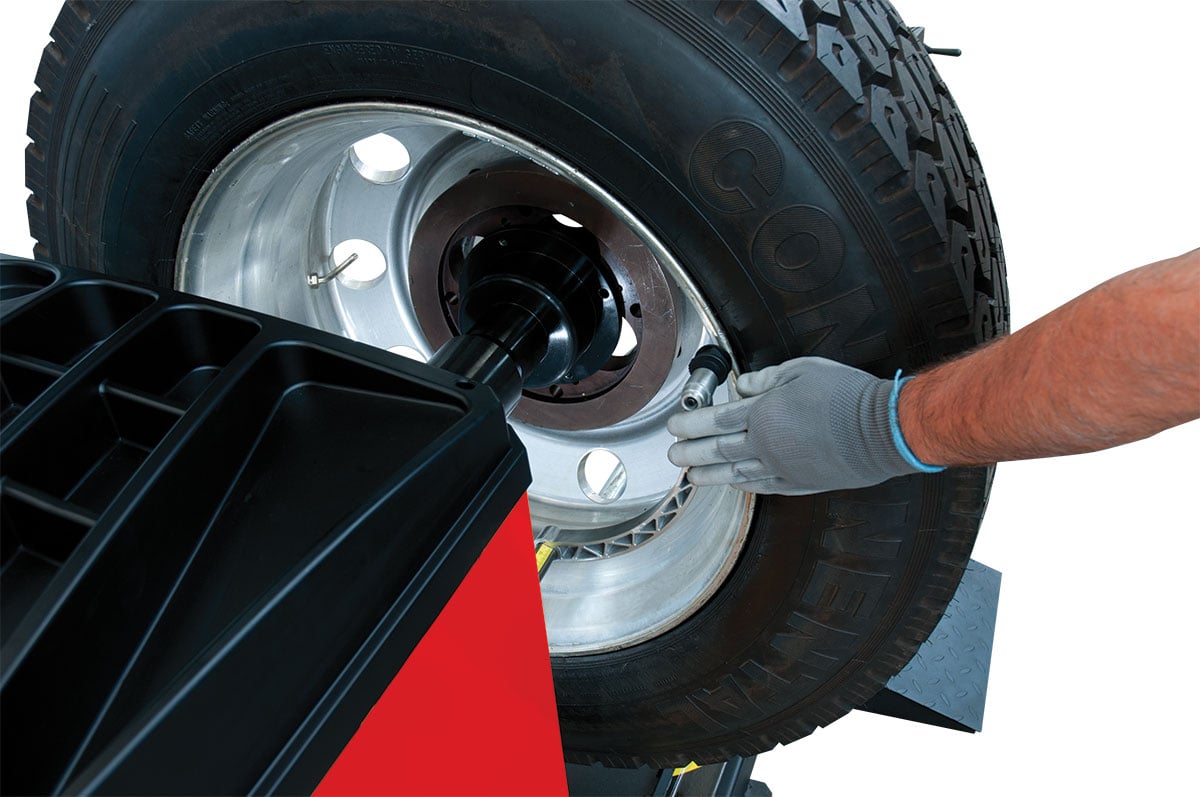

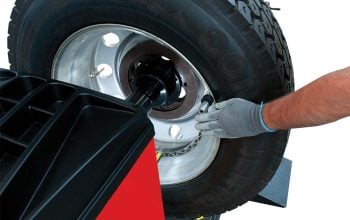

The built-in scissor lift allows wheels weighing up to 200 kg to be handled and makes it easier to centre them during wheel balancing.
VISUAL INSPECTION OF THE WHEEL
The Visual Inspection function enables any geometric defects in the wheel to be checked during inspection procedures.
PROFESSIONAL PROGRAMMES

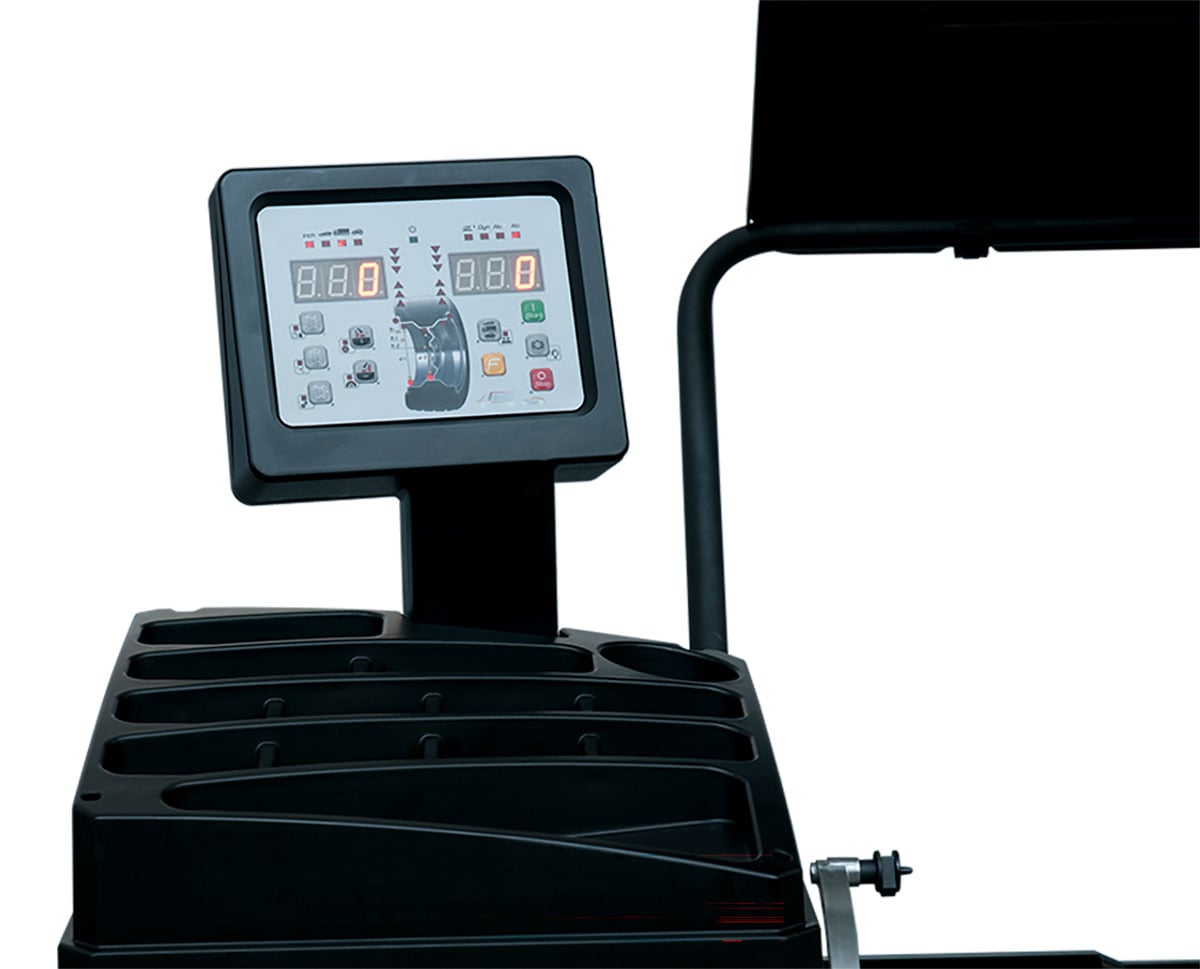

The ProLine 150 Truck features 7 programmes for alloy wheels, a ‘Hidden Weight’ function, multi-operator environments, energy-saving modes and software updates via a USB port.
LASER & LED KIT (optional)
The Laser & LED kit illuminates the work area and assists with the positioning of the adhesive counterweights using a laser pointer.
Technical data
| Maximum rim diameter | 35″ |
| Maximum rim width | 20″ |
| Maximum wheel diameter |
|
| Power supply | 230V 1-phase 50Hz / 115V 1-phase 60Hz |
| Required air pressure | 8–12 bar |
| Dimensions | 1839 × 1815 × 1381 mm |
35″
20″
1,200 mm
47″
230V 1-phase 50Hz / 115V 1-phase 60Hz
8–12 bar
1839 × 1815 × 1381 mm
