PT8 FW

Universal game console with
8 operating modes

PT8_FW

Even more precise inspections of steering, suspension
and mechanical
components for light
and heavy vehicles

Get a Quote
Brochure
Images

The PT8 FW is Corghi’s new test stand designed to test the steering, suspension, and mechanical components of vehicles weighing up to 3.5 metric tons and over 3.5 metric tons. Approved for both Class 1 and Class 2 vehicles, it meets the requirements of European Directive 2014/45/EU and represents an evolution of traditional play detection thanks to its 8 new operating modes, developed to make the wear detection and fault detection even more accurate.

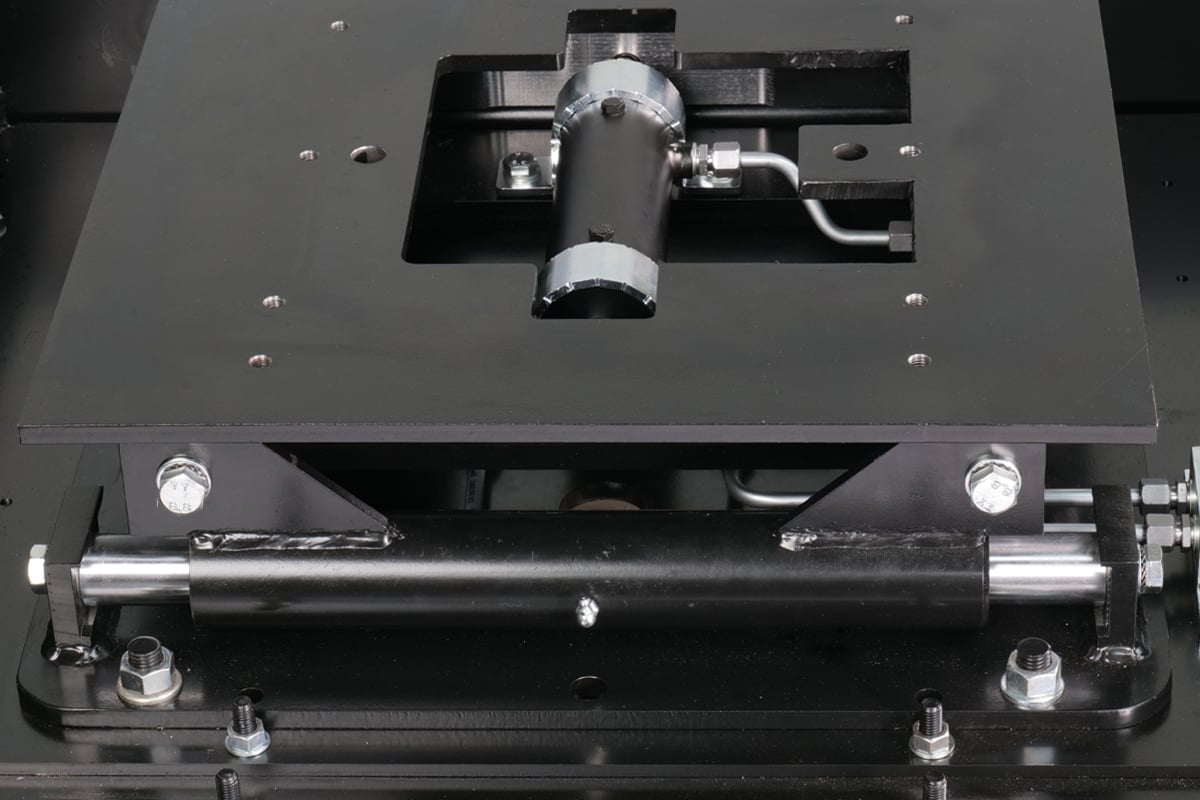

The system uses large movable plates controlled via a wireless LED torch, with full management handled by a new PLC-controlled hydraulic power unit. The plates can operate individually or in pairs, performing longitudinal, transverse, diagonal, and combined movements, allowing for the precise reproduction of the stresses to which vehicle components are subjected while driving.

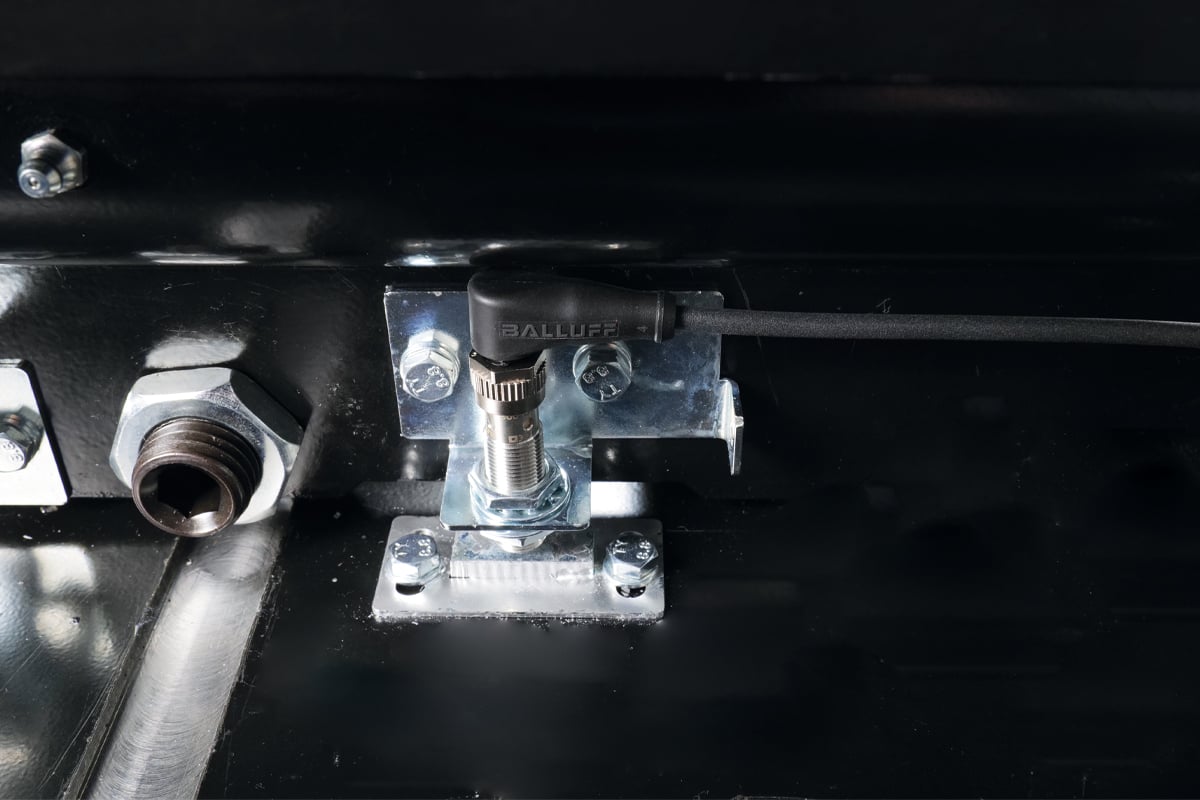

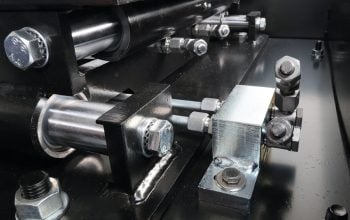

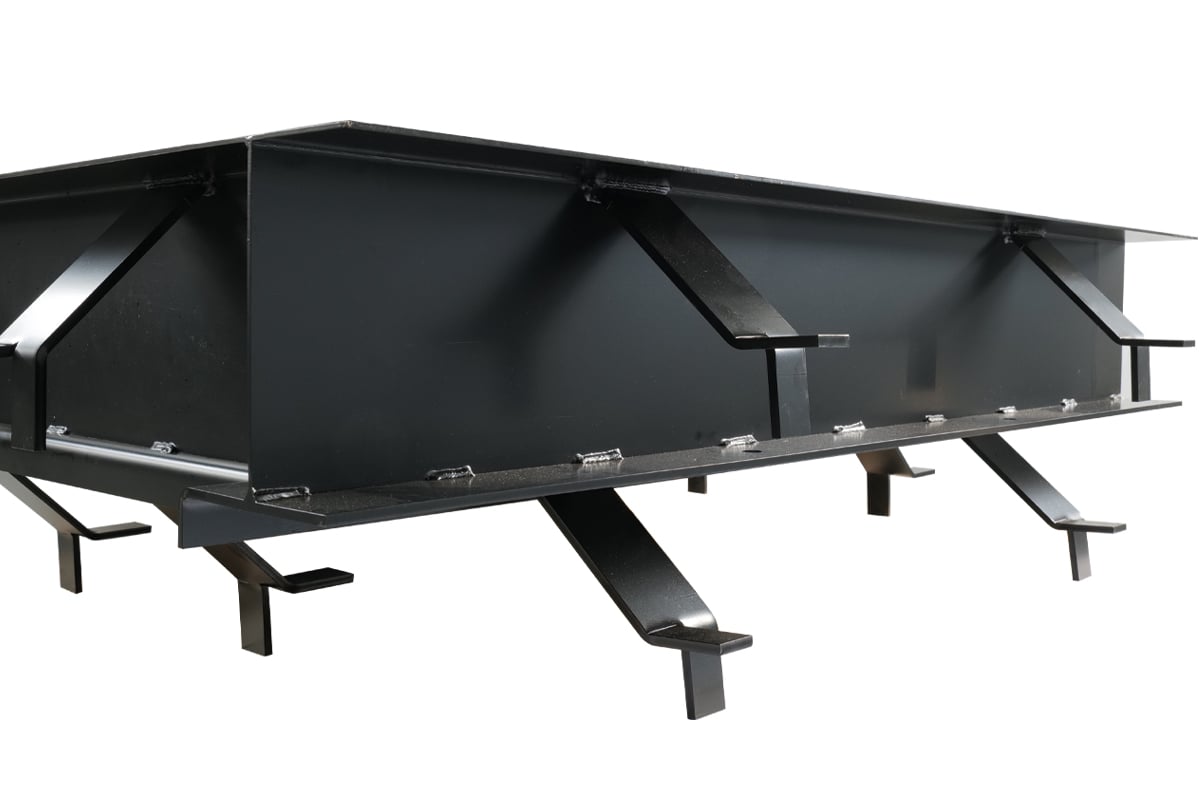

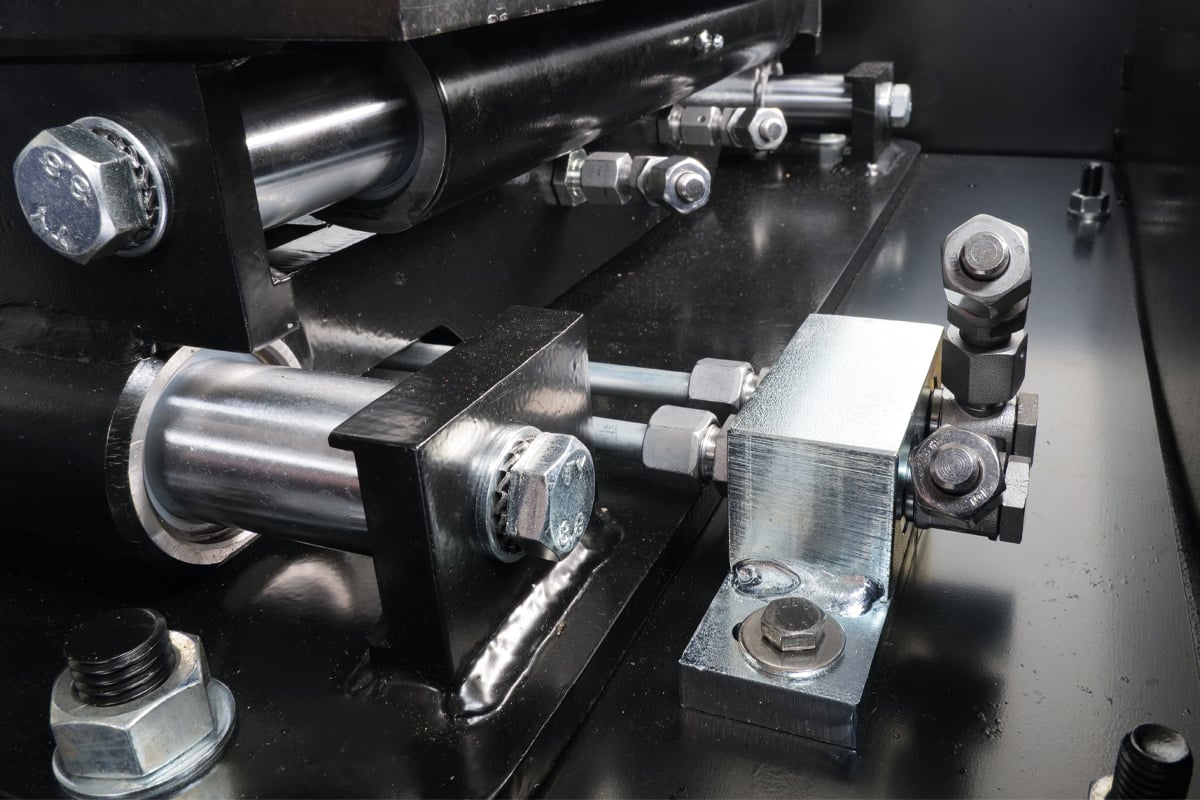

The structure is designed to ensure high long-term reliability thanks to its robust slide guides, integrated position sensors, and reinforced hydraulic connections. The system can be used for recessed installation, floor installation, or integration into existing civil engineering structures using specific installation kits.

Features and functions

8 operating modes

Single or double plates, central zero position, full travel and 4 different movement modes for even more precise control

Suitable for use on light and heavy vehicles

Approved for vehicles ≤ 3.5 t and > 3.5 t with a maximum test axle load of 13,000 kg.

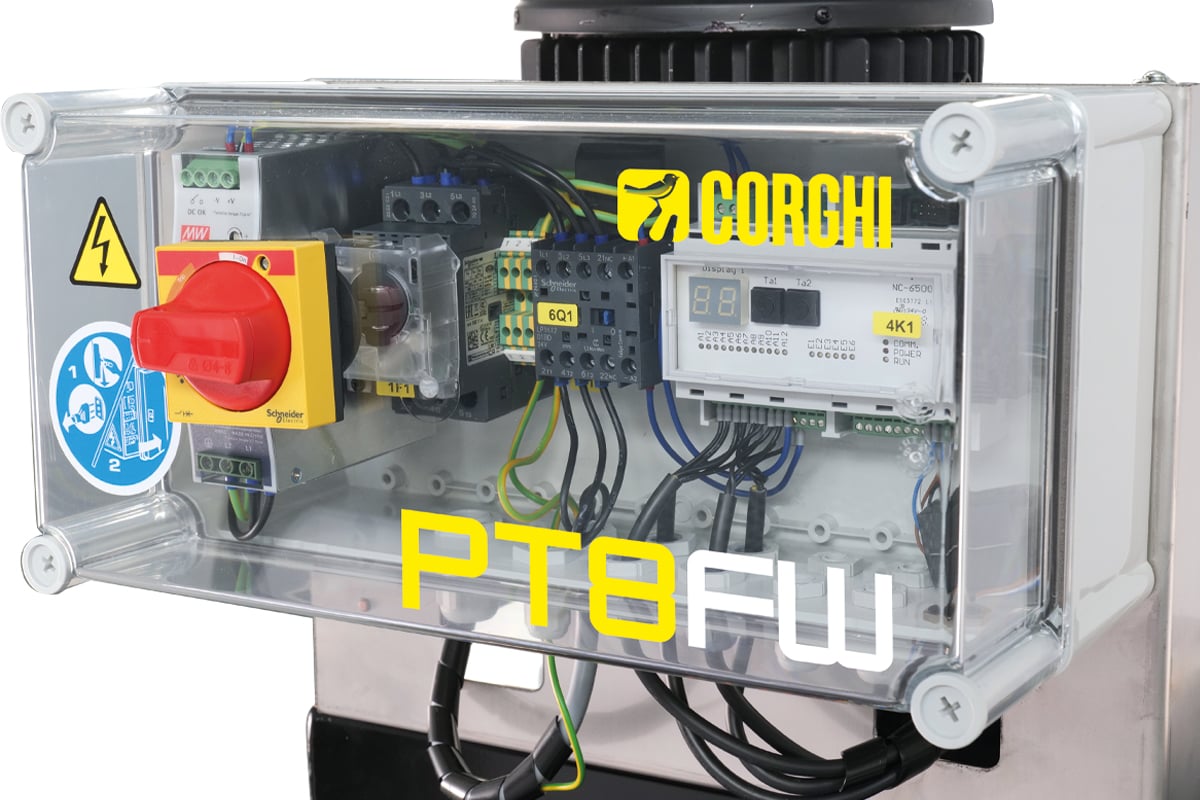

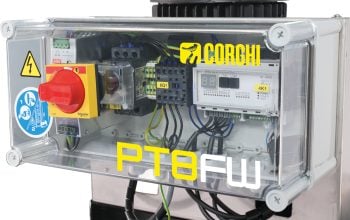

PLC control

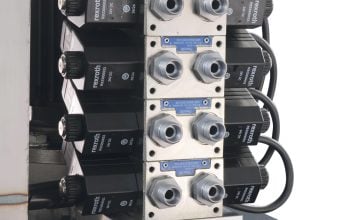

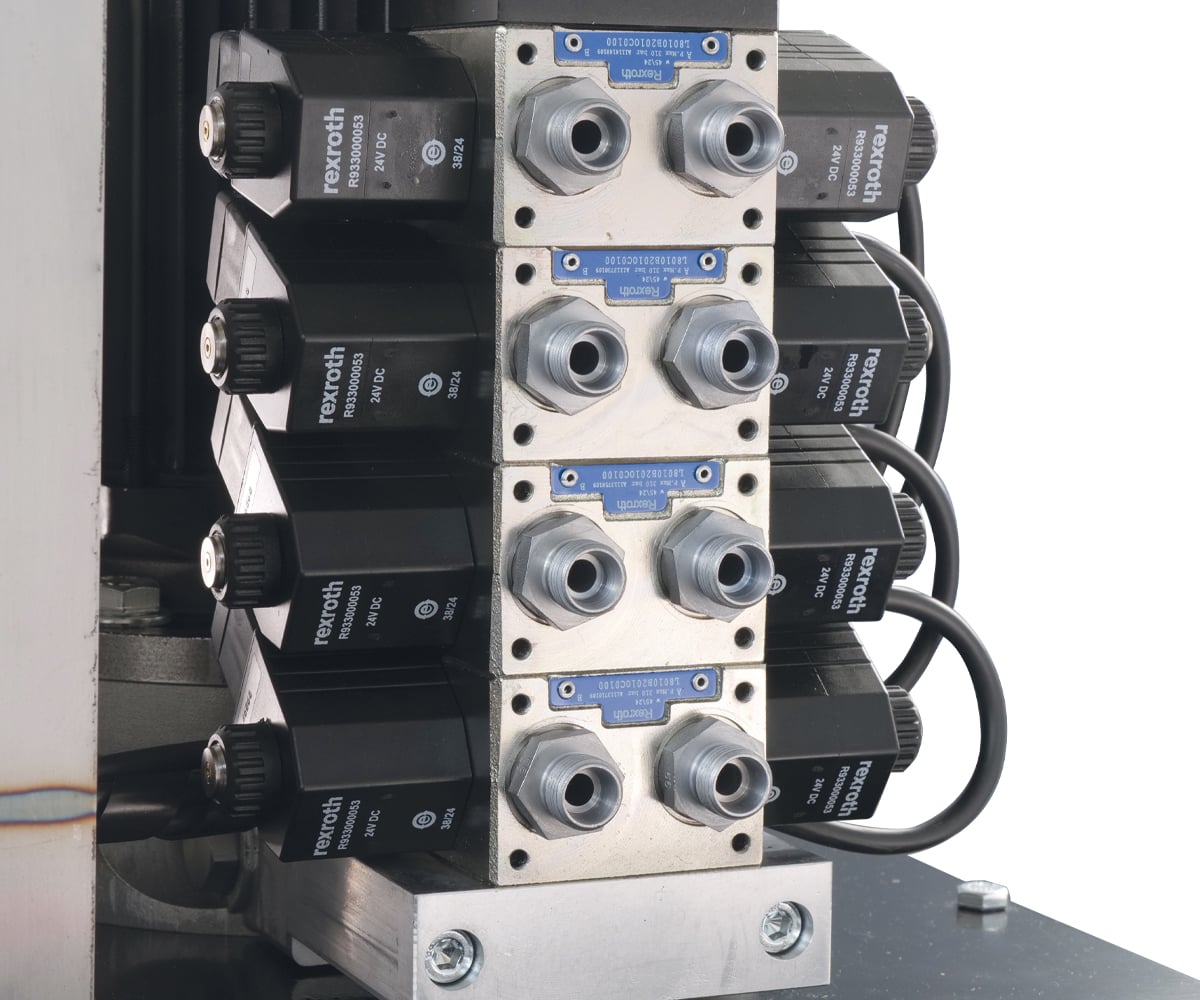

New hydraulic control unit with electronic function control and greater operational precision.

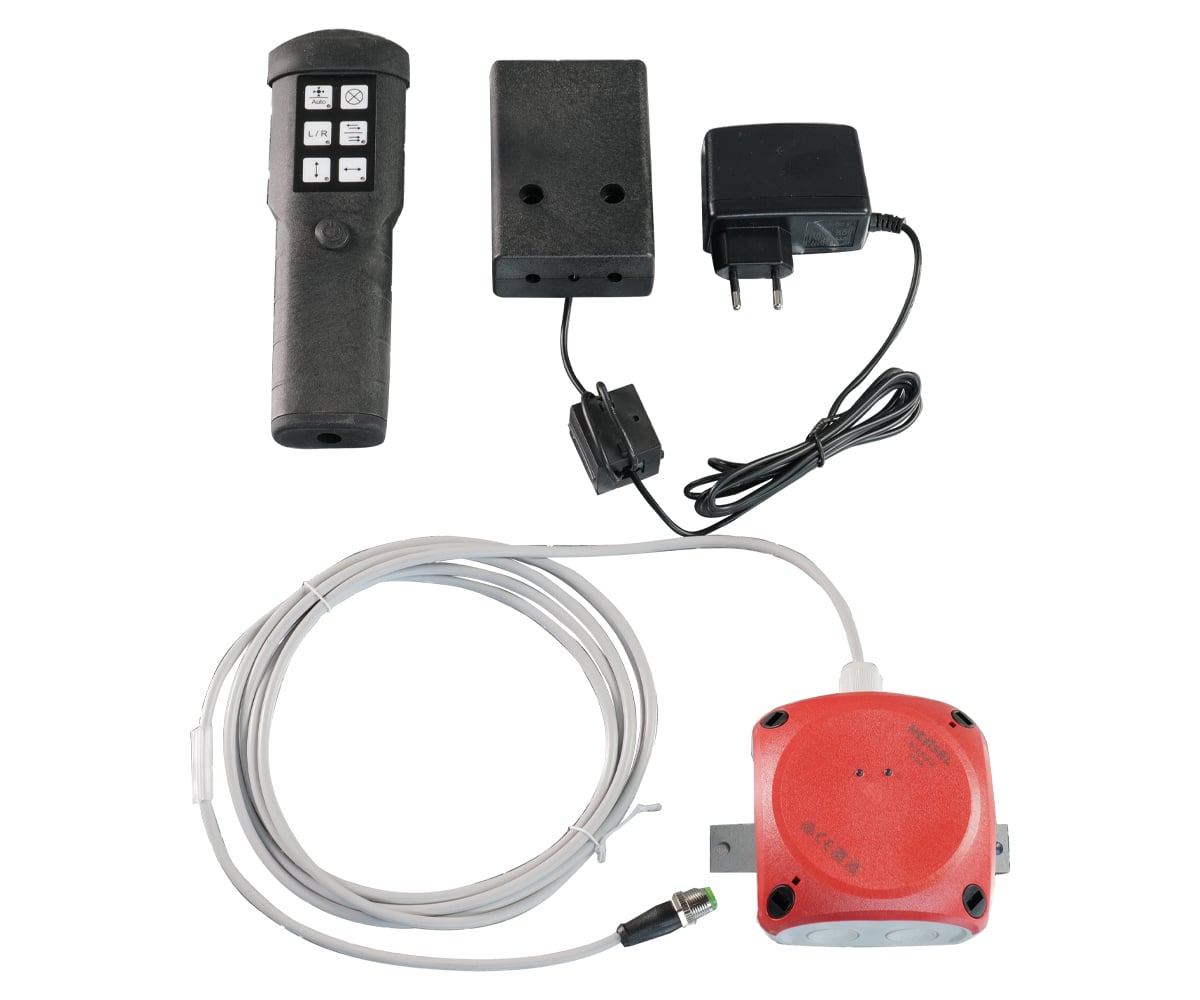

Wireless control

A high-efficiency LED radio torch that enables the operator to carry out tests with the utmost convenience.

Technical data

Type

Provagiochi universale
Operating classes

Classe 1 e Classe 2
Test axle weight

13.000 kg
Axle load at the crossing

20.000 kg
Thrust force per plate

52.100 N
Race per plate

52 mm
Hydraulic pressure

215 bar
Plate dimensions

860 × 995 mm
Type

Provagiochi universale

Operating classes

Classe 1 e Classe 2

Test axle weight

13.000 kg

Axle load at the crossing

20.000 kg

Thrust force per plate

52.100 N

Race per plate

52 mm

Hydraulic pressure

215 bar

Plate dimensions

860 × 995 mm
