R.E.M.O. Compact Due

Automatic contactless wheel alignment for cars and light commercial vehicles

REMO_COMPACT_DUE

Contactless convergence that has changed the game

Get a Quote Brochure Images

R.E.M.O. Compact Due is the Corghi wheel alignment system that was the first to introduce the concept of non-contact wheel measurement. Thanks to robotic scanning of the rim and tyre, it completely eliminates the need for brackets, adapters, and preliminary preparations, making wheel alignment a faster, simpler, and more profitable process.

Designed to work on passenger cars and light commercial vehicles, it automatically captures wheel data without any physical contact with the rim or tyre. This technology speeds up procedures, eliminates the risk of rim damage, and improves the experience for both the technician and the end customer.

R.E.M.O. Compact Due also allows wheel alignment to be used as a sales and service intake tool, immediately showing the customer the vehicle’s alignment status and facilitating approval of corrective work. It is a solution designed for repair shops that want to increase productivity, revenue, and the perception of their service as technologically advanced.

Benefits

No contact with the rim

More flights every day

Turn pre-check into a sales opportunity

Features and functions

R.E.M.O. CONTACTLESS TECHNOLOGY

The system detects the vehicle’s geometry without making any contact with the wheel or wheel rim. It does not require any brackets or accessories to be fitted to the wheel and is compatible with any type of wheel rim.

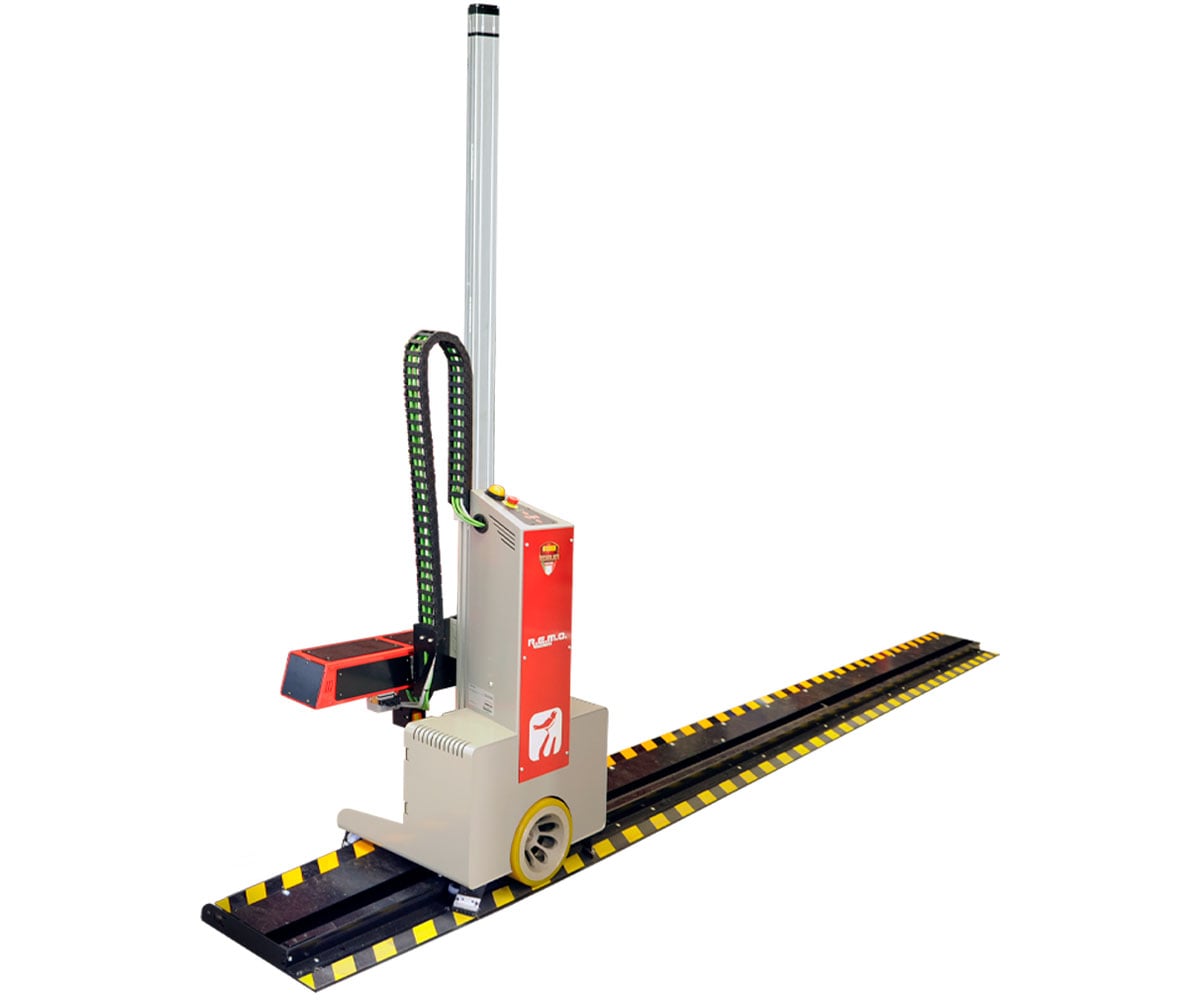

ROBOTIC SCANNING

ROBOTISED SCANNING OF THE WHEEL RIM AND TYRE. Corghi’s proprietary technology automatically captures the wheel’s geometric data via a robotised scan, ensuring simplicity, speed and precision.

NO VEHICLE PREPARATION REQUIRED

R.E.M.O. Compact Due works on cars and vans without the need for any preliminary adjustments. The lack of preparation speeds up the workflow and makes the alignment system easy to integrate into the workshop’s day-to-day operations.

CHECKING VEHICLE ALIGNMENT ON RECEIPT

The system can be used as a pre-check tool during vehicle intake. In just a few moments, the customer is given a clear overview of the situation and can immediately approve the recommended work.

UNATTENDED DATA COLLECTION

Whilst the measurement is taking place, the operator can carry out other tasks in the workshop or advise the customer. This feature improves profitability and helps to optimise working time.

DATA ALWAYS AVAILABLE IN REAL TIME

The system immediately provides all the data required to assess the vehicle’s alignment and carry out adjustments, enabling rapid decision-making and greater operational efficiency.

INFRARED CAMERAS AND LASER RANGEFINDERS

The combination of high-sensitivity cameras, a laser rangefinder and controlled movement ensures precision and reliability throughout all stages of the measurement process.

COMPATIBLE WITH VARIOUS WORKSHOP SET-UPS

R.E.M.O. Compact Due can be installed on a bridge, in a pit, in drive-through configurations or on a wall, adapting easily to different operational requirements.

Technical data

Measurement technology

Robotic contactless scanning
Units of measurement

2 independent robots
Wheel detection

Bracket-free and contact-free
Cameras

High-sensitivity infrared
Pre-check-in at check-in desk

Yes
Automatic data collection

Yes
Measurable centre-to-centre distance

1,500 – 5,000 mm
Installation compatibility

Bridge, trench, drive-through and wall
Measurement technology

Robotic contactless scanning

Units of measurement

2 independent robots

Wheel detection

Bracket-free and contact-free

Cameras

High-sensitivity infrared

Pre-check-in at check-in desk

Yes

Automatic data collection

Yes

Measurable centre-to-centre distance

1,500 – 5,000 mm

Installation compatibility

Bridge, trench, drive-through and wall
