Artiglio 500

32” “Leva la Leva” automatic tyre changer

Artiglio500

Even more performance, even more control on large wheels

Get a Quote
Brochure
Images

The Artiglio 500 is Corghi’s automatic tyre changer, designed to safely and reliably handle wheels from cars, SUVs, and commercial vehicles up to 32”.
Based on second-generation “Leva la Leva®” technology, it allows for lever-free operation, reducing the operator’s physical effort and improving the quality of the final result.

The machine incorporates a series of advanced technical solutions: dynamic bead breaking with a dual-disc bead breaker disc, a newly designed head assembly, high-performance wheel clamping with a rotating plate, and a Reinforced structure—all designed to ensure reliability, speed, and safety even during the most demanding operations.

The Artiglio 500 is a robust, versatile, and intuitive solution, ideal for shops that work daily with large-diameter, low-profile, or Run Flat tyres and seek high performance without operational complications.

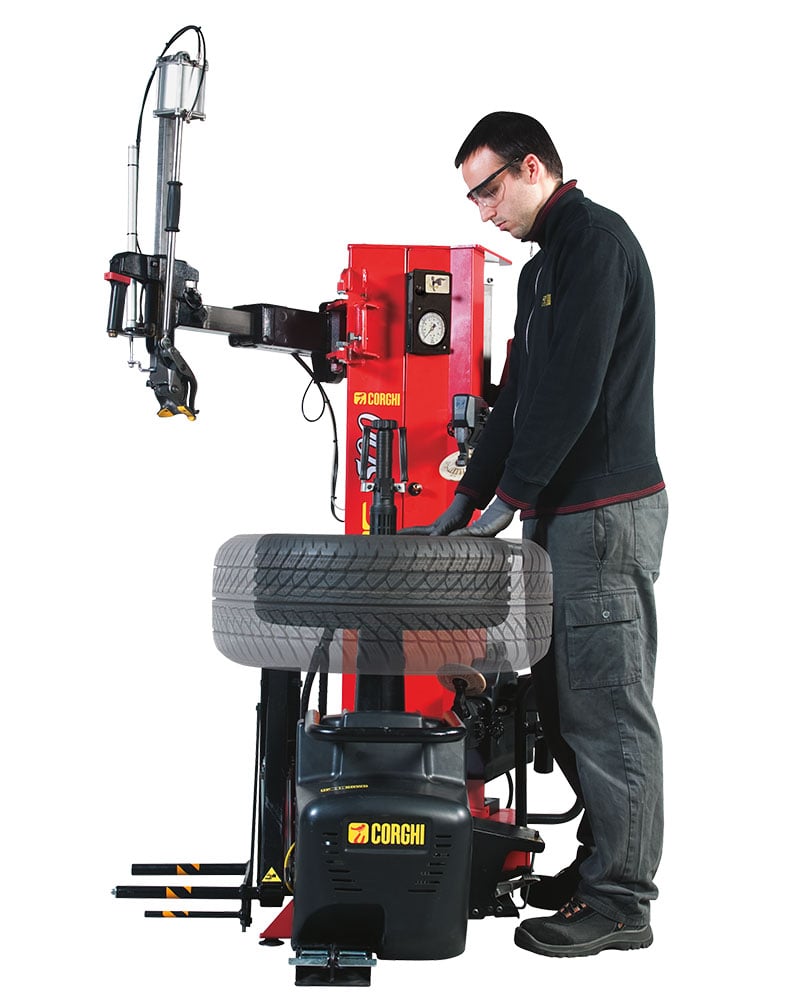

Benefits

Artiglio500_benefici

It handles wheels up to 32” with ease

Less effort for the operator

Greater speed at critical stages

A robust machine for everyday use

Features and functions

‘LEVA LA LEVA’ TECHNOLOGY – 2nd GENERATION

Corghi’s “Leva la Leva” technology, when applied to the cylinder head,
allows dismantling operations to be carried out without the use of a lever, thereby permanently eliminating the physical strain on the operator
.
The assembly procedure retains the same ease and speed, ensuring operational continuity and control.

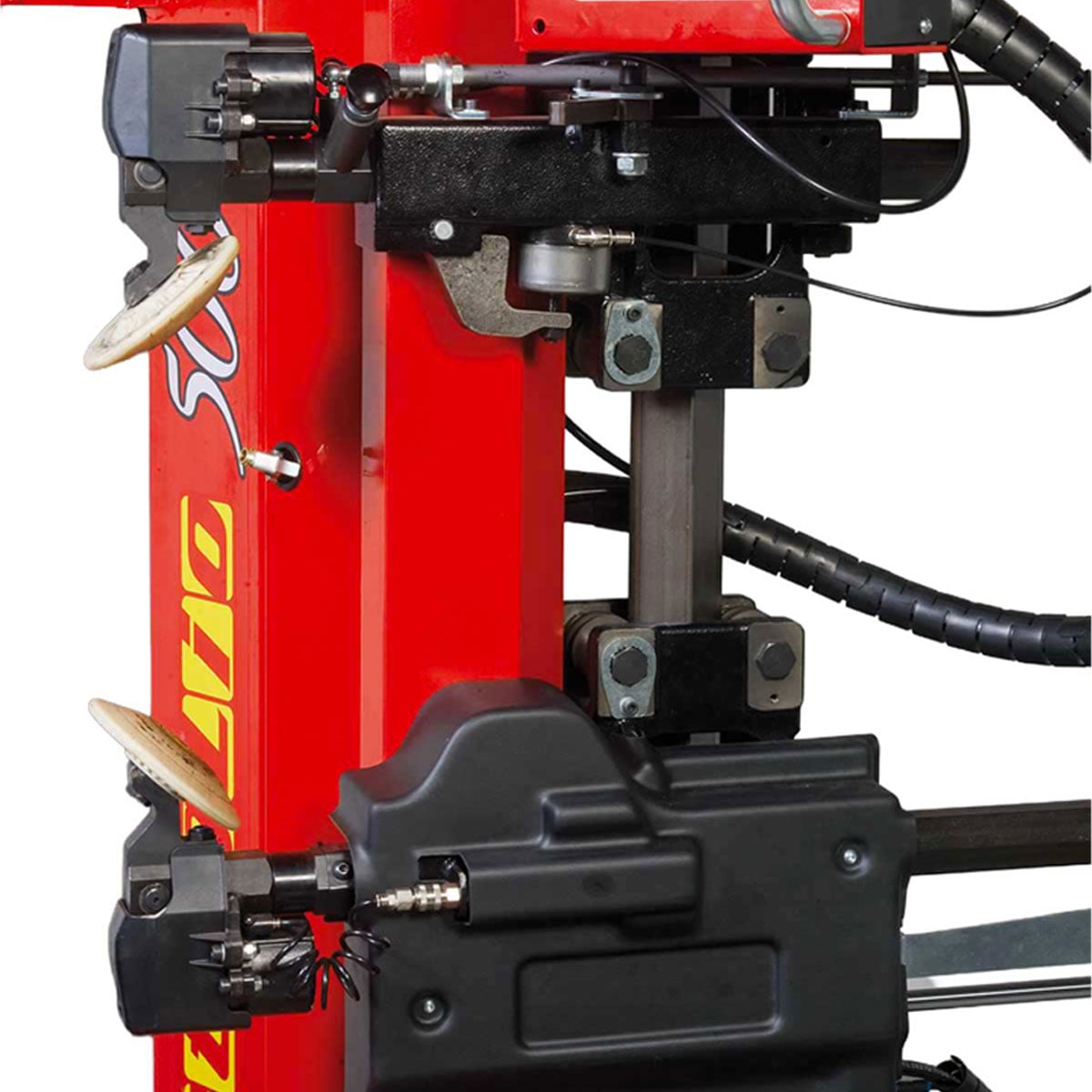

DOUBLE STALLONATOR WITH CONTROLLED PENETRATION

DOUBLE STALLONATOR WITH CONTROLLED PENETRATION

The dynamic tyre-removal device, featuring twin mirror-image removal discs, ensures precision, speed and repeatability
.

The patented controlled penetration system
ensures effective performance even on tyres with stiff sidewalls, whilst the rapid second bead removal procedure – made possible by the patented disc movement –
speeds up operations in the most challenging situations.

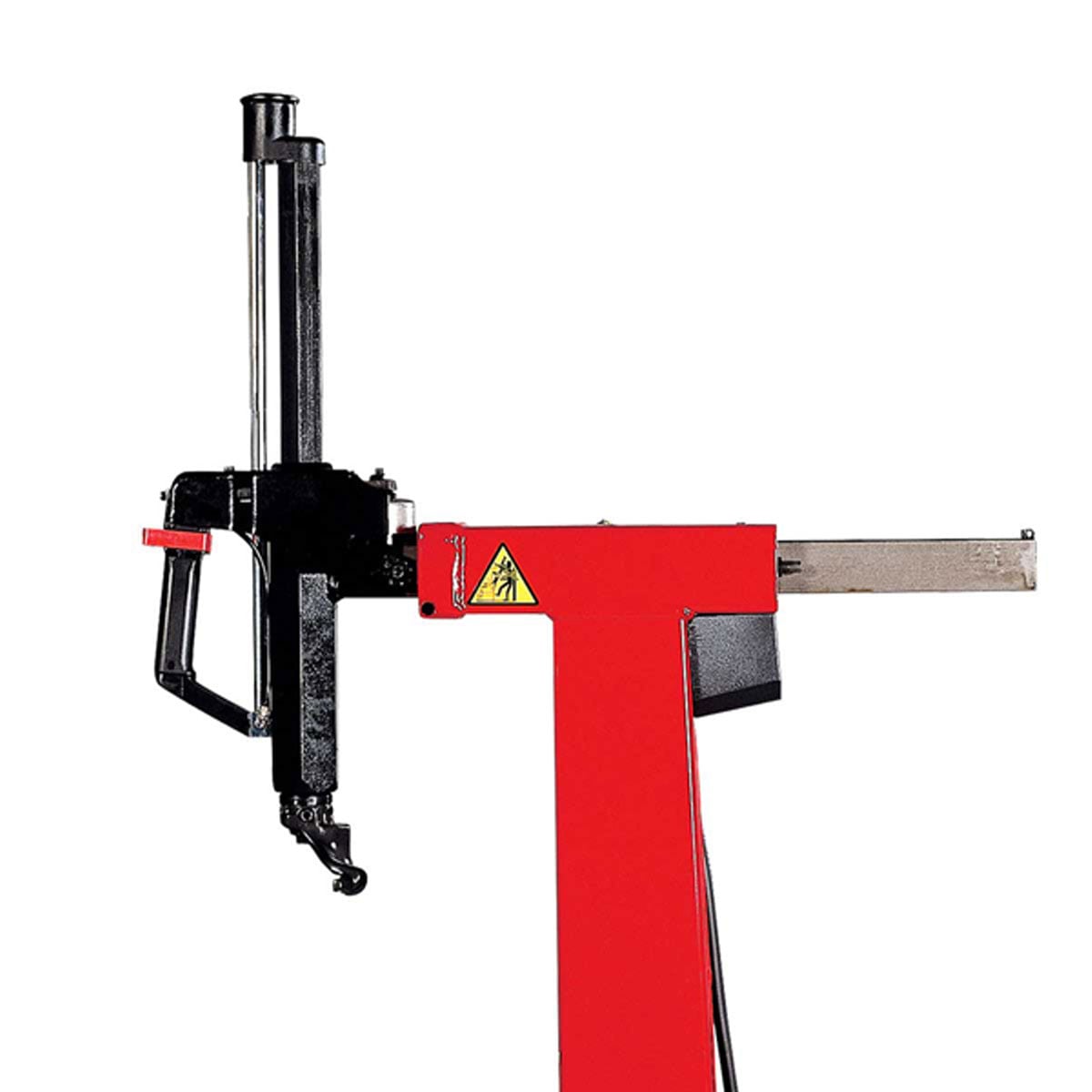

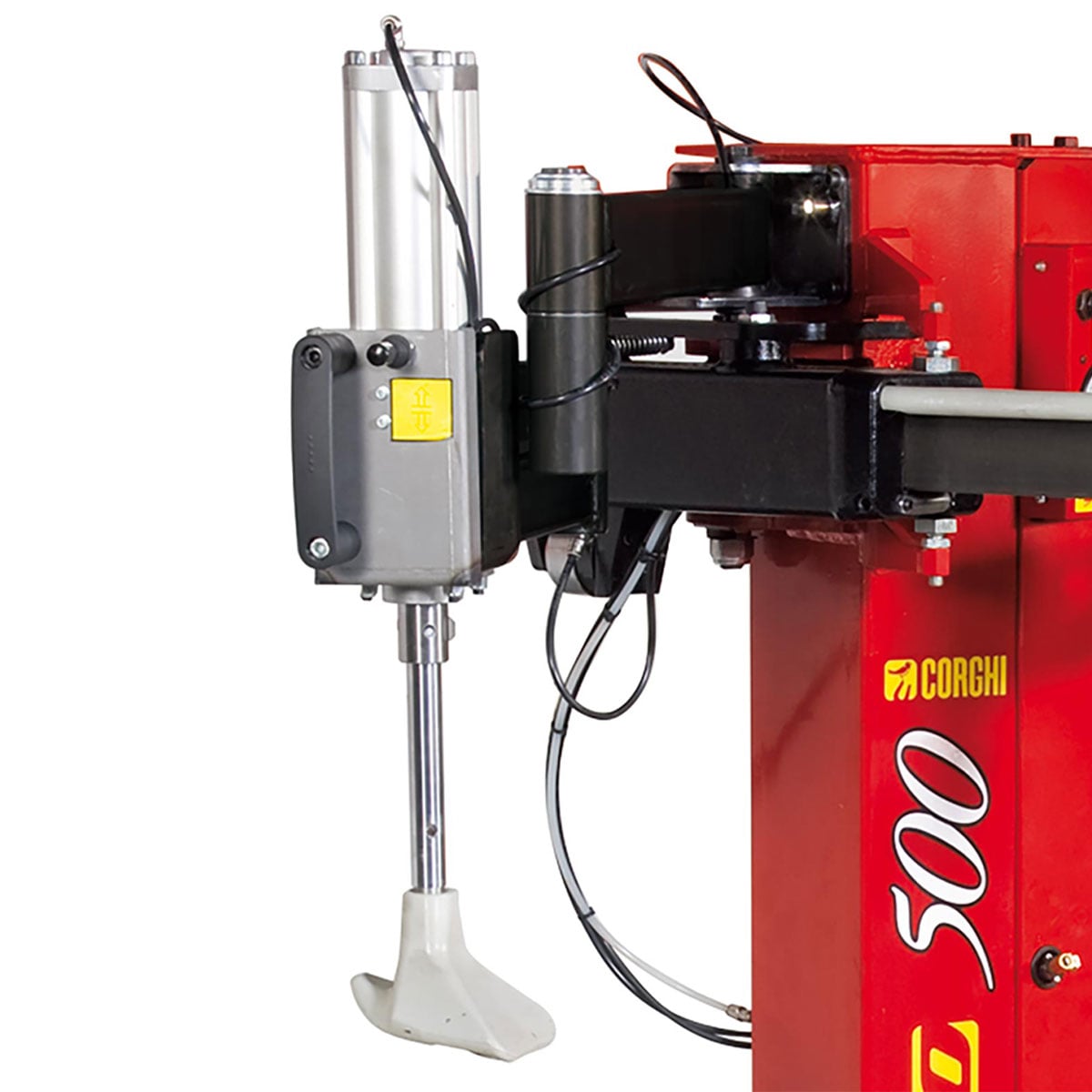

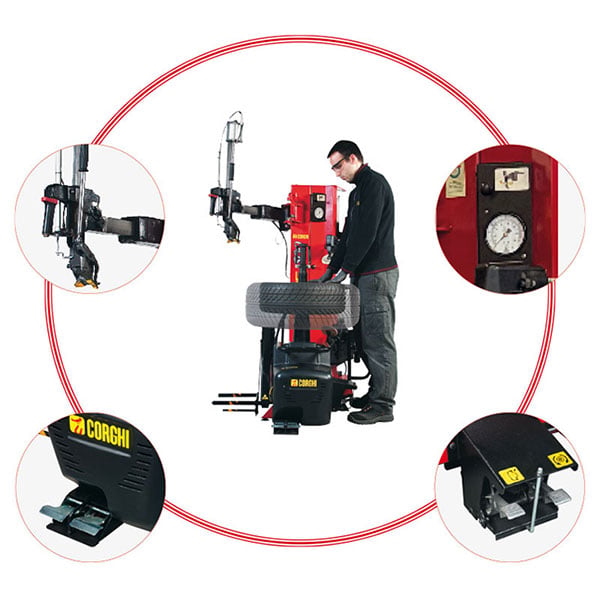

NEWLY DESIGNED HEAD ASSEMBLY

NEWLY DESIGNED HEAD ASSEMBLY

The head assembly is designed to ensure smooth movement, safety and operational reliability
.
Movements remain consistent and controlled, improving the quality of the work and reducing operator fatigue.

WHEEL LOCKING SYSTEM – FLANGE-TYPE WHEEL LOCK

WHEEL LOCKING SYSTEM – FLANGE-TYPE WHEEL LOCK

The self-centring disc
with mechanical-manual locking mechanism ensures quick and secure clamping.
It allows both sides of the tyre to be demounted without having to rotate the wheel, improving operational speed and control throughout all stages of the process.

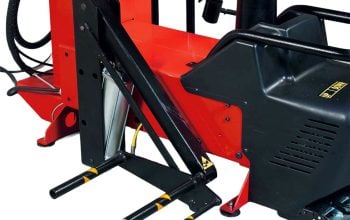

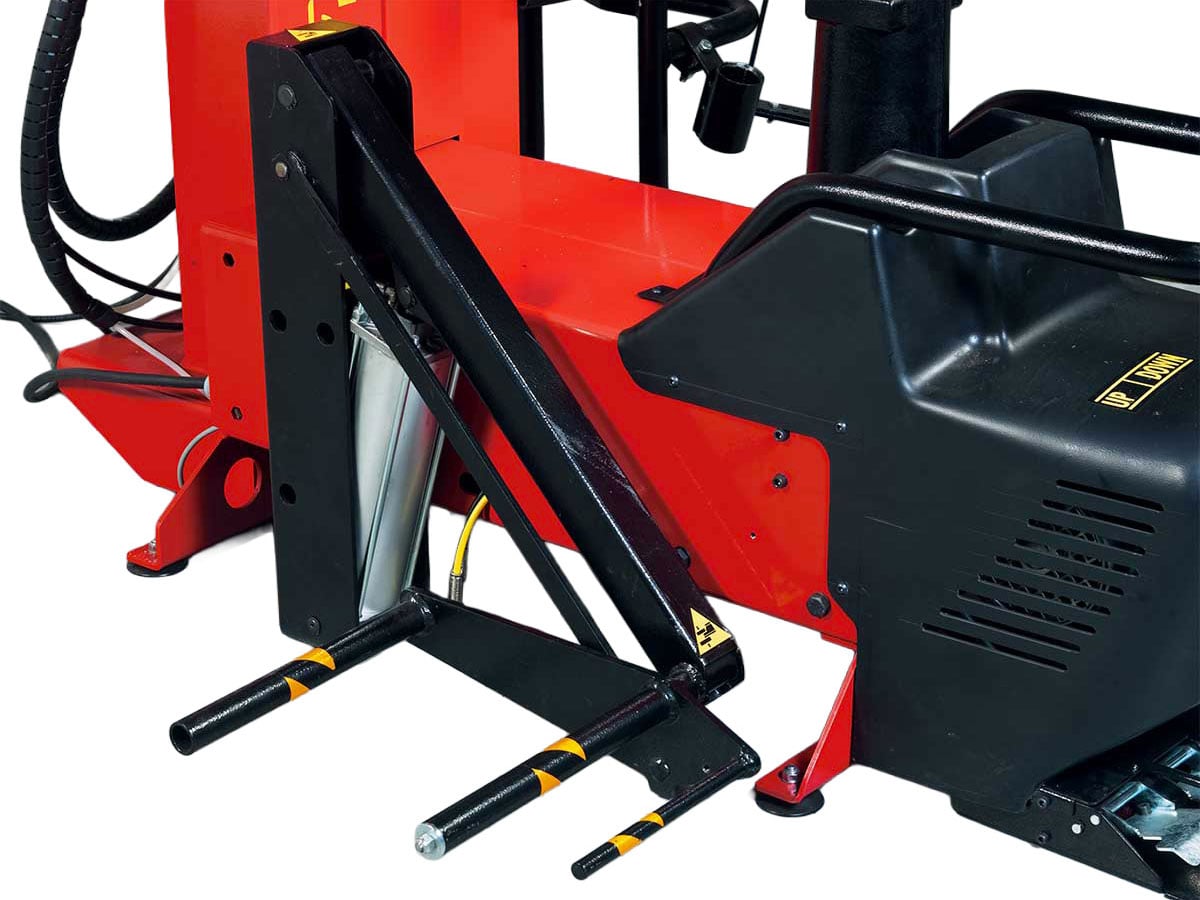

STANDARD WHEEL LIFT

STANDARD WHEEL LIFT

The wheel lift, supplied as standard, allows any type of wheel weighing up to 85 kg to be positioned on the self-centring stand effortlessly, improving ergonomics and safety in the workshop.

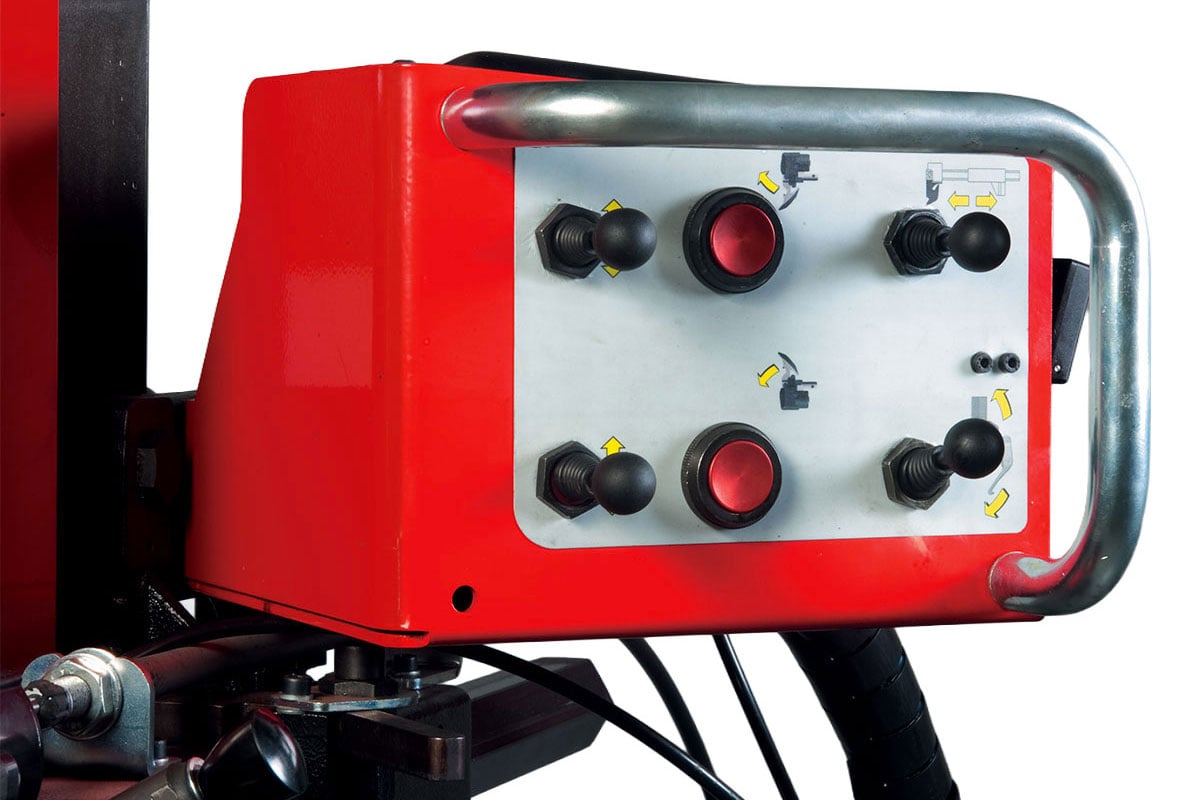

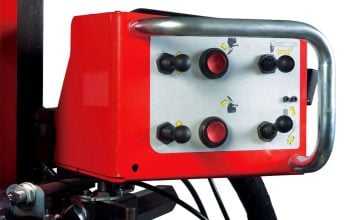

INTUITIVE CONTROL PANEL

The multifunction console houses all the operating controls in a clear and accessible manner.
It is ideal for managing dynamic tyre removal and also enables pneumatic-rim match-mounting, thanks to the two dual-action discs.

Technical data

Wheel size range

Cerchio da 12” a 32”
Maximum tyre diameter

1200 mm (47”)
Maximum tyre width

15″
Engine

Motoinverter a 2 velocità
Wheel lift

Di serie – fino a 85 kg
Power supply

Elettrica 1Ph 230V – 0,75 kW / Pneumatica 8 bar
Wheel size range

Cerchio da 12” a 32”

Maximum tyre diameter

1200 mm (47”)

Maximum tyre width

15″

Engine

Motoinverter a 2 velocità

Wheel lift

Di serie – fino a 85 kg

Power supply

Elettrica 1Ph 230V – 0,75 kW / Pneumatica 8 bar
