A2025 LL

Automatic tyre changer with Leva la Leva technology

A2025_LL

Tradition and innovation in a reliable, high-performance solution

A2025 LL is the Corghi automatic tyre changer featuring the patented Leva la Leva technology, developed to completely eliminate operator effort during tyre demounting while maintaining the same traditional working movements. The mounting procedure retains the same practicality and operating speed as conventional tyre service operations, delivering a simple, intuitive and highly productive user experience.

The machine is equipped with a patented self-centering chuck, a standard extendable bead breaker shovel for large-diameter wheels and a pull-out pedal assembly to facilitate inspection and maintenance operations. Its robust construction and Corghi technology make A2025 LL the ideal solution for workshops and tyre specialists looking to improve comfort, productivity and safety.

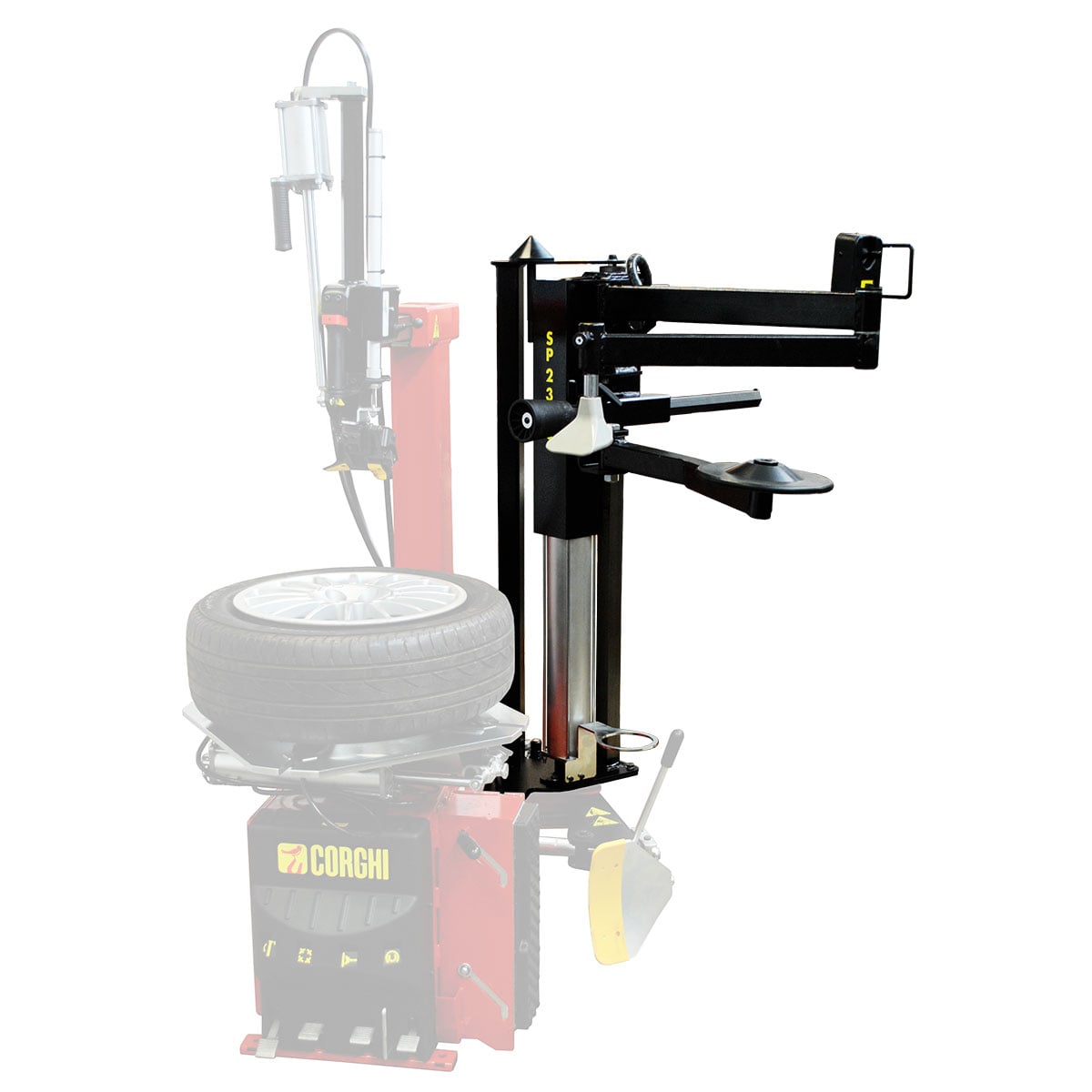

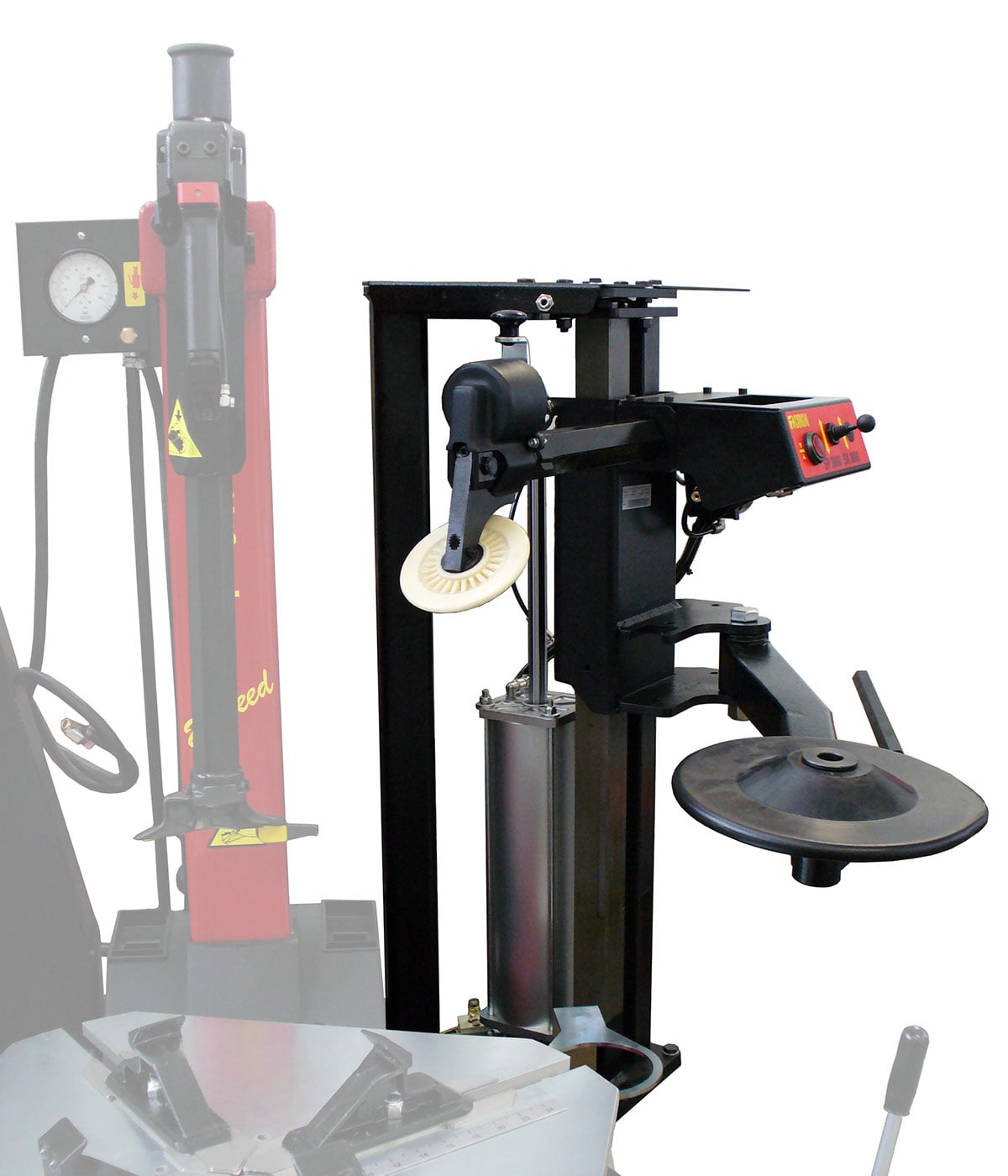

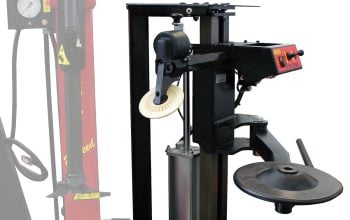

To achieve the best performance from Leva la Leva technology, Corghi recommends combining the machine with SP3000, SP2300, SP2000 or PU1500 helper devices, depending on workshop requirements.

Benefits

Eliminates operator physical effort

Faster mounting and demounting operations

Easy to use

Improved ergonomics and practicality

Features and functions

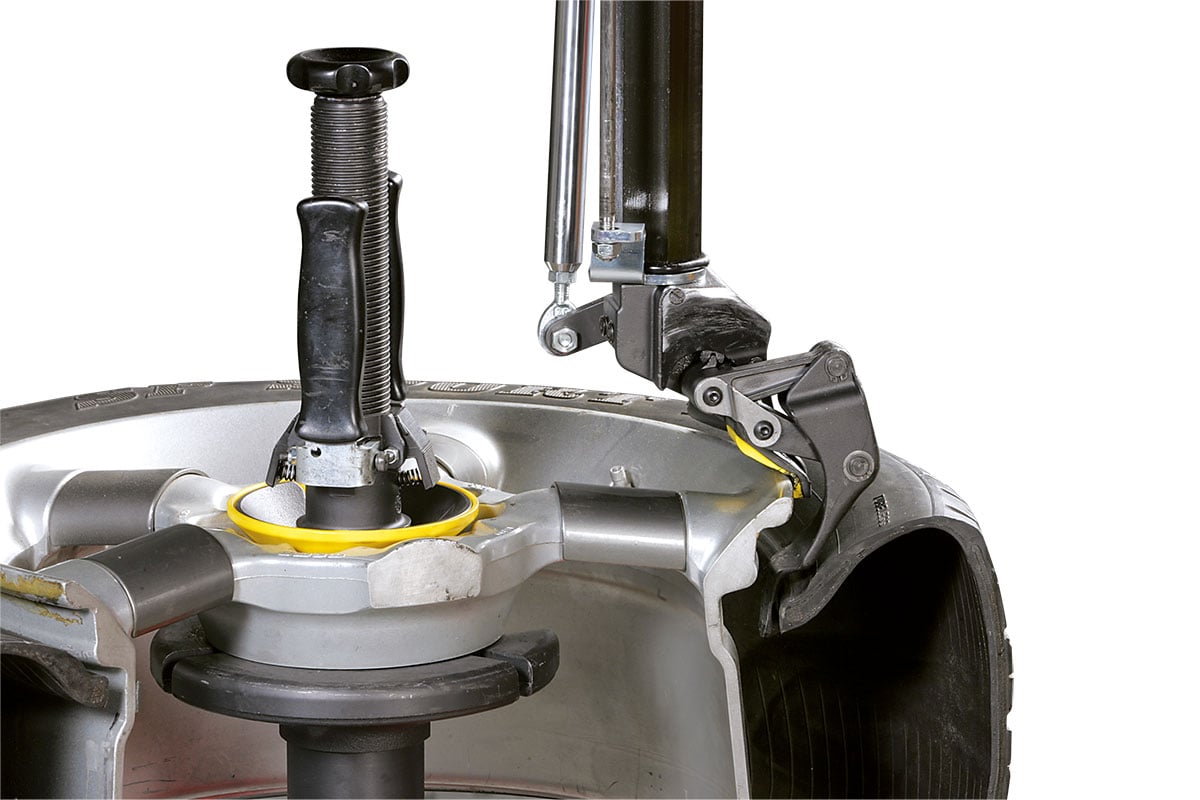

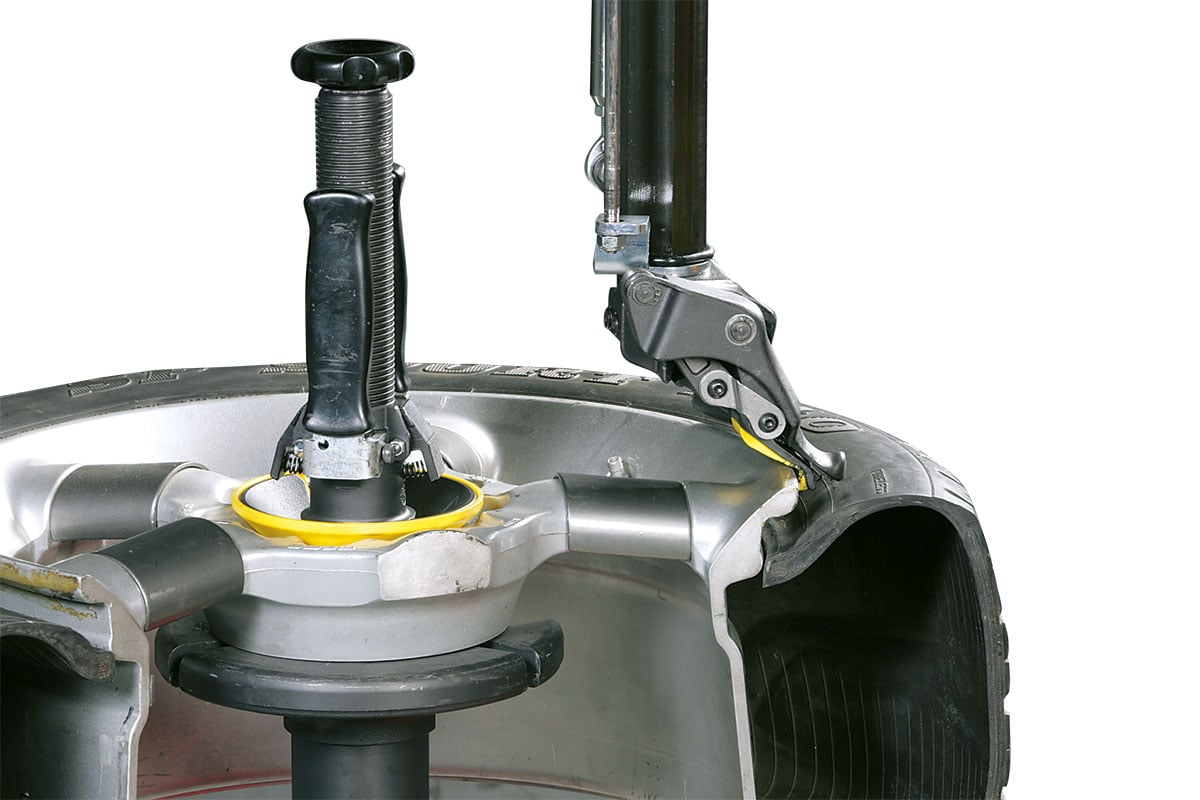

Patented Leva la Leva technology

The demounting procedure uses the same traditional working movements while completely eliminating operator effort thanks to the Leva la Leva technology integrated into the mounting head assembly. The mounting procedure maintains the same practicality and operating speed.

Patented variable-range self-centring chuck

The patented self-centering system allows the clamping jaws to be repositioned and the working range to be adjusted according to wheel size, increasing machine versatility.

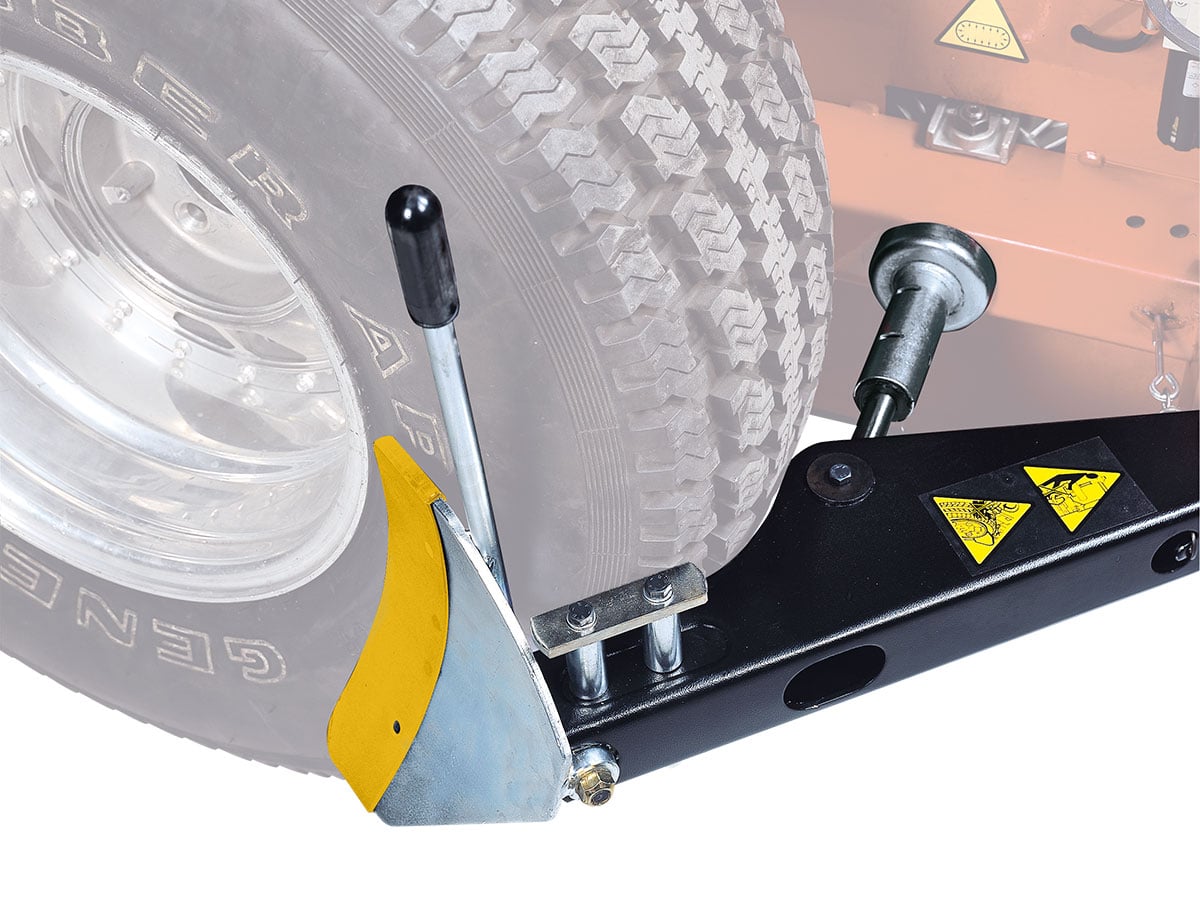

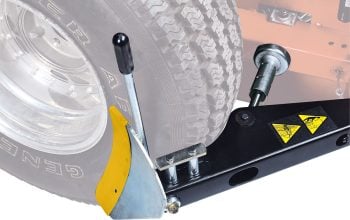

Extendable bead breaker shovel

The machine is equipped as standard with an extension system for the bead breaker shovel, particularly useful when working on large-diameter wheels and tyres.

Pull-out pedal assembly

The pedal assembly can be pulled out to facilitate inspection and maintenance activities in the control area, improving accessibility and ease of use.

Technical data

Operation

Automatic

Clamping range

13″ – 26″

External clamping range

10″ – 24″

Maximum tyre diameter

1,100 mm (43”)

Maximum tyre width

360 mm (14”)

Self-centring chuck

Patented variable-range system

Turntable height from floor

675 mm

Bead breaker

Fixed arm with extendable bead breaker shovel

Maximum bead breaker opening

380 mm

Bead breaker force

15,500 N

Wheel support

Telescopic

Tool working range

8″ – 26″

Rotation speed

8 RPM (6–15 RPM for the DV version)

Power supply

230/400 V – 0.75 kW (3-phase)
110/230 V – 0.75 kW (1-phase)

Operating air pressure

10 bar

Weight

259 kg

Operation

Automatic

Clamping range

13″ – 26″

External clamping range

10″ – 24″

Maximum tyre diameter

1,100 mm (43”)

Maximum tyre width

360 mm (14”)

Self-centring chuck

Patented variable-range system

Turntable height from floor

675 mm

Bead breaker

Fixed arm with extendable bead breaker shovel

Maximum bead breaker opening

380 mm

Bead breaker force

15,500 N

Wheel support

Telescopic

Tool working range

8″ – 26″

Rotation speed

8 RPM (6–15 RPM for the DV version)

Power supply

230/400 V – 0.75 kW (3-phase)
110/230 V – 0.75 kW (1-phase)

Operating air pressure

10 bar

Weight

259 kg
