Artiglio 5000

Automatic tyre changer featuring LITE Smart Corghi System technology

Artiglio5000

Higher speeds, less strain on the tyre, maximum rim protection

Get a Quote
Brochure
Images

Artiglio 5000 is Corghi’s third-generation “Leva la Leva®” automatic tyre changer, designed for wheels on cars, SUVs, 4WDs, and commercial vehicles up to 28”.

At the heart of the machine is the LITE Smart Corghi System, contactless technology that ensures the rim is never touched and drastically reduces stress on the tyre, even during the most demanding stages of removal and mounting.

The patented, automatically positioning head assembly introduces a completely innovative approach to wheel service, improving operating speed, safety, and control—even on low-profile, Run Flat, and large wheels.

Benefits

It works even on the toughest tyres

No marked circles, no objections

Reduce working time and operational errors

Designed for high-volume workshops

Features and functions

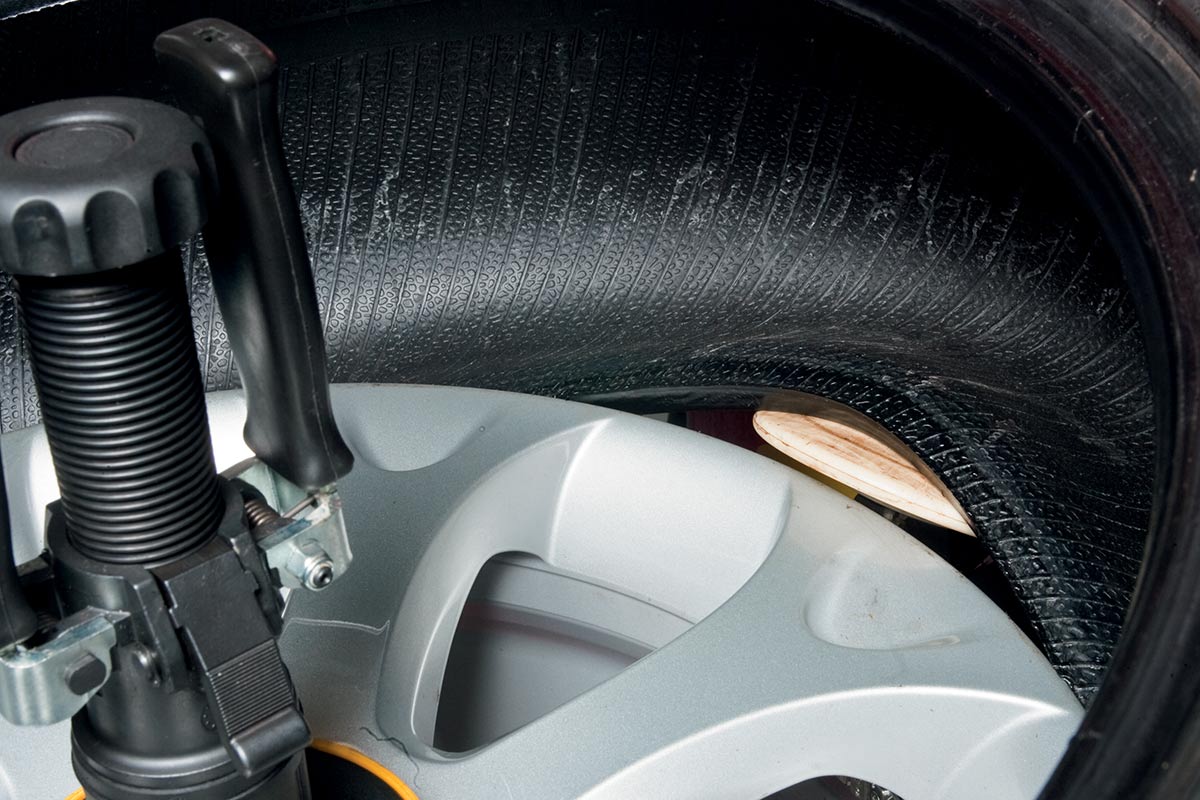

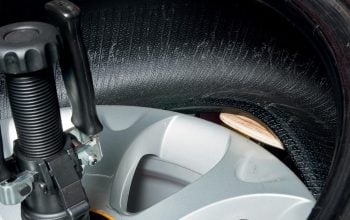

LITE SMART CORGHI SYSTEM – CONTACTLESS TECHNOLOGY

The new-generation contactless system allows the tyre to be removed and fitted without ever coming into contact with the rim, reducing stress on the tyre thanks to the synchronised movement of the tool and the wheel.
A tangible technological advantage in the most demanding applications.

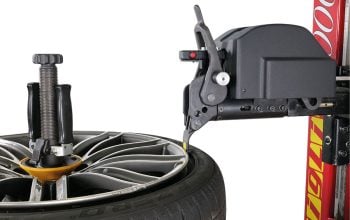

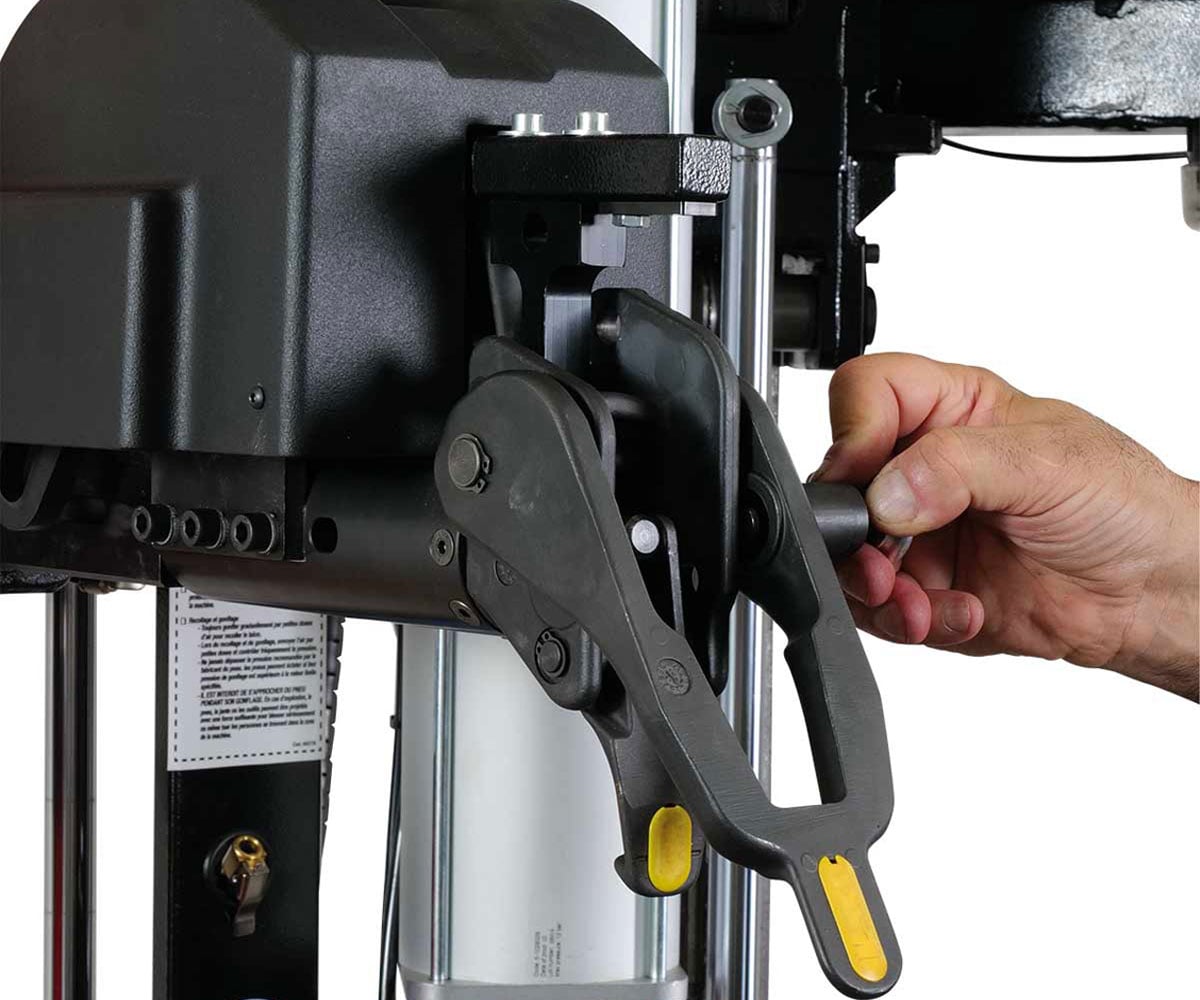

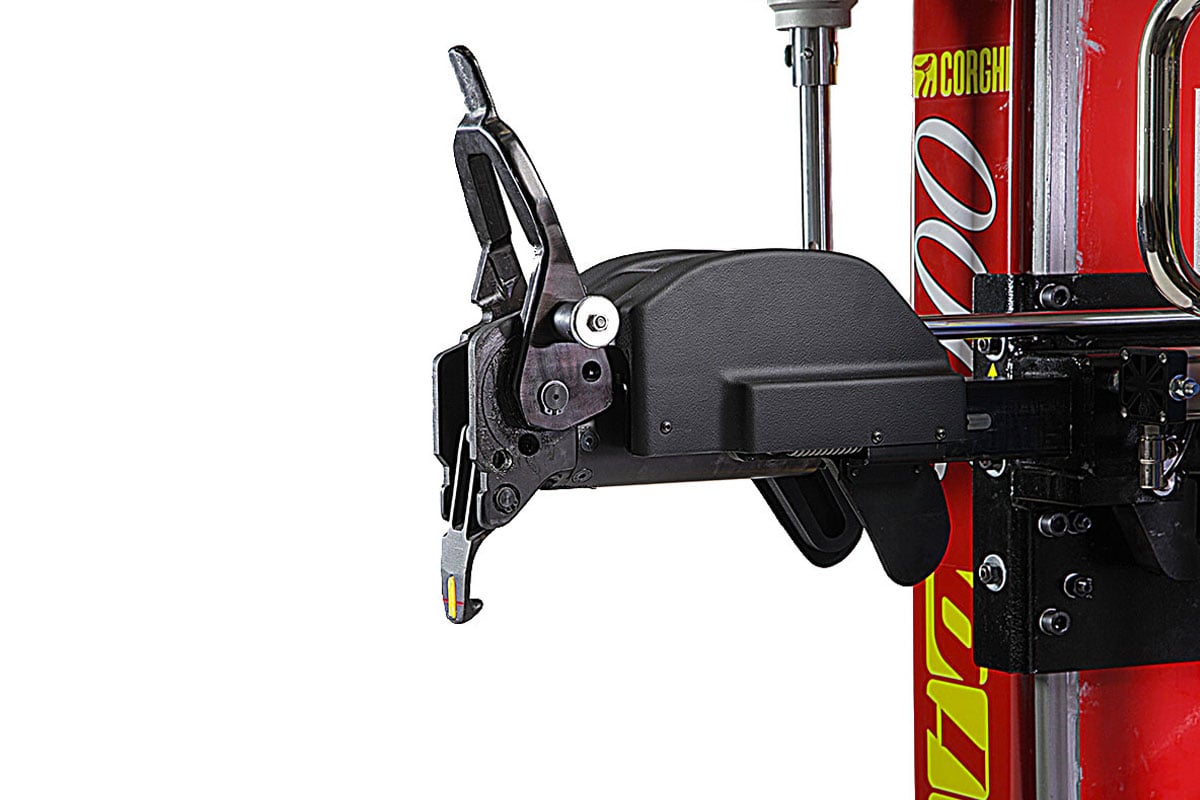

PATENTED AUTOMATIC POSITIONING HEAD ASSEMBLY

The patented, automatically positioning contactless head assembly allows the tyre to be removed and fitted without ever coming into contact with the rim, reducing stress on the tyre during the most demanding stages.

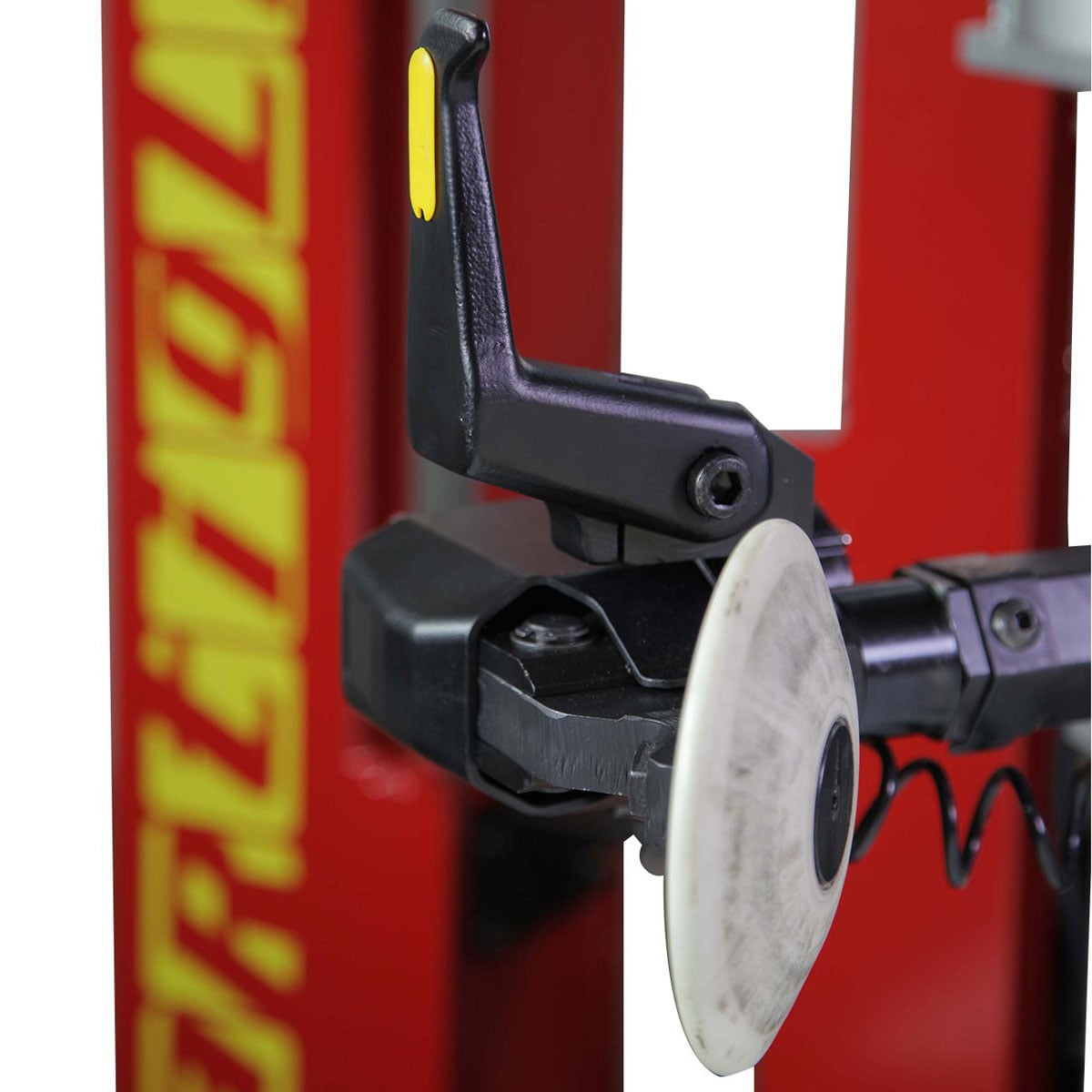

The tilting demounting tool
enables rapid positioning of the head, improving operational fluidity and speed.

The
extended working area
makes the Artiglio 5000 particularly suitable for handling
large, studded and 4WD tyres.

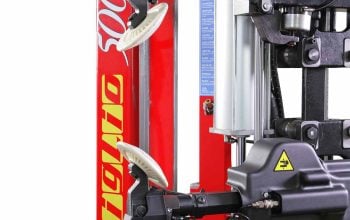

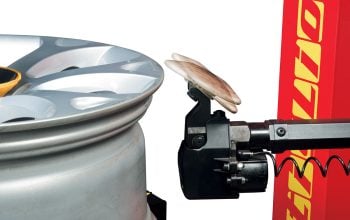

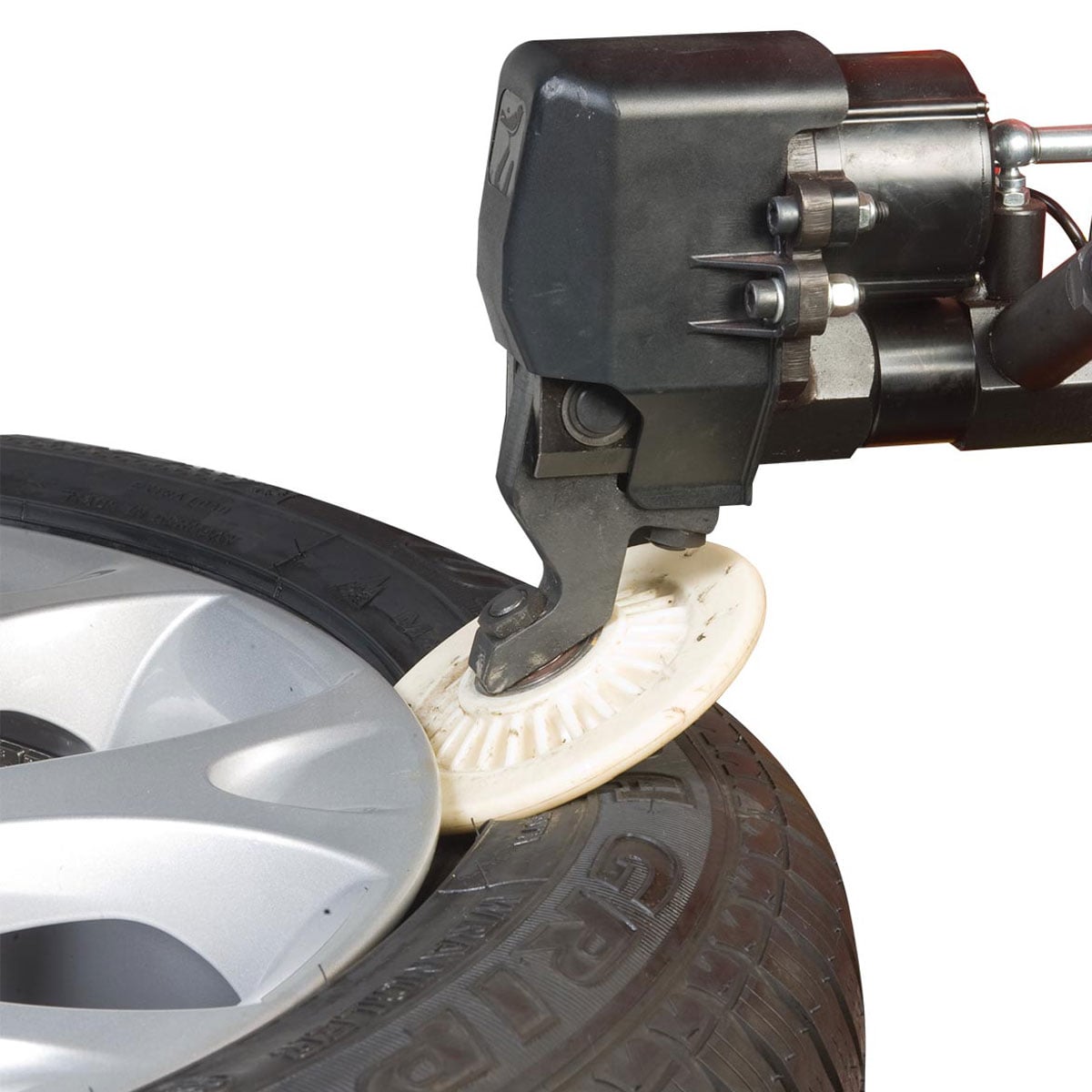

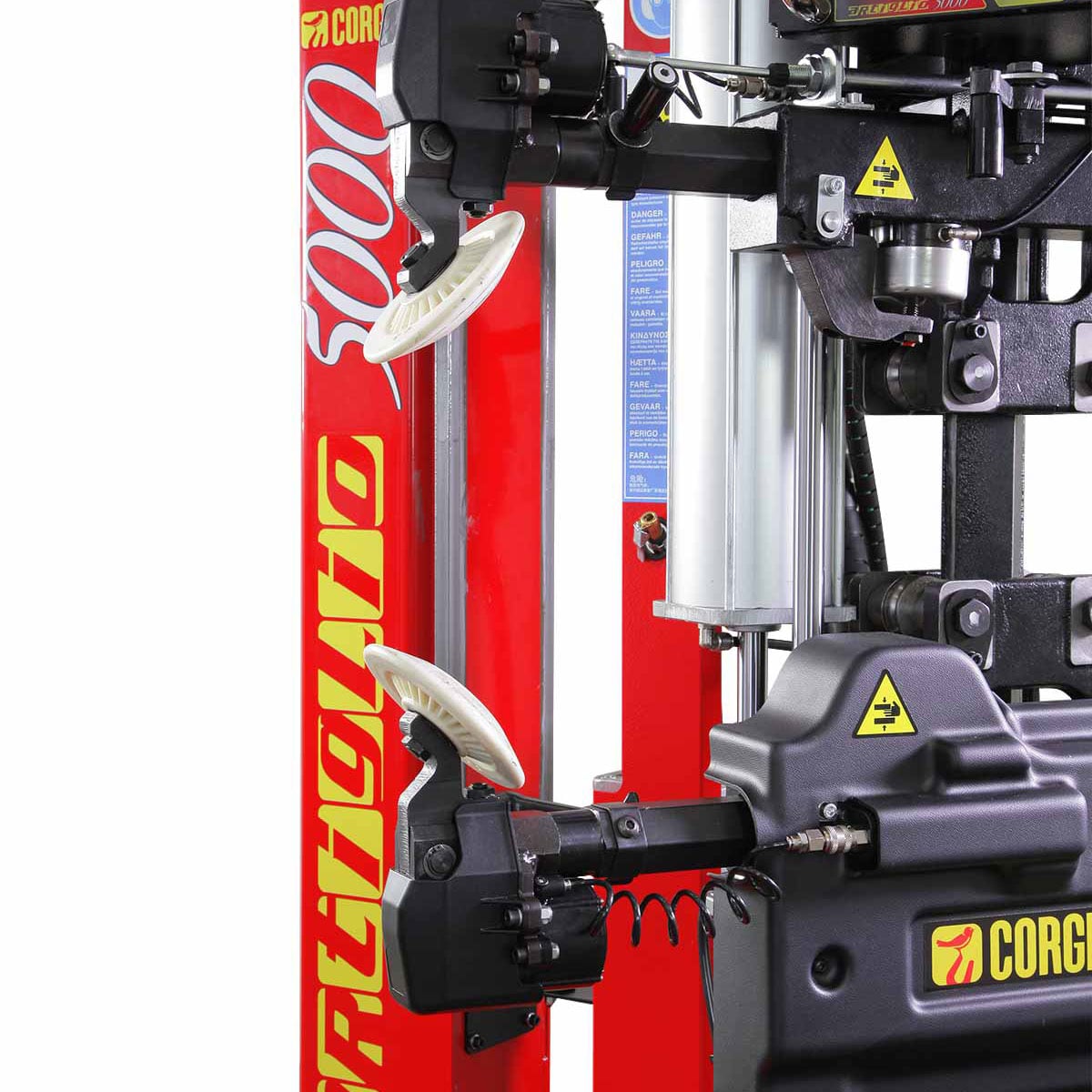

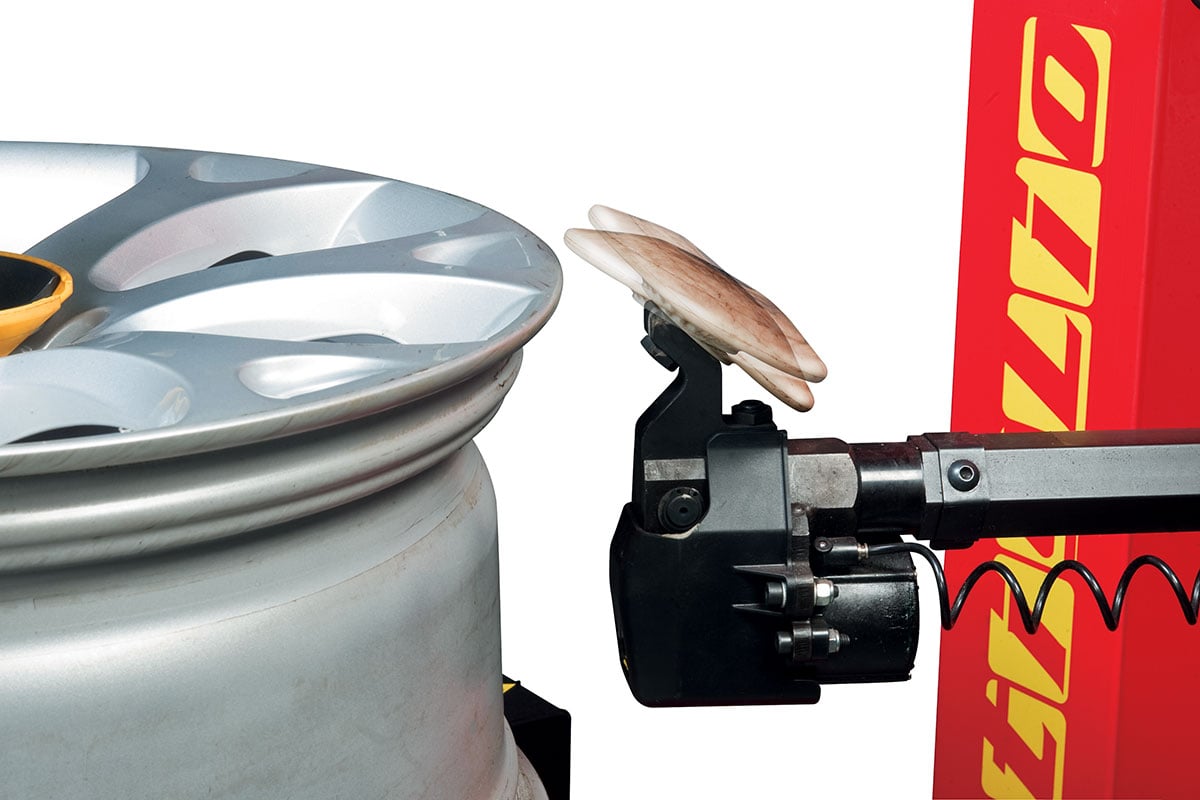

DOUBLE STALLONATOR WITH CONTROLLED PENETRATION

DOUBLE STALLONATOR WITH CONTROLLED PENETRATION

The dynamic tyre-beading device, featuring twin mirrored beading discs, ensures precision, power and control. The patented controlled penetration ensures speed and repeatability, whilst the rapid second bead removal procedure – made possible by the patented disc movement – is particularly effective on tyres with stiff sidewalls.

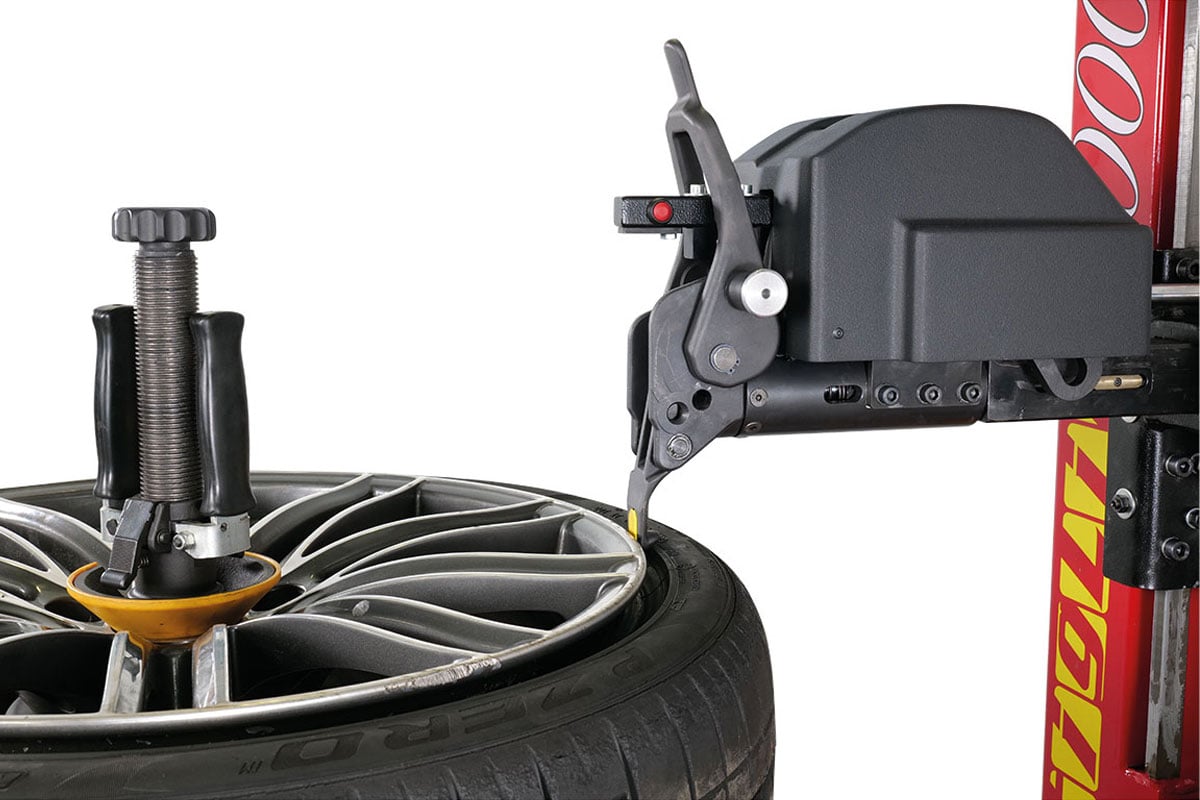

WHEEL LOCKING SYSTEM WITH FLANGE DISC

WHEEL LOCKING SYSTEM WITH FLANGE DISC

The mechanical-manual wheel clamping system ensures stable and universal clamping. It allows both sides of the tyre to be removed without having to turn the wheel over, thereby improving speed and operational control.

ERGONOMIC CONTROL PANEL AND INTUITIVE CONTROLS

The console is designed to be intuitive and easy to use straight away. The controls are simple and intuitive, designed to minimise the learning curve and ensure operational continuity even in the most demanding work environments.

Technical data

Wheel size range

Cerchio da 13” a 28”
Maximum tyre diameter

Fino a 1200 mm
Maximum tyre width

fino a 15″
Wheel lock

A platorello
Rotational speed

7 – 18 rpm
Come on, stud!

7600N
Maximum wheel load

85Kg
Wheel size range

Cerchio da 13” a 28”

Maximum tyre diameter

Fino a 1200 mm

Maximum tyre width

fino a 15″

Wheel lock

A platorello

Rotational speed

7 – 18 rpm

Come on, stud!

7600N

Maximum wheel load

85Kg
