ARTIGLIO MASTER 28

Automatic, contactless tyre changer for tyres up to 28”

The perfect embodiment of Corghi’s ‘Leva la Leva’ technology

The Artiglio Master 28 is Corghi’s automatic tyre changer that embodies the ideal balance between contactless technology, robust construction, and operational efficiency.
It draws on Corghi’s twenty years of experience with Leva la Leva® technology and is designed to operate reliably and safely on all wheel types, including run-flat, low-profile, and large wheels up to 28”.

At the heart of the Artiglio Master 28 lies the exclusive Smart Corghi System, the only technology on the market that allows for tyre removal and mounting without ever touching the rim and eliminates any tension on the tyre during the work phases.

The new mounting head, an advanced synthesis of the Artiglio Master 26 and ARTIGLIO MASTER CODE, combines the best of both solutions, offering precision, total protection, and operational continuity.
Available in manual or AUTOMATIC versions with pneumatic clamping, the Artiglio Master 28 represents a solid and long-lasting technical and economic investment for the modern workshop.

Benefits

Always protect your rims and tyres

Work without wasting energy

Tackle every wheel with ease

An investment that stands the test of time

Features and functions

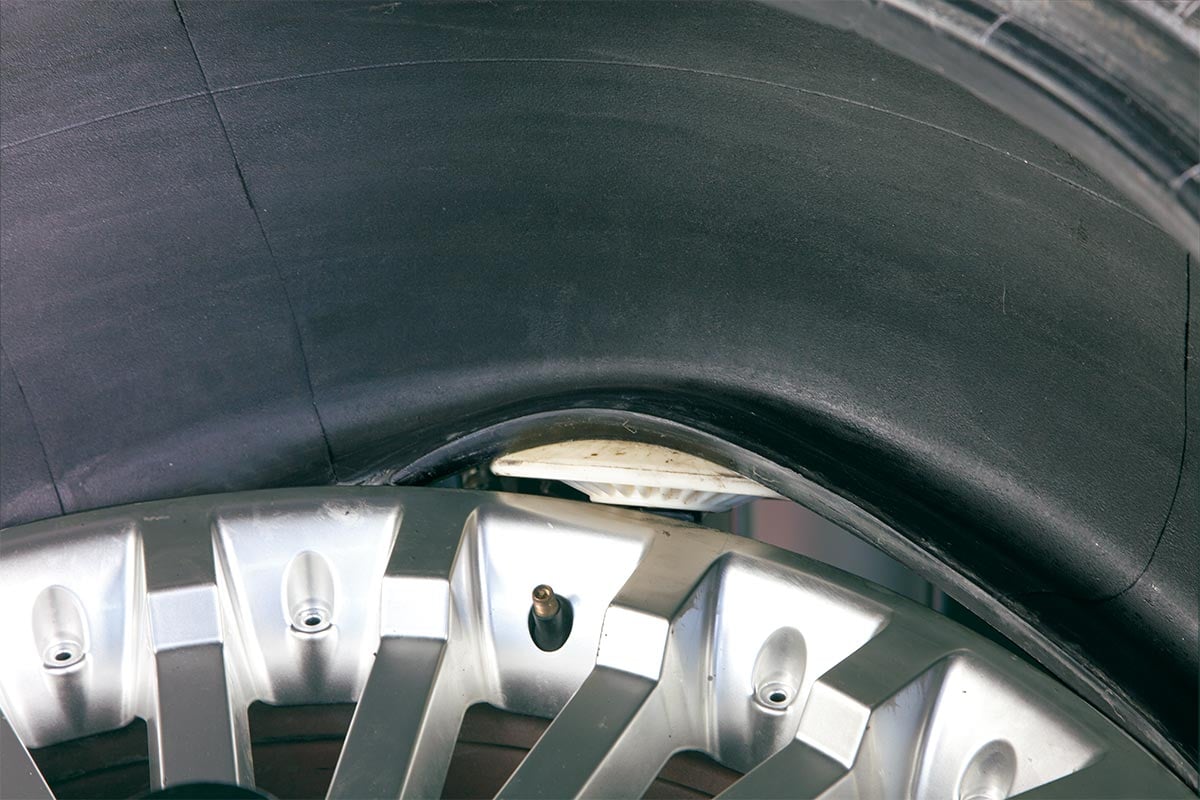

SMART CORGHI SYSTEM – CONTACTLESS TECHNOLOGY

The patented Corghi system guarantees:

no contact with the rim, ever
complete elimination of stress on the tyre
synchronised tool–wheel movements for safe and controlled removal and fitting

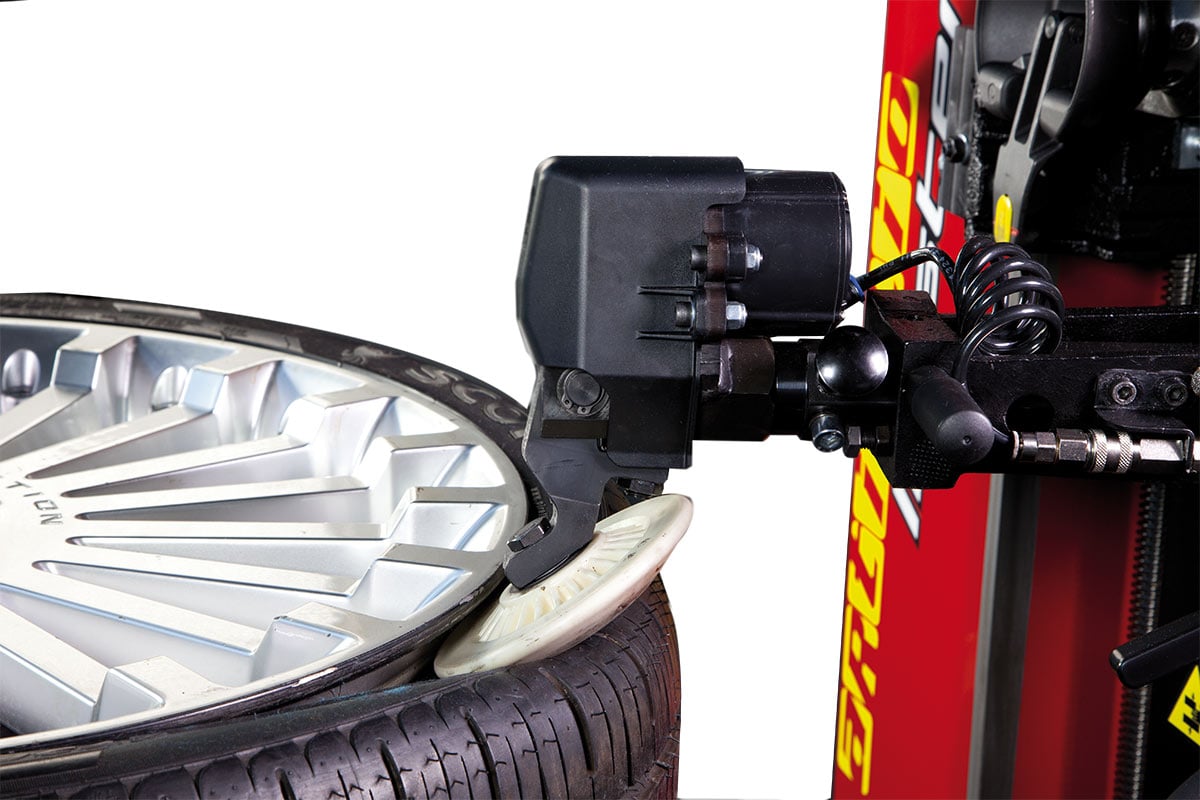

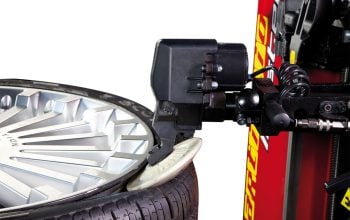

INNOVATIVE DISASSEMBLY TURRET

Developed from the Master 26 and Master CODE series, it offers a perfect combination of:

structural robustness
operational precision
maximum protection for the rim and tyre

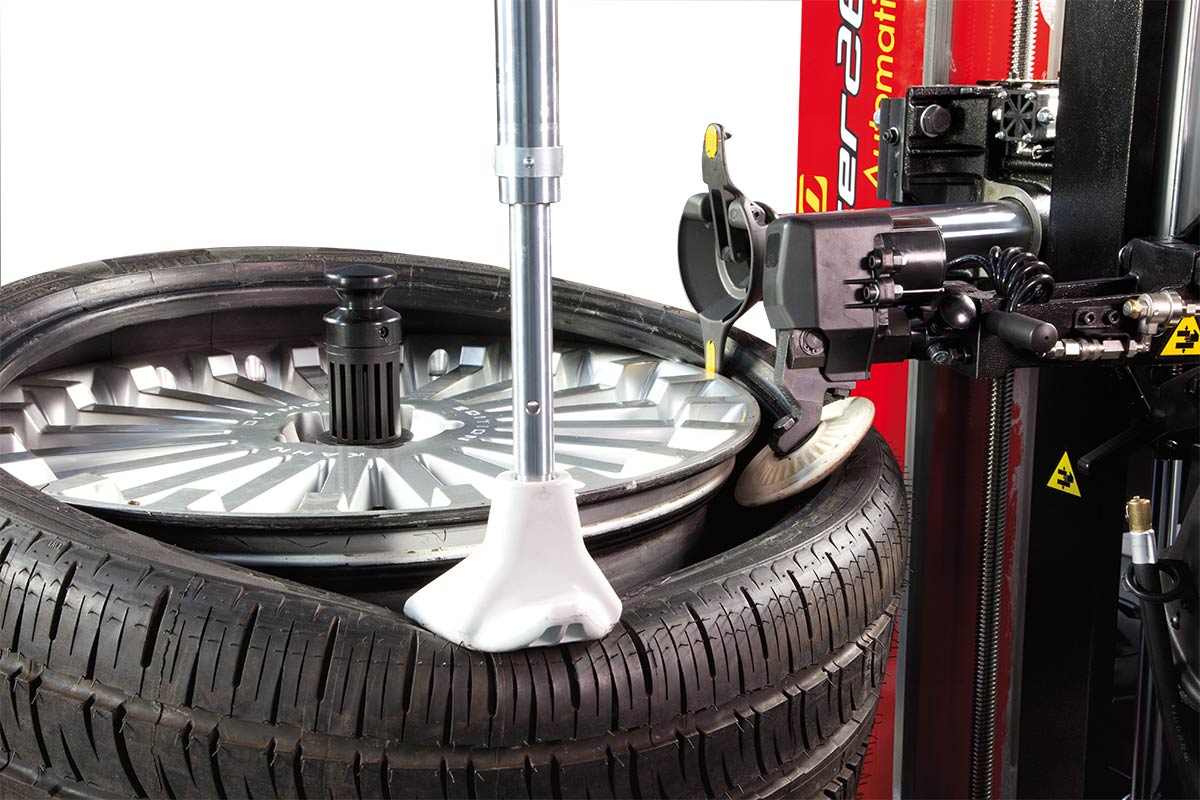

DOUBLE STALLONATOR WITH CONTROLLED PENETRATION

The dynamic tyre-removal system, featuring twin mirror-image removal discs, ensures precision, speed and repeatability.
The patented controlled penetration mechanism guarantees effective performance even on tyres with stiff sidewalls, minimising the need for operator intervention and enhancing operational safety.

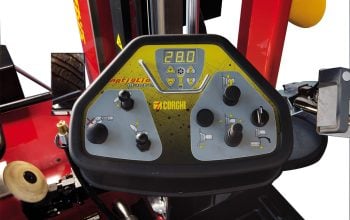

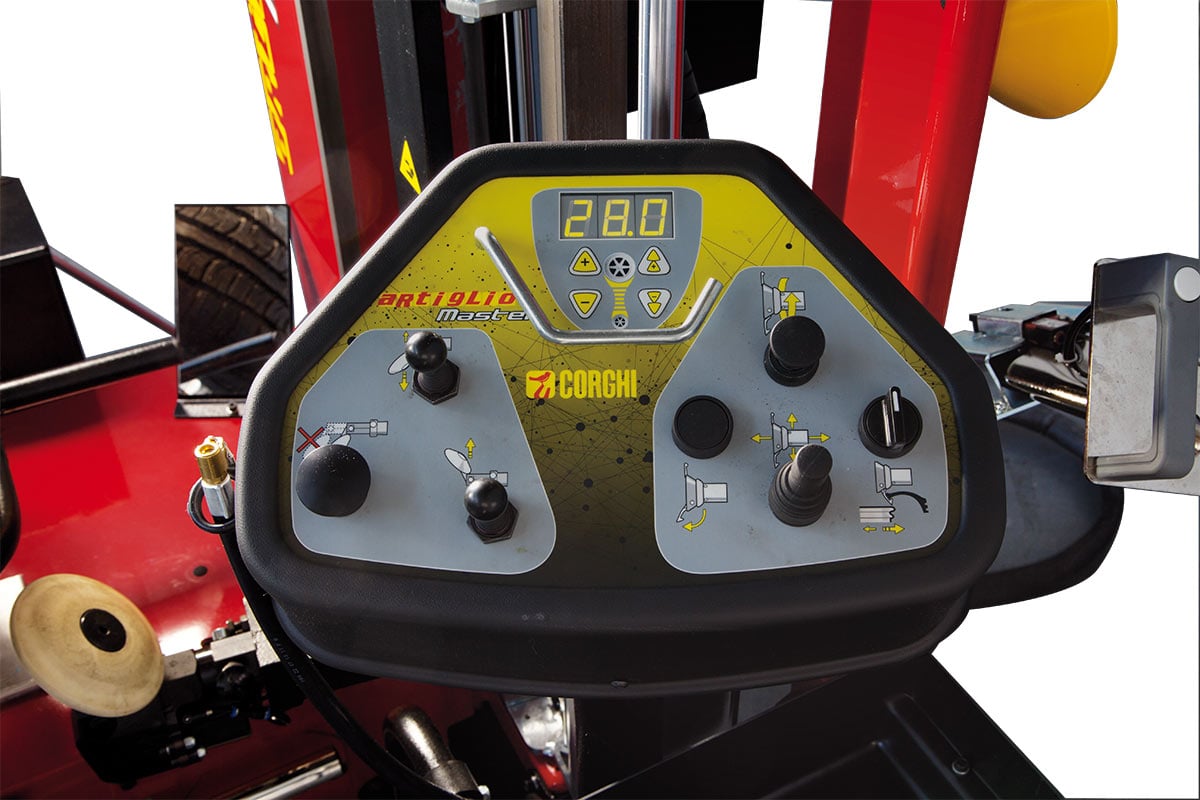

MULTIFUNCTIONAL ERGONOMIC CONSOLE

The control console with display allows you to set the rim diameter electronically
and ensures quick and safe tool positioning.
The controls, divided into three working areas, make the machine straightforward and intuitive
to use.

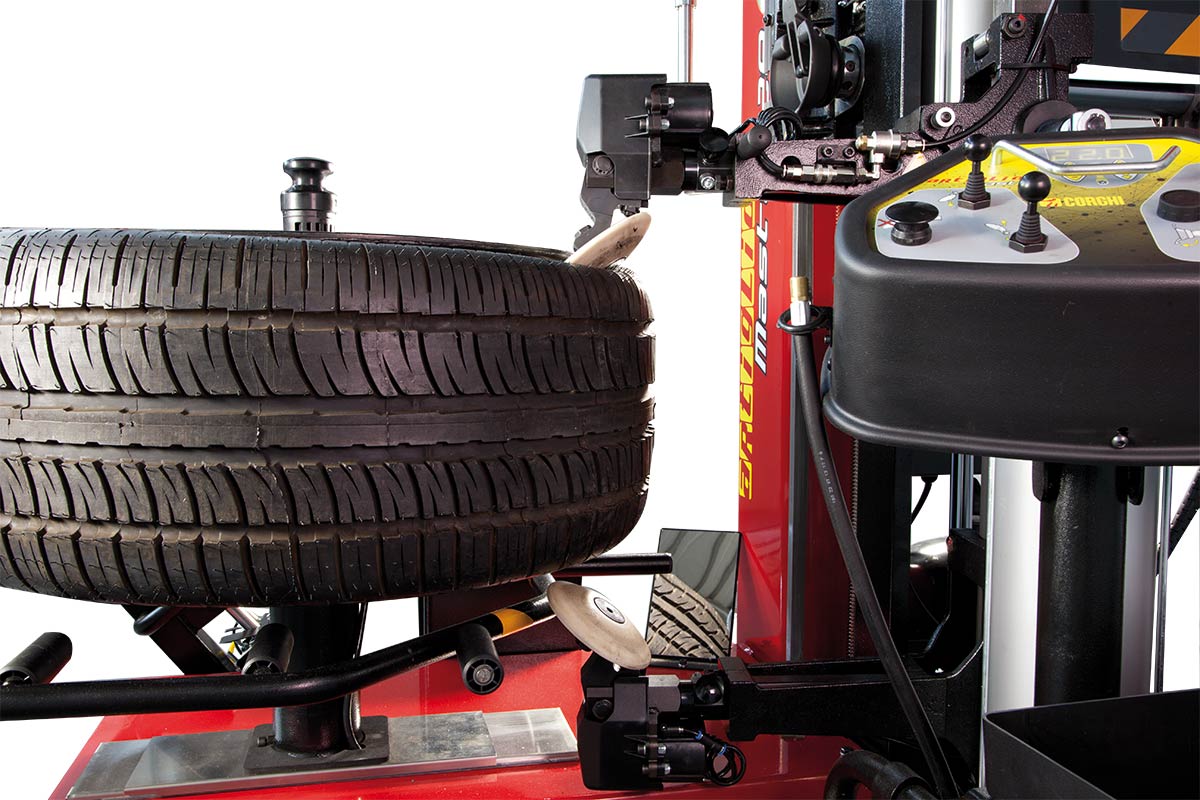

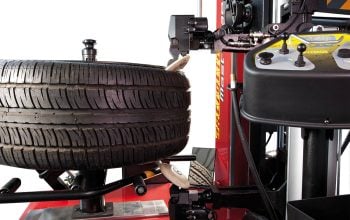

SAFE AND UNIVERSAL WHEEL CLAMP

The self-centring disc clamp
ensures quick and secure clamping
, allowing both sides of the tyre to be de-mounted without having to turn the wheel over, whilst maintaining optimum ergonomics.

Available in a manual version or an AUTOMATIC version with pneumatic clamping.

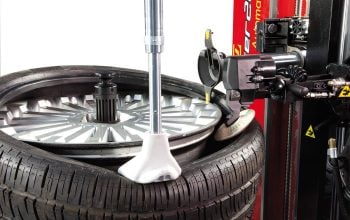

INTEGRATED PRESS FITTING

The tyre press, fitted as standard on all versions, is height-adjustable and is ideal for run-flat tyres, ensuring control and stability during the most demanding operations.

WORKPLACE ERGONOMICS

The pedals, control panel and wheel loading mechanism are all positioned on the same side, with a consistent working height
to reduce physical strain.
The wheel lift is available as an optional extra for even easier handling of heavier wheels.

Technical data

Wheel size range	Cerchio da 13” a 28”
Maximum tyre diameter	1100 mm
Maximum tyre width	406 mm (16”)
Tyre types	Convenzionali, ribassati, Run Flat
Engine	Motoinverter a 2 velocità
Maximum wheel weight	85 kg
Power supply	Elettrica 1Ph 230V / 110V – Pneumatica 8 ÷ 9,5 bar

Wheel size range

Cerchio da 13” a 28”

Maximum tyre diameter

1100 mm

Maximum tyre width

406 mm (16”)

Tyre types

Convenzionali, ribassati, Run Flat

Engine

Motoinverter a 2 velocità

Maximum wheel weight

85 kg

Power supply

Elettrica 1Ph 230V / 110V – Pneumatica 8 ÷ 9,5 bar
