EM 9350 C XLine


Automatic
wheel balancer

for car
and commercial vehicle wheels

EM-9350-C


Essential in operation.
Comprehensive in performance.

Get a Quote
Brochure
Images

The EM 9350 C XLine is the Corghi wheel balancer designed for workshops looking for a professional solution that combines precision, ease of use, and daily productivity.

Designed to work on car wheels, SUVs, light commercial vehicles, and motorcycles, it incorporates automatic functions that speed up the work and reduce operator intervention, while consistently maintaining high standards of precision.

Thanks to the automatic wheel data acquisition system, automatic counterweight positioning, and the PneuLock pneumatic locking system, the EM 9350 C allows you to work faster, with fewer errors, and achieve a higher-quality final result.

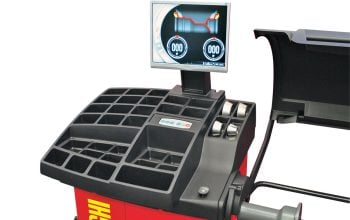

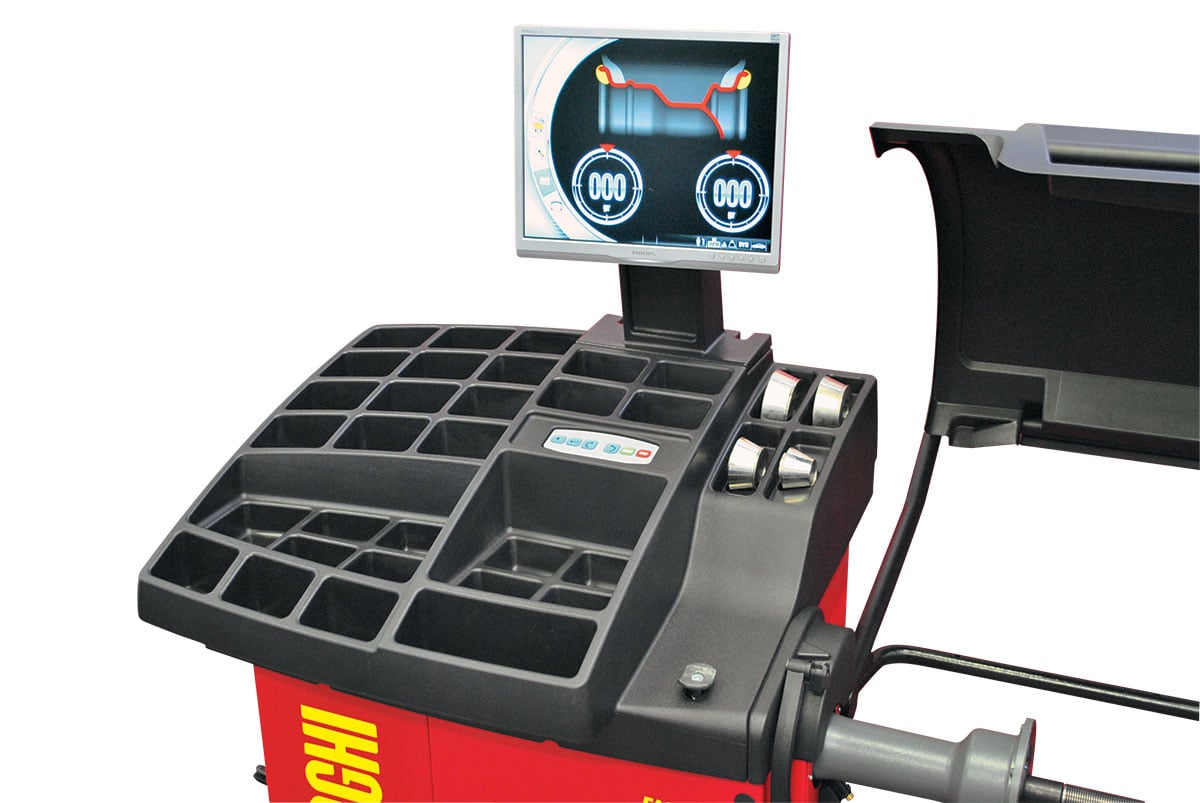

The machine is designed to offer a smooth and intuitive user experience, featuring an ergonomic workstation, advanced software, and a complete suite of professional programs dedicated to optimizing balancing.

Also available in the EM 9350 C version with automatic wheel clamping and the EM 9350 with manual wheel clamping.

Benefits

Greater speed with every balancing operation.

Maximum accuracy, fewer errors.

Higher daily productivity.

A sturdy construction, designed to last.

Features and functions

AUTOMATIC WHEEL DATA ACQUISITION WITH FSP

The electronic detection system automatically detects the wheel’s diameter and distance and, thanks to the FSP (Fast Selection Programme) function, directly activates the correct balancing programme. This reduces the need for manual settings and speeds up the entire process.

AUTOMATIC POSITIONING AND ELECTRIC BRAKE (RPA)


At the end of the throw, the wheel is automatically braked and moved to the exact point where the counterweight is applied.
This function improves operational precision and reduces the time taken to complete the balancing process.

LED AND LASER LINE ILLUMINATOR

The built-in LED light improves visibility of the work area, whilst the Laser Line pointer makes it easier to position the adhesive counterweights, making the process quicker and more precise.

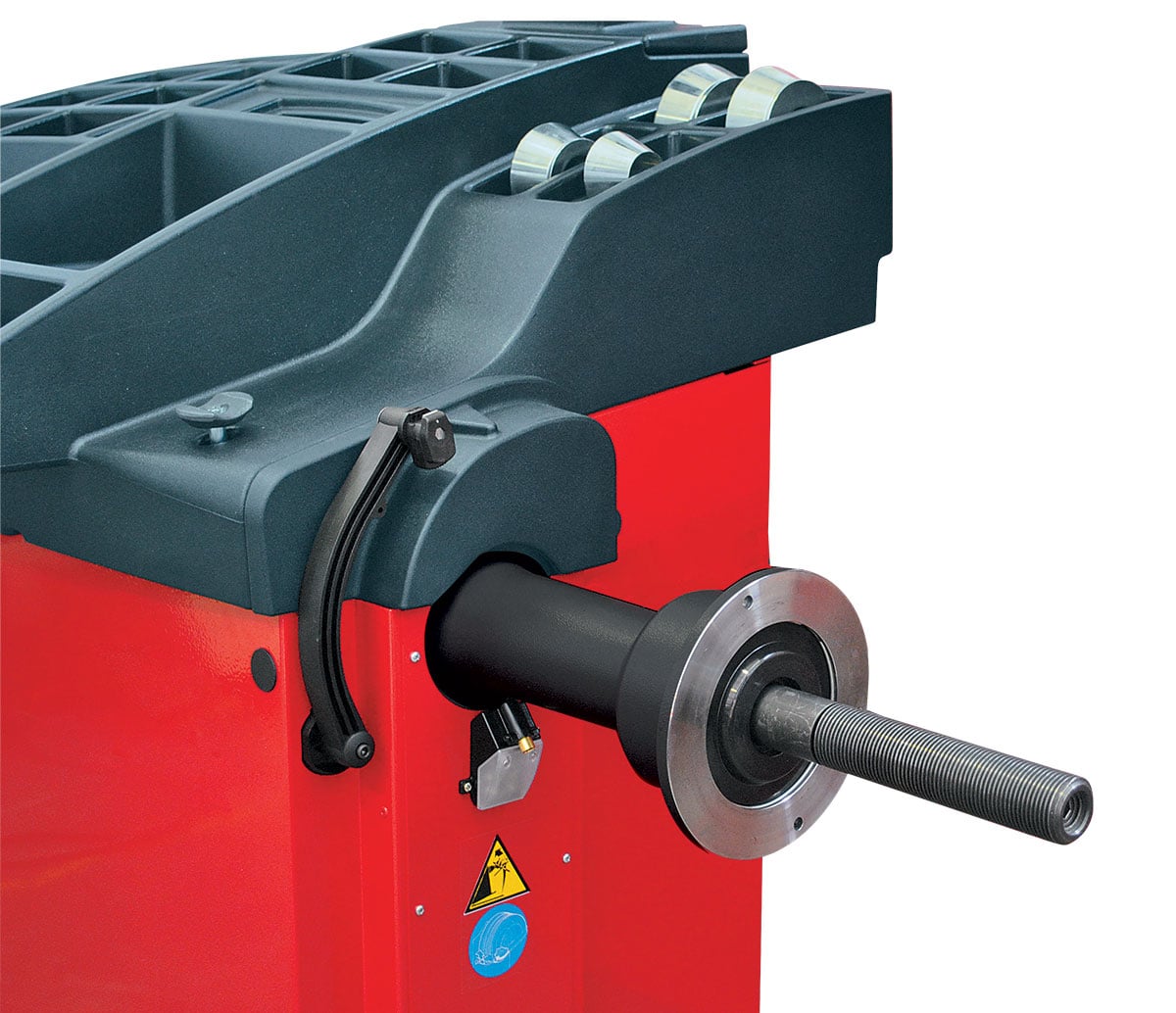

PNEULOCK AUTOMATIC LOCKING SYSTEM

The EM 9350 C model features the PneuLock automatic pneumatic system, designed to improve wheel centring and reduce operating times. The system ensures fast, precise and repeatable clamping, which is particularly valued in high-throughput workshops.

Technical data

Average measurement time

7 s
Rim width

1,5” – 20”
Rim diameter

11” – 28”
Maximum tyre width

600 mm
Maximum wheel diameter

1117 mm (44”)
Maximum wheel weight

85 kg
Machine weight

193 kg
Average measurement time

7 s

Rim width

1,5” – 20”

Rim diameter

11” – 28”

Maximum tyre width

600 mm

Maximum wheel diameter

1117 mm (44”)

Maximum wheel weight

85 kg

Machine weight

193 kg
