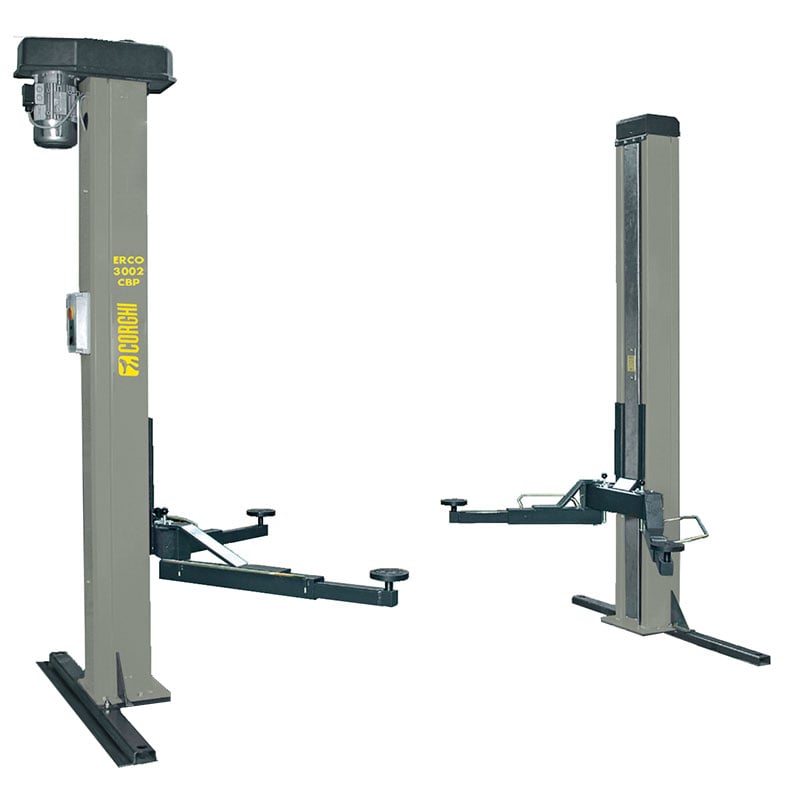

ERCO 3002 CBP

2-post electromechanical lift with base

The ideal solution when the upper portal is not an option

The ERCO 3002 CBP is a 2-post electromechanical lift with a base frame designed for workshops that require a compact, reliable solution suitable for environments with structural limitations. With a lifting capacity of 3,000 kg, it is ideal for the maintenance of cars and light vehicles.

The structure features high-rigidity columns with Chain drive, carriages on GSM guides, and an automatic control system that constantly monitors the chain, carriages, arms, and column adjustment. The removable base frame makes the lift particularly suitable for installations where an overhead connection between the columns cannot be used.

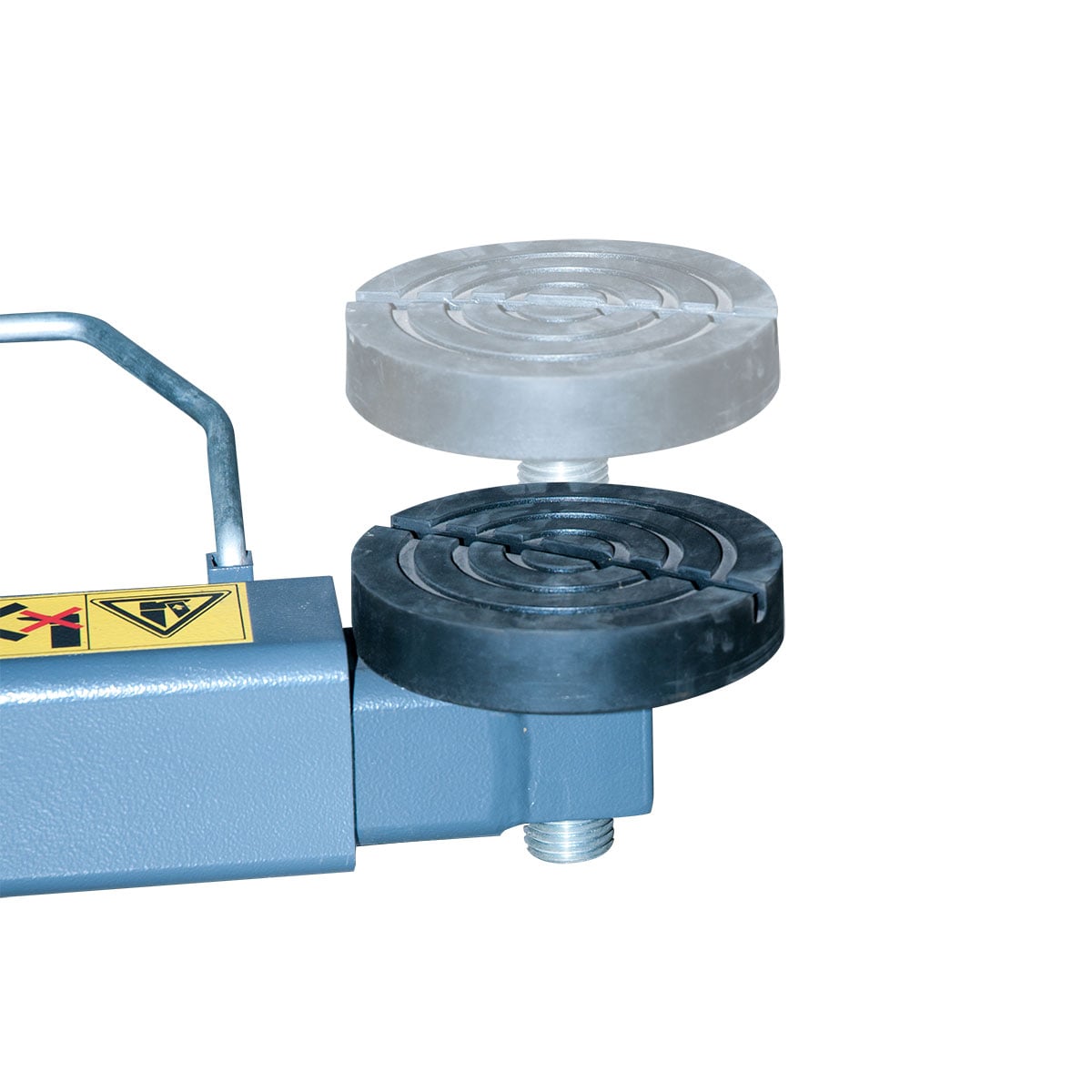

The two-stage asymmetrical arms and adjustable threaded lifting pads ensure operational convenience and ease of vehicle positioning.

Benefits

Ideal for workshops with height restrictions

Sturdy and reliable construction

Security is constantly monitored

Easy access to the vehicle

Features and functions

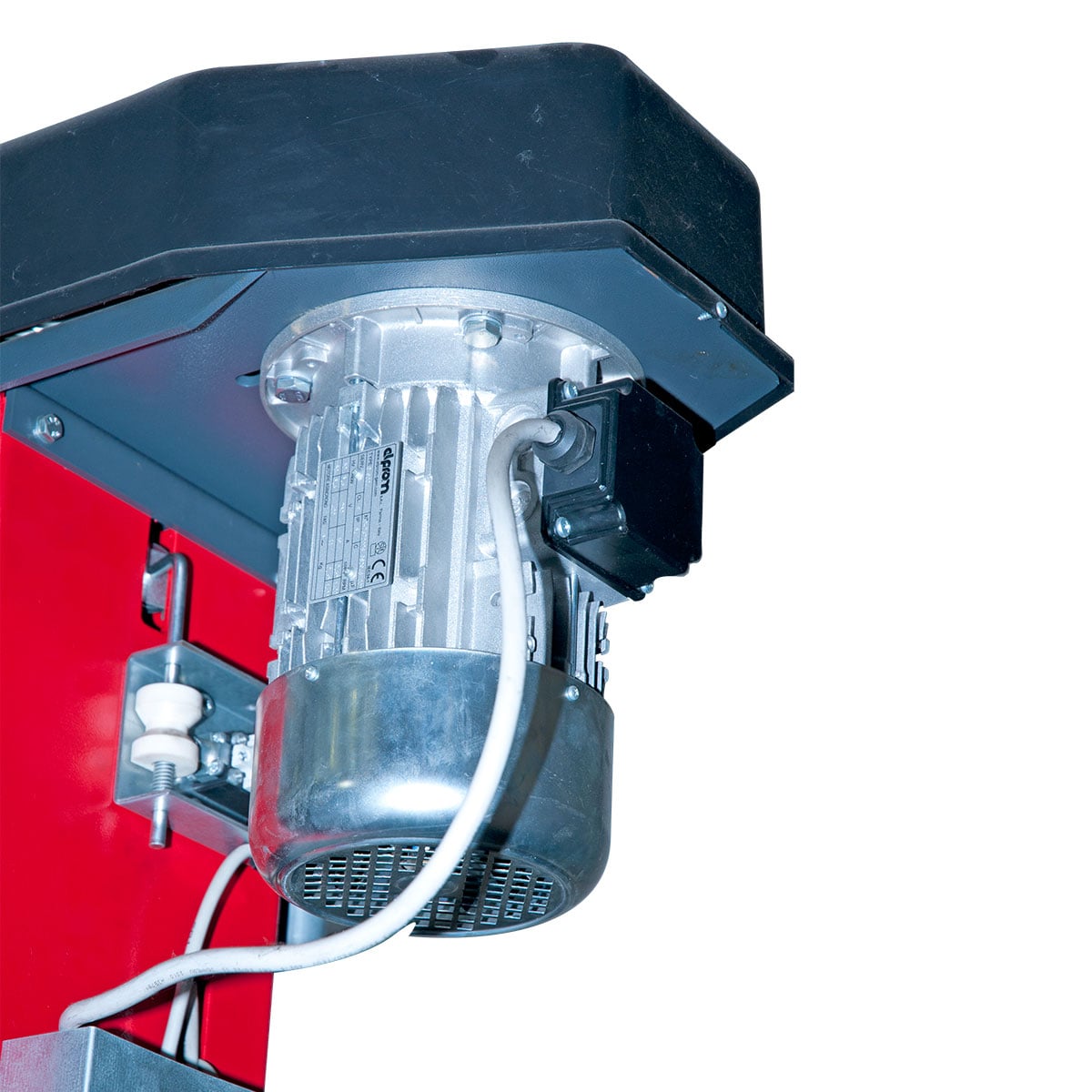

CHAIN DRIVE

A robust and reliable system designed to ensure synchronisation and long-term durability

REMOVABLE BASE

It allows installation even in areas where it is not possible to use bridges with top-mounted connections.

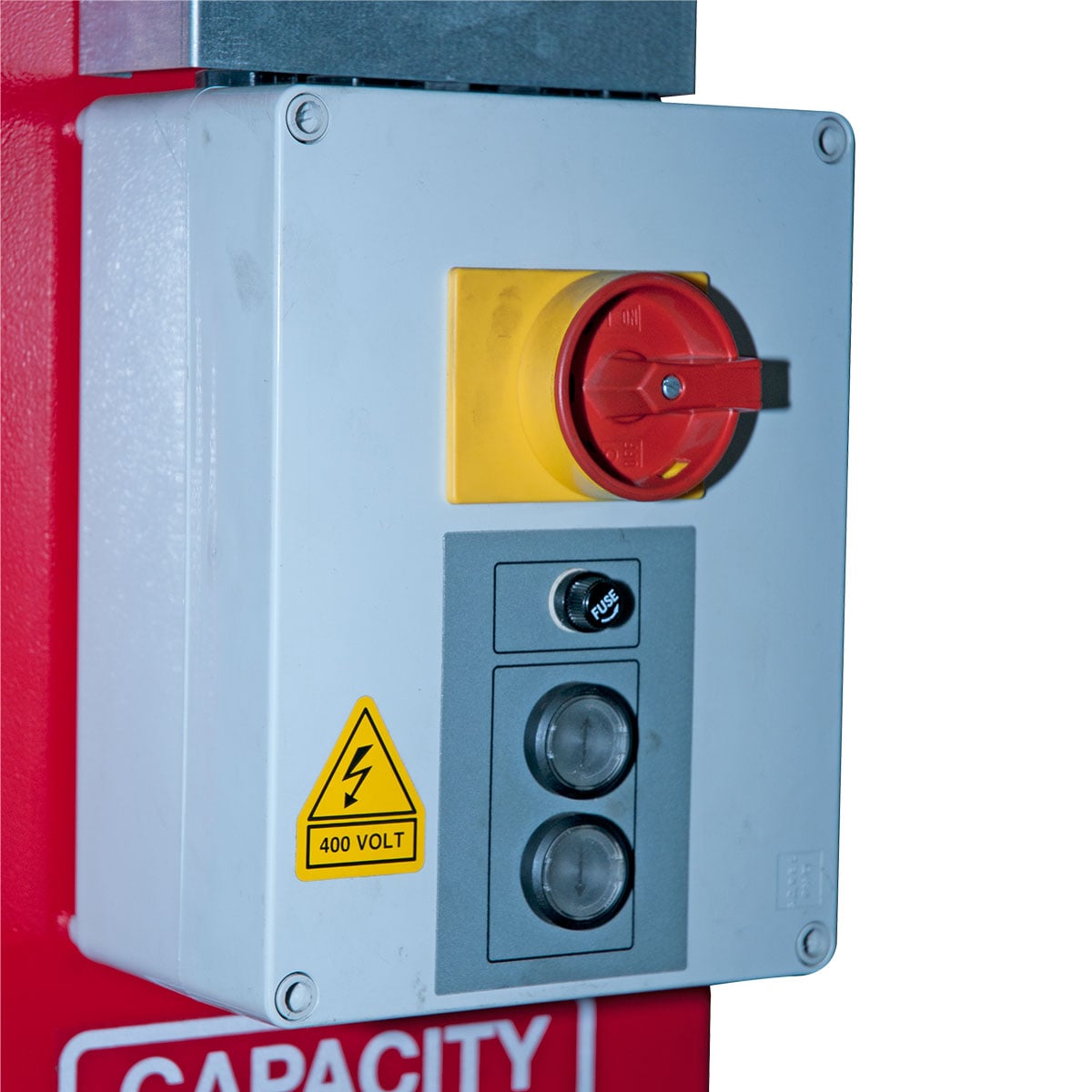

AUTOMATIC SAFETY CHECK

Constant monitoring of the hoist drum, chain, trolleys and arms, and adjustment of the columns to ensure the safe operation of the crane.

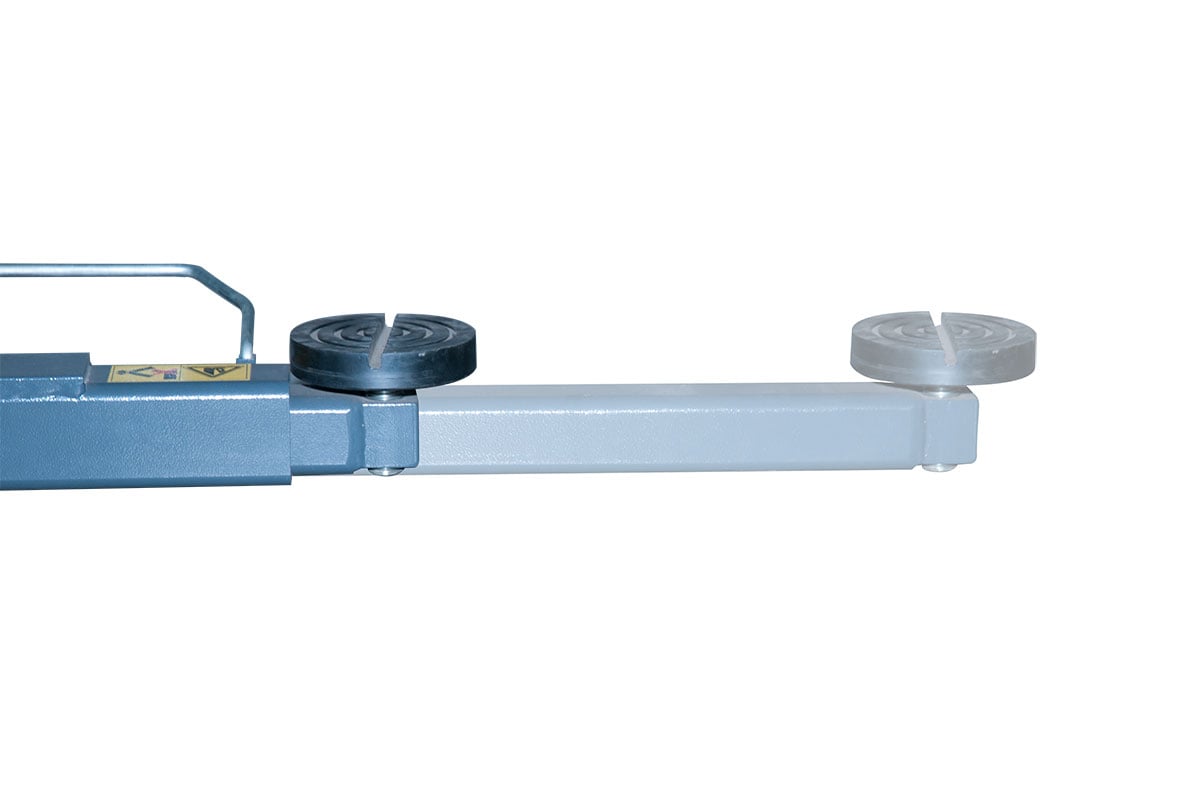

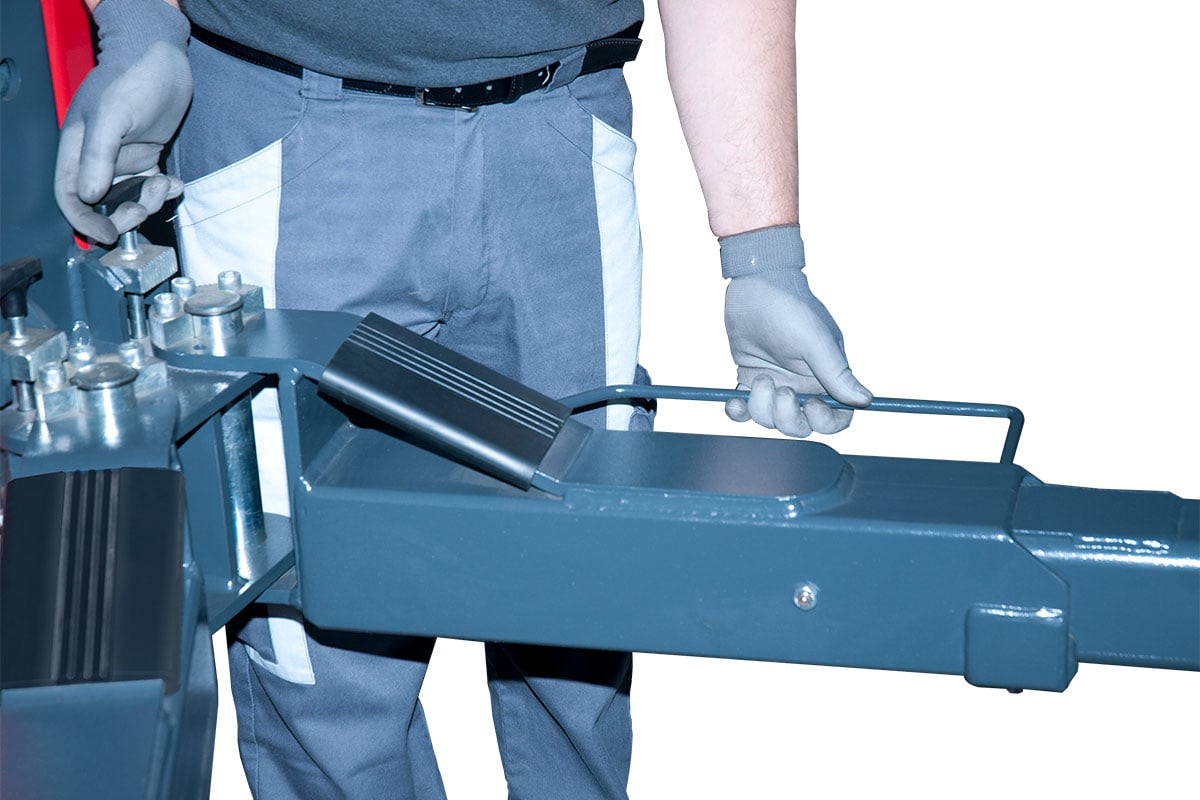

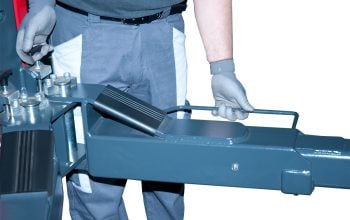

TWO-STAGE ASYMMETRICAL ARMS

Designed to make it easier to position the vehicle and improve accessibility during maintenance work.

Technical data

Maximum flow rate	3.000 kg
Arms	Asimmetrici a 2 stadi
Maximum lifting height	1.915 – 1.945 mm
Minimum socket height	90 mm
Transmission system	A catena
Power	3,6 kW
Power supply	230/400 V – 3 Ph – 50/60 Hz

Maximum flow rate

3.000 kg

Arms

Asimmetrici a 2 stadi

Maximum lifting height

1.915 – 1.945 mm

Minimum socket height

90 mm

Transmission system

A catena

Power

3,6 kW

Power supply

230/400 V – 3 Ph – 50/60 Hz

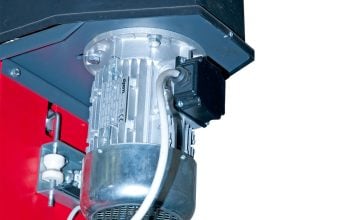

Gallery
