The ERCO HC4502 B is a 2-post electro-hydraulic lift with a floor connection base designed for workshops with low ceilings. With a lifting capacity of 4,500 kg, 3-stage asymmetrical arms, and a Reinforced structure, it offers a reliable and versatile solution for servicing cars, SUVs, and light commercial vehicles.
The rope synchronization system ensures proper realignment of the carriages during each work cycle, while the low-profile arms facilitate lifting even the lowest vehicles.
Also available in the ERCO HC3502 B version with a maximum capacity of 3,500 kg.
ERCO HC4502 B
Two-post
electro-hydraulic vehicle lift with floor-mounted base
The ideal
solution for workshops
with limited headroom
Benefits
Load capacity up to 4,500 kg
Ideal for workshops with low ceilings

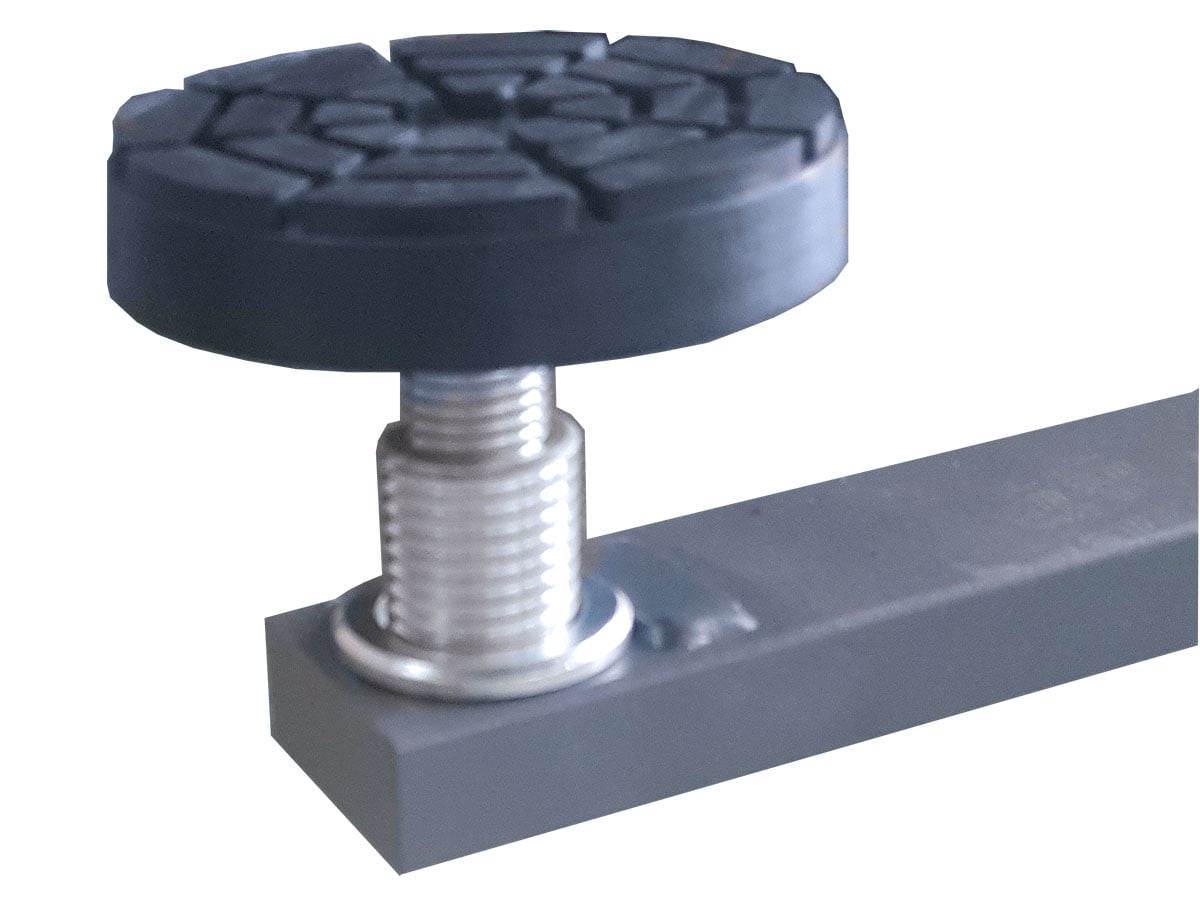

Arms suitable for lowered vehicles
Sturdy and reliable construction
Features and functions
EARTH CONNECTION BASE
Ideal for environments with limited headroom, whilst still ensuring practicality and operational reliability.

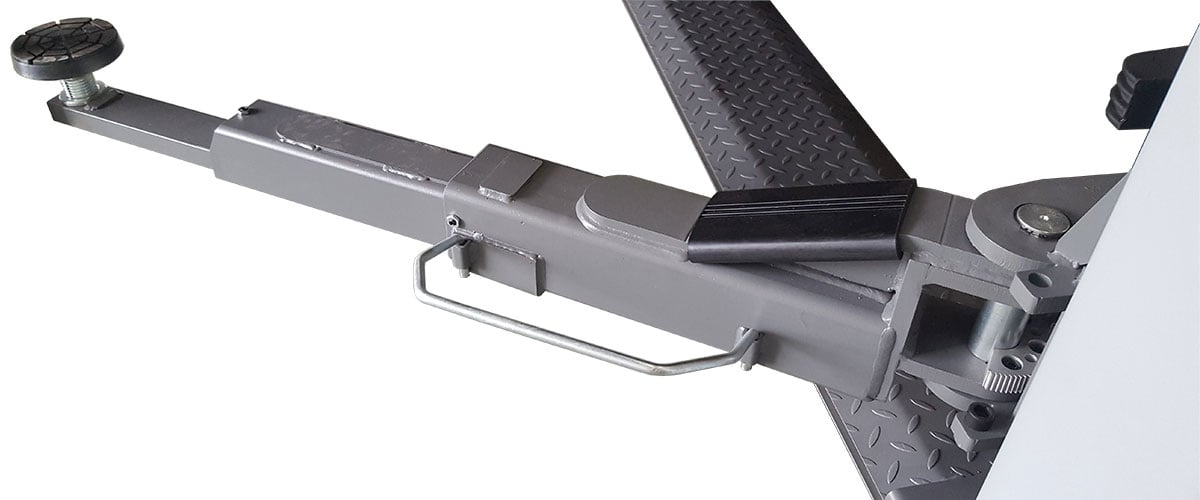

3-STAGE ASYMMETRICAL ARMS
They offer a wide range of clamping options and make it easy to fit them to different types of vehicle.
SYNCHRONISATION USING METAL CABLES
It ensures precise realignment of the trolleys and stable movement during lifting.
INTEGRATED PROTECTION AND SAFETY FEATURES
Rubber door-guard protectors, rotation stops on the toothed sector arms and mechanical supports for the carriages to ensure maximum safety whilst working.
Technical data
| Maximum flow rate | 4,500 kg |
| Maximum lifting height | 2,003 mm |
| Minimum height | 115 mm |
| Engine power | 3 kW |
| Power supply | 230/400 V – 3-phase – 50/60 Hz / 230 V – single-phase |
Maximum flow rate
4,500 kg
Maximum lifting height
2,003 mm
Minimum height
115 mm
Engine power
3 kW
Power supply
230/400 V – 3-phase – 50/60 Hz / 230 V – single-phase
