The ERCO 3212N is the Corghi 2-post electromechanical lift designed to offer reliability, simple construction, and low operating costs.
With a lifting capacity of 3,200 kg, it is an ideal solution for repair shops that work on cars and SUVs on a daily basis. The movement and synchronization of the columns are handled by a robust chain drive, a proven solution that ensures reliability and ease of maintenance.
Also available in the ERCO 3212N CBP version with a load-bearing base frame, ideal when the floor does not meet the minimum requirements for installing the standard version.
ERCO 3212N
2-post electromechanical
lift
Simple, robust
and reliable for
day-to-day maintenance
Benefits
Load capacity up to 3,200 kg
Tried-and-tested chain drive
Reduced maintenance
Available with a load-bearing base
Features and functions

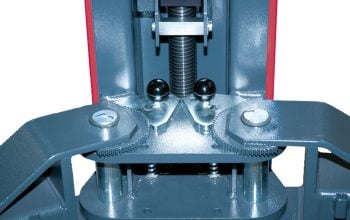

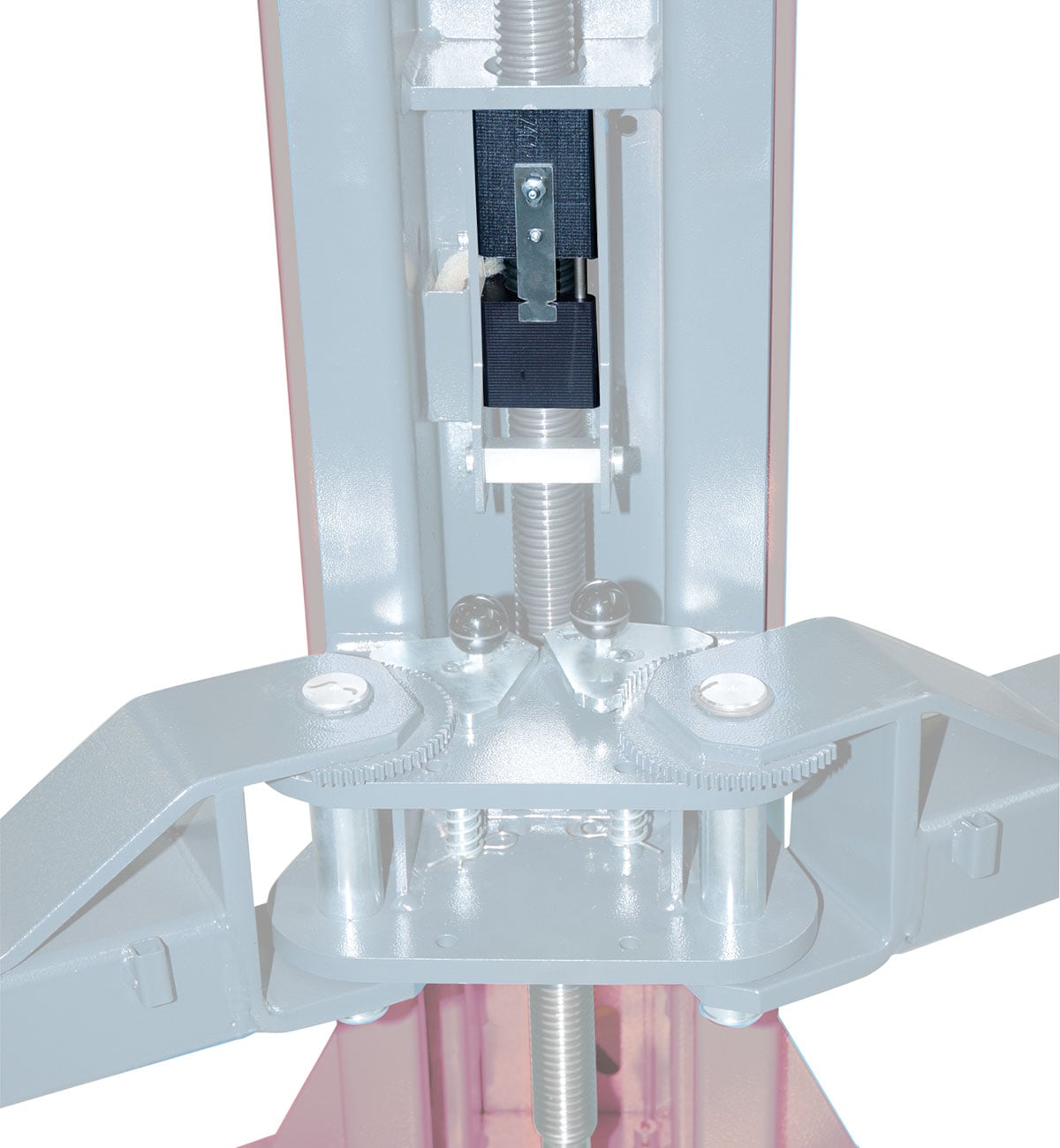

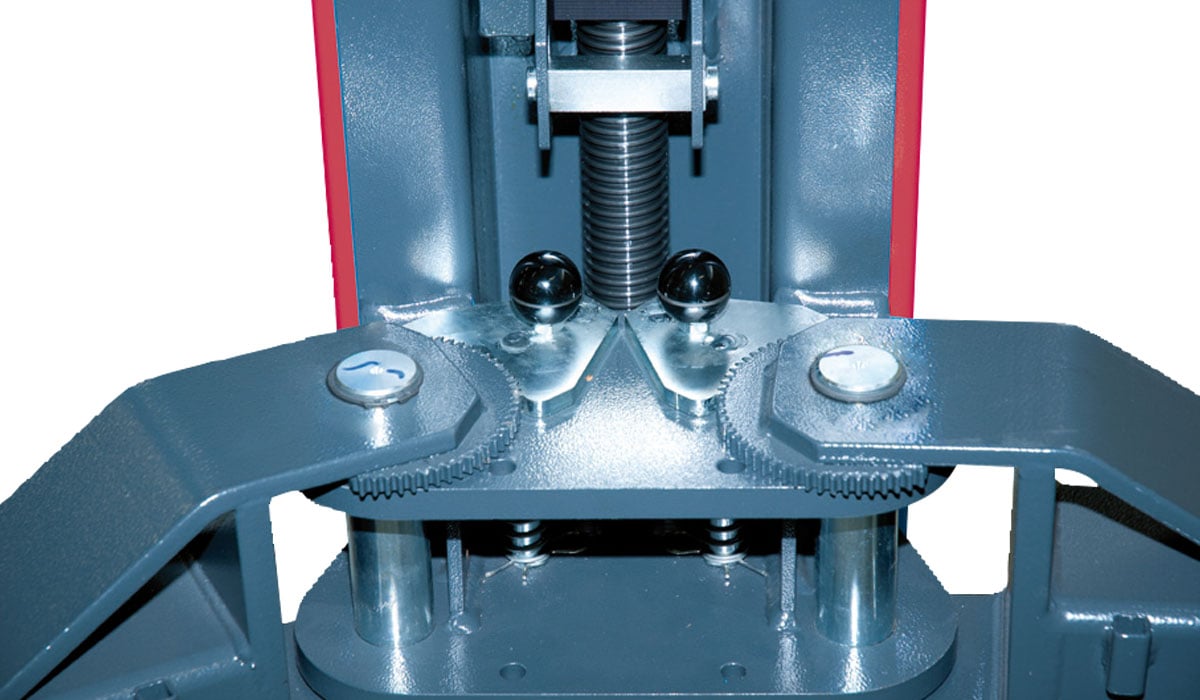

CHAIN DRIVE
The two columns are synchronised by means of a sturdy roller chain.
NYLON SNALS
Long service life, quiet operation and reduced maintenance requirements.

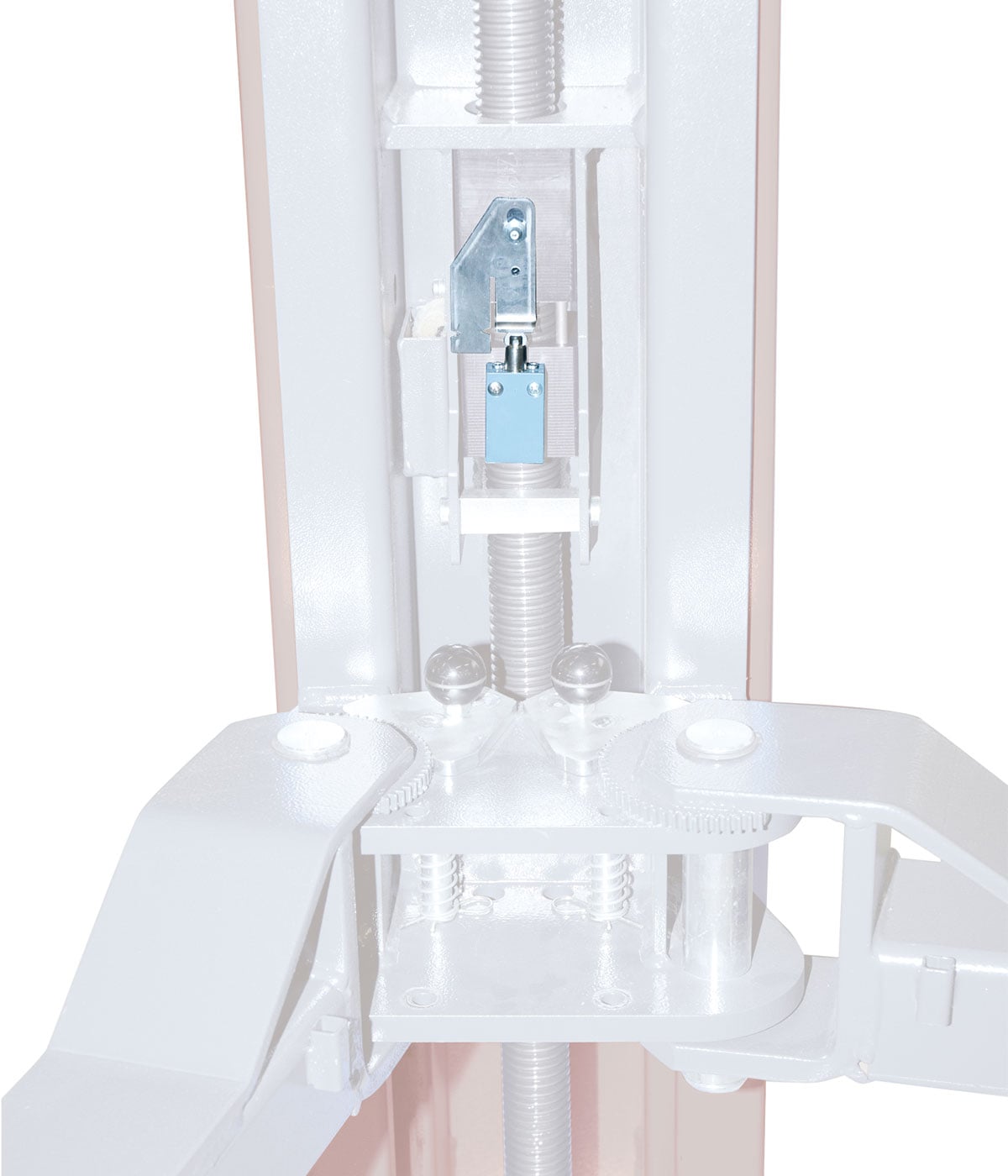

ANTI-WEAR SAFETY DEVICE
It automatically stops the winch in the event of excessive wear on the drive screw.
CBP VERSION
A load-bearing base designed for installation on floors that do not meet the minimum requirements.
Technical data
| Type | Ponte sollevatore elettromeccanico a 2 colonne |
| Maximum flow rate | 3.200 kg |
| Synchronisation system | Trasmissione a catena |
| Engine power | 3,6 kW |
| Power supply | 230/400 V – 3 Ph – 50/60 Hz |
| Snail | Nylon portante e di sicurezza |
| Related version | ERCO 3212N CBP |
| Supporting base | Disponibile |
Type
Ponte sollevatore elettromeccanico a 2 colonne
Maximum flow rate
3.200 kg
Synchronisation system
Trasmissione a catena
Engine power
3,6 kW
Power supply
230/400 V – 3 Ph – 50/60 Hz
Snail
Nylon portante e di sicurezza
Related version
ERCO 3212N CBP
Supporting base
Disponibile
