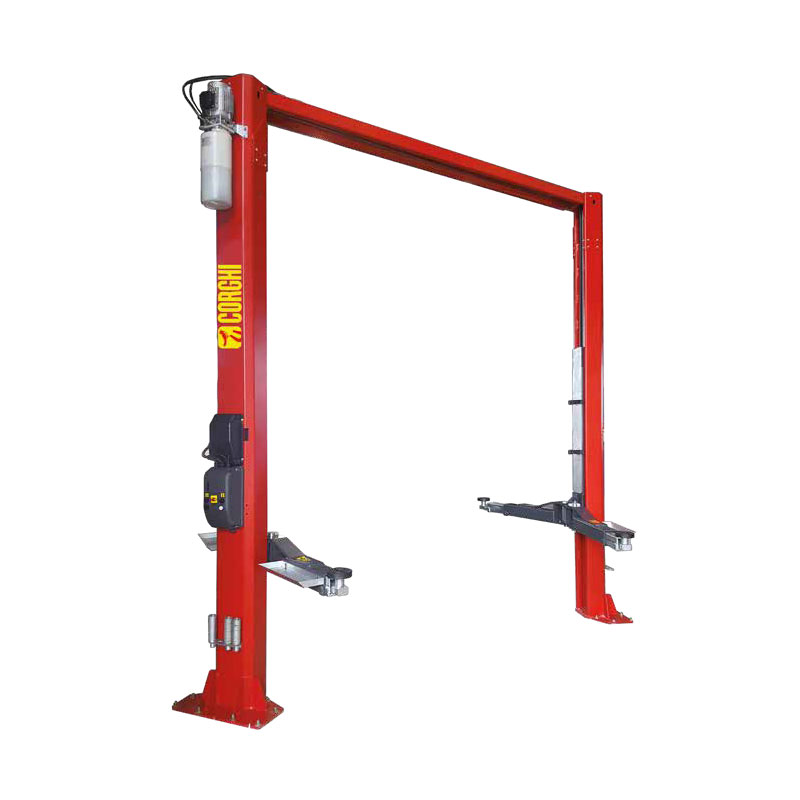

The ERCO HC5502 is a 2-post electro-hydraulic lift with an overhead beam designed for workshops that service cars, SUVs, commercial vehicles, and light-duty fleets. With a lifting capacity of 5,500 kg, a choice of symmetrical or asymmetrical configurations, and sturdy 3-stage telescopic arms, it offers high flexibility and reliability in daily maintenance operations.
The column structure is internally reinforced to reduce deflection, while the rope synchronization system ensures proper realignment of the carriages during each work cycle.
Also available in the ERCO HC4502 version with a maximum capacity of 4,500 kg.
ERCO HC5502
2-post
electro-hydraulic
lift
with overhead gantry
Maximum load capacity
and great
versatility for cars
and commercial vehicles
Benefits
Up to 5,500 kg
Suitable for every need
Highly reliable, reinforced structure
Features and functions

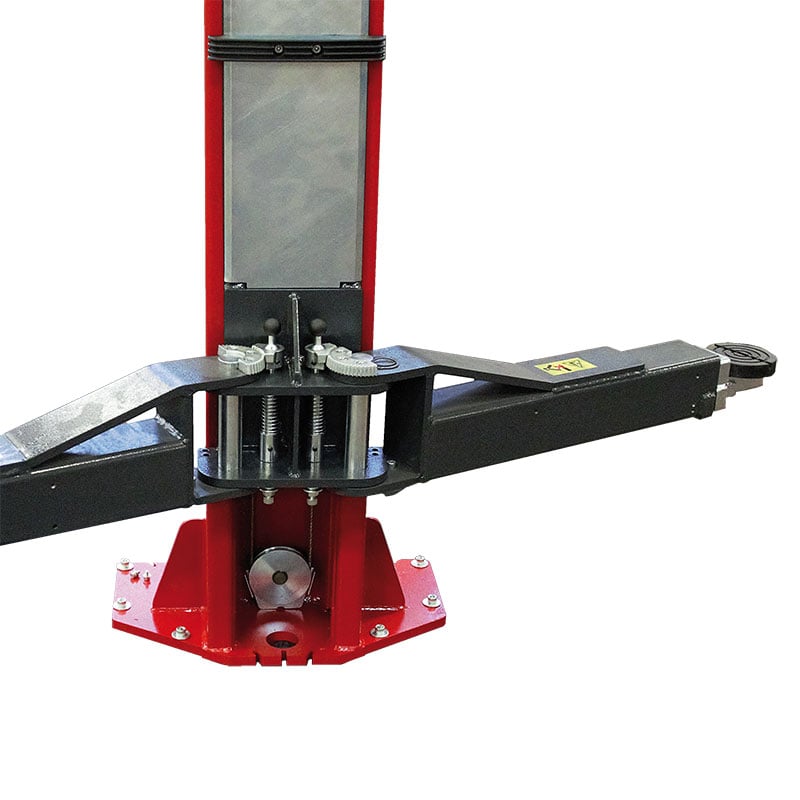

3-STAGE TELESCOPIC ARMS
The arms provide a versatile grip on different types of vehicle, ensuring stability and safety.
SYNCHRONISATION USING METAL CABLES
The realignment of the trolleys ensures smooth movement and a high degree of operational precision during lifting.
V AND XV CONFIGURATION
Versions with raised columns are available to enable the lifting of particularly tall commercial vehicles.

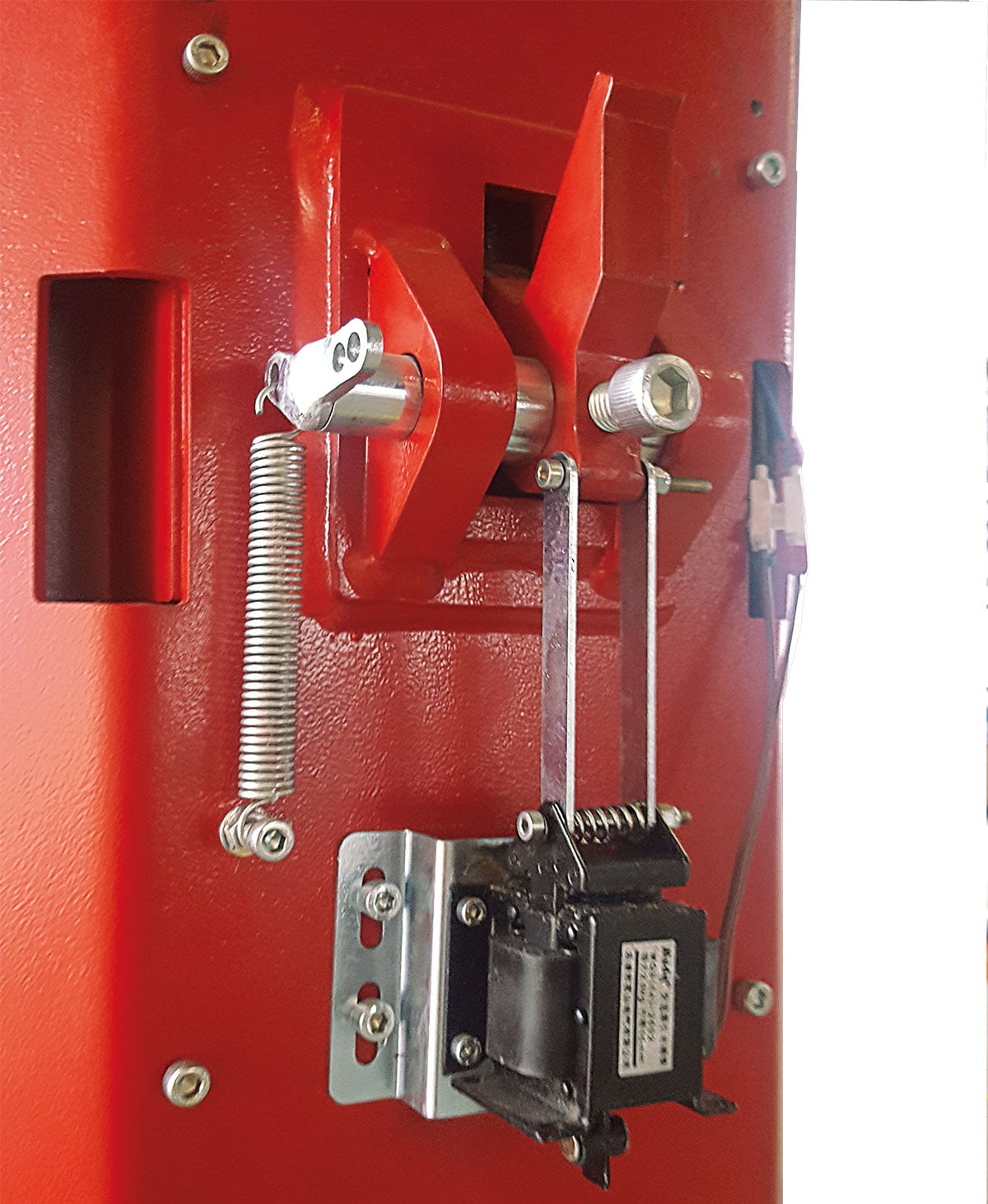

ELECTROMAGNETIC SAFETY DEVICES
A 24V safety unlocking system designed to improve convenience and operational safety.
Technical data
| Maximum capacity | 5,500 kg |
| Maximum height | 2,062 mm |
| Minimum height | 115 mm |
| Engine power | 3 kW |
| Voltage | 230/400 V – 3-phase – 50/60 Hz / 230 V – single-phase |
Maximum capacity
5,500 kg
Maximum height
2,062 mm
Minimum height
115 mm
Engine power
3 kW
Voltage
230/400 V – 3-phase – 50/60 Hz / 230 V – single-phase
