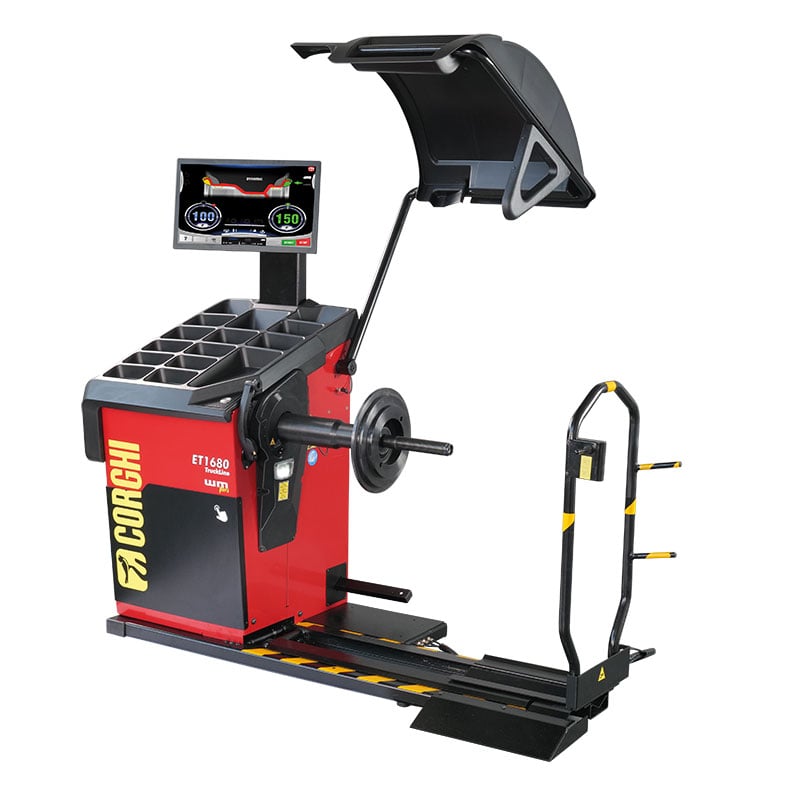

ET1680 Truckline

Touchscreen wheel balancer for lorries, buses and industrial vehicles

ET1680

Maximum capacity, advanced technology and uncompromising productivity.

Get a Quote
Brochure
Images

The ET1680 TruckLine is Corghi’s wheel balancer developed for the truck and heavy-duty sector, designed to ensure precision, speed, and ease of operation even when handling the heaviest wheels.

Equipped with a 22-inch Touchscreen monitor, Smart Arm Plus, and an integrated pneumatic lift, it allows for work on wheels weighing up to 300 kg, minimizing operator effort and improving the efficiency of the entire balancing process.

The machine combines intelligent automation, measurement precision, and advanced diagnostic functions, offering professionals in the truck industry a tool capable of enhancing service quality and reducing turnaround times.

Designed for fleets, truck repair shops, tyre centers, and heavy transport specialists, the ET1680 represents an advanced solution that combines productivity, ergonomics, and innovation.

Benefits

It can easily handle wheels weighing up to 300 kg

Greater productivity, less effort

Professional precision on every type of wheel

Greater value for the end customer

Features and functions

SMART ARM PLUS WITH FSP AND LASERBLADE

SMART ARM PLUS WITH FSP AND LASERBLADE

The Smart Arm Plus system automatically detects the distance and diameter of wheels up to 30″, independently activating the correct programme thanks to the FSP (Fast Selection Programme) function. The LaserBlade pointer improves precision when positioning and identifying the inner surfaces of the rim, reducing errors and cutting down on operating times.

22-inch touchscreen and intuitive interface

22-inch touchscreen and intuitive interface

The large 22-inch touchscreen makes it easy to select programmes and manage wheel-balancing operations. The interface is designed to ensure speed of operation, even during the intensive workloads typical of truck workshops.

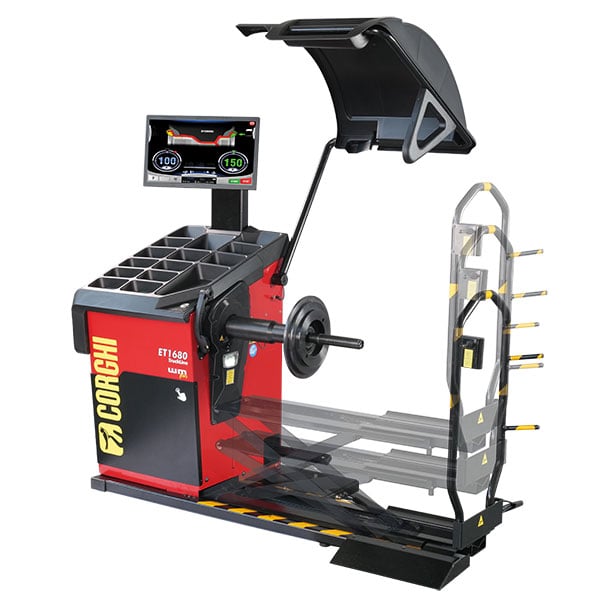

INTEGRATED 300 KG PNEUMATIC LIFT

INTEGRATED 300 KG PNEUMATIC LIFT

The integrated low-profile lift easily handles wheels weighing up to 300 kg, making loading easier and ensuring correct centring without any strain on the operator. A solution designed to improve ergonomics, safety and productivity.

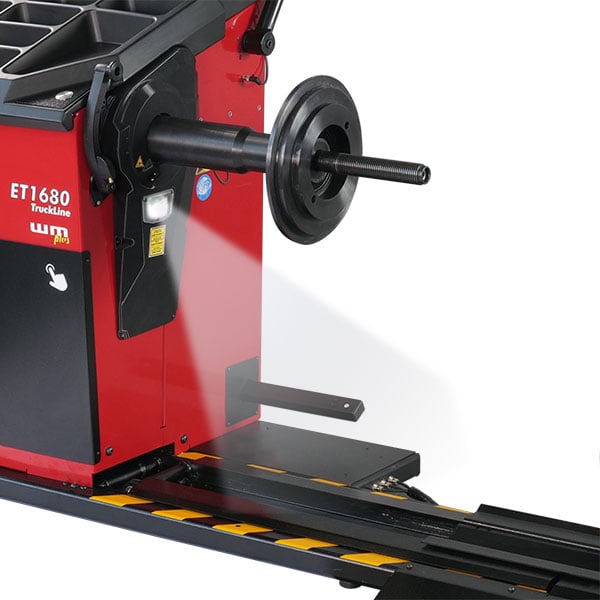

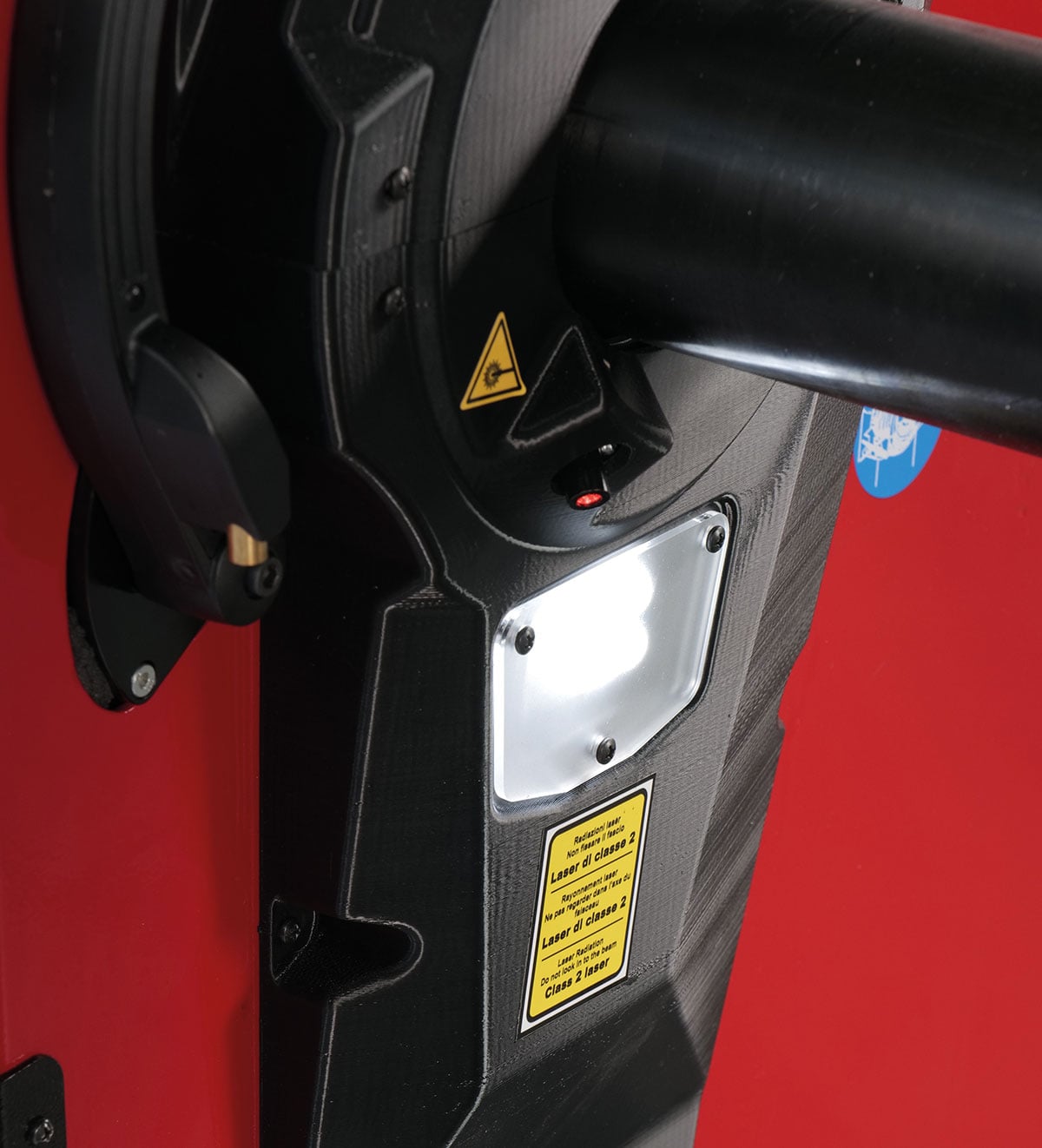

LASER LINE PRO AND LED LIGHT SOURCE

LASER LINE PRO AND LED LIGHT SOURCE

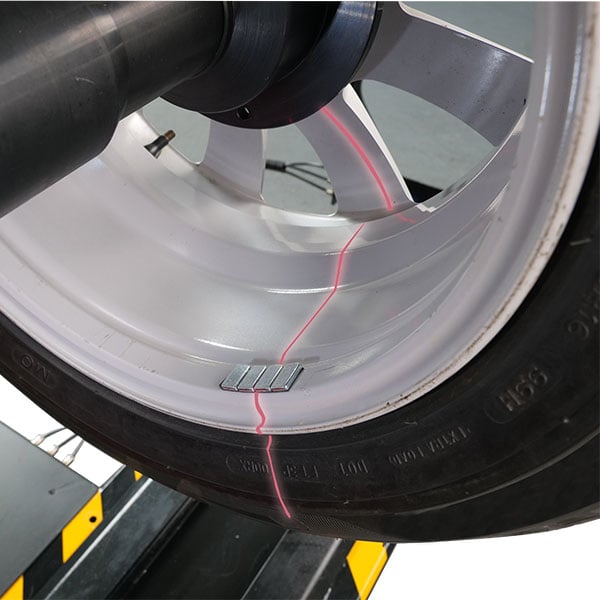

The application of the adhesive counterweights is guided by the Laser Line Pro system, which enables quick and precise positioning. The integrated LED light improves visibility of the work area, making it easier to clean the rim and carry out balancing operations.

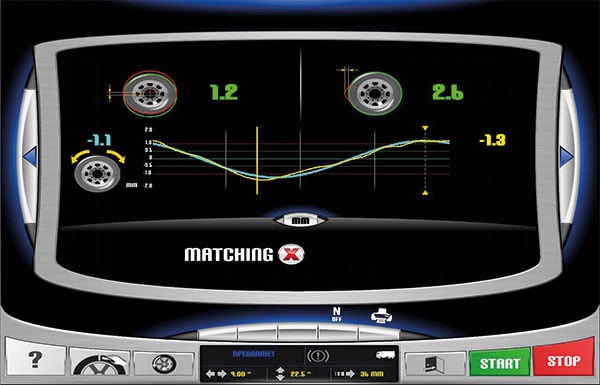

ADVANCED DIAGNOSIS AND BEST FIT

ADVANCED DIAGNOSIS AND BEST FIT

When fitted with the optional sonar sensors, the ET1680 becomes a fully-fledged diagnostic station for truck wheels. The Run-Out, Best Fit and Fast Matching functions enable the identification and correction of geometric defects responsible for vibrations that cannot be resolved by traditional balancing alone.

DPA AND ELECTROMAGNETIC BRAKE

The Direct Positioning Automatic function automatically positions the wheel at the correct balancing point at the end of the cycle. The electromagnetic brake makes it easier to apply the counterweights and to carry out fitting and removal operations, making the process quicker and less tiring.

Technical data

Rotational speed

100 rpm vettura / 80 rpm autocarro
Average measurement time

8 – 16 s
Rim width

1,5″ – 20″ (40 – 510 mm)
Rim diameter

10″ – 30″ (265 – 765 mm)
Maximum wheel weight

300 kg (660 lb)
Maximum wheel diameter

52″ (1321 mm)
Machine weight

260 kg (573 lb)
Rotational speed

100 rpm vettura / 80 rpm autocarro

Average measurement time

8 – 16 s

Rim width

1,5″ – 20″ (40 – 510 mm)

Rim diameter

10″ – 30″ (265 – 765 mm)

Maximum wheel weight

300 kg (660 lb)

Maximum wheel diameter

52″ (1321 mm)

Machine weight

260 kg (573 lb)
