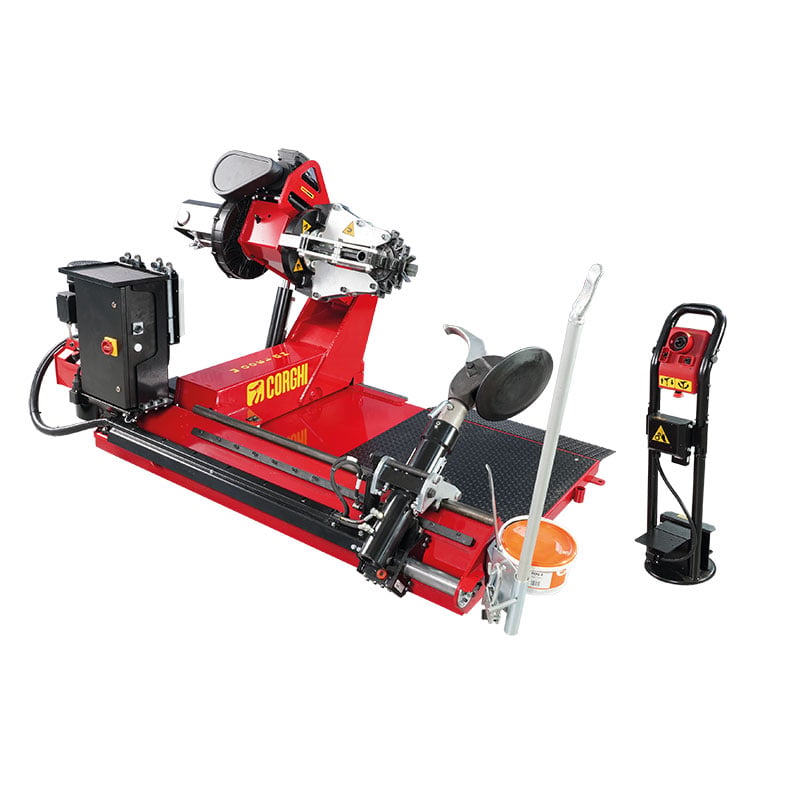

HD 1300

Semi-automatic universal tyre changer for lorry, agricultural and earth-moving tyres up to 56”

Direct control, robustness and reliability for everyday work on industrial wheels

The HD 1300 is Corghi’s semi-automatic tyre changer, designed to offer a reliable and practical solution for working on truck tyres, agricultural tyres, and earthmoving tyres, ensuring ease of operation and direct control over the process.

Designed for workshops that work with industrial wheels on a daily basis, it allows for efficient operation while maintaining full control over the process, with a structure built to withstand the stresses typical of the heavy-duty sector.

The HD 1300 E is the ideal solution for those seeking a robust, versatile, and uncomplicated tyre changer capable of consistently handling work on trucks and light OTR vehicles.

Benefits

Full control by the operator

Robustness for heavy-duty use

Ease of use, even for less experienced operators

Suitable for various types of vehicles

Features and functions

SEMI-AUTOMATIC CONFIGURATION

The HD 1300 enables the operator to manage the work stages directly, offering greater sensitivity and control during assembly and disassembly operations.

This configuration is particularly suitable for workshops where experience and manual dexterity are key assets.

SELF-CENTRING DEVICE FOR TRUCK WHEELS

The self-centring clamping system is designed to ensure stability and operational safety, enabling continuous work on a wide range of industrial wheels.

INDEPENDENT MOVEMENTS

The movements of the self-centring mechanism and the tool arm are independent, allowing the wheel to be positioned quickly and enabling greater operational freedom.

This results in greater efficiency and time savings in day-to-day operations.

HEAVY-DUTY STRUCTURE

The structure is designed to withstand the stresses typical of truck and OTR applications, ensuring:

stability during operation
long-term reliability
operational safety

WORKPLACE ERGONOMICS

The layout of the controls and the work area ensures simple and intuitive operation, enhancing operator comfort and reducing fatigue during repetitive tasks.

Technical data

Maximum tyre width	1,300 mm
Maximum wheel diameter	2,200 mm
Clamping capacity	14” – 56”
Minimum diameter of the central wheel hole	110 mm
Hydraulic power unit motor	3-phase – 1.5 kW
Rotation motor	3-phase – 1.3 to 1.8 kW (two speeds)
Max torque	4,200 Nm
Come on, stud!	2,900 kg
Maximum weight of wheel that can be lifted	1,700 kg
Lifting cylinder capacity	2,200 kg
Power supply	400/230 V – 3-phase – 50/60 Hz
Machine weight: 1,000 kg	1,000 kg

Maximum tyre width

1,300 mm

Maximum wheel diameter

2,200 mm

Clamping capacity

14” – 56”

Minimum diameter of the central wheel hole

110 mm

Hydraulic power unit motor

3-phase – 1.5 kW

Rotation motor

3-phase – 1.3 to 1.8 kW (two speeds)

Max torque

4,200 Nm

Come on, stud!

2,900 kg

Maximum weight of wheel that can be lifted

1,700 kg

Lifting cylinder capacity

2,200 kg

Power supply

400/230 V – 3-phase – 50/60 Hz

Machine weight: 1,000 kg

1,000 kg

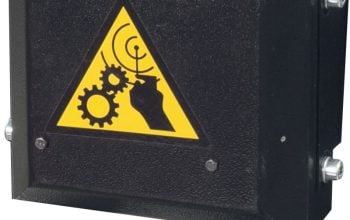

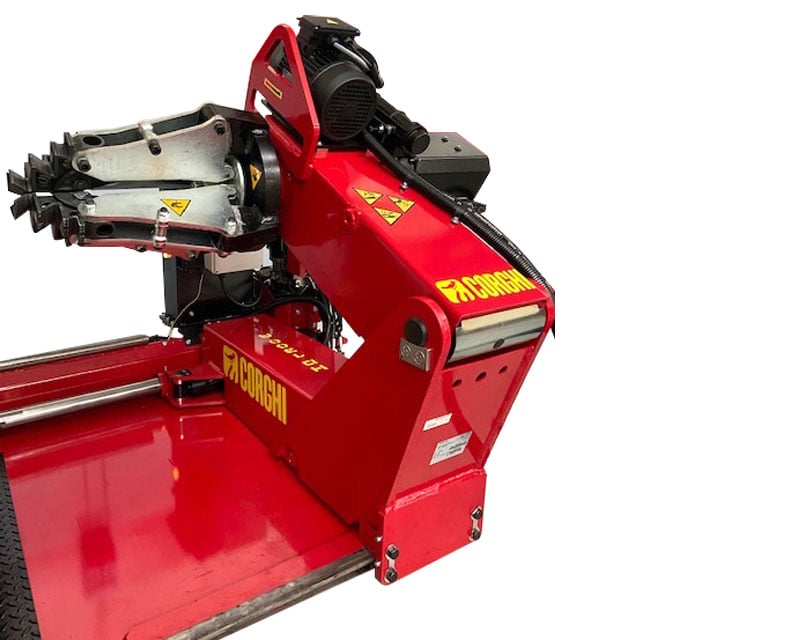

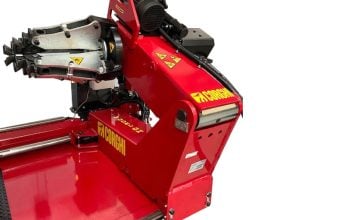

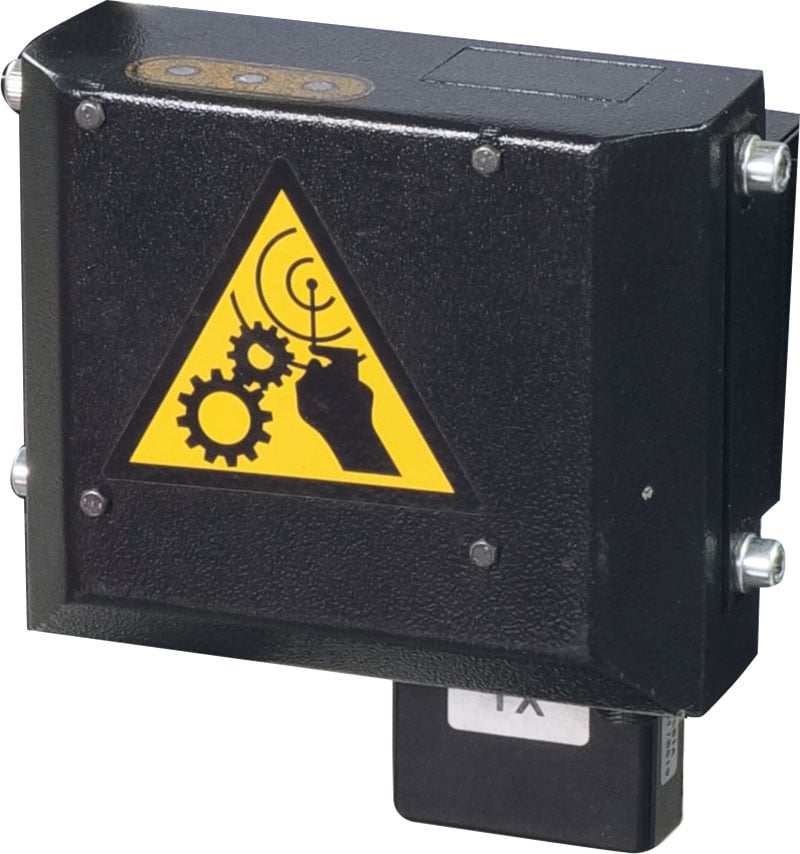

Gallery
